3mm Width Aluminum Tab as Positive Terminal for Pouch Li-ion Cell

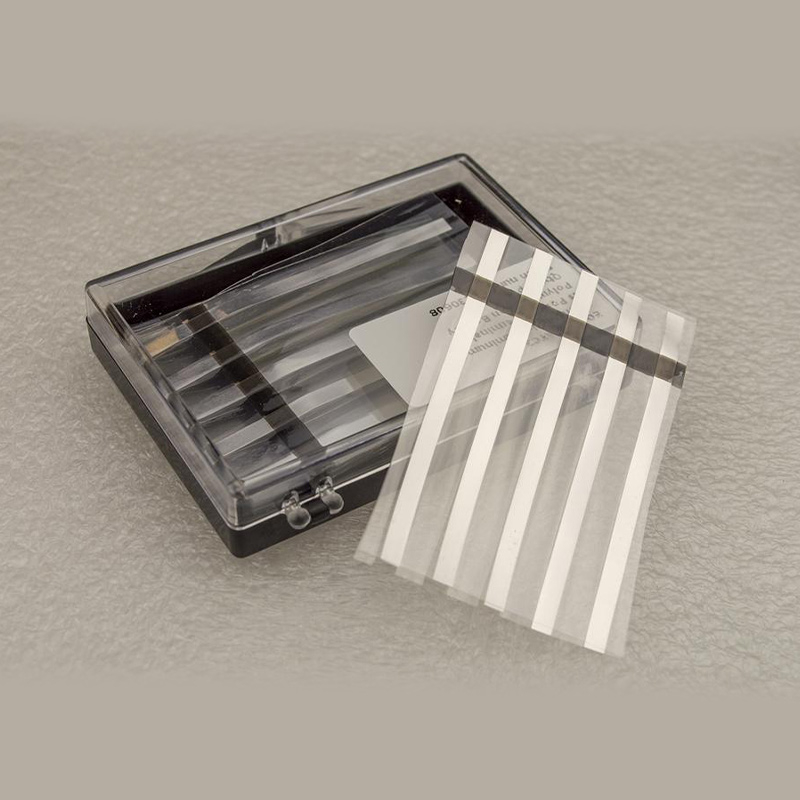

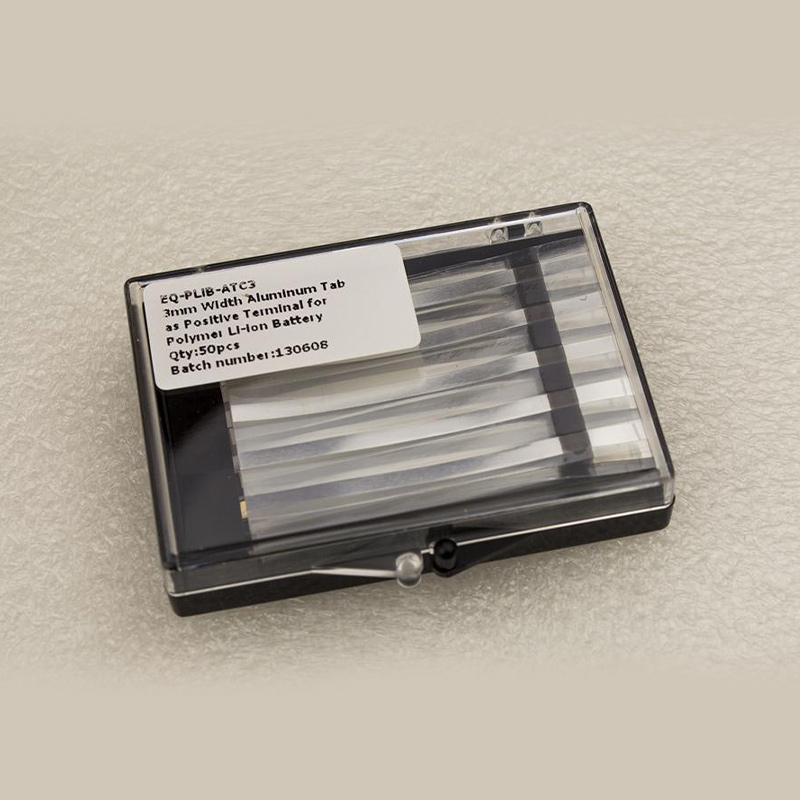

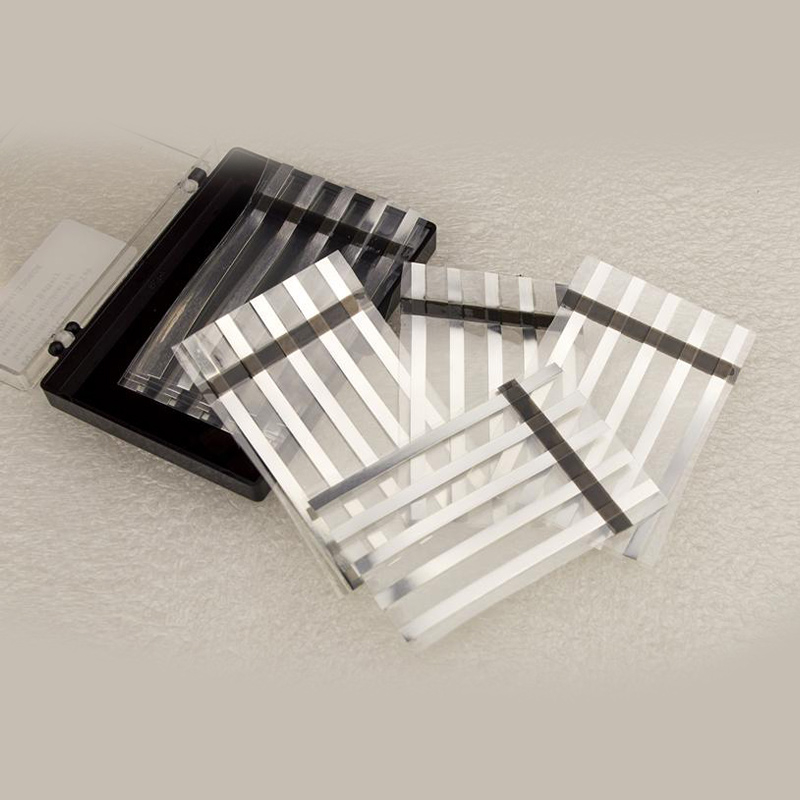

    Aluminum Tabs with 3mm width, for use as the Positive Terminal of Polymer Li-ion Batteries    40pcs/Box


Aluminum Tabs with 3mm width, for use as the Positive Terminal of Polymer Li-ion Batteries    40pcs/Box

Aluminum Tabs Specification:

Material

Aluminum 99.99% (horizontal polymer strip   is made of modified polypropylene (PP) and  polyethylene   naphthalate (PEN))

Length

60mm ±1.0

Width

3mm ±0.1

Thickness

0.1mm ±0.01

Max. Loading Current

3A

Net Weight

46mg/pcs

Gross Wight

13.09g (Tabs with Box)

Application

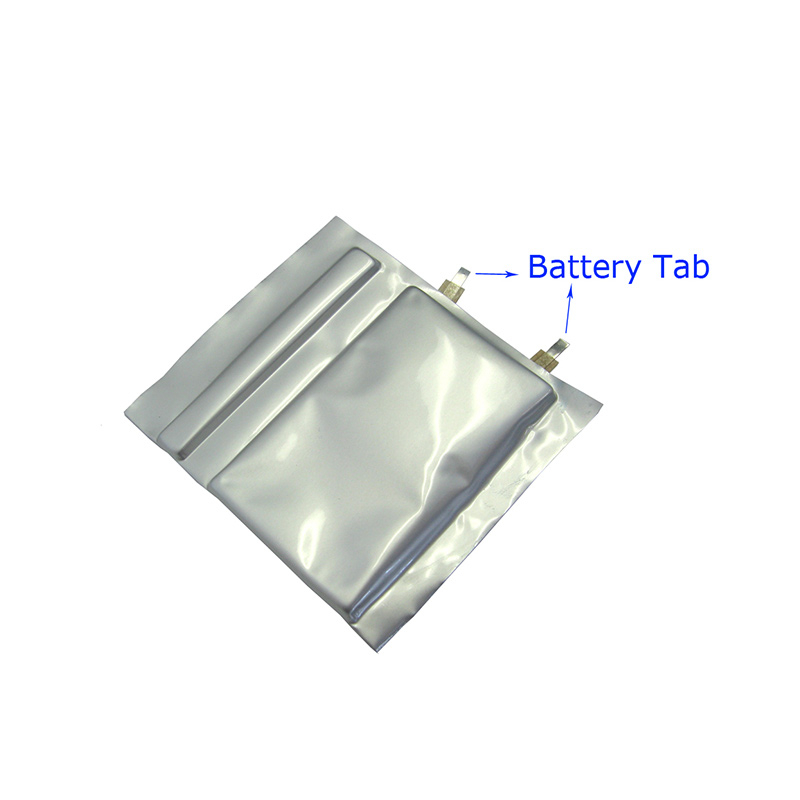

1. Connect to cathode current collector   as polymer battery positive terminal
  2. Suggested Sealing Method: (parameter below may vary from case to case)
      - Soft type heat-sealing blade (Blade with rubber)
      - 180-200C for upper blade
      - 160-180C for lower blade
      - 40PSI (0.3Mpa)
      - 3 seconds heating time
