Aluminum Prismatic Cell Case for 1212370 Battery

Material

Aluminum

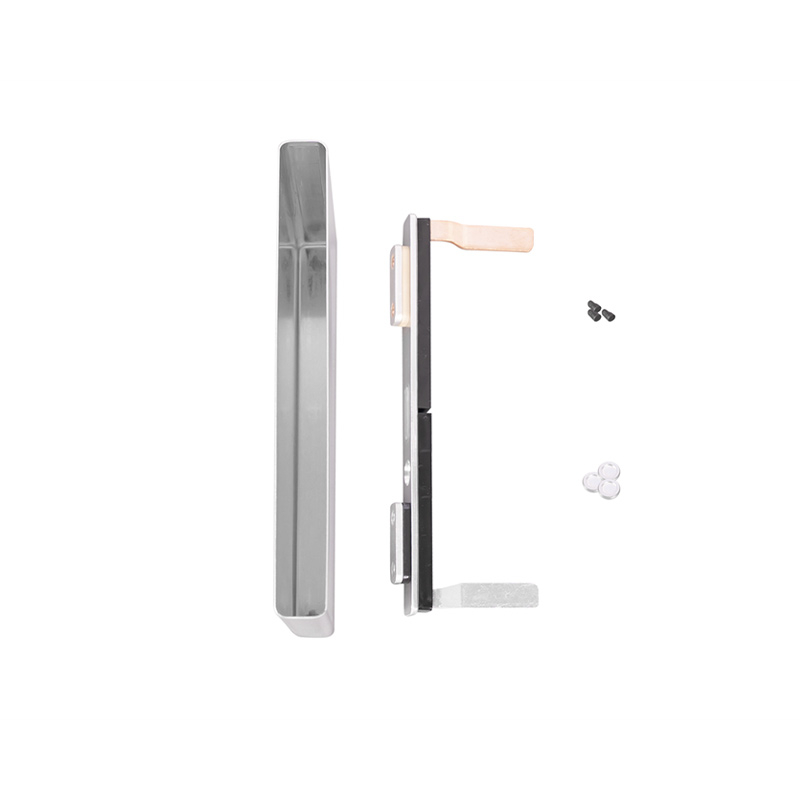

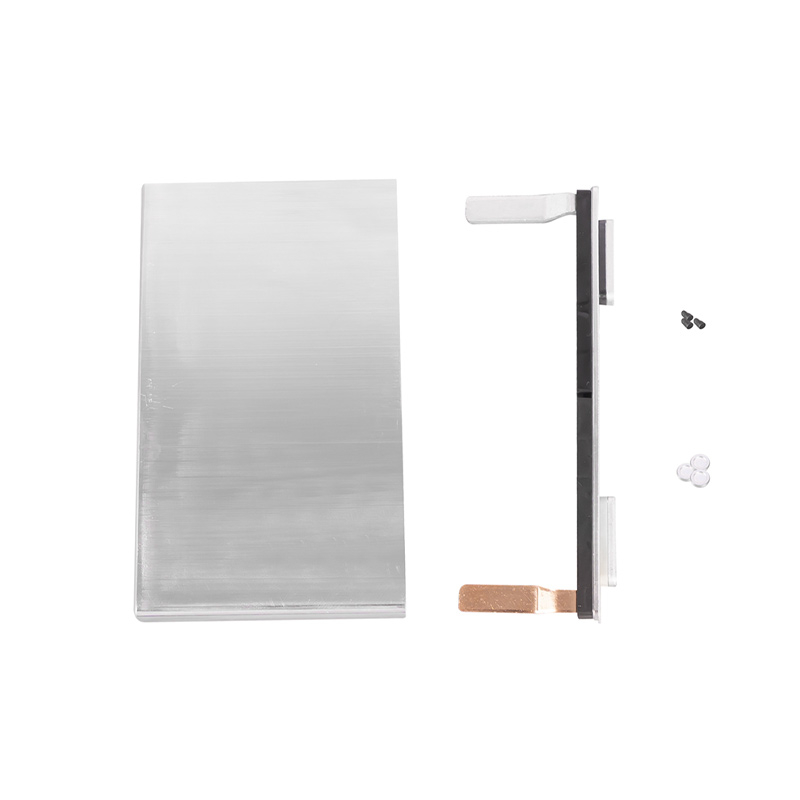

Package

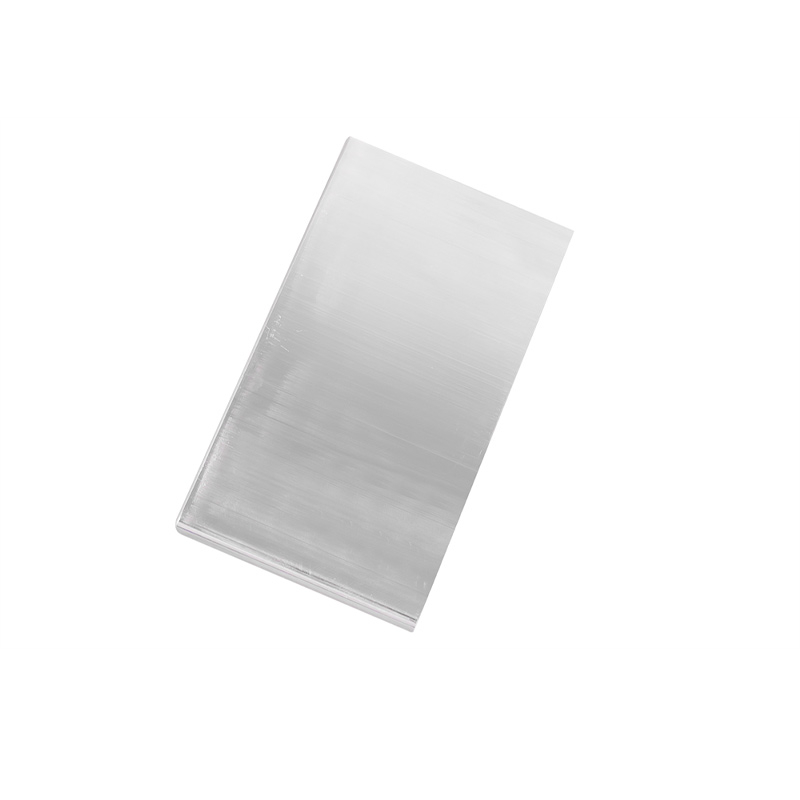

One piece of 12123 aluminum case

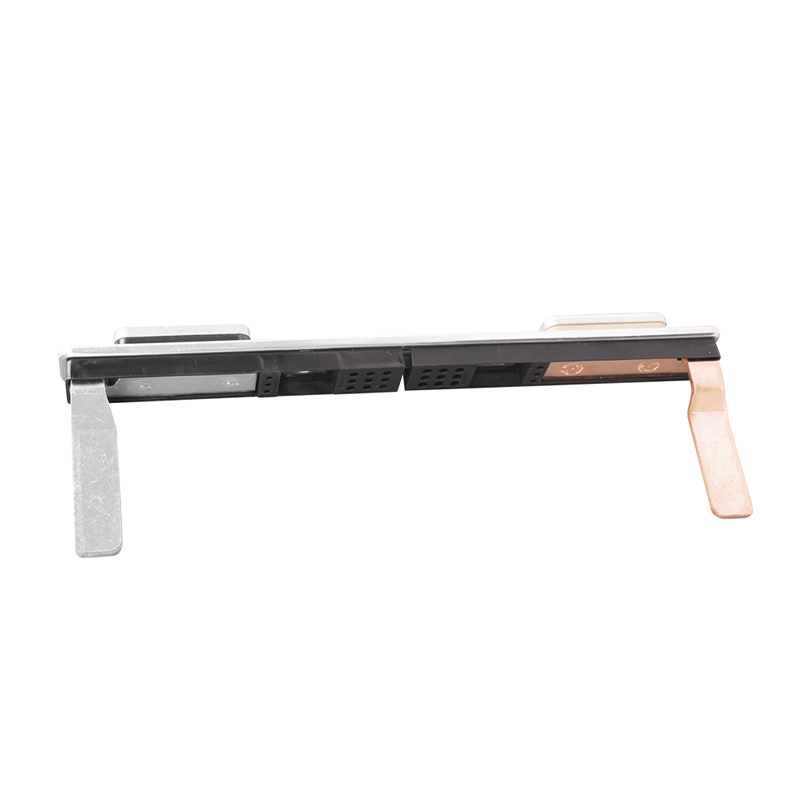

One piece of 12123 top cover

One pack of 12123 accessories

Capacity:   ~10Ah with LiFePO4   cathode

Overall Dimensions



Case: 123 mm L x 12 mm W x 70mm H   (Thickness =0.5 mm)

Cathode Tab: 30mm x 8mm

Anode Tab: 31mm x 8mm

Space between Two Tabs: 103 mm

Diameter of Sealing Plug: 7 ± 0.5mm
