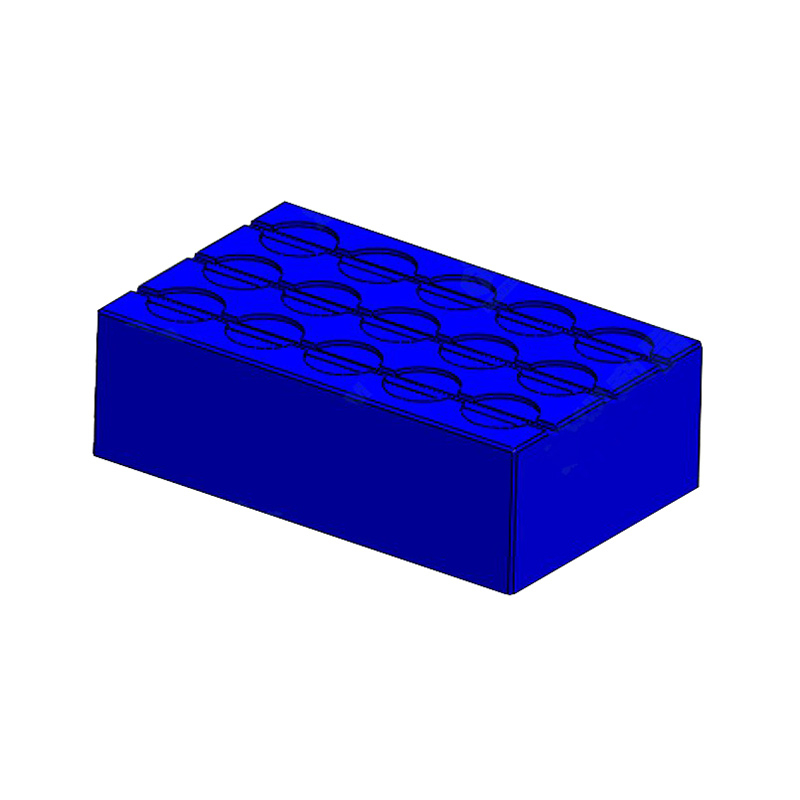

30 series button battery assembly table

The 30 Series button battery assembly table is an assembly platform specially developed for the 30 series button battery assembly. The platform is specially designed positioning function, after repeated testing and optimization, easy to use, greatly improving the efficiency of button battery assembly.

Product characteristics:

1. After repeated testing and optimization, the button battery spacing and platform height reach the optimal, easy to use;

2. Design button battery taking trough, easy to take and put;

3. Long service life, affordable, easy to clean.

Contact information:

If you are interested in our 30 series button battery assembly table, please contact us for more information and a quote.

Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

technical parameters:

Experiment preparation:

Material preparation: Prepare an appropriate amount of positive material (such as manganese dioxide), negative material (such as lithium metal), diaphragm, electrolyte, positive and negative shell, etc.

Tools: In addition to the button battery assembly table, prepare auxiliary tools such as gloves, scissors, and rulers.

Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust. The operation area should be equipped with a ventilation system to prevent the accumulation of harmful gases.

Experimental procedure:

Material preparation:

Use an electronic scale to accurately weigh the required positive material, negative material and electrolyte.

The positive material and the negative material are placed in the positive and negative shell respectively.

Cut diaphragm to desired size and set aside.

Electrolyte injection:

Use a dropper or microinjector to inject an appropriate amount of electrolyte into the positive shell to ensure an even distribution of electrolyte.

Pay attention to control the amount of electrolyte injection to avoid too much or too little.

Assembly operation:

Place the cut diaphragm on the electrolyte of the positive shell to ensure that the diaphragm is flat and free of bubbles.

Place the negative housing over the positive housing, making sure the two are aligned.

Place the assembled battery on the workbench of the button battery assembly table to ensure the correct and stable position of the battery.

Adjust the fixture to keep the battery in place and avoid moving during pressing.

Pressing operation:

Start the pressing process, and the pressing device will automatically press the battery.

Ensure that the positive and negative shells of the battery are tightly combined during the pressing process, and there is no leakage.

After the pressing is complete, the pressing device automatically returns and the battery is removed from the workbench.

Quality inspection:

Carefully check each piece of pressed button lithium battery to ensure that the positive and negative shells are tightly combined, no leakage, no bubbles, no cracks.

Use tools such as microscopes and thickness gauges for detailed inspection and record relevant data.

Performance test:

Some samples were randomly selected for charge-discharge cycle test to evaluate the key indicators such as capacity retention rate and internal resistance.

Record test results and analyze the effect of assembly on battery performance.

Result analysis

Through the use of button battery assembly stations, the company has achieved the following results in the assembly process of button lithium batteries:

Improve assembly quality: The high-precision positioning system and stable pressing device ensure that the positive and negative shells of the battery are tightly combined, reducing leakage and bubbles, and improving the quality of the battery.

Enhanced consistency: Standardized operating processes and high-precision equipment ensure that the assembly effect of each battery is highly consistent, improving the consistency and stability of the battery.

Improved production efficiency: The automated all-in-one design significantly reduces assembly time, improves production efficiency, and reduces labor costs.

Reduce the rate of defective products: standardized operation process and high-precision equipment reduce the error caused by human operation and reduce the rate of defective products.
