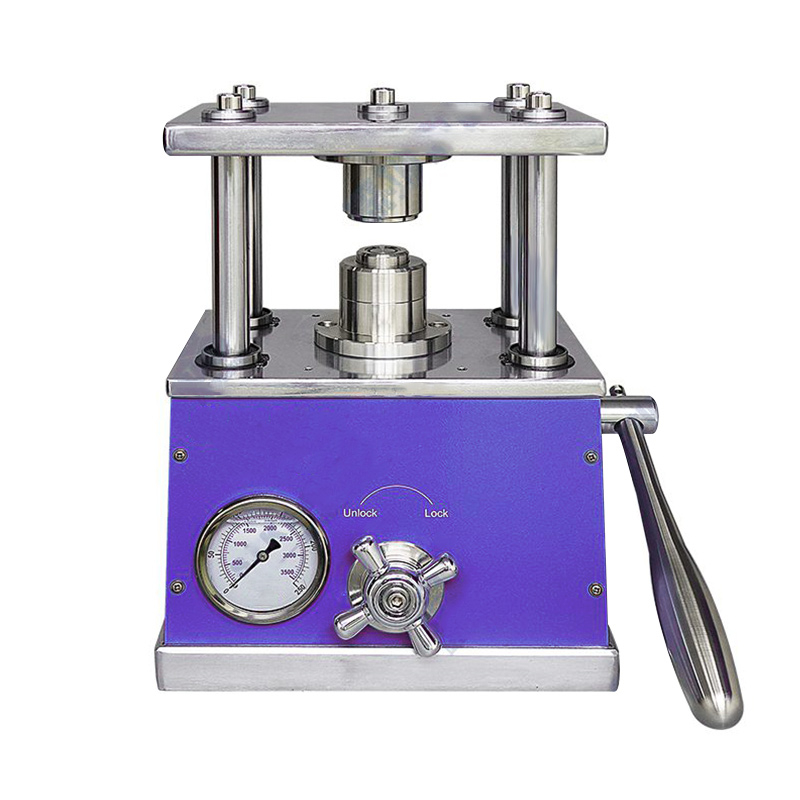

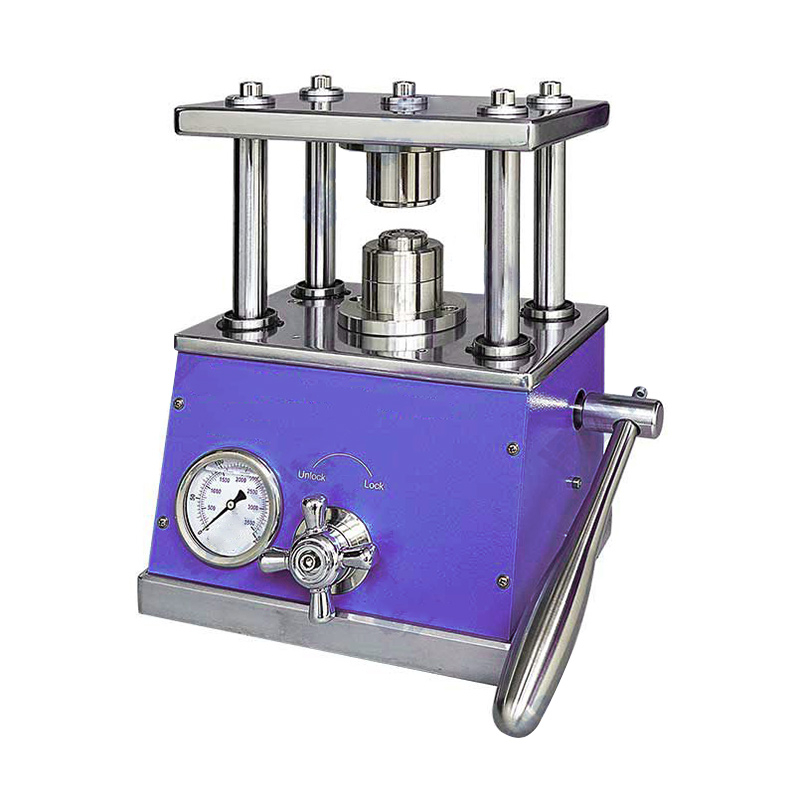

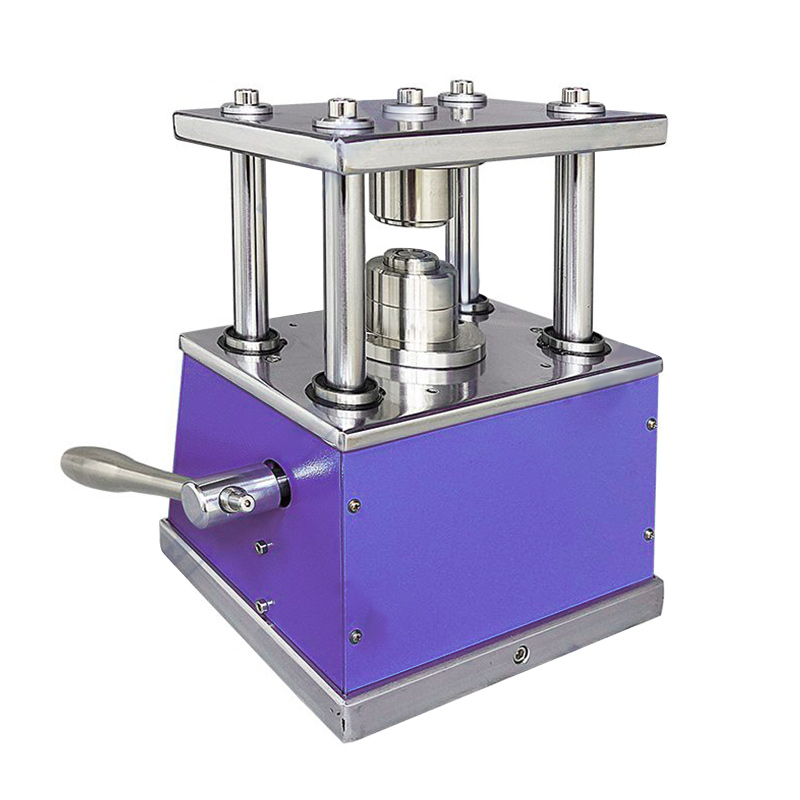

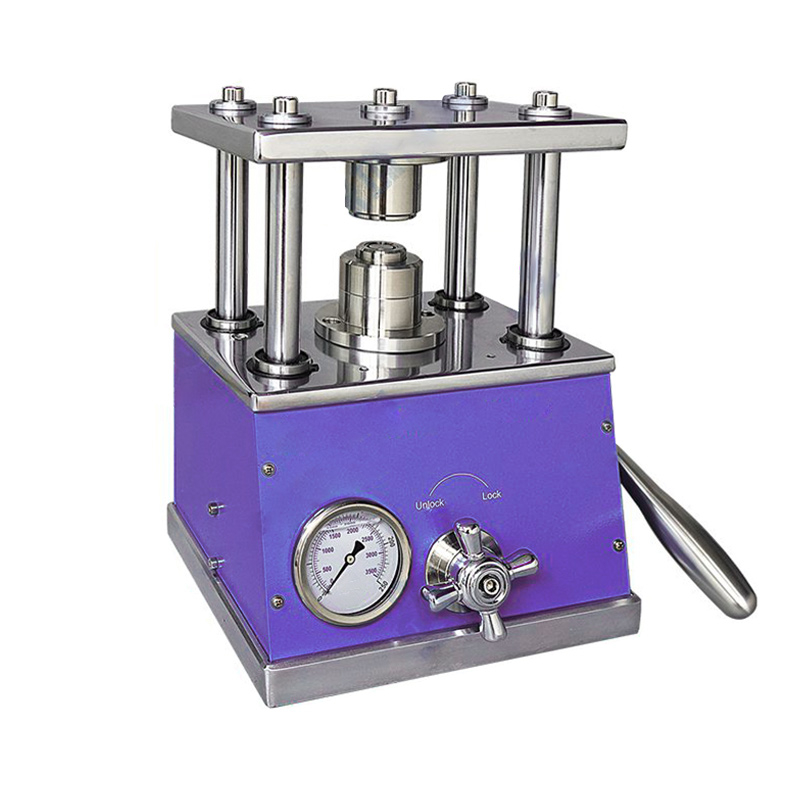

CY-110 small hydraulic button battery sealing machine is driven by hydraulic jack to realize the encapsulation and dismantling process of button battery. Standard configuration sealing mold can be used for CR2016, CR2025, CR2032 and other diameter of 20mm series button battery sealing
CY-110 small hydraulic button battery sealing machine is driven by hydraulic jack to realize the encapsulation and dismantling process of button battery. Standard configuration sealing mold can be used for CR2016, CR2025, CR2032 and other diameter of 20mm series button battery sealing, such as other diameter button battery (such as CR2450, CR1620, etc.) to seal, just buy the appropriate mold. At the same time, you can also choose a disassembly mold, which is used to completely disassemble the positive and negative battery shell after sealing the button battery, so as to facilitate the sample uptake of the internal materials of the battery for research and analysis.
1. The hydraulic cylinder drives the mold to seal the button battery, and the operation of the strengthening handle saves labor;
2. Small and light, it can be easily used in the glove box controlled by water and oxygen;
3. Precision mold design ensures accurate and reliable sealing molding, excellent sealing quality and long service life;
4. Different molds can be configured to package and disassemble button batteries of different specifications, so as to achieve multi-purpose of one machine;
5.Pure manual operation, no need for electricity and gas, easy to use.
If you are interested in our CY-110 small hydraulic button battery sealing machine, please contact us for more information and a quote.
Phone:+86 136 6380 8508
Email:jason@cysitech.com
Sales manger:Jason.Zhang
WhatsApp:+86 150 3827 2566
Wechat:cykytech
Use environment | Drying room or glove box |
Scope of application | Diameter φ5.0-φ35mm/ Height Max: 10mm |
Sealing pressure | The pressure of the battery with different diameters can be adjusted, and the best pressure of the CR20 series button battery package is set without special requirements: 50kg/cm2~60kg/cm2 |
Sealing stroke | 20mm |
Operating handle | The button battery seal operating handle pressure is less than 6Kg |
Sealing die | Standard CR20 series package mold, can be selected or added with other specifications |
Remover mold | Optional CR16, CR20, CR24, CR30 or diameter φ13mm~φ35mm/ height Max: 10mm non-standard customization |

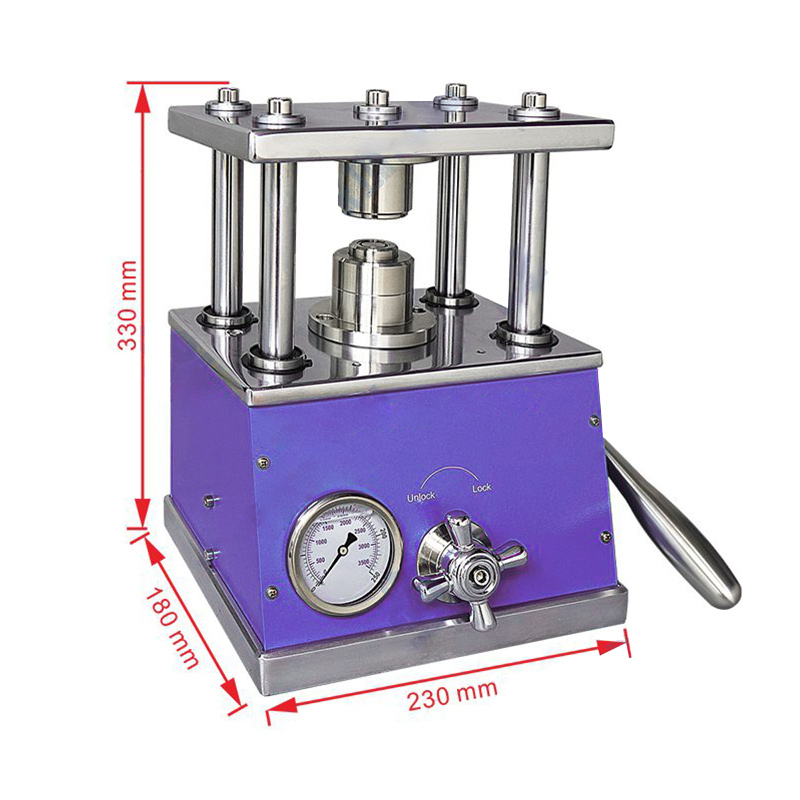

Equipment size | L230mm*W180mm*H330mm |
weight | About 27Kg |
Material preparation: Prepare an appropriate amount of positive material (such as manganese dioxide), negative material (such as lithium metal), diaphragm, electrolyte, positive and negative shell, etc.
Tools: In addition to the small hydraulic button battery sealing machine, you also need to prepare gloves, scissors, rulers and other auxiliary tools.
Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust. The operation area should be equipped with a ventilation system to prevent the accumulation of harmful gases.
Experimental procedure:
Material preparation:
Use an electronic scale to accurately weigh the required positive material, negative material and electrolyte.
The positive material and the negative material are placed in the positive and negative shell respectively.
Cut diaphragm to desired size and set aside.
Electrolyte injection:
Use a dropper or microinjector to inject an appropriate amount of electrolyte into the positive shell to ensure an even distribution of electrolyte.
Pay attention to control the amount of electrolyte injection to avoid too much or too little.
Assembly operation:
Place the cut diaphragm on the electrolyte of the positive shell to ensure that the diaphragm is flat and free of bubbles.
Place the negative housing over the positive housing, making sure the two are aligned.
Place the assembled battery on the workbench of the small hydraulic button battery sealer to ensure the correct and stable position of the battery.
Adjust the fixture to keep the battery in place and avoid moving during the sealing process.
Sealing operation:
Start the sealing procedure, and the hydraulic system will automatically seal the battery.
Ensure that the positive and negative shells of the battery are tightly combined during the sealing process, and there is no leakage.
Adjust the sealing pressure and time to ensure that the sealing line is continuous, smooth and bubble-free.
After the sealing is complete, the hydraulic system automatically returns and the battery is removed from the workbench.
Quality inspection:
Carefully check each piece of sealed button lithium battery to ensure that the positive and negative shells are tightly combined, no leakage, no bubbles, no cracks.
Use tools such as microscopes and thickness gauges for detailed inspection and record relevant data.
Performance test:
Some samples were randomly selected for charge-discharge cycle test to evaluate the key indicators such as capacity retention rate and internal resistance.
Record the test results and analyze the effect of sealing on battery performance.
Result analysis
By using a small hydraulic button battery sealing machine, the company has achieved the following results in the sealing process of button lithium batteries:
Improve the sealing quality: the high-precision hydraulic system and the stable sealing device ensure that the positive and negative shells of the battery are tightly combined, reducing leakage and bubble phenomenon, and improving the sealing and consistency of the battery.
Enhanced consistency: Standardized operating processes and high-precision equipment ensure that the sealing effect of each battery is highly consistent, improving the consistency and stability of the battery.
Improve production efficiency: The automated all-in-one design significantly shortens the sealing time, improves production efficiency and reduces labor costs.
Reduce the rate of defective products: standardized operation process and high-precision equipment reduce the error caused by human operation and reduce the rate of defective products.
