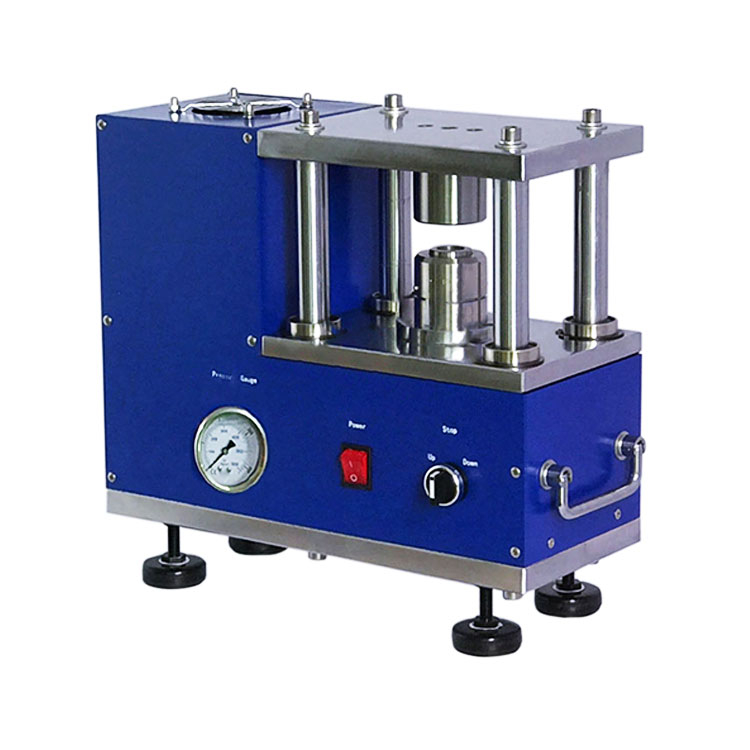

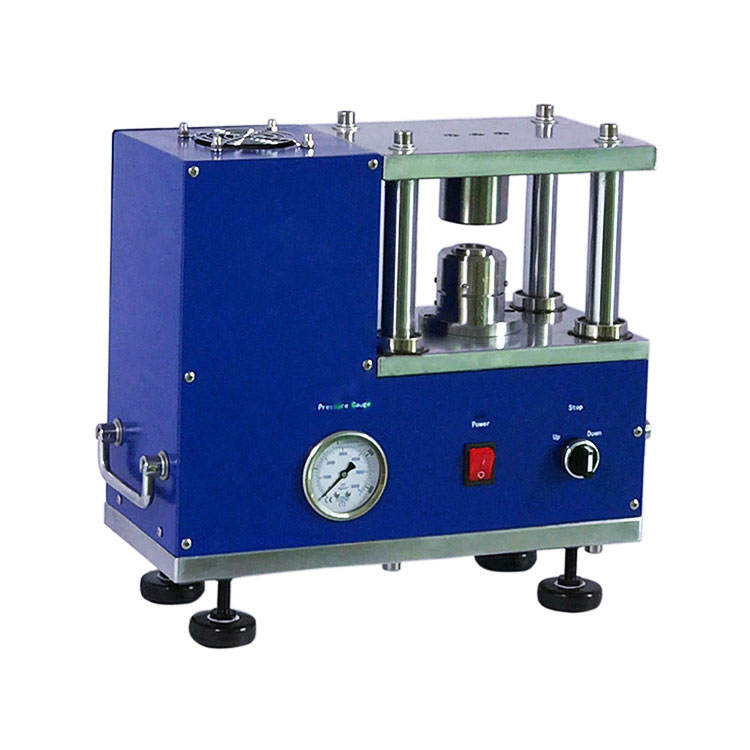

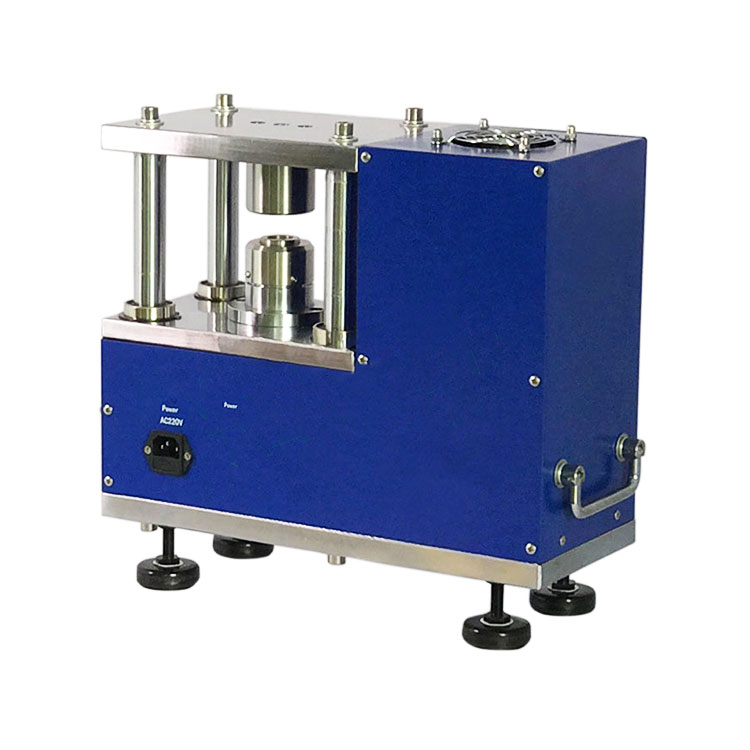

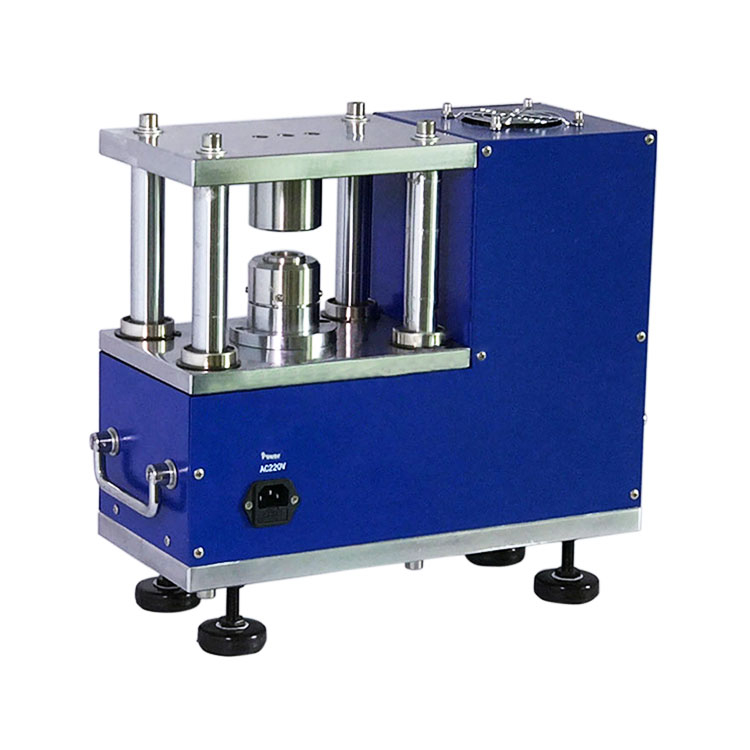

Electric hydraulic sealing machine for coin cell

Product introduction

CY-DF160 electric hydraulic sealing   machine is mainly used in laboratory battery material research and   development for the preparation of samples, capacitors scientific research   sealing, can also be used in factory small batch trial production. The   electric method saves effort, and different molds can also be used for dry   powder pressing sheet, wet powder pressing sheet, pressing molding, riveting   and other operations. Standard configuration can be used for CR2016, CR2025,   CR2032 button batteries. It can also sealing CR2450, CR1620 and other button   batteries after replacing some mold accessories. It has the advantages of   small size, convenient operation and accurate molding.

Main features

1. If there is no obstacle (skateboard)   in the transition box of the glove box, it can pass directly through the   transition box, with small volume and easy operation;

2. Electric mode, easy operation, easy to   form automation;

3. Stable operation and stable sealing;

4. Precise mold design guarantees   accurate and reliable sealing;

5. Sturdy steel structure design, stable   and safe to use;

6. Embedded pressure gauge, can observe   and accurately control the size of the sealing pressure, the sealing pressure   can be adjusted, and it has been set at the factory;

7. CR20 series sealing can be universal,   CR2450, CR1620 only need to replace some mold accessories;

8. Beautiful appearance and easy   maintenance;

Technical parameters

1. Die material imported from Japan.

2. Structural material: alloy aluminum   and high-strength chrome steel, the surface will never rust after   environmental protection electroplating and spraying treatment.

3. Power: 220V / 50Hz

4. Dimensions: 385mm x 160mm x 325mm

5. Weight: 33kg
