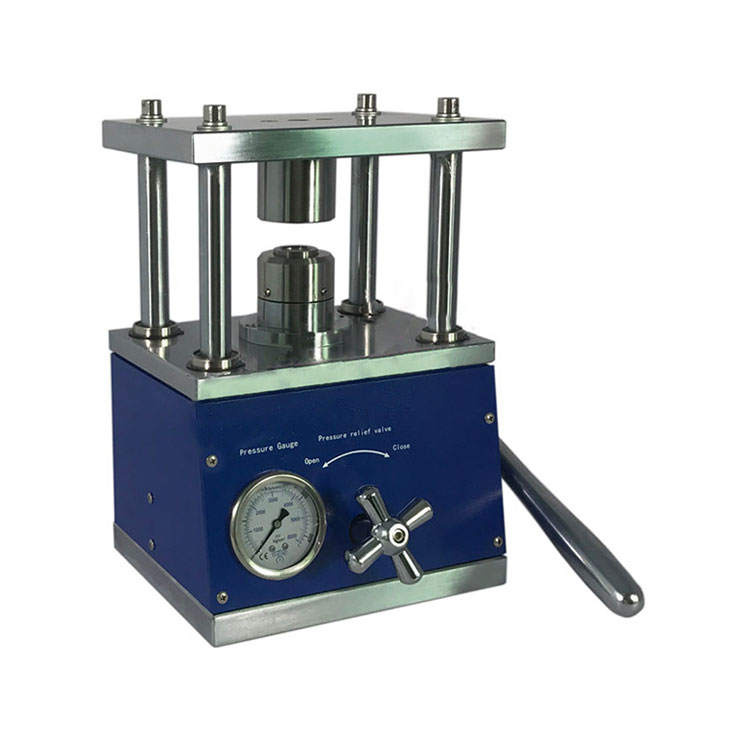

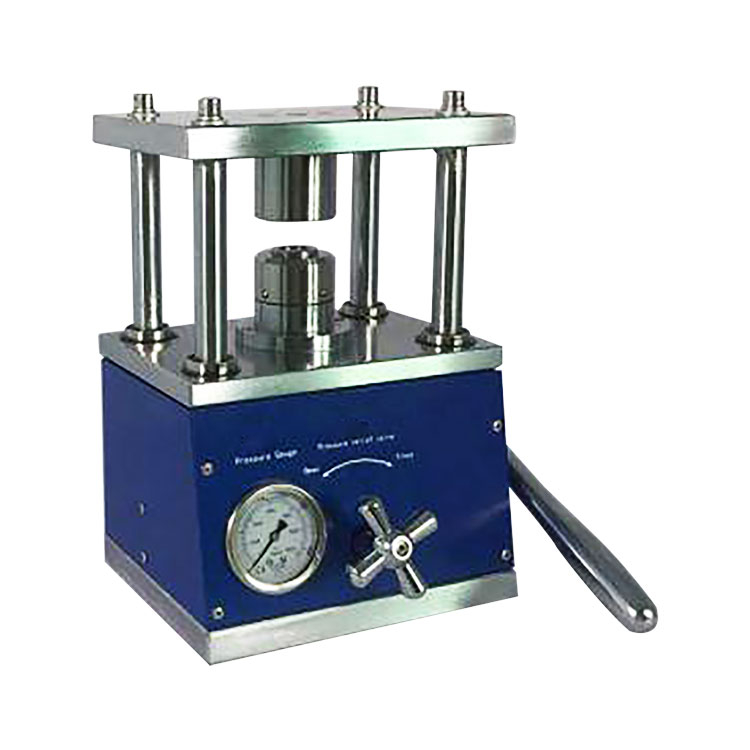

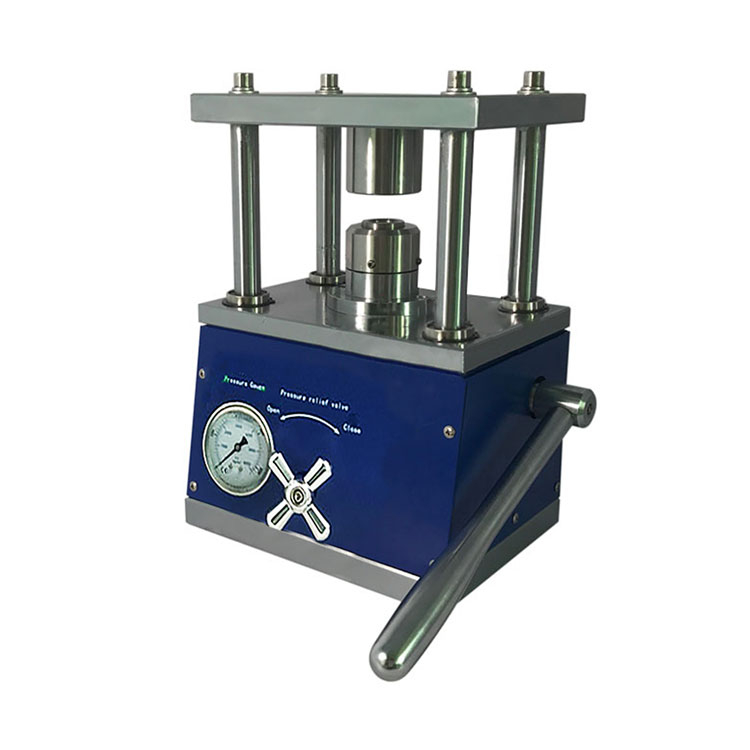

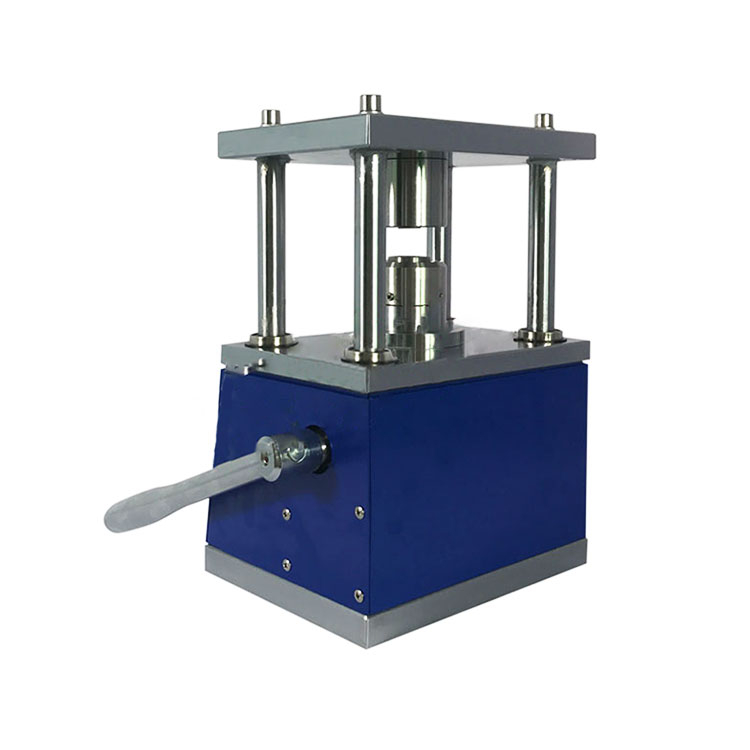

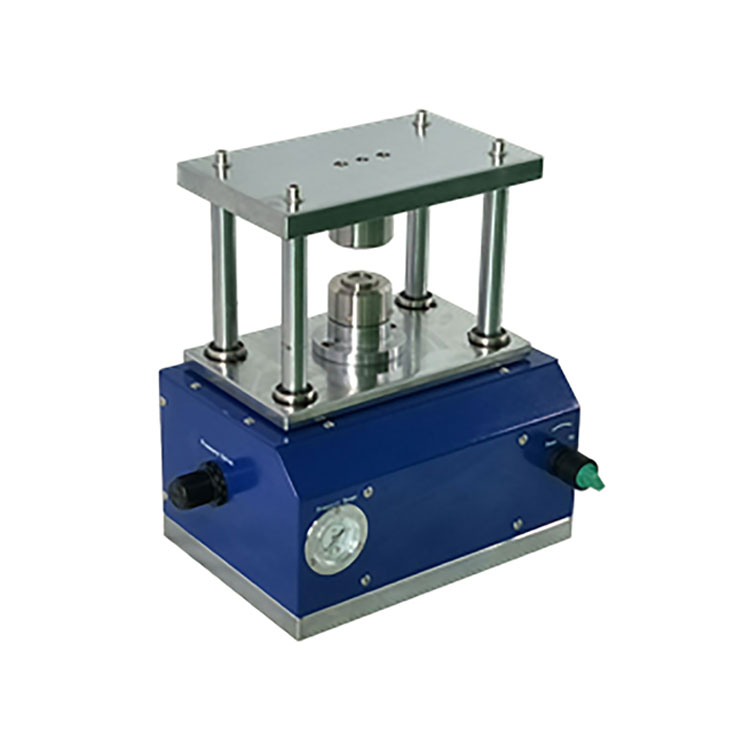

Manual powder hydraulic press

Product introduction

CY-YP180 Manual powder hydraulic press is   mainly used for tabletting or pressing powder of battery materials in the   laboratory, and flattening and shaping of other materials.

Main features

1. Specially designed hydraulic   structure, operation effort saving;

2. Built-in pressure gauge, you can   observe and accurately control the pressure;

3. Precise linear guidance and die ensure   uniform material pressing;

4. Equipped with safety oil valve, which   can adjust the pressure as required, and at the same time, the upper limit of   the pressure can be set to prevent the damage caused by excessive pressure   caused by misoperation;

5. Sturdy steel structure design, stable   and safe to use;

6. Small size, quick and convenient   operation, can be operated in the glove box;

7. Beautiful appearance and easy   maintenance;

Technical parameters

1. Crimping die: diameter Φ68   mm (can be customized)

2. Crimping stroke: 30mm

3. Made from Japan imported mold   material;

4. Structural material: alloy aluminum   and high-strength chrome steel, the surface is treated with environmental   protection electroplating;

5. Dimensions: 232mm x 165mm x 320mm;

6. Weight: 25kg;
