pole ear rotary kneading machine

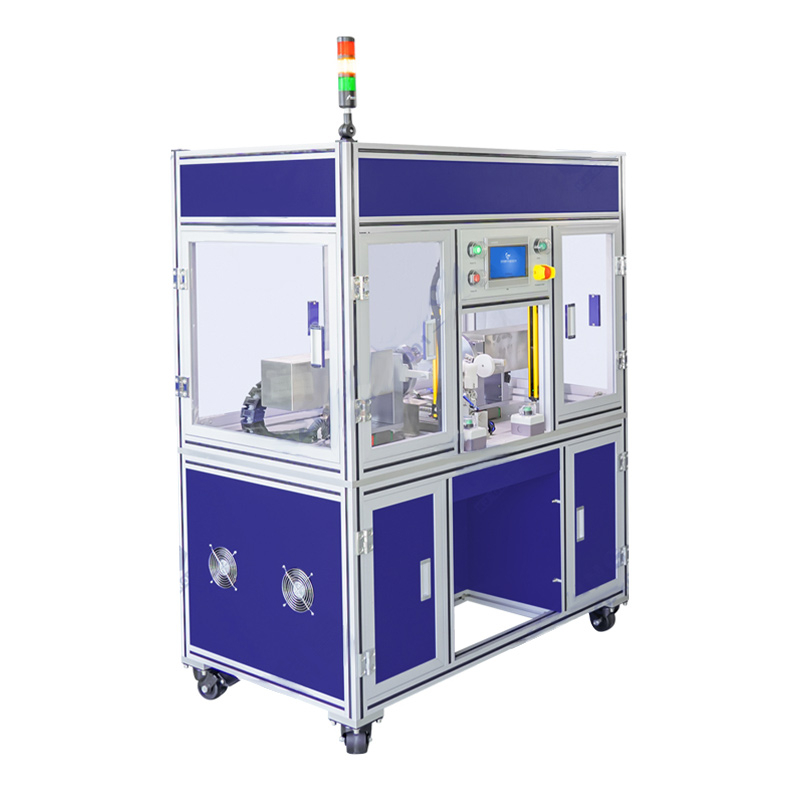

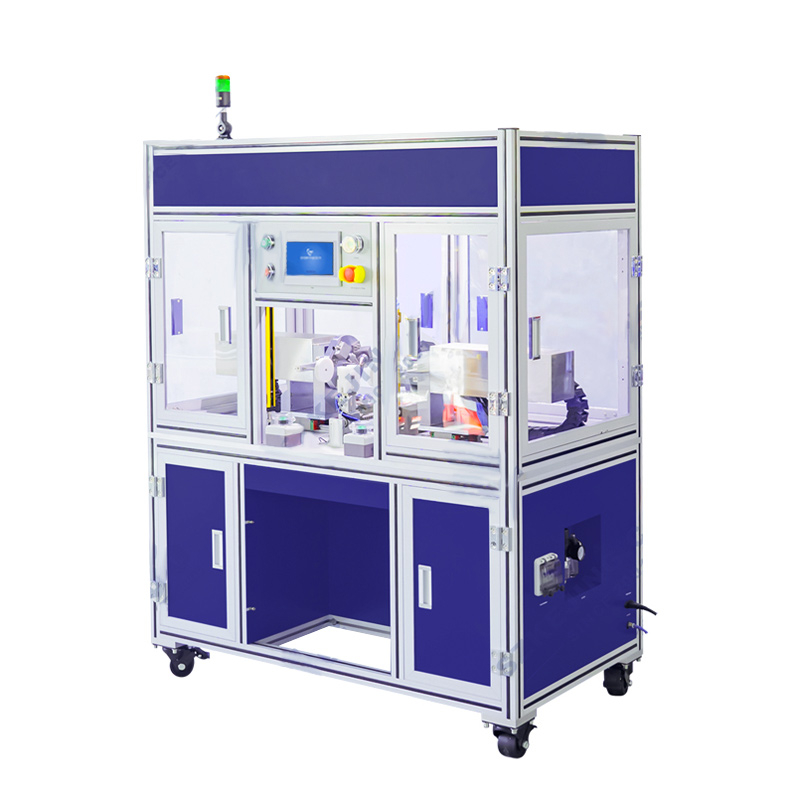

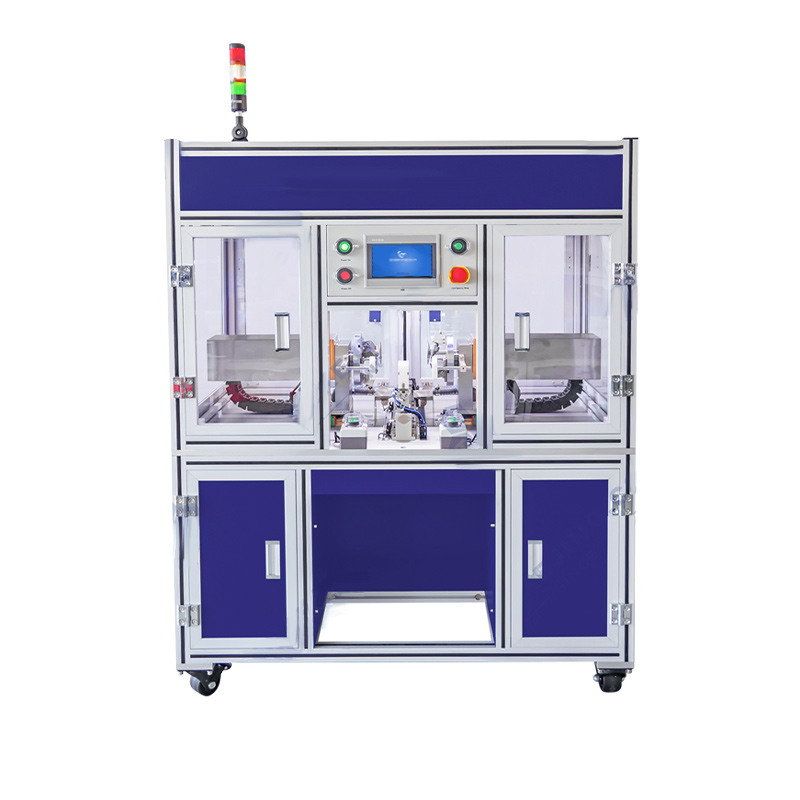

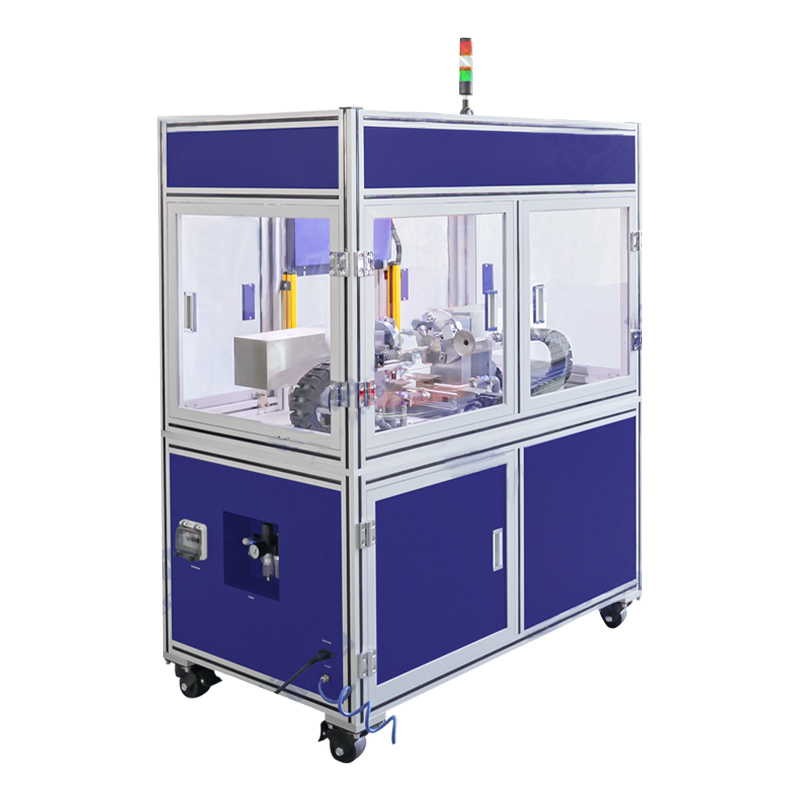

CY-122-M pole ear rotary kneading machine is a mechanical kneading equipment for all pole ear cylindrical cell, the maximum is suitable for L150*Φ60mm cell, the standard 4680 fixture, other specifications need to be customized.

Product characteristics:

1. Core feeding auxiliary positioning, easy to use, reduce positioning errors;

2. Cell pole ear kneading function, kneading flat, beautiful, good consistency;

3. Metal scrap removal function, reduce the core kneading surface scrap residue and kneading drop scrap recovery;

4. The speed of both sides of the kneading device can be adjusted independently, and the moving distance can be adjusted symmetrically.

5. The kneading mold is made of high-strength die steel with good wear resistance and long service life;

6. Double button start function, feed port design safety light curtain, to ensure the personal safety of operators;

7.PLC control, integrated HMI operation, easy to use and maintain.

Contact information:

If you are interested in our CY-122-M pole ear rotary kneading machine, please contact us for more information and a quote.

Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

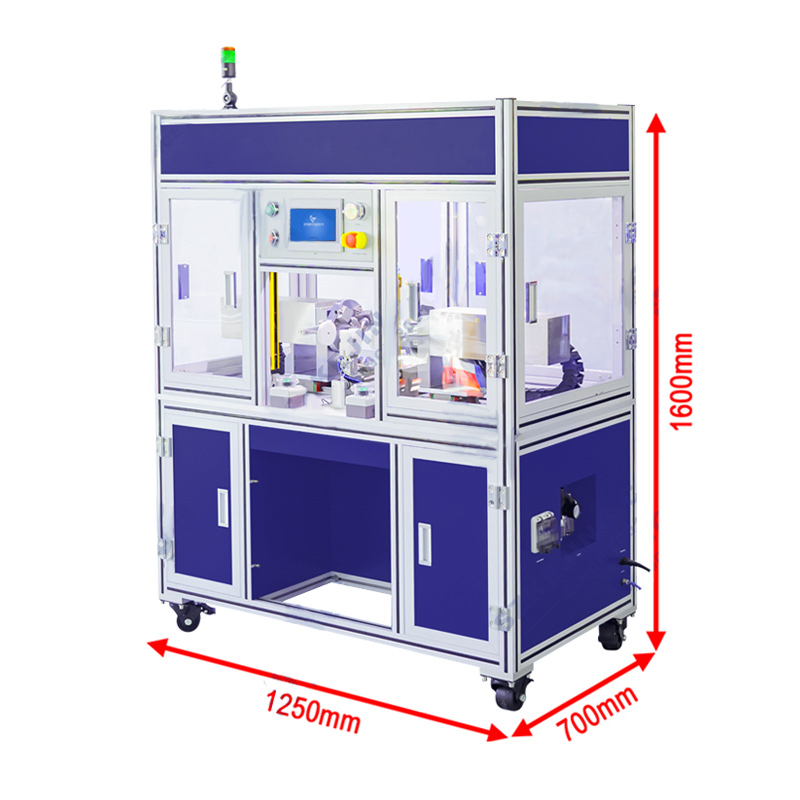

technical parameters：

Application Case

"Use CY-122-M pole ear rotary kneading machine to optimize the contact state between the pole ear and the battery cell, reduce the internal resistance of the battery, and improve the overall performance"

Experiment preparation：

Material preparation: Prepare a number of standard size 18650 cylindrical lithium battery semi-finished products, including the anode and cathode plate coating, winding process has been completed, but no pole ears installed cell.

Tools: In addition to the pole ear rotary kneading machine, prepare auxiliary tools such as welding equipment and insulation tester.

Environment preparation: Ensure that the operation area is clean and dust-free, and the temperature and humidity meet the process requirements.

Experimental procedure

Pole ear welding: First, the pre-cut pole ear is firmly welded to the fluid collector at both ends of the cell by ultrasonic or laser welding technology.

Preliminary inspection: Use an optical microscope to check whether the welding points are flat and confirm that there are no bad phenomena such as virtual welding and short circuit.

Polar ear rotary kneading:

Place the electrode core welded to the pole ear on the work table of the pole ear rotary kneading machine to ensure that the pole ear position is correct and parallel to the machine axis.

Turn on the machine and set the appropriate speed and pressure parameters. According to actual needs, small batch trial run can be carried out first, adjusted to the best state and then formally put into production.

In the process of machine operation, the pole ear will gradually flatten and closely fit to the surface of the cell under the action of rotating force, so as to achieve uniform distribution and leveling of the pole ear.

Quality inspection: After the treatment is completed, the insulation tester is used to test the insulation performance of each cell to ensure that there is no risk of short circuit caused by improper operation.

Performance test: Randomly select some samples for charge and discharge test, record relevant data, and analyze the change of battery performance before and after the pole ear rotary kneading treatment.

conclusion

This case illustrates the effectiveness of applying the pole ear rotary kneading technology in the production process of cylindrical lithium batteries, which can not only significantly improve the electrical performance of the battery, but also effectively improve the stability and reliability of the product. For the pursuit of high-quality, high-performance lithium battery manufacturers, the introduction of such advanced equipment is undoubtedly a wise choice.
