pole ear welding machine

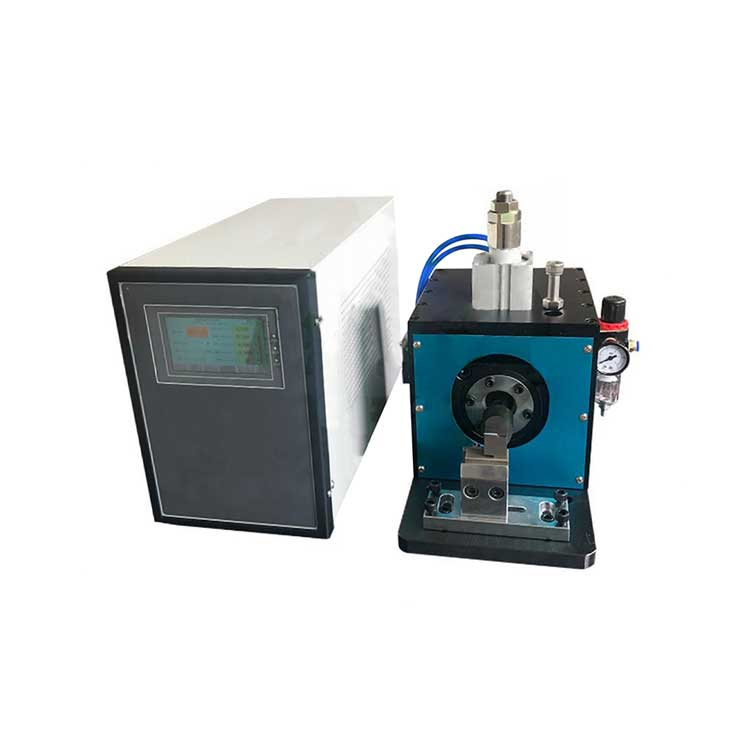

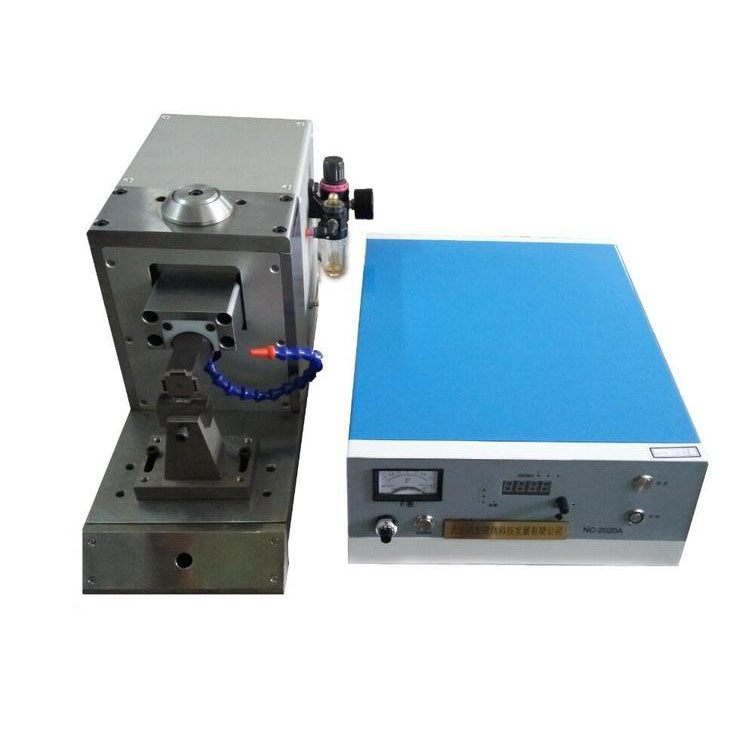

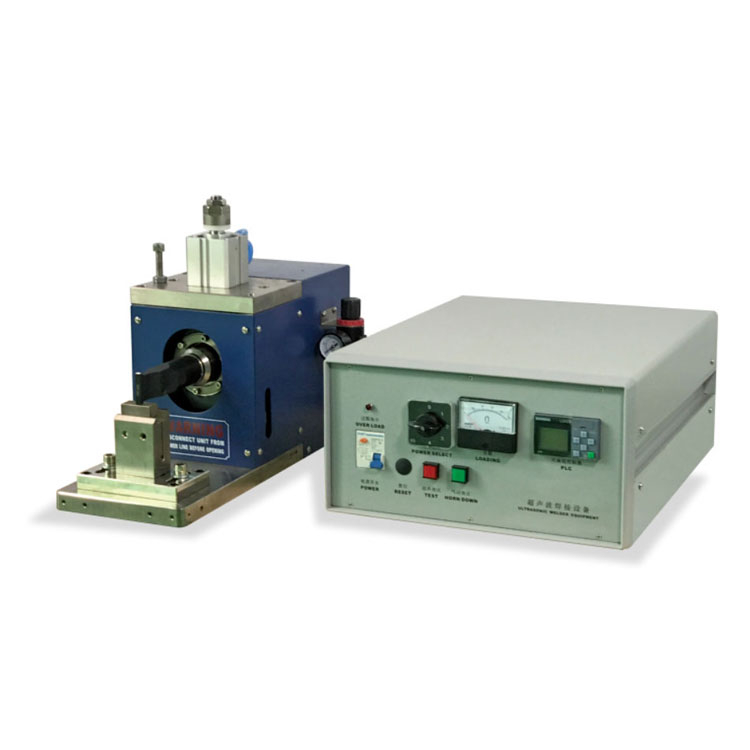

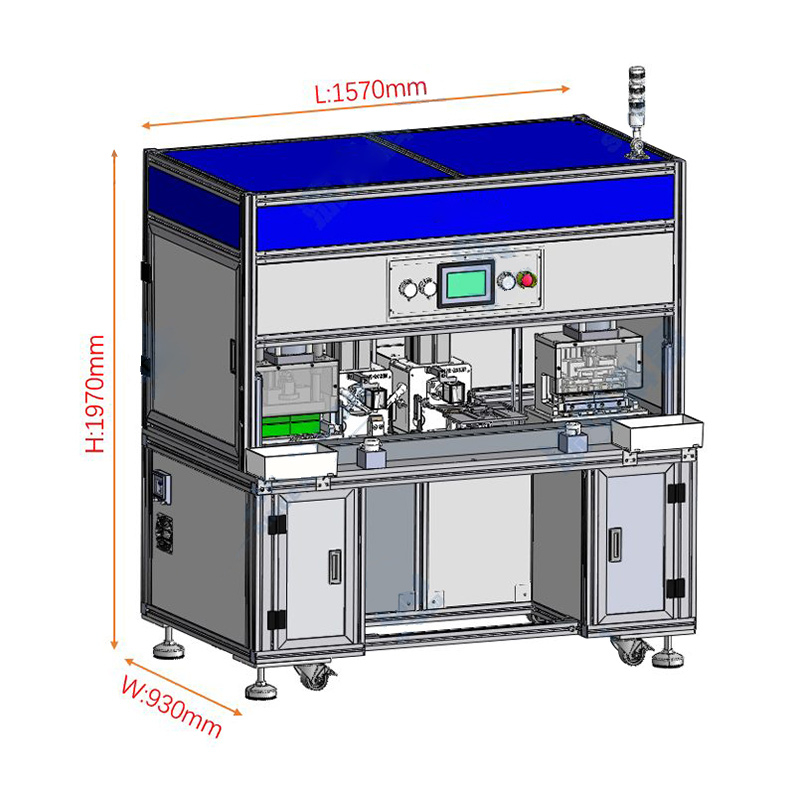

CY-UC-M2000 type pole ear welding cutting machine, compatible with single-end pole ear cell pre-welding, cutting, final welding and shaping functions. The cell and pole lug are manually placed into the fixture and automatically moved to the corresponding station to complete the operation. The equipment includes pre-welding, cutting, final welding, shaping, material sensing, dust removal, material handling, safety device and other units. Double cutting knife and double pressing block insulation treatment, the effective length of a single cutting knife is 100mm, the length of a single pressing block is 106mm, the cutting and pressing pressure is Max.10000N, the maximum is suitable for the battery cell of L380* W210 (pole ear) mm, the standard 4662 battery fixture, the solder joint size and the battery fixture can be customized according to customer requirements.

Product characteristics:

1. Manual feeding, automatic operation to achieve the function of each process;

2. Double station welding, positive and negative electrode welding separation, welding parameters set independently;

3. Can customize the single pole lug cell fixture, quickly install and position the cell and pole lug;

4. Compatible with pre-welding, cutting, shaping, positive aluminum ear welding, negative nickel ear welding and other functions;

5. Stable and strong welding power, solid welding, good consistency, high yield;

6. Cutting and pressing stroke, speed, pressure can be adjusted, suitable for different thickness samples;

7. The upper and lower precision molds are made of high-strength die steel to ensure the cutting and shaping effect;

8. Can achieve up to 30 layers of copper foil or aluminum foil laminated welding;

9. Welding mold using special mold steel, good wear resistance, long service life;

10. Equipped with dust removal device, can collect the dust generated during welding;

11. Configure the starting mode of double start button and material sensor, and the operating surface is set with safety grating to ensure safe operation;

12. Solder joint size can be customized;

13.PLC control, HMI operation, digital setting, easy to use.

Contact information:

If you are interested in our  pole ear welding cutting machine, please contact us for more information and a quote.

 Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

Technical parameters:

Application case

Experiment preparation

Material preparation: Prepare an appropriate amount of assembled soft-pack lithium battery semi-finished products, including the batteries that have completed the assembly of positive and negative electrode sheets, electrolyte injection, and initial packaging.

Tools: In addition to the pole ear welding cutting machine, prepare auxiliary tools such as gloves, scissors, and ruler.

Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust.

Experimental procedure

Battery pretreatment:

Place the assembled soft-pack lithium battery semi-finished product on the operating table to check whether there is leakage or other defects.

Confirm the initial packaging effect of the battery, ensure that the aluminum plastic film and the battery body fit well, no bubbles and leakage sealing phenomenon.

Pole preparation:

Prepare appropriate amount of pole material to ensure that the specifications and quality of the pole material meet the requirements.

Cut the pole material to desired length and shape and set aside.

Pole ear welding:

Place the cut pole ear material on the work table of the pole ear welding machine to ensure the correct and stable position of the pole ear.

Set the appropriate welding parameters, including current, time and pressure. According to the characteristics of the electrode material, it can be tested in small batches first and adjusted to the best state before being formally put into production.

Start the welding procedure, and the electrode welding machine will automatically complete the welding between the electrode and the battery electrode. Ensure that the welding point is smooth and firm, no virtual welding, short circuit phenomenon.

Pole ear cutting:

After the welding is completed, the pole ear welding cutting machine will automatically switch to the cutting mode.

Set appropriate cutting parameters, including cutting length and position. Make sure the cut ears are the same length and the edges are neat.

Start the cutting procedure, the pole ear welding cutting machine will automatically complete the pole ear cutting. Ensure that the cut pole ear has no burrs or cracks.

Quality inspection:

Carefully check each piece of welded and cut soft pack lithium battery to ensure that the pole ear welding points are smooth and firm, the length of the cut pole ear is consistent, and the edge is neat.

Use tools such as microscopes and vernier calipers for detailed inspection and record relevant data.

Performance test:

Some samples were randomly selected for charge-discharge cycle test to evaluate the key indicators such as capacity retention rate and internal resistance.

The test results were recorded and the influence of electrode welding and cutting on battery performance was analyzed.

Result analysis

Through the use of the pole ear welding machine, the company achieved the following results in the processing of the pole ear of the soft-pack lithium battery:

Improve welding quality: The high-precision welding system ensures that the welding point between the electrode and the battery electrode is smooth and firm, reduces the phenomenon of virtual welding and short circuit, and improves the reliability of the internal connection of the battery.

Enhanced cutting consistency: The stable cutting device ensures that the pole ear length is consistent and the edge is neat after cutting, improving the quality and consistency of the external interface of the battery.

Improved safety: high-quality electrode welding and cutting reduce the safety risks of the battery during charging and discharging, and improve the safety of the battery.

Improve production efficiency: The automated all-in-one machine design significantly shortens the time for pole processing, improves production efficiency and reduces labor costs.
