Soft pack battery rotary vertical final sealing machine

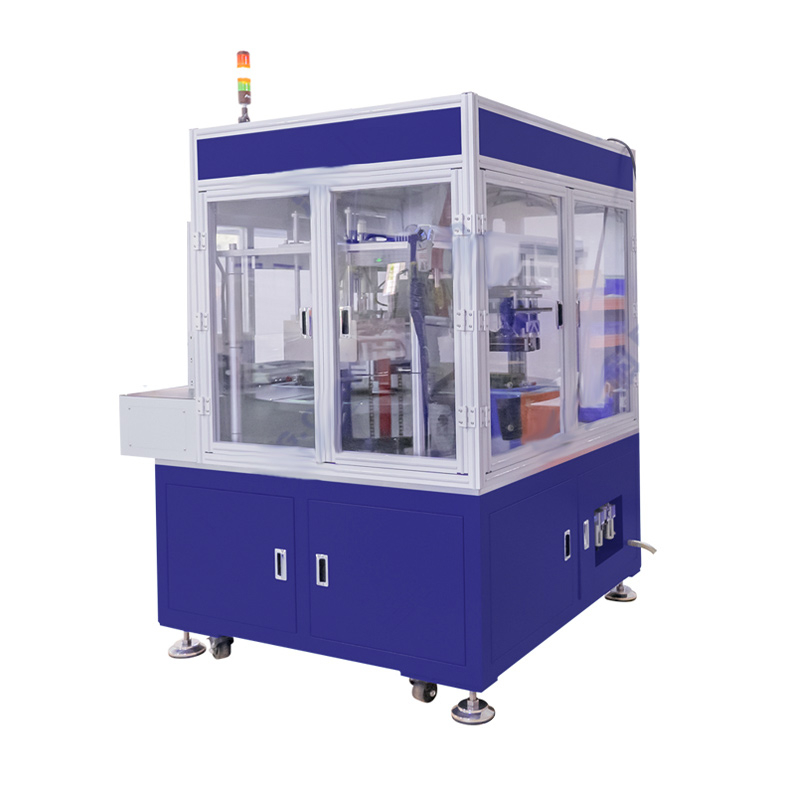

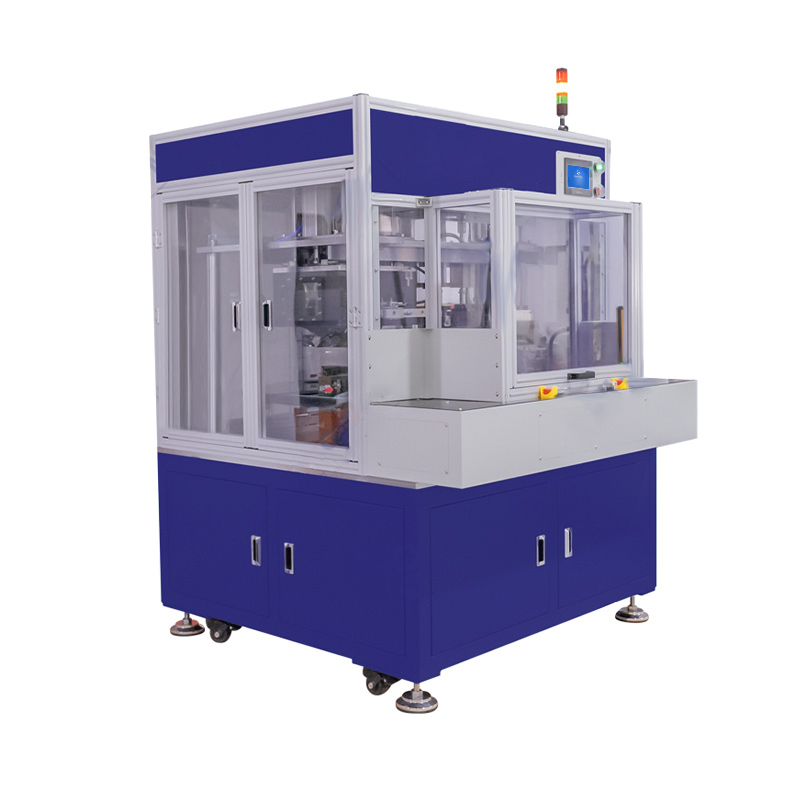

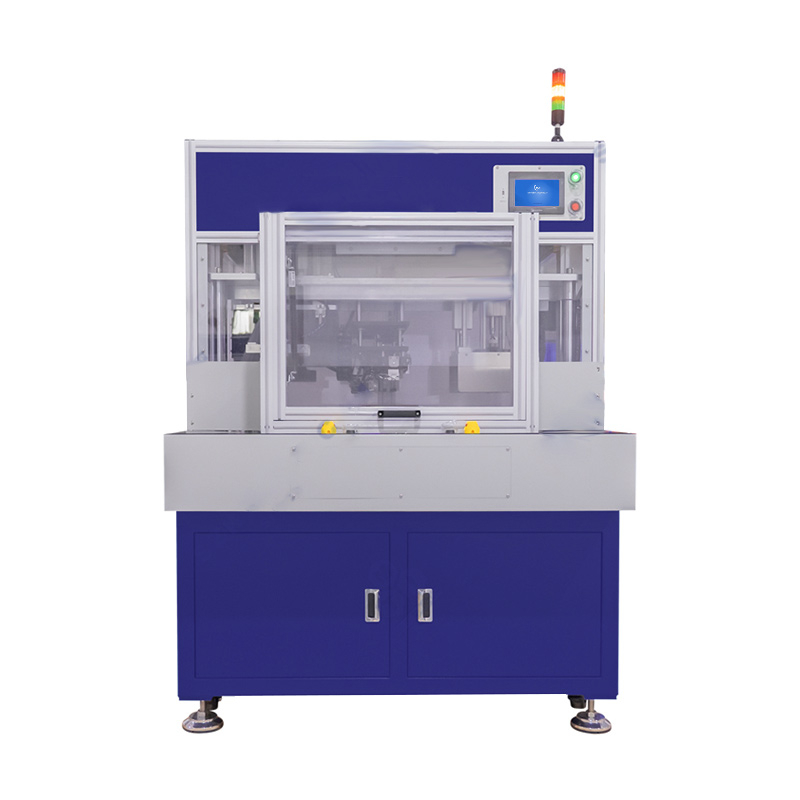

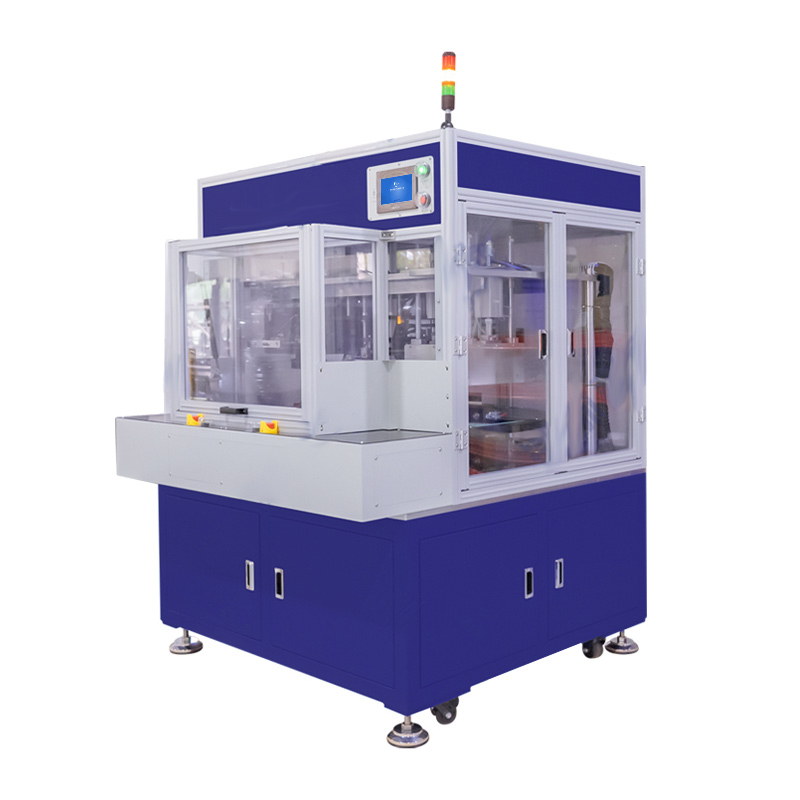

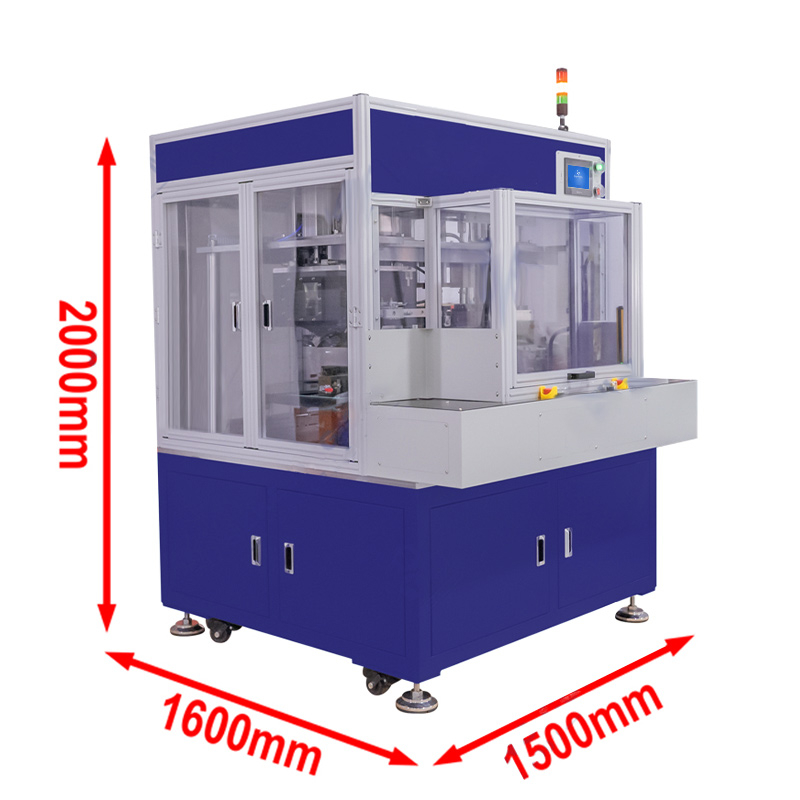

CY-115A-TVM rotary table vertical final sealing machine, compatible with battery vertical needle sealing, air bag cutting and secondary fine sealing functions, compatible with battery size Max.L200*W200*T20mm (without air bag), standard sealing edge width 6mm, effective sealing length Max.220mm, sealing pressure Max. 250kg

Product characteristics：

1. It can be used for vertical needle sealing, air bag cutting and secondary fine sealing process of flexible packaging lithium batteries, especially for lithium sulfur batteries;

2. Four-station rotating disk structure, manual loading and unloading;

3. Vertical acupuncture sealing, air bag cutting and secondary fine sealing work at the same time, high efficiency;

4. Vertical acupuncture only performs acupuncture exhaust to retain the electrolyte to the maximum extent;

5. Good parallelism of upper and lower head, stable welding quality;

6. The pressure of the head and inner pressure plate can be adjusted respectively;

7. Automatic timing and counting;

8. Vacuum chamber design and maintenance of high convenience, needle, seal, head easy to replace;

9. The vacuum degree is maintained well to ensure the sealing environment of the battery;

10. All four sides of the machine can be opened, easy maintenance;

11. Double start button, feed port design safety light curtain, equipped with access control door can not move, to ensure safe operation;

PLC control, HMI operation, easy to use.

Contact information：

If you are interested in our rotary vertical final sealing machine, please contact us for more information and a quote.

Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

Technical parameters：

 Application case：

Experiment preparation

Material preparation: Prepare an appropriate amount of assembled soft-pack lithium battery semi-finished products, including the batteries that have completed the assembly of positive and negative electrode sheets, electrolyte injection, and initial packaging.

Tools: In addition to the rotary vertical final sealing machine, you also need to prepare scissors, rulers, gloves and other auxiliary tools.

Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust.

Experimental procedure

Battery pretreatment: Place the assembled soft-pack lithium battery semi-finished product on the operating table to check whether there is leakage or other defects.

Initial seal inspection: Confirm the initial packaging effect of the battery, ensure that the aluminum plastic film and the battery body fit well, no bubbles and leakage seal phenomenon.

Rotary vertical final seal:

Place the battery on the work table of the rotary vertical final sealing machine to ensure the correct and stable position of the battery.

Start the device and the dial automatically sends the battery into the vacuum chamber.

Start the vacuum pump, gradually vacuum to the set value (usually about 10^-2 Pa), keep for a period of time to completely remove the gas and water inside the battery.

Start the heating system, set the appropriate heating temperature and time according to the battery specifications, so that the aluminum-plastic film reaches the molten state.

Activate the sealing device to seal the edge of the battery. Ensure that the sealing line is continuous, smooth and free of bubbles.

After the sealing is completed, the vacuum is slowly released to restore the normal pressure environment.

The turntable moves the encapsulated battery out of the vacuum chamber and places it in the discharge area.

Quality inspection: Carefully check each piece of packaged soft pack lithium battery to ensure that the sealing line has no leakage seal, no bubbles, no burning and other undesirable phenomena.

Performance test: Random sampling of some samples for charge and discharge cycle test, evaluate the battery capacity retention rate, internal resistance and other key indicators.

Result analysis

By using a rotary vertical final sealing machine, the company achieved the following results in the final packaging process of soft-pack lithium batteries:

Improve the sealing quality: The final sealing operation in the vacuum environment effectively eliminates the gas and water inside the battery, ensuring the purity of the battery inside and enhancing the sealing.

Reduce internal resistance: The high-quality package reduces the contact resistance between the electrolyte and the electrode material, improving the efficiency of the battery charge and discharge.

Improve safety: Good sealing effectively prevents the external environment from contaminating the battery, reduces the risk of short circuit and leakage, and improves the safety of the battery.

Enhanced product consistency: Standardized operating processes and high-precision equipment ensure that the packaging effect of each battery is consistent, improving the overall quality of the product.

Improved production efficiency: The automated design of the rotary vertical final sealing machine significantly reduces the packaging time of individual batteries, speeds up the production pace and reduces labor costs.
