small hydraulic button battery dismantling machinesmall hydraulic button battery dismantling machinesmall hydraulic button battery dismantling machine

small hydraulic button battery dismantling machine

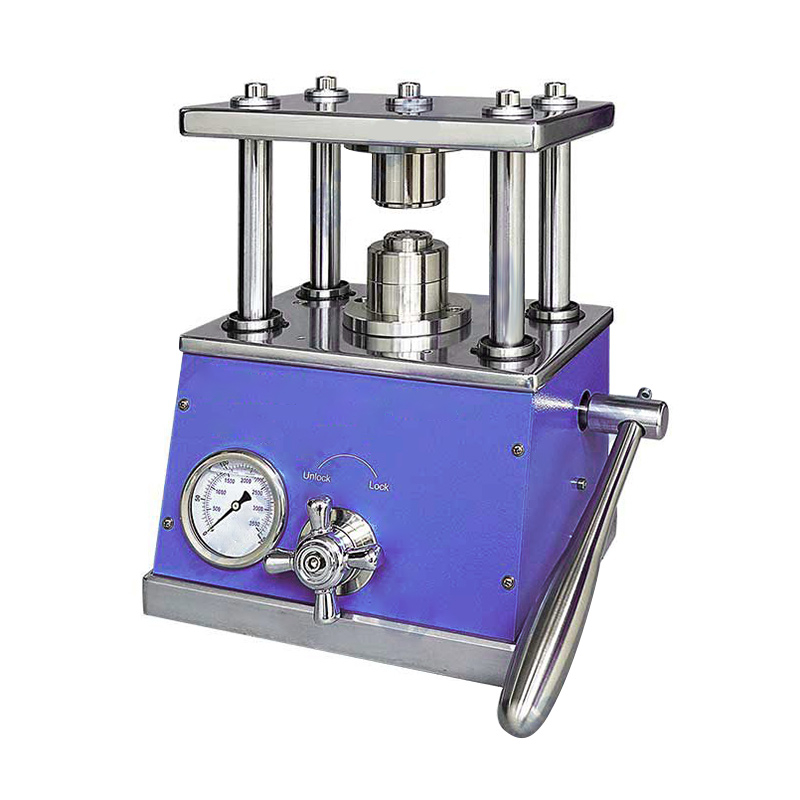

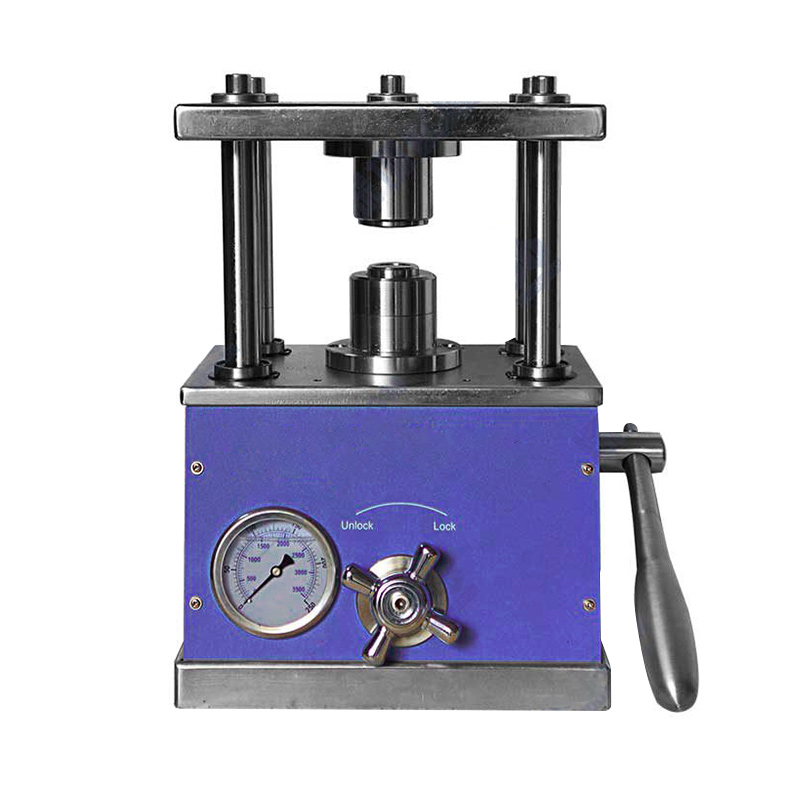

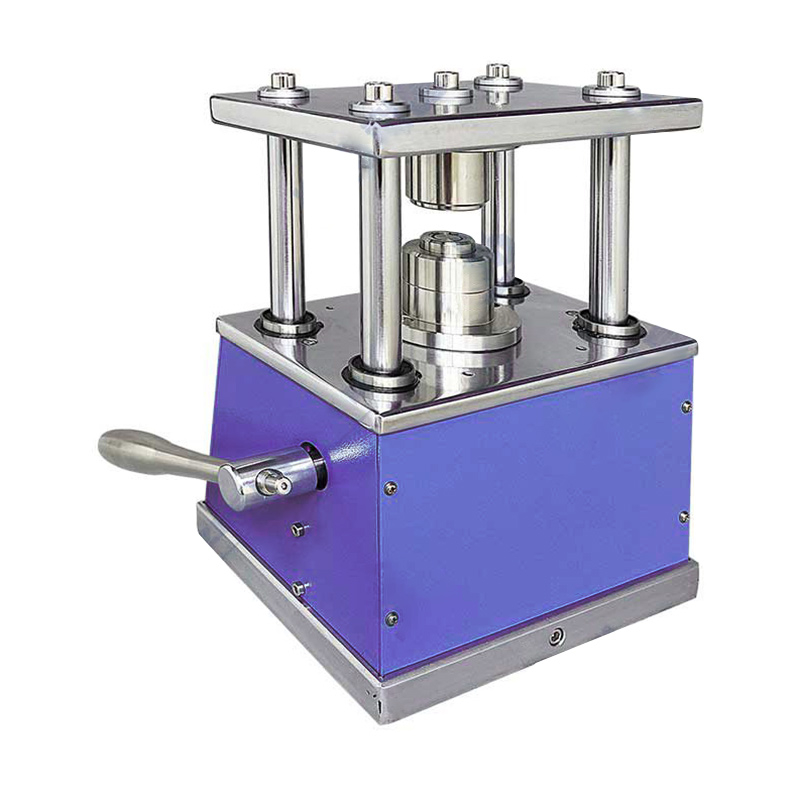

    CY-110D small hydraulic button battery removing machine is driven by hydraulic jack to realize the dismantling process of button battery. The standard disassembly mold can be used to disassemble the series button batteries with a diameter of 20mm such as CR2016, CR2025, CR2032, etc. After replacing the mold accessories,

CY-110D small hydraulic button battery removing machine is driven by hydraulic jack to realize the dismantling process of button battery. The standard disassembly mold can be used to disassemble the series button batteries with a diameter of 20mm such as CR2016, CR2025, CR2032, etc. After replacing the mold accessories, the button batteries with other diameters (such as CR2450, CR1620, etc.) can be disassembled. Optional sealing mold for button battery sealing.

Product characteristics:

1. The hydraulic cylinder drives the mold to disassemble the button battery, and the operation of the strengthening handle saves labor;

2. Compact and light, can be easily placed in the glove box;

3. Precision mold design ensures material research after disassembly and excellent disassembly quality;

4. Different molds can be configured to encapsulate and disassemble button batteries of different specifications, so as to achieve multi-purpose of one machine;

5.Pure manual operation, no need for electricity and gas, easy to use.

Contact information:

If you are interested in our products, please contact us for more information and a quote.

Phone+86 136 6380 8508

Emailjason@cysitech.com

Sales mangerJason.Zhang

WhatsApp:+86 150 3827 2566

Wechatcykytech

Technical parameters:

Disassembly pressure

The button battery package is recommended   to range from 50kg/cm2 to 60kg/cm2, and the factory setting upper limit is   65kg/cm2

Removal stroke

20mm

Operating handle

Button battery removal operation handle   pressure is less than 6Kg

Disassembling die

Standard CR20 series disassembly mold,   can be selected or added CR16, CR20, CR24, CR30 and other specifications

Safety oil valve

The discharge pressure is set before   delivery. To prevent damage to the device, properly adjust and increase the   discharge pressure

Mounting dimension

L230mm*W180mm*H330mm

weight

About 25Kg

Application case:

Experiment preparation

Material preparation: Prepare an appropriate amount of button lithium batteries to be dismantled, including the batteries that have completed the assembly of positive and negative electrode sheets, electrolyte injection and packaging.

Tools: In addition to the small hydraulic button battery removal machine, you need to prepare auxiliary tools such as gloves, scissors, and rulers.

Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust. The operation area should be equipped with a ventilation system to prevent the accumulation of harmful gases.

Experimental procedure

Battery pretreatment:

Place the button lithium battery to be disassembled on the operating table to check for leaks or other defects.

Confirm the packaging effect of the battery, and ensure that the positive and negative shells are well fitted without bubbles and leaky sealing.

Parameter setting:

According to the battery specifications and disassembly requirements, set the disassembly parameters of the small hydraulic button battery disassembly machine, including disassembly speed, disassembly force and disassembly time.

It can be tested in small batches first and adjusted to the best state before being formally put into production.

Battery loading:

Place the battery on the workbench of the small hydraulic button battery removal machine to ensure the correct and stable position of the battery.

Adjust the fixture to keep the battery in place and avoid moving during disassembly.

Disassembly operation:

Start the disassembly procedure and the hydraulic system will automatically disassemble the battery.

Ensure that internal battery components are not damaged during the removal, and that the removal cables are continuous, flat, and free of burrs.

After the removal is complete, the hydraulic system is automatically returned and the internal components of the battery are completely removed.

Quality inspection:

Carefully check the internal components of the disassembled battery to ensure that there is no damage, crack, or deformation.

Use tools such as microscopes and thickness gauges for detailed inspection and record relevant data.

Performance test:

Some samples were randomly selected for electrochemical performance test to evaluate the performance of the internal components of the battery after disassembly.

Record the test results and analyze the effect of disassembly on the internal components of the battery.

Result analysis

By using a small hydraulic button battery dismantling machine, the company achieved the following results in the dismantling process of button lithium batteries:

Improve disassembly quality: The high-precision hydraulic system and stable clamping device ensure the continuity and flatness of the disassembly line, reduce burrs and cracks, and improve the integrity of the internal components of the battery.

Enhanced safety: The high quality disassembly reduces the safety risks of the battery during disassembly, avoids damage to internal components, and improves the safety of operation.

Improve production efficiency: The automated all-in-one design significantly reduces disassembly time, improves production efficiency, and reduces labor costs.

Reduce the rate of defective products: standardized operation process and high-precision equipment reduce the error caused by human operation and reduce the rate of defective products.
