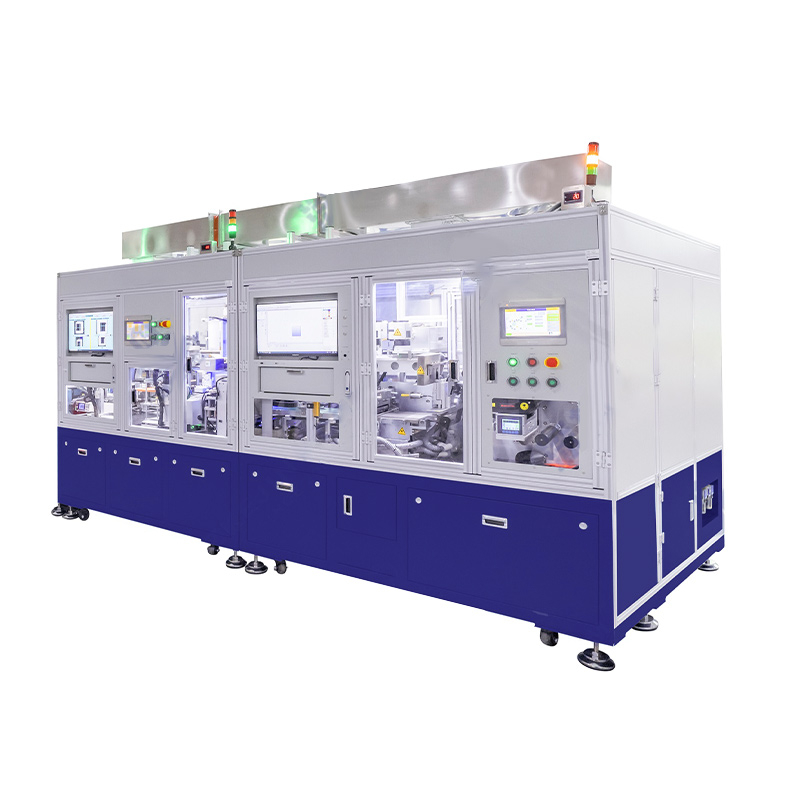

Soft pack battery cutting and stacking machine

Soft pack battery cutting and stacking machine, compatible with positive and negative metal die cutting, dust removal and cell lamination, adhesive, hipot test functions. Coil pole plate feeding, finished cell unloading, the whole process is fully automatic. The equipment includes the positive and negative film taping platform, unwinding correction, positive and negative judgment, taping detection, tension control, hardware die cutting, waste collection, double-sided dust removal, cache transmission, CCD correction and size detection, diaphragm tension control, diaphragm correction, diaphragm static elimination, automatic Z-shape lamination, automatic cell adhesive, hot pressing hipot detection, battery cache, environmental monitoring and other units . Die cutting size length 50 ~ 160mm, width 39 ~ 100mm (wide edge out of the ear, not including the ear size), die cutting and laminated fixture can be customized according to the size of the pole.

Product characteristics：

1. Automatic unwinding of the base material and automatic correction of the strip function to help improve the cutting accuracy of the pole sheet;

2. Adopt hardware die cutting mode, high precision and efficiency;

3. After die cutting, the pole piece adopts blowing and suction combination of front and back dust removal, and the dust removal effect is excellent;

4. Use CCD to detect the size of the pole plate and correct the pole plate with the alignment platform, isolate the NG product before laminating and ensure the precise positioning of the pole plate;

5. Diaphragm automatic unwinding and automatic correction, to ensure the diaphragm accurate walking;

6. Separate feeding of positive and negative electrodes, Z-shaped lamination to improve lamination efficiency;

7. hipot test of battery cell, isolating NG product, ensuring the qualified rate of battery cell;

8. Finished cell cache function, reduce manual operation;

9. The equipment design is relatively sealed, the top is connected with dry air inlet and outlet, and the dew point probe and instrument are installed to facilitate the environmental control of the working area;

10. Use a partition inside the protective cover to separate the positive and negative electrode die cutting space to prevent dust cross pollution of the positive and negative electrodes;

11. Equipped with light curtain, access control and other safety protective measures to ensure safe operation;

12.PLC control, HMI operation, easy to use.

Contact information：

If you are interested in our CY-122-M pole ear rotary kneading machine, please contact us for more information and a quote.

Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

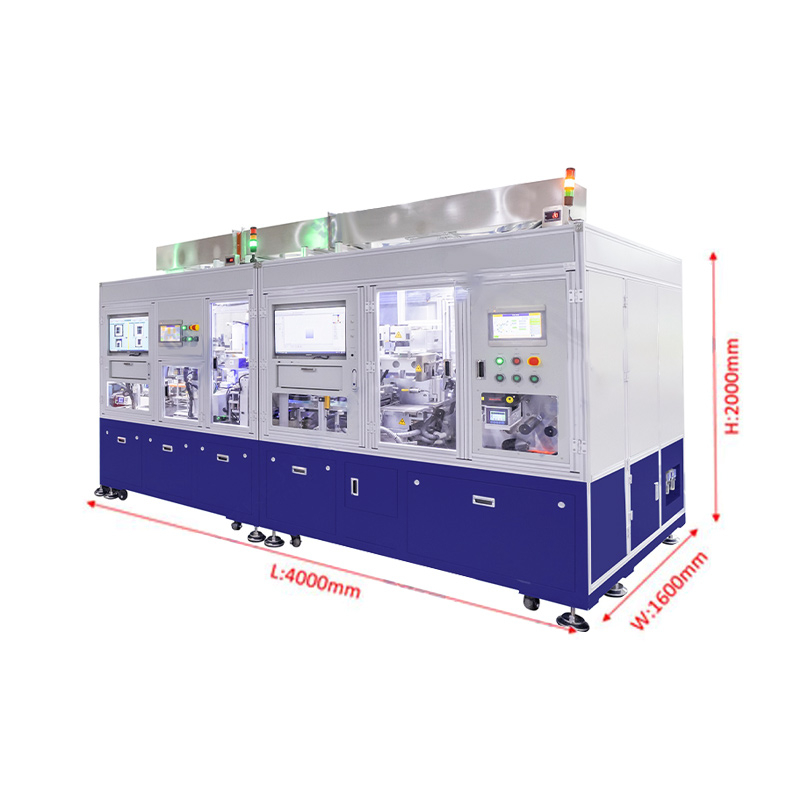

Technical parameters：

Application case

Experiment preparation

Material preparation: Prepare a certain number of standard size positive and negative slurry coating foil to ensure uniform coating and no impurities.

Tool preparation: In addition to the cutting and folding machine, you also need to prepare the early production equipment such as the coating machine and drying furnace, and the subsequent winding machine and liquid injection machine.

Environmental preparation: Ensure that the temperature and humidity conditions in the production workshop meet the process requirements to avoid the impact of dust and other pollutants.

Experimental procedure

Electrode coating and drying: First, use the coating machine to evenly apply the positive and negative electrode slurry on the aluminum foil or copper foil, and then send it to the drying furnace to remove the solvent and form a dry electrode sheet.

Pretreatment of the pole sheet: cut the dried pole sheet into an appropriate size for subsequent processing.

Pole slice cutting and laminating:

The pre-treated pole slices are put into the cutting and folding machine, and the position is automatically calibrated by the visual recognition system on the device.

Start the cutting program, according to the set size parameters, using precision tools to quickly and accurately complete the cutting operation of the pole piece.

Then, the device automatically switches to the laminated mode, and the cut pole sheet is stacked neatly by the manipulator in accordance with the predetermined number of layers and sequence to form the required cell structure.

Quality inspection: After each batch of cutting and lamination, random samples are selected for appearance inspection and size measurement to ensure that the edges of all pole pieces are neat and the interlayer alignment is good.

Cell assembly: the qualified pole sheet group is sent into the winding machine, and the diaphragm is rolled together to make a cylindrical cell, and the subsequent packaging, liquid injection and other processes.

Result analysis

Through the introduction of the cutting and folding machine, the company achieved the following improvements in the production process of the 18650 cylindrical lithium battery:

Improve production efficiency: The highly automated cutting and folding machine greatly reduces the processing time of pole slices and improves the speed of the overall production line.

Enhanced product consistency: The high precision and stability of the equipment ensure the quality of each pole piece and reduce differences caused by human factors.

Reduced production costs: Compared to traditional manual operations, automated equipment reduces the need for manpower, while reducing the rate of scrap due to incorrect operation.
