soft pack battery platen Kit

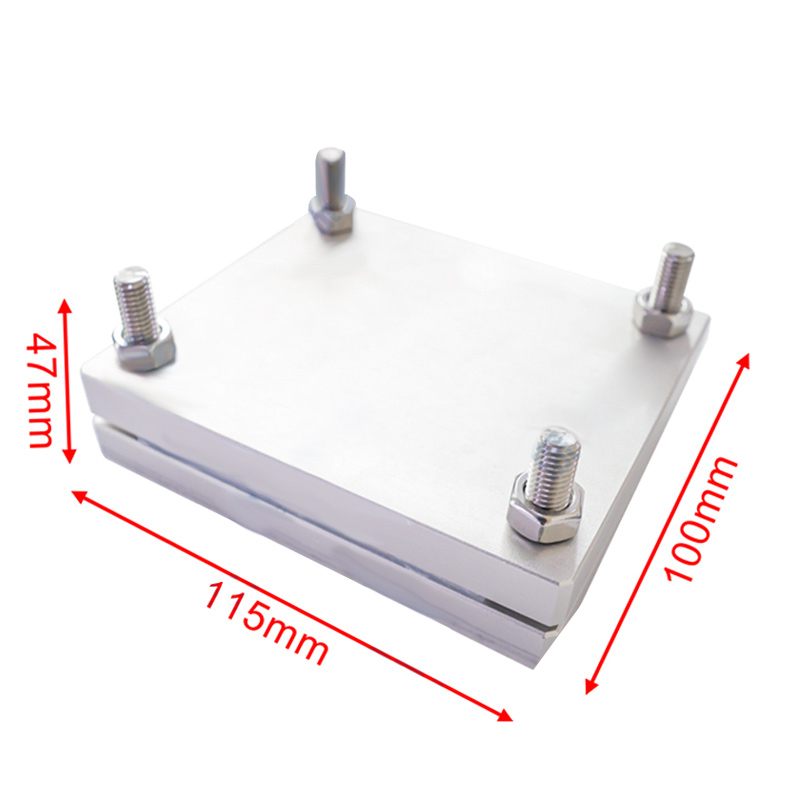

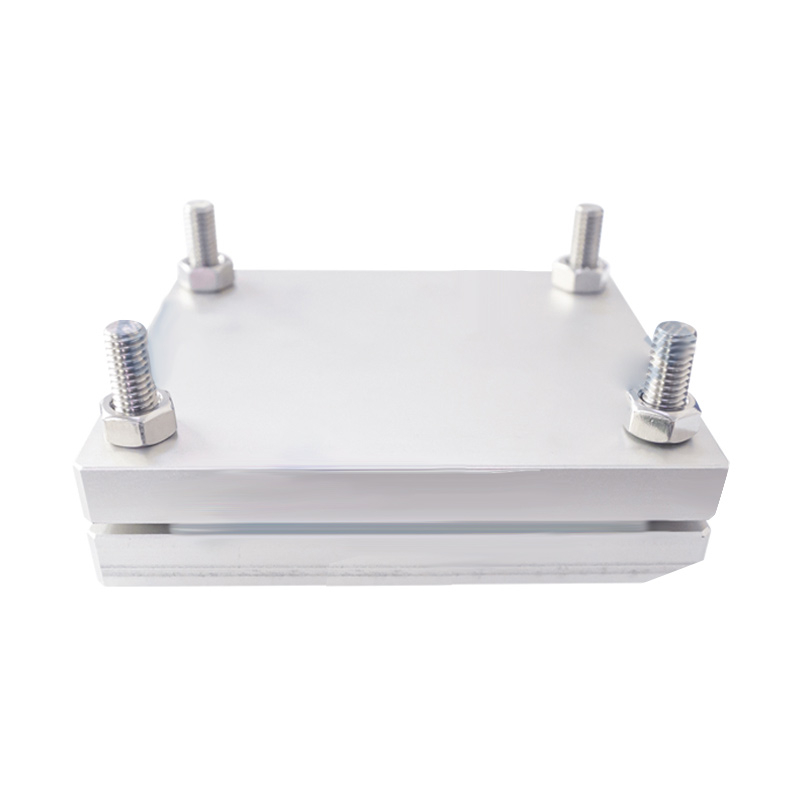

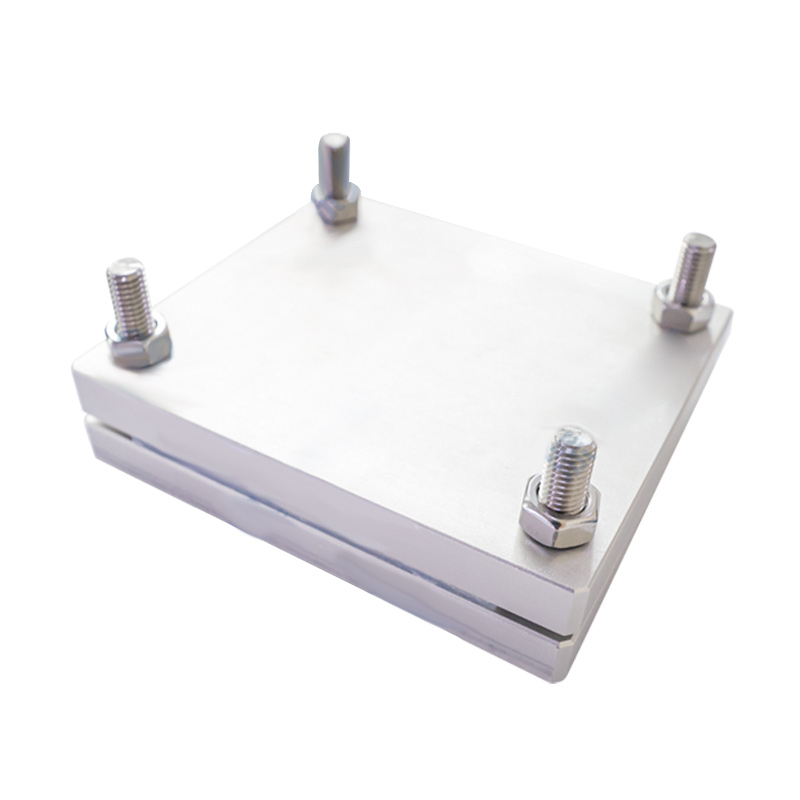

CY-MP-7580 soft pack battery clamp kit is a special test fixture for soft pack battery. The fixture consists of an upper splint, a lower splint and a guide screw. The structure of the fixture is simple, and it can meet the test use of a variety of different sizes of soft pack batteries. Suitable for laboratory or sample line for product process exploration.

Product characteristics：

1. Simple structure, small number of parts, easy to operate;

2. Suitable for a variety of different sizes of batteries;

3. Light weight, small size, easy to handle;

4. All metal steel components, strong and durable;

5. The pressure plate is in soft contact, and the battery surface pressure is uniform.

Contact information:

If you are interested in our soft pack battery platen Kit, please contact us for more information and a quote.

Phone：+86 136 6380 8508

Email：jason@cysitech.com

Sales manger：Jason.Zhang

WhatsApp:+86 150 3827 2566

Wechat：cykytech

Technical parameters：

 Application case

Experiment preparation

Material preparation: Prepare an appropriate amount of assembled soft-pack lithium battery semi-finished products, including the batteries that have completed the assembly of positive and negative electrode sheets, electrolyte injection, and initial packaging.

Tools: In addition to the battery tray kit, you must obtain auxiliary tools, such as scissors, ruler, and gloves.

Environment preparation: Ensure that the operation area is clean and dust-free, and that the temperature and humidity meet the technical requirements to avoid the impact of static electricity and dust.

Experimental procedure

Battery pretreatment: Place the assembled soft-pack lithium battery semi-finished product on the operating table to check whether there is leakage or other defects.

Initial seal inspection: Confirm the initial packaging effect of the battery, ensure that the aluminum plastic film and the battery body fit well, no bubbles and leakage seal phenomenon.

Clamping plate kit installation:

Place the soft-pack battery platen kit on the operating table and adjust the height and position of the support frame to fit the size of the battery.

Place the battery in the support frame of the platen kit, ensuring that the battery position is centered and stable.

Position the pressure plate so that it covers the battery. Adjust the pressure of the pressure plate according to the specifications and requirements of the battery to ensure the uniform distribution of pressure.

Slowly press down the pressure plate so that the internal components of the battery are tightly fitted. Maintain a certain pressure time (usually a few minutes) to ensure the stability of the internal structure of the battery.

Quality inspection: Carefully check each piece of compressed soft pack lithium battery to ensure that the internal structure of the battery has no deformation and no short circuit.

Performance test: Random sampling of some samples for charge and discharge cycle test, evaluate the battery capacity retention rate, internal resistance and other key indicators.

Result analysis

Through the use of softpack battery platen kits, the company achieved the following results in the packaging and molding process of softpack lithium batteries:

Improve the internal structural stability: The uniform pressure distribution ensures the tight fit of the internal components of the battery, avoids the deformation and short circuit of the electrode sheet, and improves the internal structural stability of the battery.

Enhance product consistency: Standardized operating processes and high-precision equipment ensure that the molding effect of each battery is consistent, improving the overall quality of the product.

Improve safety: The stable internal structure effectively prevents short circuit and thermal runaway caused by internal loosening during the battery charging and discharging process, improving the safety of the battery.

Improve production efficiency: The use of platen kits simplifies the battery packaging and molding steps, reducing manual operation time and improving production efficiency.
