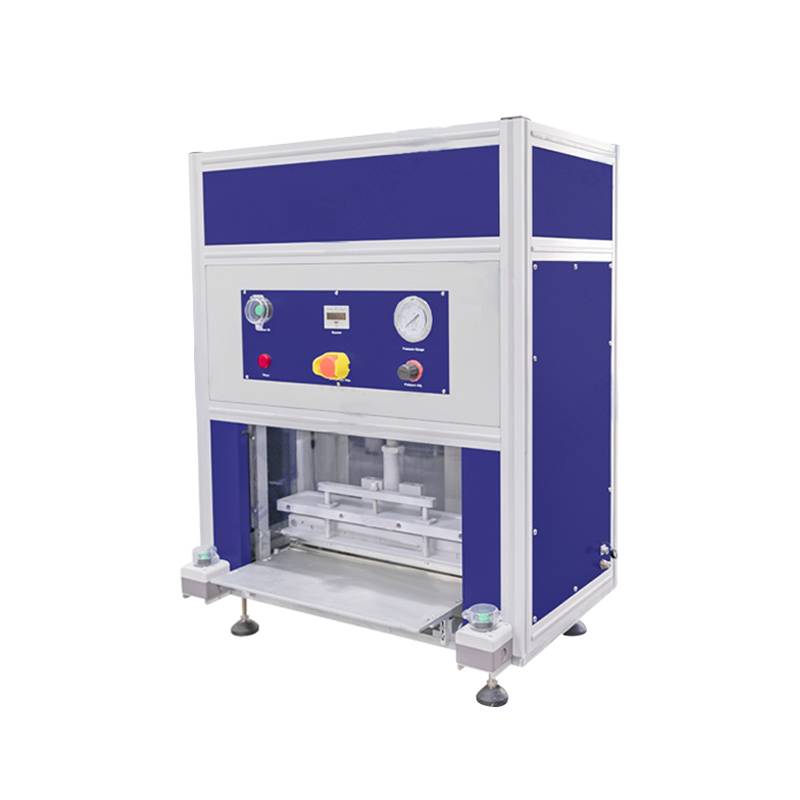

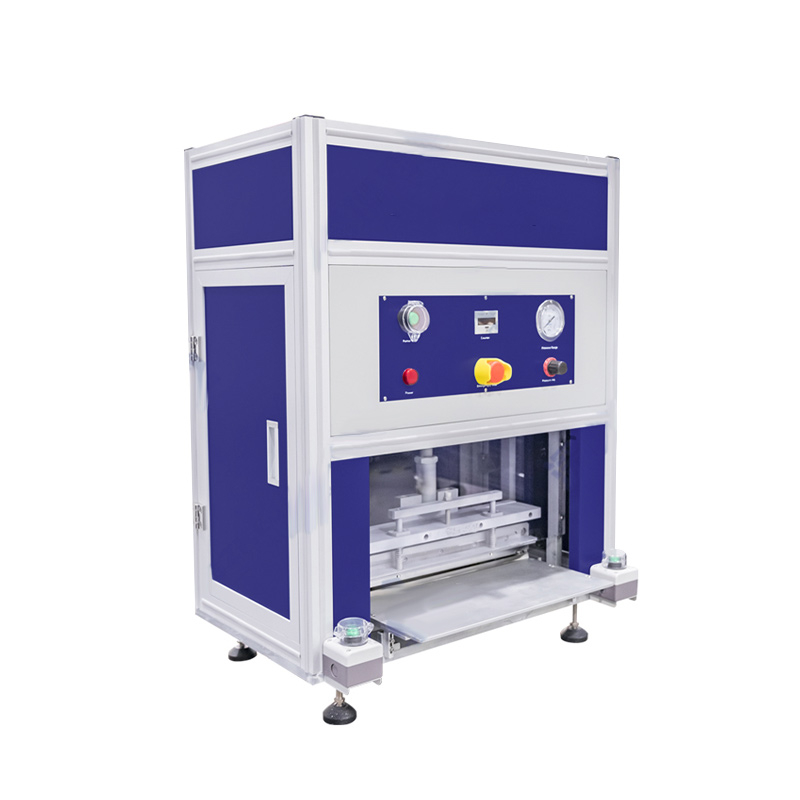

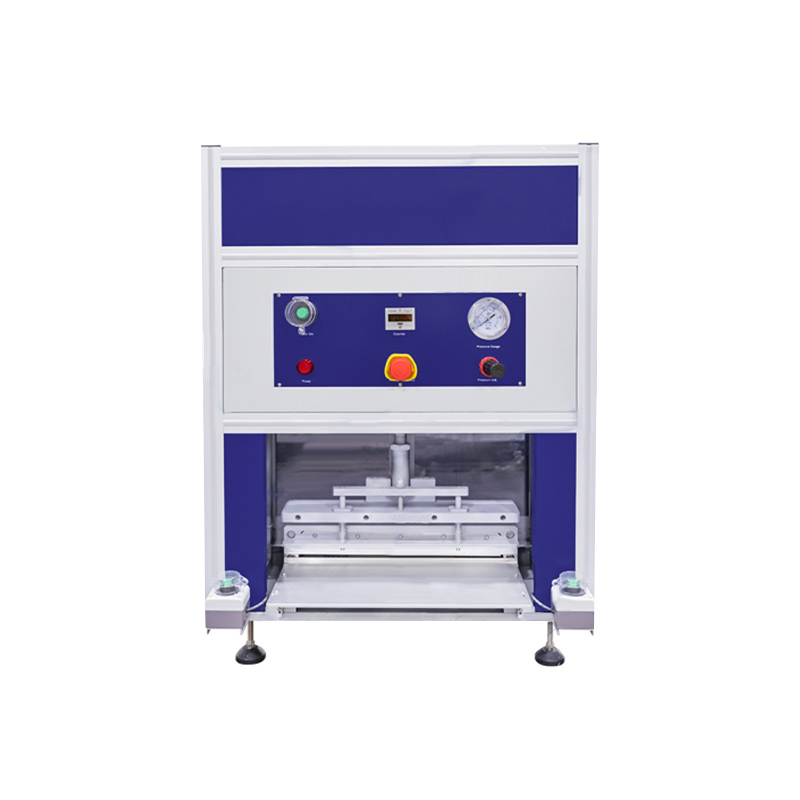

Aluminum-plastic film cutting machine is a device used for cutting the edges of aluminum-plastic film. The device has a single-station structure, uses a clamp to assist in loading, and drives the metal cutter through a cylinder to achieve neat cutting.
Aluminum-plastic film cutting machine is a device used for cutting the edges of aluminum-plastic film. The device has a single-station structure, uses a clamp to assist in loading, and drives the metal cutter through a cylinder to achieve neat cutting.
Manual loading and unloading, can be equipped with auxiliary clamps to achieve cutting functions;
Configured with a counter for convenient piece counting;
Single-station structure, cylinder stamping and cutting, stamping speed and pressure are adjustable;
High-strength frame, upper and lower precision molds to ensure cutting accuracy;
For inquiries about our Aluminum-plastic film cutting machine, feel free to contact us for more information and quotes.
Phone: 185 3800 8121
Email: Lily@cysitech.com
Contact Person: Zhao Xiaoli
Whatsapp: 8613849254500
Power supply | Voltage single-phase AC220V±10% (customizable 110VAC), frequency 50Hz/60Hz, power 100W |
Air source | 0.5-0.8MPa compressed air |
Battery length | Max. 400mm |
Cutter length | 420mm |
Cutting stroke | About 15 mm |
Cutting pressure | Max. 1000Kgf |
Working speed | 300~500 times/hour |

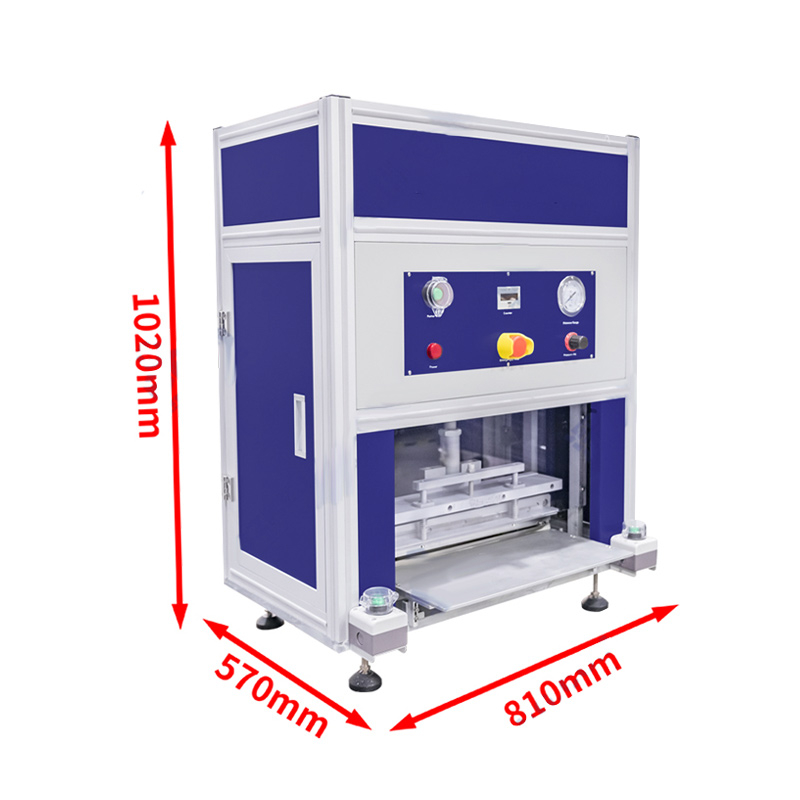

Equipment size | W810mm*D570mm*H1020mm |
Weight | About 208Kg |
