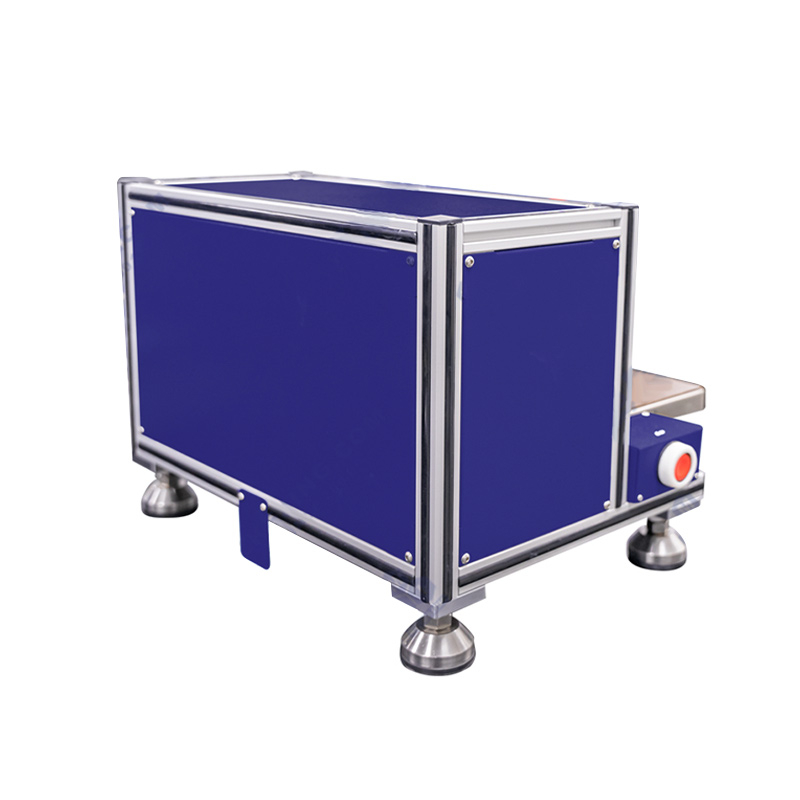

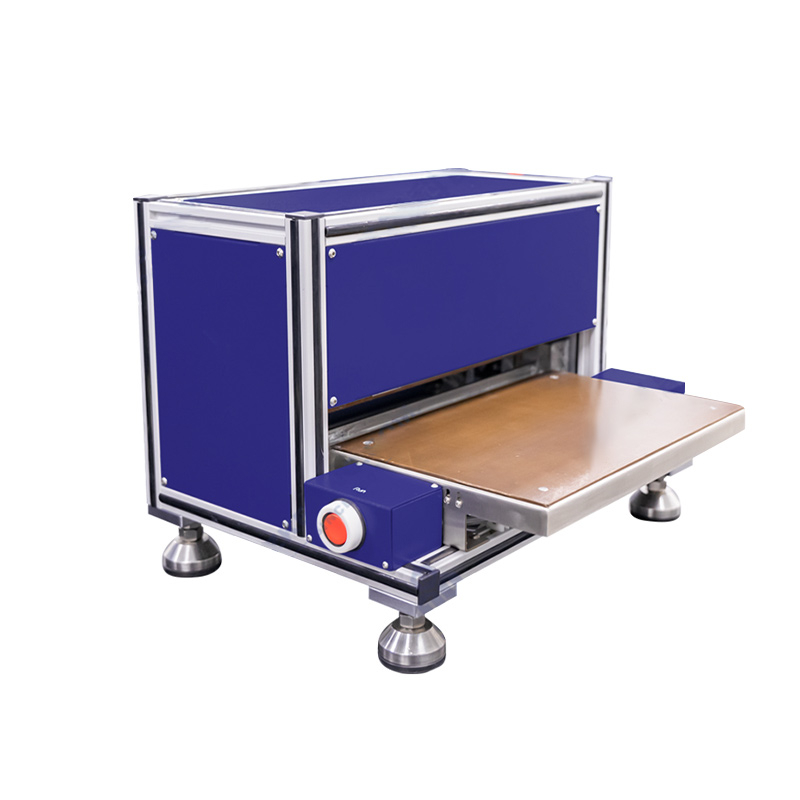

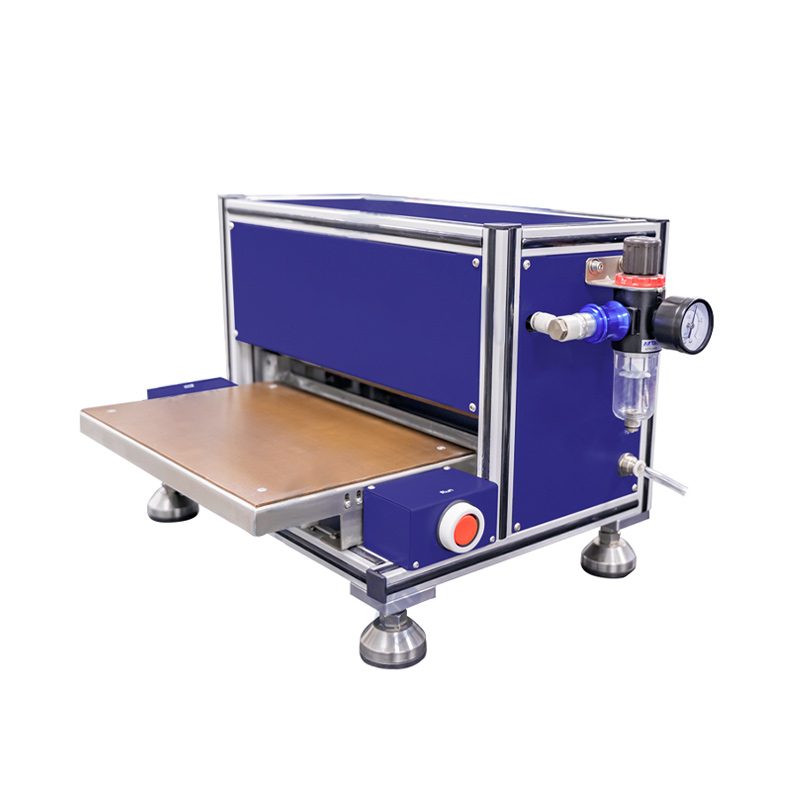

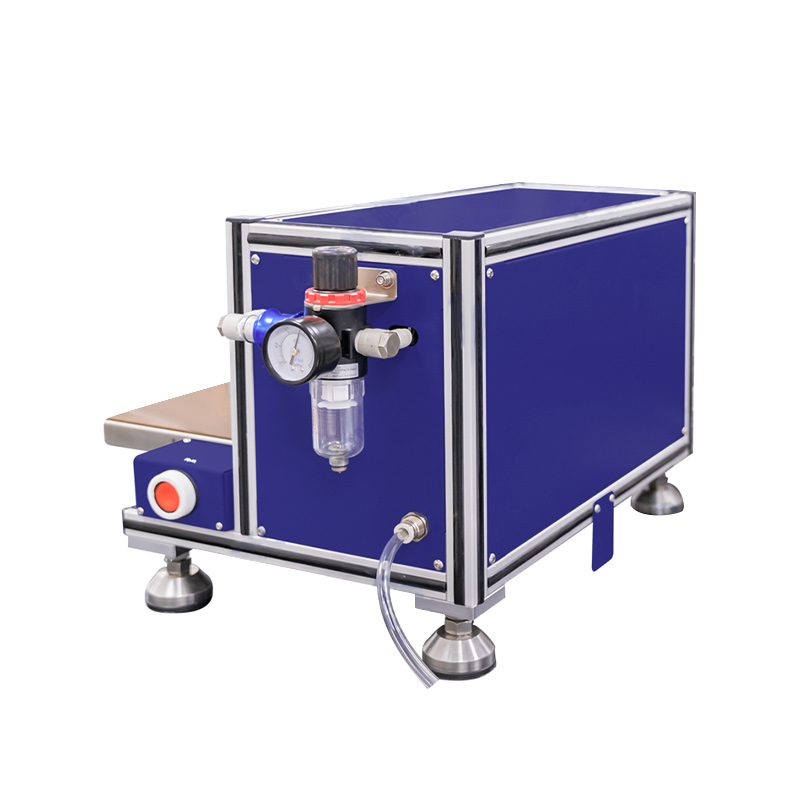

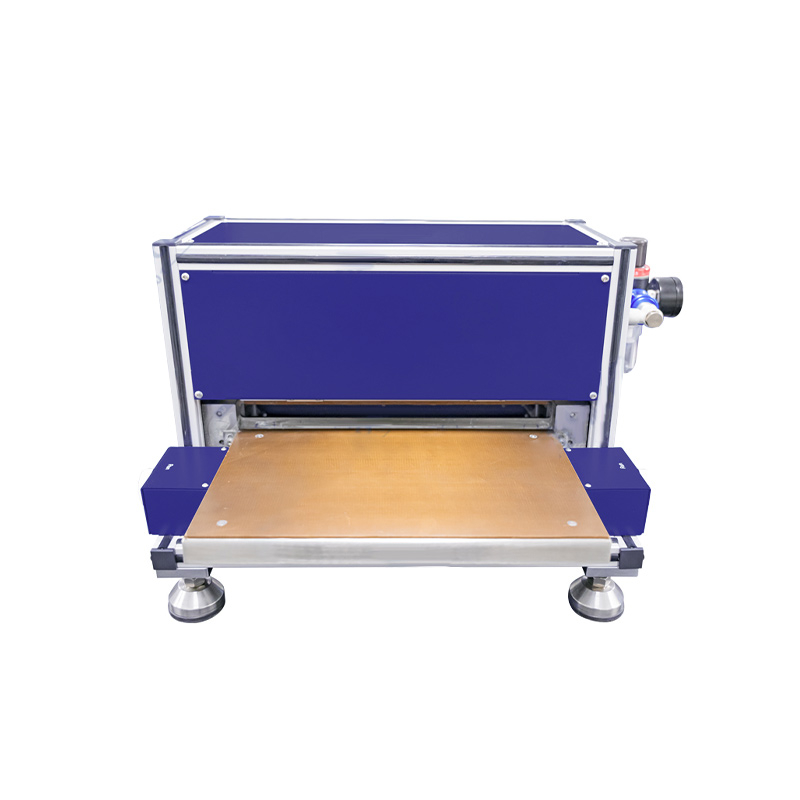

Aluminum-plastic film edge pneumatic cutting machine

    The pneumatic cutting machine is a device mainly used for aluminum-plastic film edge cutting. The device has a single-station structure, uses a clamp to assist in loading, and drives the metal cutter through a cylinder to achieve neat cutting.

The pneumatic cutting machine is a device mainly used for aluminum-plastic film edge cutting. The device has a single-station structure, uses a clamp to assist in loading, and drives the metal cutter through a cylinder to achieve neat cutting.

Functional features:

Manual loading and unloading, can be equipped with auxiliary clamps to achieve cutting functions;

Single-station structure, cylinder stamping cutting, adjustable stamping pressure;

High-strength frame, upper and lower precision molds to ensure cutting accuracy;

Press and hold the double button to start cutting, and the cutter will retract immediately when the button is released to ensure user safety.



For inquiries about our Aluminum-plastic film edge pneumatic cutting machine, feel free to contact us for more information and quotes.

  • Phone: 185 3800 8121

  • Email: Lily@cysitech.com

  • Contact Person: Zhao Xiaoli

  • Whatsapp: 8613849254500

Technical parameters:

Air source

0.5-0.8MPa compressed air

Cutter length

Total length 300mm, effective length   280mm

Operation table

About W310mm*D200mm

Cutting stroke

About 15 mm

Cutting pressure

Max.150Kg·f   (0.6MPa)

Working speed

About 300-500 times/hour

Equipment size

About W550*D400*H300mm

Weight

About 25Kg
