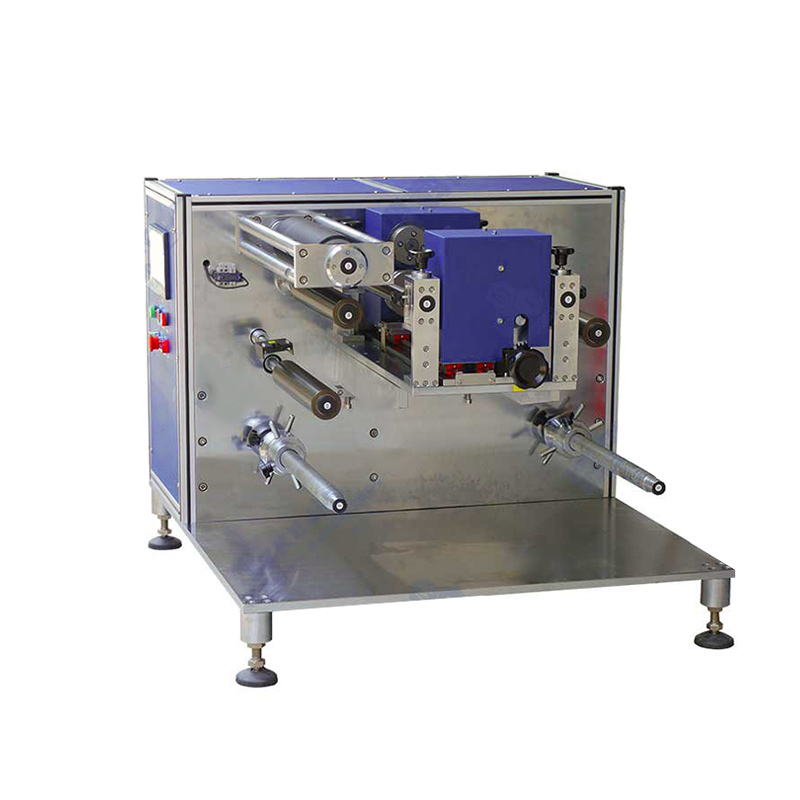

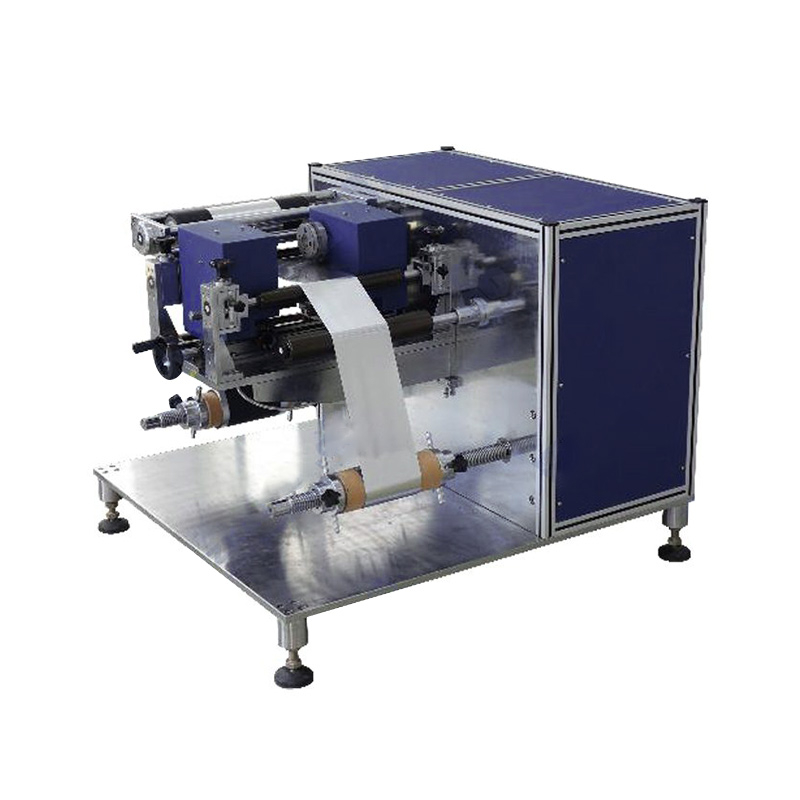

The automatic trimming machine can realize continuous precision trimming of roll materials within 300mm in width, and the width is steplessly adjustable
The automatic trimming machine can realize continuous precision trimming of roll materials within 300mm in width, and the width is steplessly adjustable. It is especially suitable for single precision slitting occasions where the width needs to be adjusted frequently. The equipment can be widely used in lithium-ion batteries, metal foils, optical films and other functional film industries.
Single vertical plate structure, precision slitting knife seat;
Upper and lower circular knife structure, stepless adjustable slitting width, digital display of width parameters;
Ultra-fine tungsten steel blade, good slitting quality, ultra-long service life;
Adjustable cutting amount, adjustable ratio of knife speed to material linear speed;
By adjusting the feeding and discharging angles, it can adapt to the slitting of materials of different materials and thickness values;
Automatic control of winding tension, upper and lower axes independently adjustable within 50N;
PLC control, HMI operation, convenient and easy to use;
For inquiries about our Automatic trimming machine for lithium-ion batteries, feel free to contact us for more information and quotes.
Phone: 185 3800 8121
Email: Lily@cysitech.com
Contact Person: Zhao Xiaoli
Whatsapp: 8613849254500
Power supply | Voltage single phase 220VAC±10% (customizable 110VAC), frequency 50Hz/60Hz, power 1KW |
Slitting method | Upper and lower circular cutters |
Roller width | 350mm |
Cutting width | 30~300mm, digital display, stepless adjustment |
Slitting accuracy | ±0.1mm |
Cutting thickness | 10~300μm |
Burr condition | ≤25µm |
Slitting speed | 0~5m/min |
Tension control | 50N can be set, automatic control |
Reeling and rewinding shaft | 3 inches, top-to-top mechanical clamping |
Reeling and rewinding diameter | 250mm |
Reeling and rewinding correction | Automatic unwinding and correction, accuracy ±0.5mm |

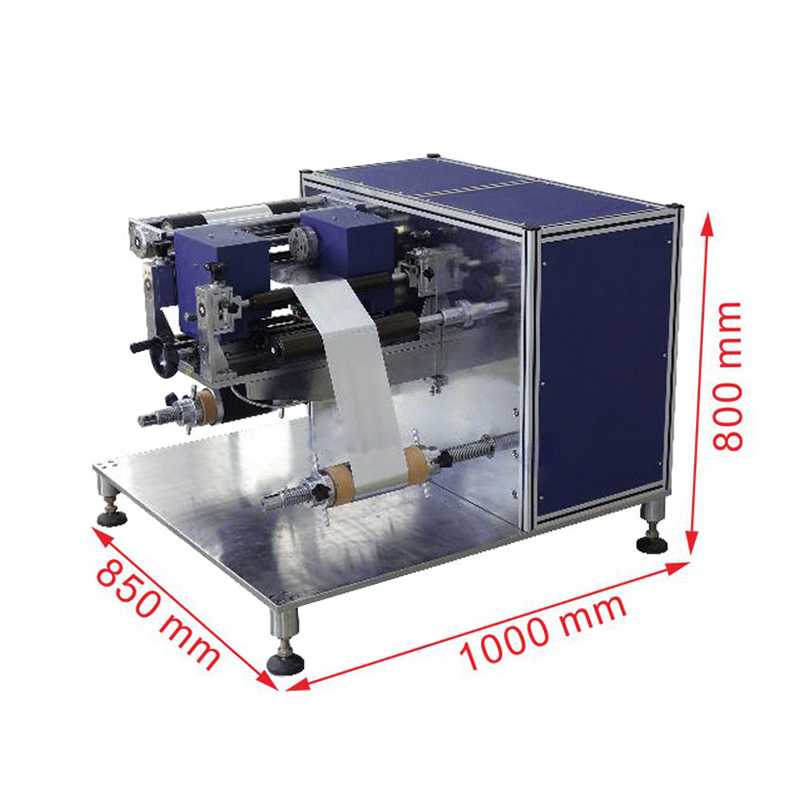

Equipment size | L1000mm*W850mm*H800mm |
Weight | About 200Kg |
