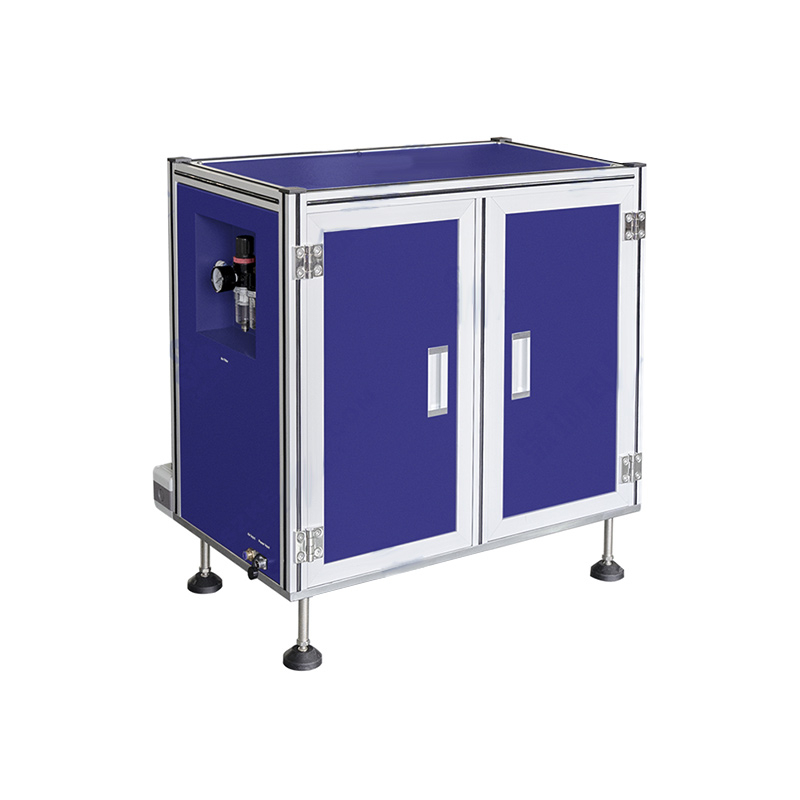

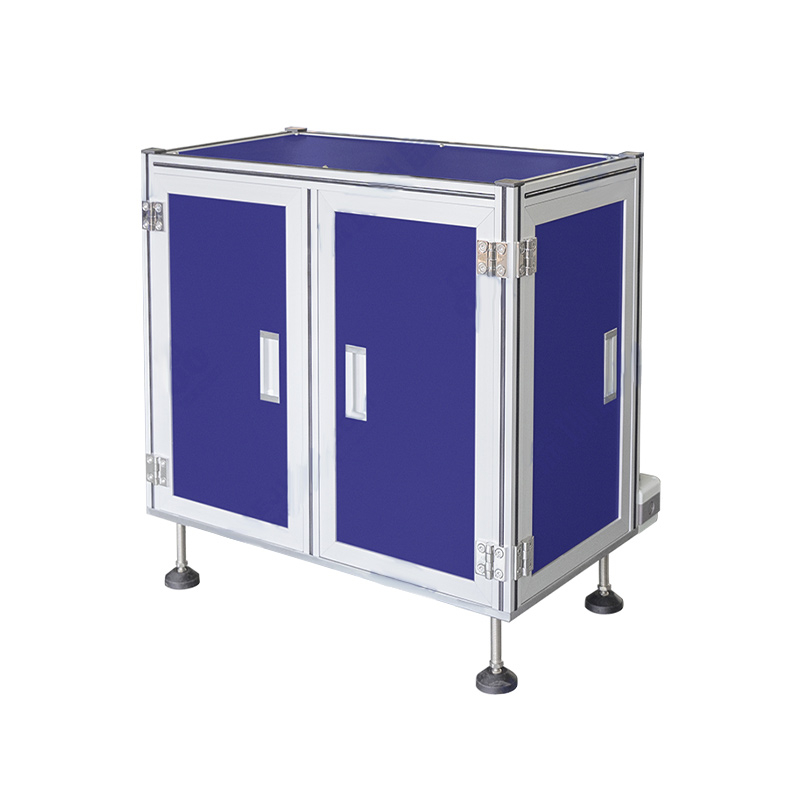

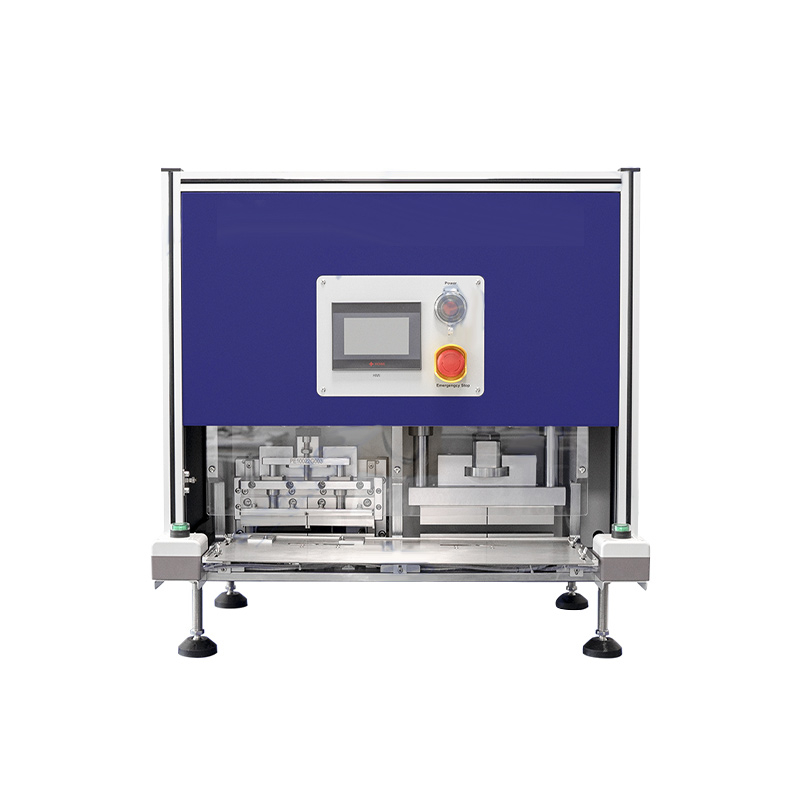

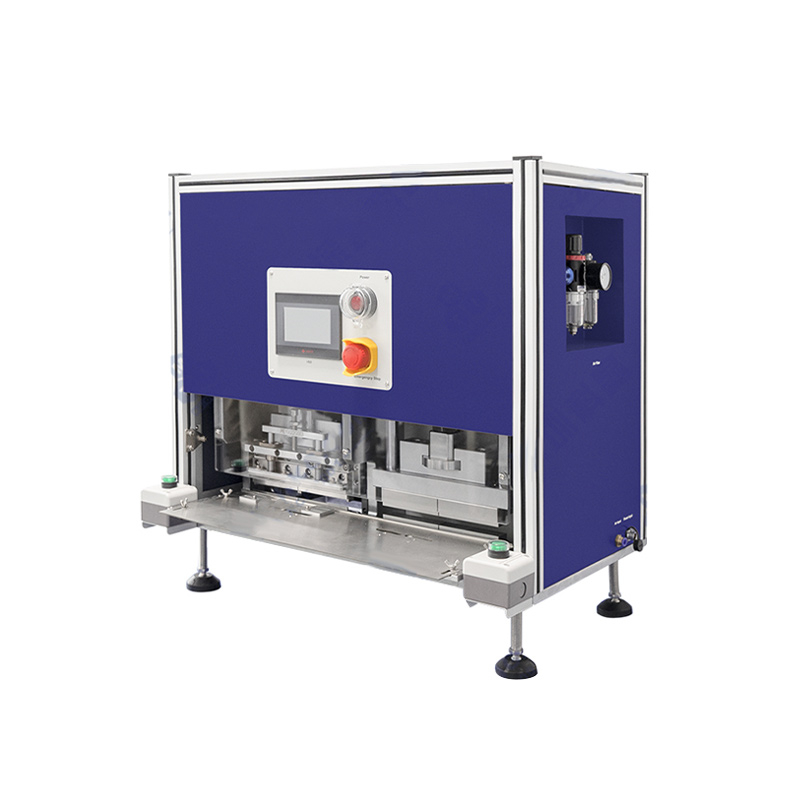

    Multifunctional shaping machine, compatible with tab cutting before welding and tab shaping after welding, double cutters and double pressure blocks for insulation treatment

Multifunctional shaping machine, compatible with tab cutting before welding and tab shaping after welding, double cutters and double pressure blocks for insulation treatment, effective length of a single cutter 100mm, single pressure block length 106mm, cutting and flattening pressure Max.10000N, suitable for L380* W210 (tab edge) mm cells, standard 064660 cell fixture, optional other specifications of fixtures.

Functional features:

Compatible with the functions of tab cutting before welding and tab shaping after welding;

The cutter and the pressing block are insulated to prevent static electricity from breaking through the cell diaphragm and causing a short circuit;

The manual clamp is easy to load and unload, positioning and use;

This cell clamp can be used in conjunction with the company's welding machine clamp to achieve the four processes of tab pre-welding, cutting, tab welding and shaping of the cell without changing the clamp;

The cutting and pressing stroke, speed and pressure are adjustable, suitable for samples of different thicknesses;

The upper and lower precision molds are made of high-strength mold steel to ensure the cutting and shaping effects;

The cell detection function and double-button start ensure the personal safety of the operator;

The equipment is compact and suitable for tabletop operation;

PLC control, HMI operation, easy to use and maintain.



For inquiries about our Tab cutting and shaping machine, feel free to contact us for more information and quotes.

  • Phone: 185 3800 8121

  • Email: Lily@cysitech.com

  • Contact Person: Zhao Xiaoli

  • Whatsapp: 8613849254500

Technical parameters:

Power supply

Single-phase AC110-220V±10%, frequency 50/60Hz, power 100W

Air source

0.5-0.8MPa (recommended 0.6MPa)

Applicable battery cells

Max.L380*W210 (ear edge) mm, see battery   size diagram for details

Cutter specifications

Double cutters, effective length of a   single cutter 100mm, blade thickness 3mm, cutting stroke 25mm adjustable

Block specifications

Double pressure blocks, length of a   single pressure block 106mm, width 25mm, downward pressure stroke 25mm   adjustable

Battery cell fixture

Standard 064660, other specifications of   fixtures optional

Cutting pressure

Max.10000N

Flattening pressure

Max.10000N

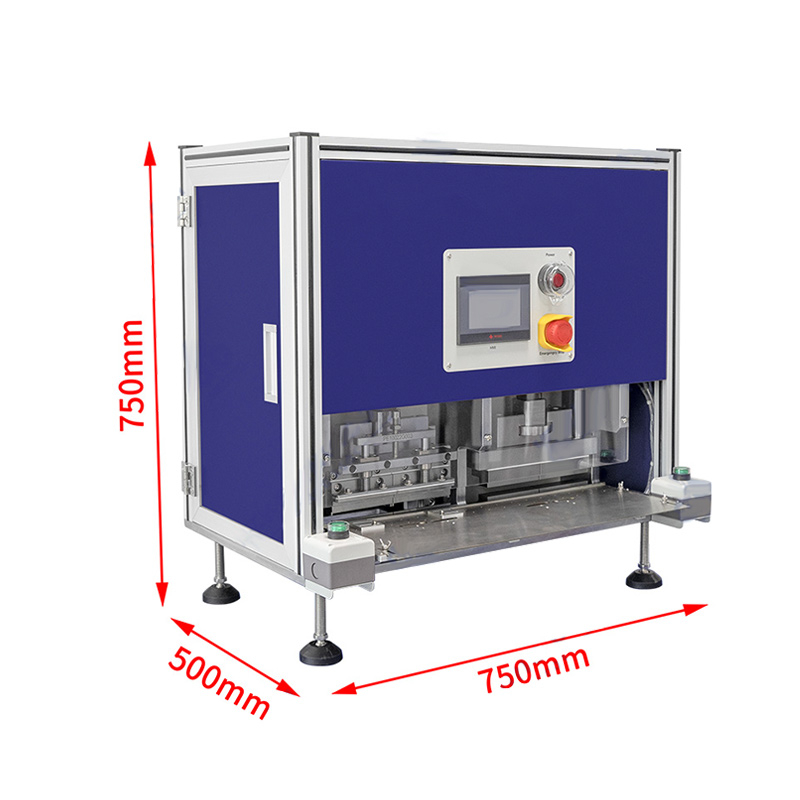

Equipment dimensions

L750*W500*H750mm

Weight

About 140Kg
