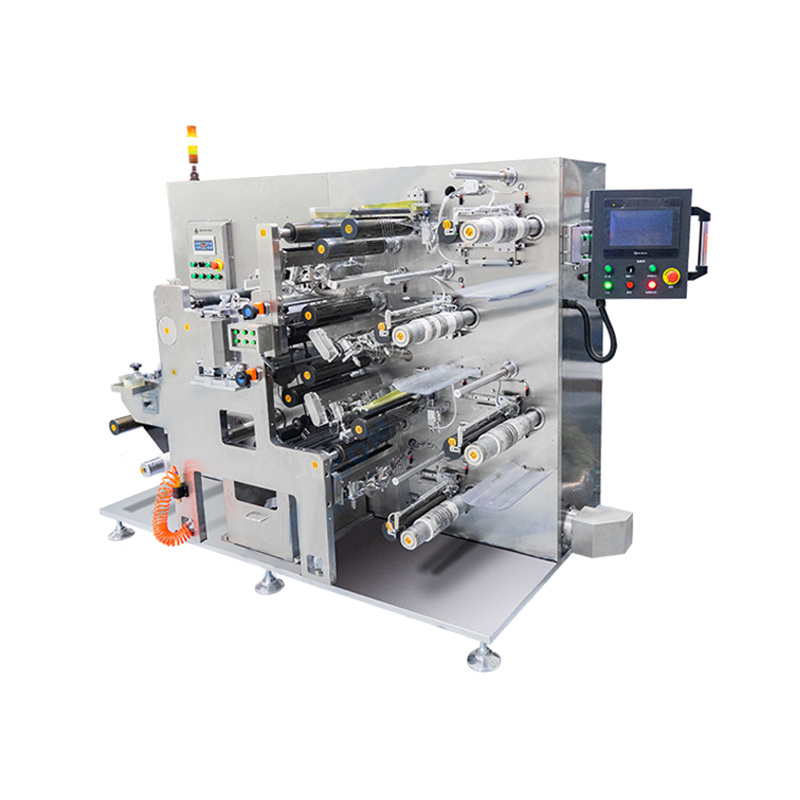

Bluetooth Battery Slitting Machine

    This equipment is used for the slitting process of lithium battery electrode sheet rolls, specifically suitable for multi-strip narrow-width slitting

This equipment is used for the slitting process of lithium battery electrode sheet rolls, specifically suitable for multi-strip narrow-width slitting. The machine features high slitting precision, closed-loop tension control, and a stable slitting structure. After slitting, the electrode sheets are free of defects such as scalloping, burrs, or indentations.

Key Features

1Cantilever Design:
Facilitates material loading, threading, and maintenance.

2Closed-Loop Unwinding Tension Control:
Includes roll diameter measurement to ensure stable web movement and early warnings for material shortage.

3Independent Slitting Knife Holder Design:
Convenient for maintenance and switching.

4Slitting Knife Cleaning Design:
Simplifies blade maintenance to ensure consistent slitting quality.

5Four-Station Rewinding:
Enhances production efficiency.

6Multi-Station Dust Removal Before and After Slitting:
Ensures the quality of the electrode sheets.

7Low-Tension Rewinding Design:
Guarantees the stable slitting of narrow-width electrode sheets.

8Rewinding Traceability Mechanism:
Maintains the stability of the slitting and rewinding processes.


For inquiries about our vacuum equipment, feel free to contact us for more information and quotes.

Phone: 185 3800 8121

Email: Lily@cysitech.com

Contact Person: Zhao Xiaoli

WeChat: 15617818691

Technical Specifications

Item

Specifications

Mechanical Speed

0-50m/min

Operating Speed

0-40m/min (specific speed depends on material   conditions)

Number of Slits

Multiple (4 or more)

Guide Roller Width

350mm

Base Material Width

Max. 300mm (recommended edge waste width   less than 40mm per side)

Slitting Width

Minimum achievable width: 3-10mm

Post-Slitting Appearance

No scalloping, no indentations, no blade   marks, no burrs

Unwinding Roll Diameter

Max. 400mm

Rewinding Roll Diameter

Max. 350mm

Unwinding and Rewinding Shafts

3-inch universal air expanding shaft for   unwinding; 3-inch differential shaft for rewinding

Tension Control

0-100N, accuracy ±2N

Operating Direction

From the material transfer direction:   left side is the drive side, right side is the discharge side

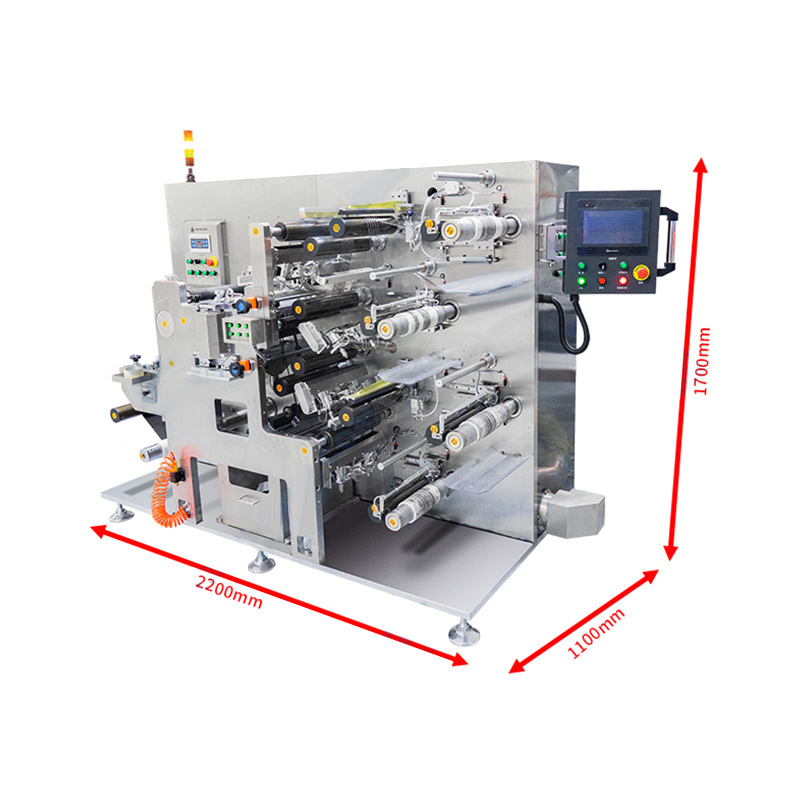

Equipment Dimensions

Main body: L2200mm × W1100mm × H1700mm   (excluding tri-color light)

Weight

Approx. 2.5t

Equipment Color

Gray, with uniform coating and no bare   spots
