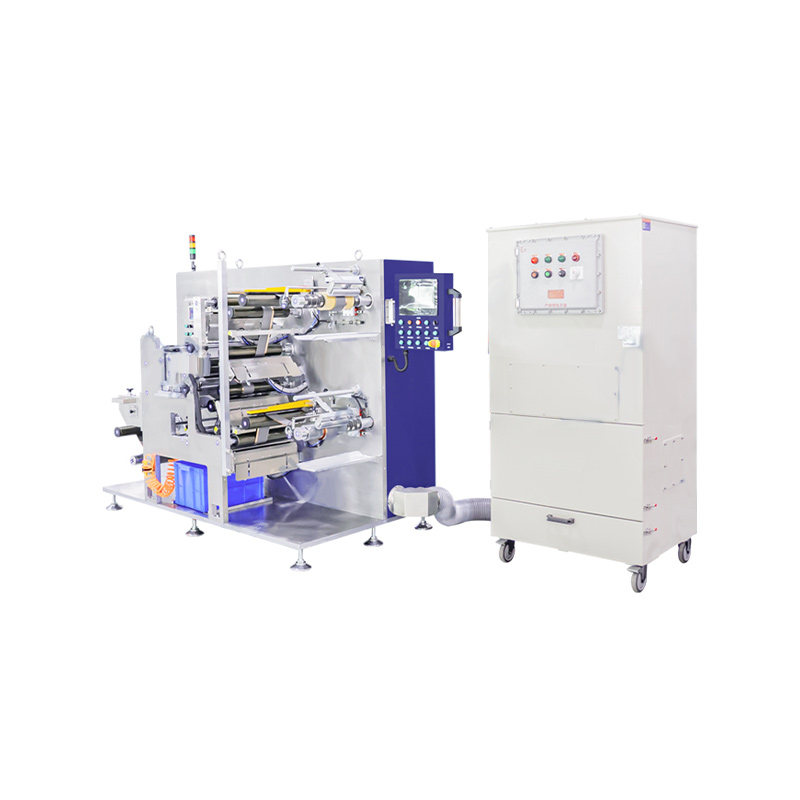

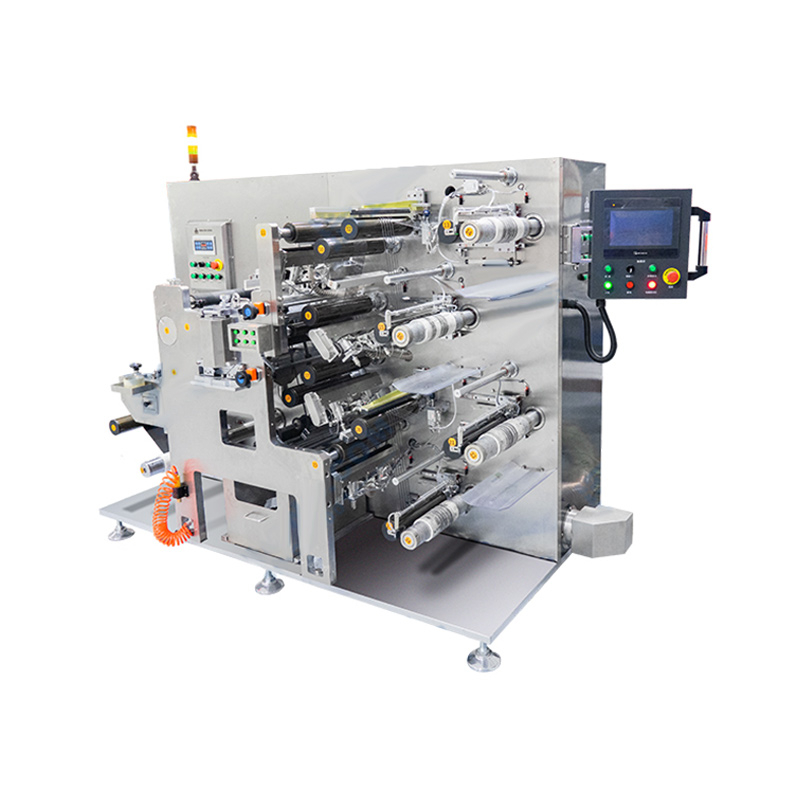

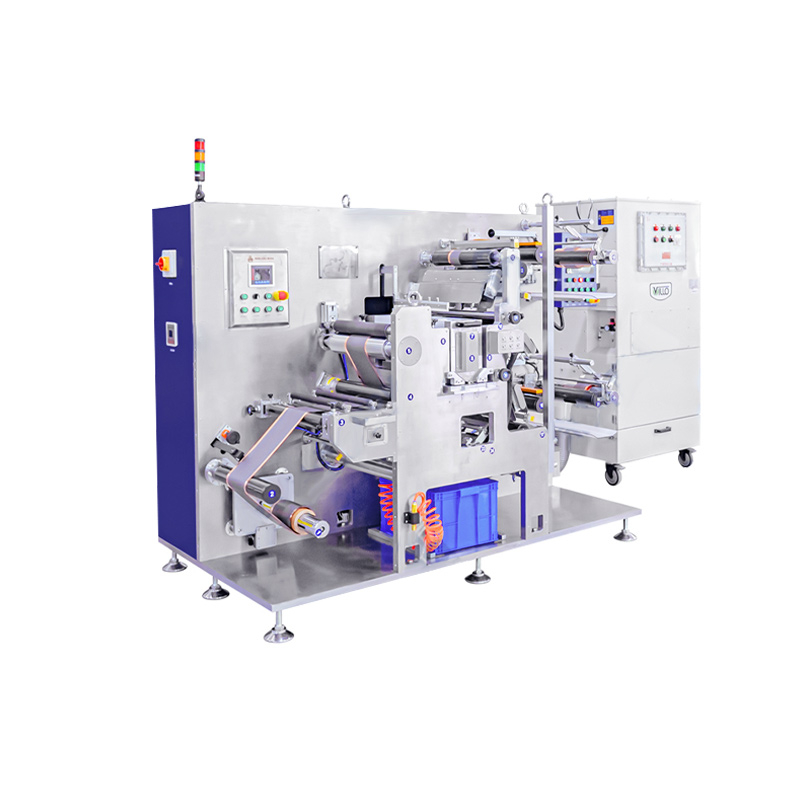

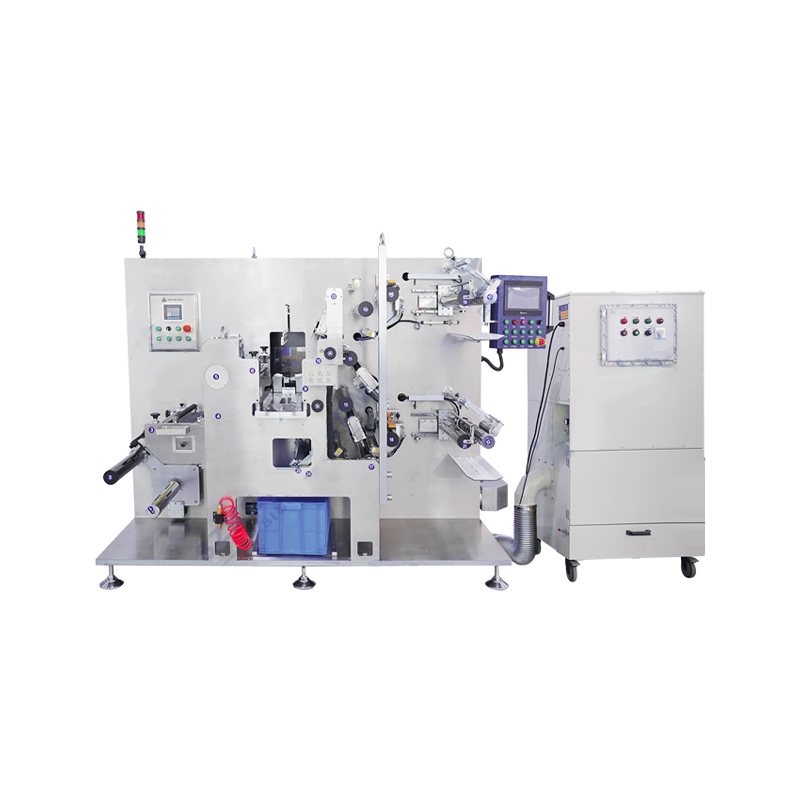

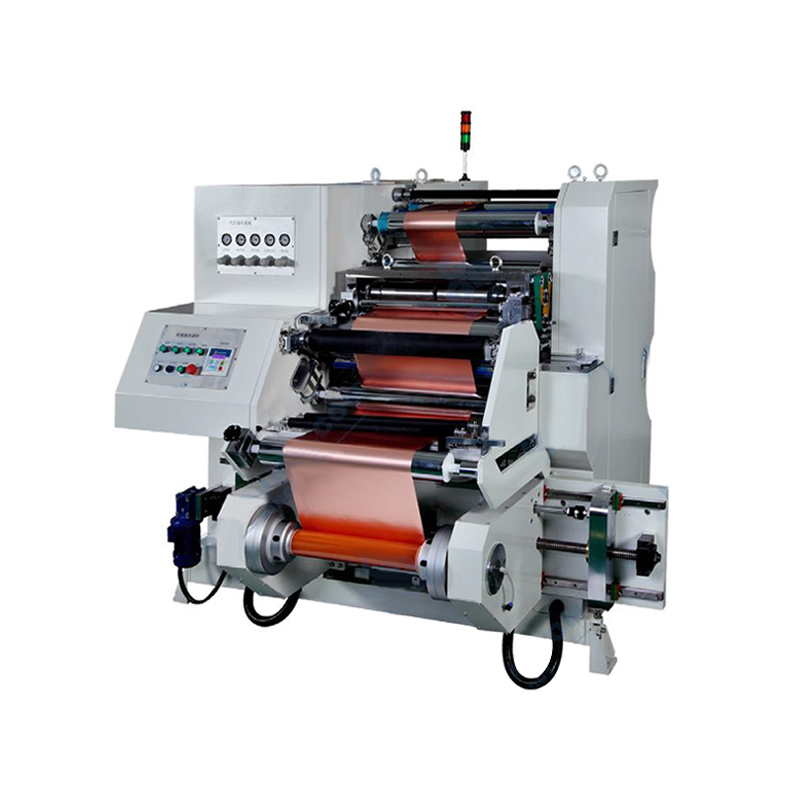

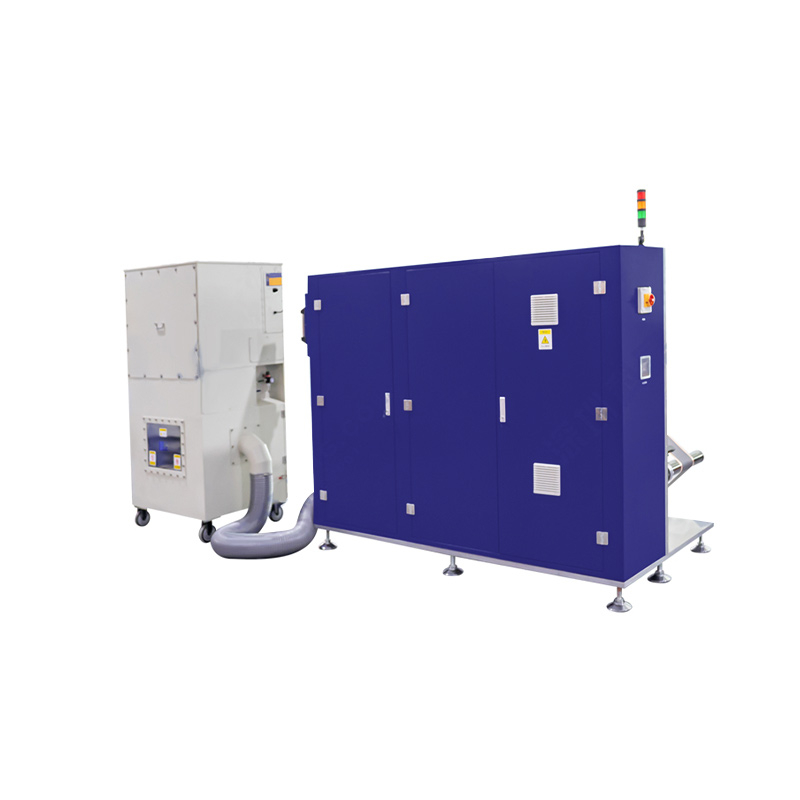

This equipment is used for the slitting process of lithium battery electrode sheet rolls, specifically suitable for slitting multiple strips with various widths
This equipment is used for the slitting process of lithium battery electrode sheet rolls, specifically suitable for slitting multiple strips with various widths. The machine features high slitting precision, closed-loop tension control, and a stable slitting structure. After slitting, the electrode sheets are free of defects such as scalloping, burrs, or indentations.
1、Closed-Loop Unwinding Tension Control:
Includes roll diameter measurement to ensure stable web movement and early warnings for material shortage.
2、Independent Slitting Knife Holder Design:
Equipped with a protective cover for easy maintenance and switching, ensuring high safety.
3、Slitting Knife Cleaning Design:
Simplifies blade maintenance to ensure consistent slitting quality.
4、Dual-Station Air Expanding Differential Shaft Rewinding:
Provides stable and efficient rewinding operations.
5、Multi-Station Dust Removal Before and After Slitting:
Ensures the quality of the electrode sheets.
6、Rewinding Traceability Mechanism:
Maintains the stability of the slitting and rewinding processes.
Phone: 185 3800 8121
Email: Lily@cysitech.com
Contact Person: Zhao Xiaoli
WeChat: 15617818691
Item | Specifications |
Power Supply | Three-phase five-wire AC380V, frequency 50Hz, power 7KW |
Mechanical Speed | 0.2-50m/min |
Operating Speed | 0.2-40m/min (specific speed depends on material conditions) |
Number of Slits | Standard configuration: 4; customizable based on customer requirements |
Guide Roller Width | 450mm |
Base Material Width | Max. 400mm (recommended edge waste width after slitting: 15~40mm on each side) |
Slitting Width | 30~270mm |
Post-Slitting Appearance | No scalloping, no indentations, no blade marks, no noticeable burrs |
Unwinding Roll Diameter | Max. 400mm |
Rewinding Roll Diameter | Max. 350mm |
Unwinding and Rewinding Shafts | 3-inch universal air expanding shaft for unwinding; 3-inch universal air expanding differential shaft for rewinding |
Tension Control | Max. 100N |
Operating Direction | From the material transfer direction: left side is the drive side, right side is the discharge side |
Equipment Dimensions | Main body: approx. L2800mm × W1300mm × H1750mm (excluding tri-color light and dust collector) |
Weight | Approx. 2.5t |
