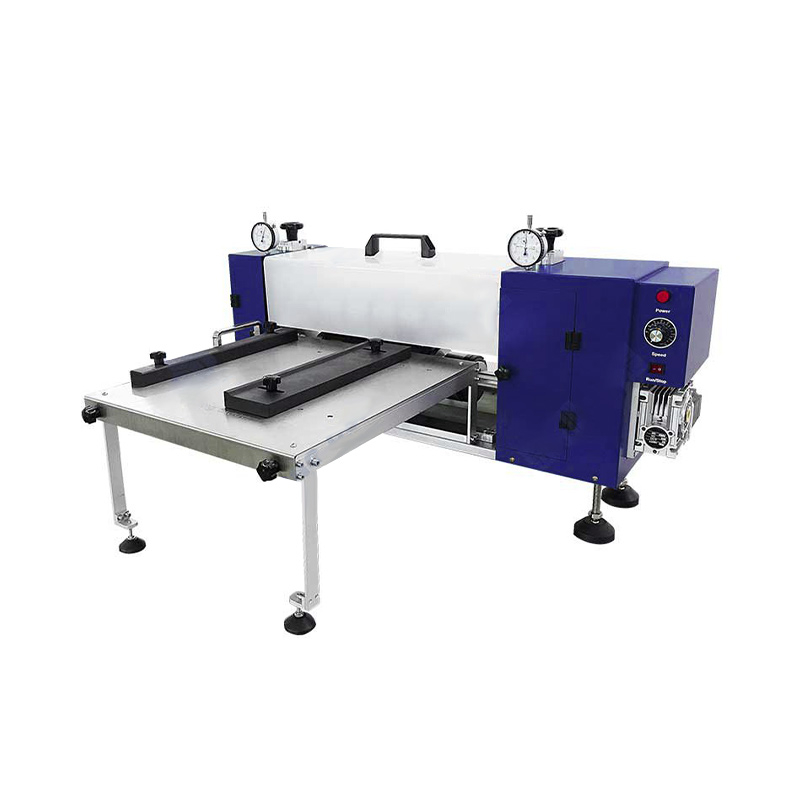

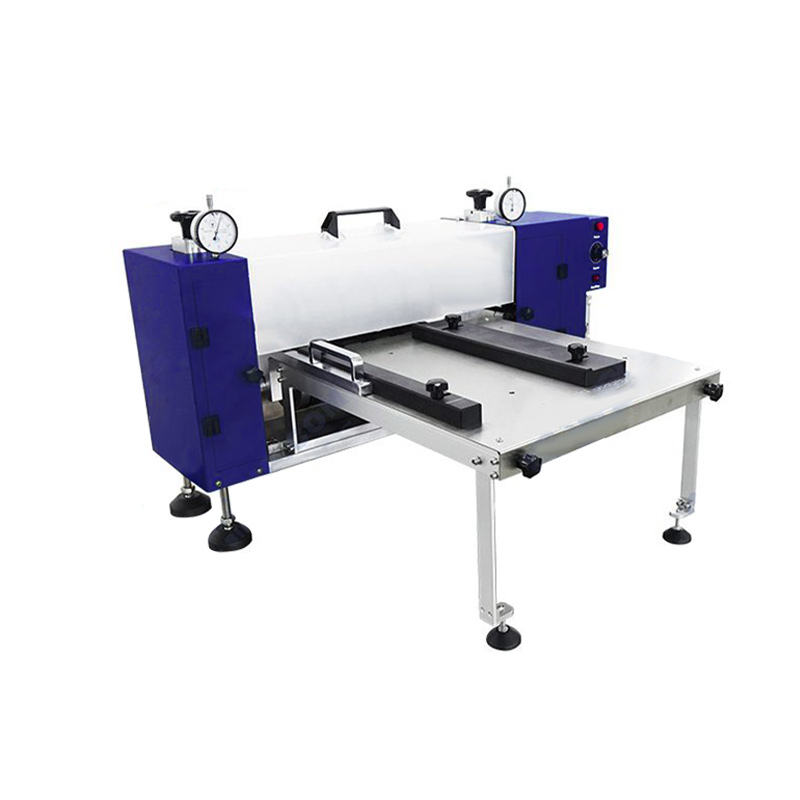

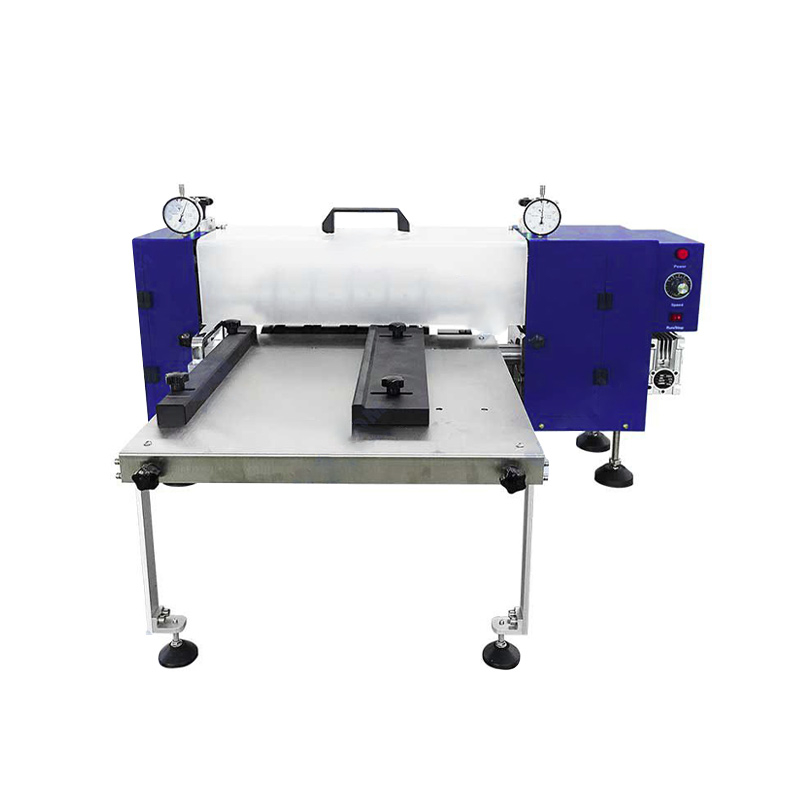

Electric slitting machine for positive and negative electrodes of lithium-ion batteries

    The electric slitting machine can be used for the precise slitting process of positive and negative electrodes of lithium-ion batteries

The electric slitting machine can be used for the precise slitting process of positive and negative electrodes of lithium-ion batteries. Sheet-type feeding, upper and lower circular knife slitting, motor driven, and the slitting width can be adjusted by replacing the spacer sleeve.

Functional features:

Sheet-type feeding, upper and lower circular knife slitting method;

Ultrafine alloy tungsten steel blade, good slitting effect and long service life;

Wide range of slitting material thickness, accurate display of cutting amount adjustment;

Motor driven, equipped with feed guide, small slitting burr;

Slitting width can be adjusted by replacing the spacer sleeve (different width spacers need to be customized), and can also be realized by configuring a spare knife shaft;

Open-type knife shaft is fixed, the equipment has good integrity and is easy to operate.

For inquiries about our Electric slitting machine for positive and negative electrodes of lithium-ion batteries, feel free to contact us for more information and quotes.

Phone: 185 3800 8121

Email: Lily@cysitech.com

Contact Person: Zhao Xiaoli

WeChat: 15617818691

Technical parameters:

Power supply

Single-phase AC100-220V±10%, frequency 50Hz/60Hz, power 100W, less than 4Ω grounding

Usage environment

Recommended ambient temperature 25±3℃, humidity 30-90RH, no vibration and   electromagnetic interference

Slitting method

Single-piece rolling cutting

Cutter type

Upper and lower circular knives cut

Slitting blade

Ultra-fine particle alloy tungsten steel,   diameter Φ100mm

Slitting width

Adjustment range 20-230mm, customizable   to 20-280mm

Width adjustment

Replace the spacer to adjust, standard   56/56/58/58 four pieces

Cut thickness

10~300μm

Burr condition

≤25μm

Cutting amount

0.2-0.4mm adjustable, micrometer display

Slitting speed

Max. 4m/min

Equipment size

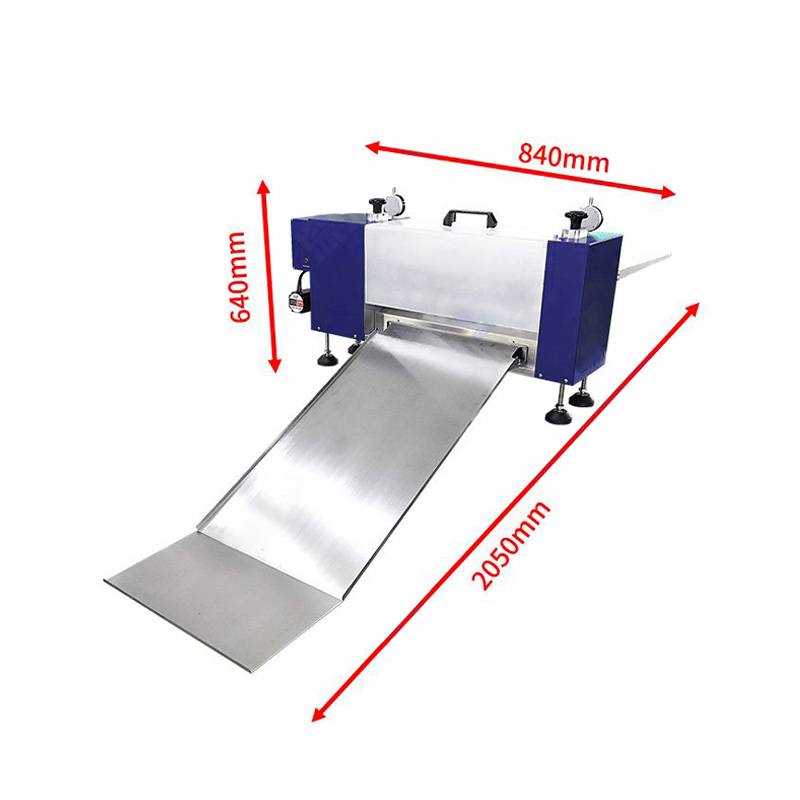

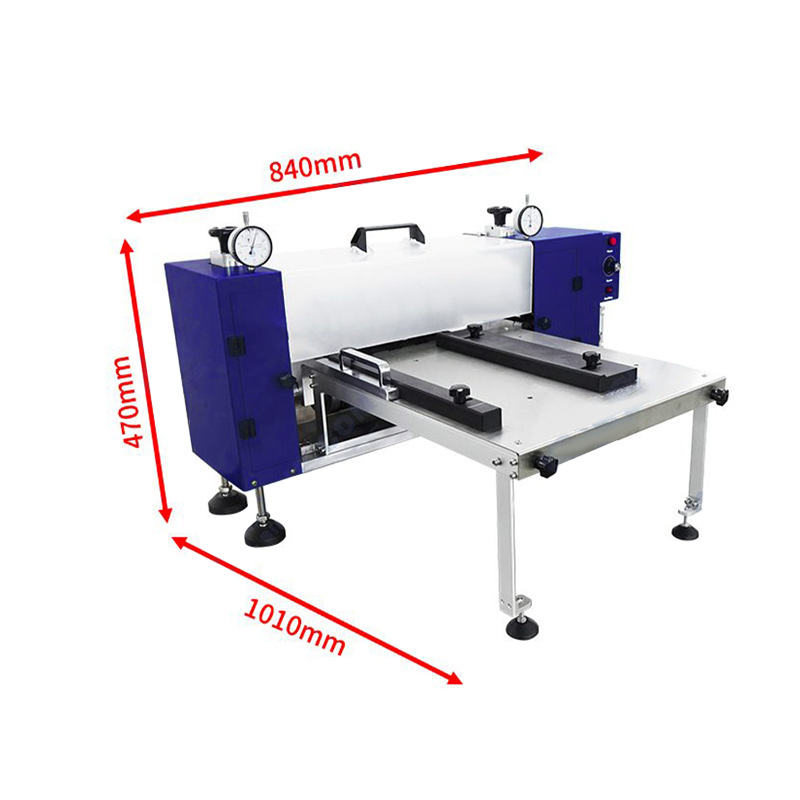

L1010*W840*H470mm (Long pole piece   platform L2050*W840*H640)

Weight

About 103Kg
