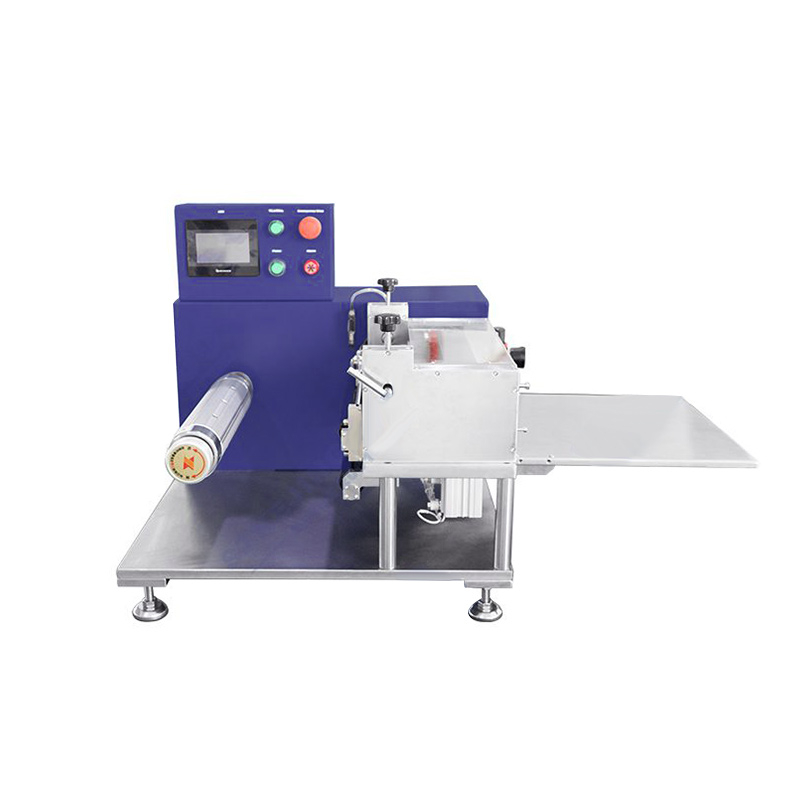

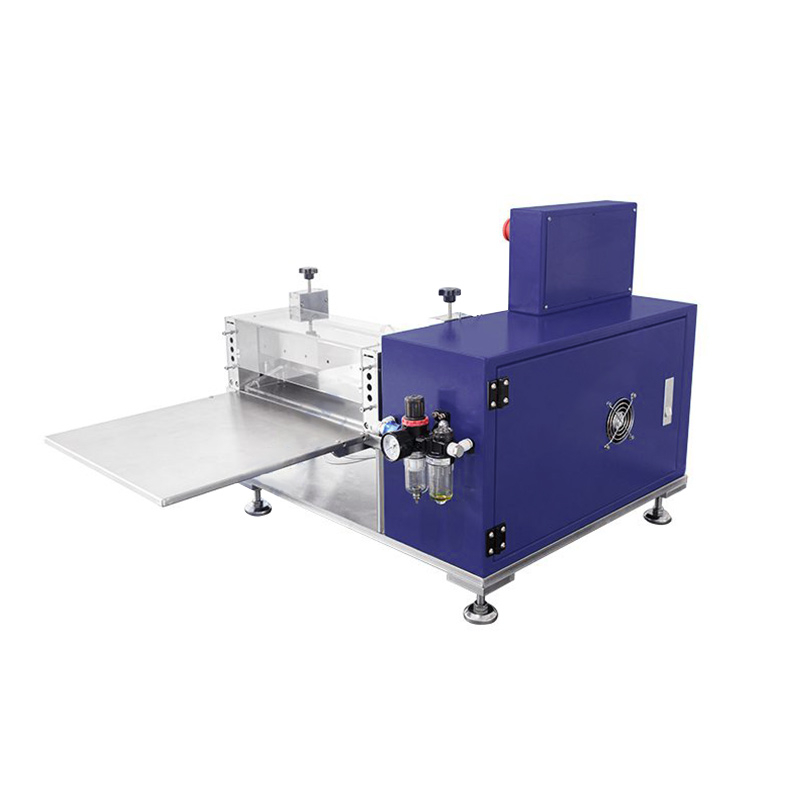

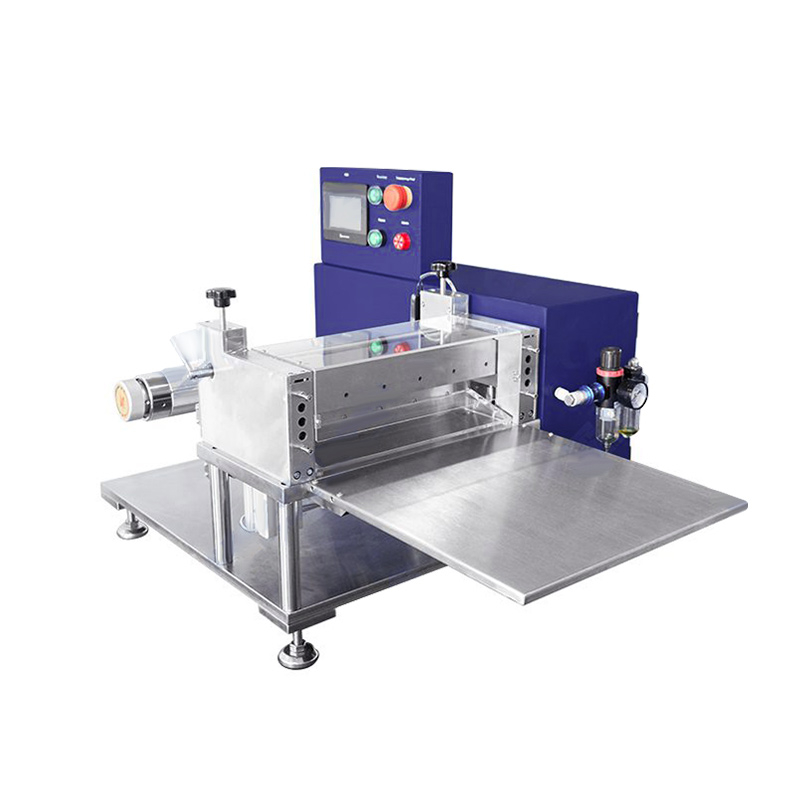

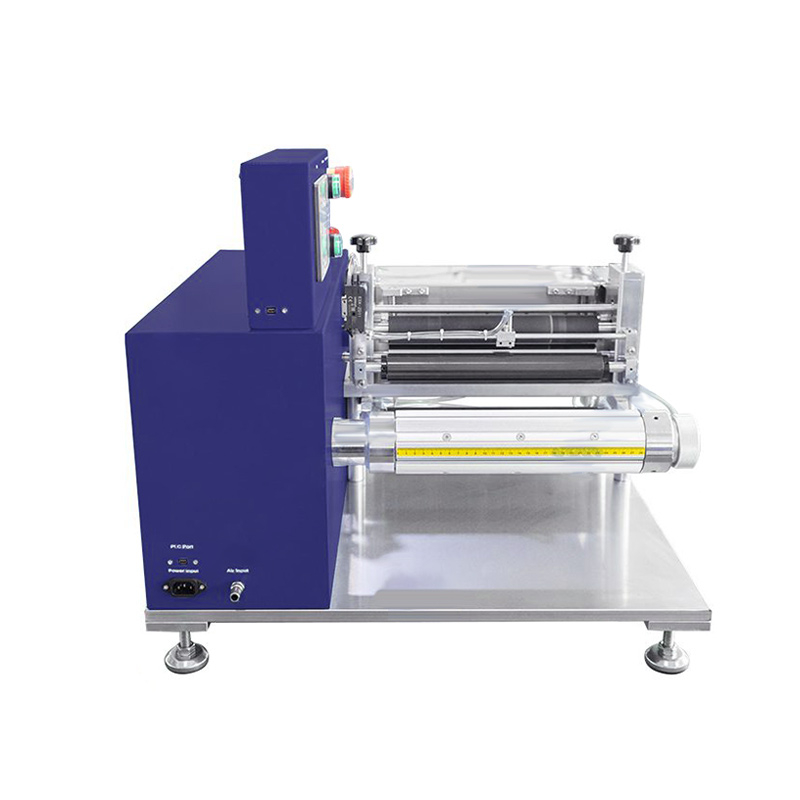

Lithium battery positive and negative electrode cutting machine

    The automatic cutting machine is designed for cutting lithium battery electrode sheets (both positive and negative). It supports two cutting modes: fixed-length cutting and fixed-point tracking cutting.

The automatic cutting machine is designed for cutting lithium battery electrode sheets (both positive and negative). It supports two cutting modes: fixed-length cutting and fixed-point tracking cutting. With excellent cutting performance and a compact design, it is ideal for use in glove boxes, making it perfect for laboratory-scale cutting and preparation.

Key Features

1Fixed-Length Cutting:

Enables cutting rolls into fixed lengths with adjustable dimensions and compensation correction functionality.

2Fixed-Point Color Tracking Cutting:

Allows cutting based on specific surface features of the roll material, with adjustable dimensions before and after color tracking, including compensation correction.

3High-Quality Cutting Blade:

Features an embedded hardened blade for superior cutting performance.

4Adjustable Unwinding Tension:

Ensures precise control for various roll materials.

5Wide Applicability:

Accommodates roll materials with a width range of 10–290mm.

6Compact and User-Friendly Design:

Small footprint and easy operation.

7Intelligent Control:

Equipped with PLC and touch screen controls, with bilingual (Chinese/English) interface for convenience.

8Customizable for Glove Box Use:

Can be tailored to fit and operate within glove boxes.

For inquiries about our vacuum equipment, feel free to contact us for more information and quotes.

Phone: 185 3800 8121

Email: Lily@cysitech.com

Contact Person: Zhao Xiaoli

WeChat: 15617818691

Technical Specifications

Item

Specifications

Power Supply

Single-phase AC220V ±10%, 50Hz, 500W   (customizable: AC110V ±10%, 60Hz, 500W)

Air Source

0.5–0.8MPa compressed air

Guide Roller Width

Max. 300mm

Cutting Width

Max. 290mm

Mechanical Speed

Max. 3m/min

Burr Level

≤0.012mm

Tension Control

Max. 30N

Unwinding Diameter

Max. 300mm

Unwinding Shaft

3-inch mechanical expanding shaft

Blade Material

- Knife Holder: S136


- Blade: Tungsten Steel (standard) /   White Steel (optional)

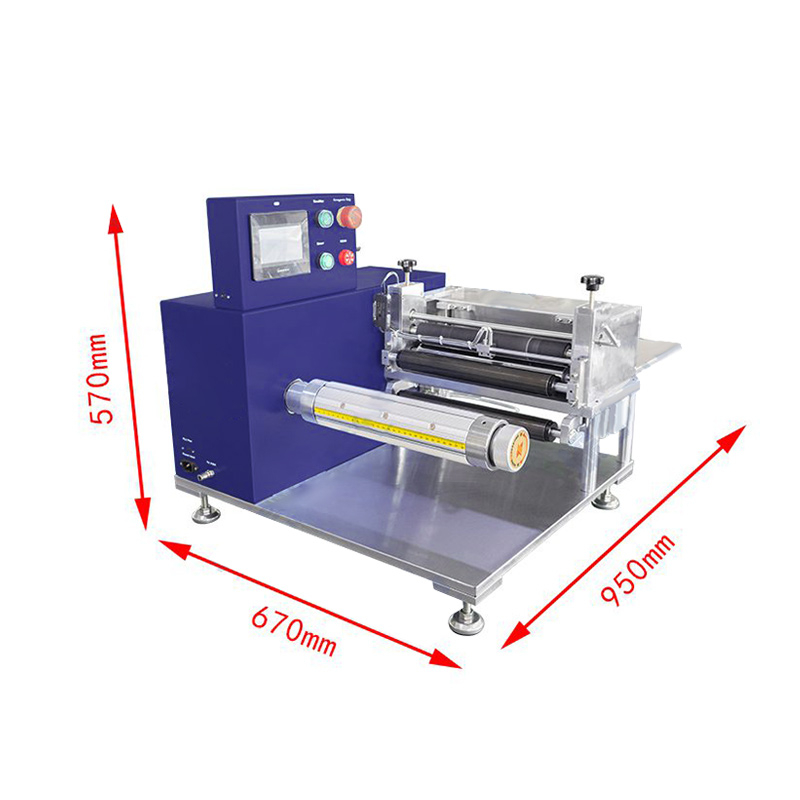

Equipment Dimensions

Approx. L950 × W670 × H570mm

Weight

Approx. 140kg
