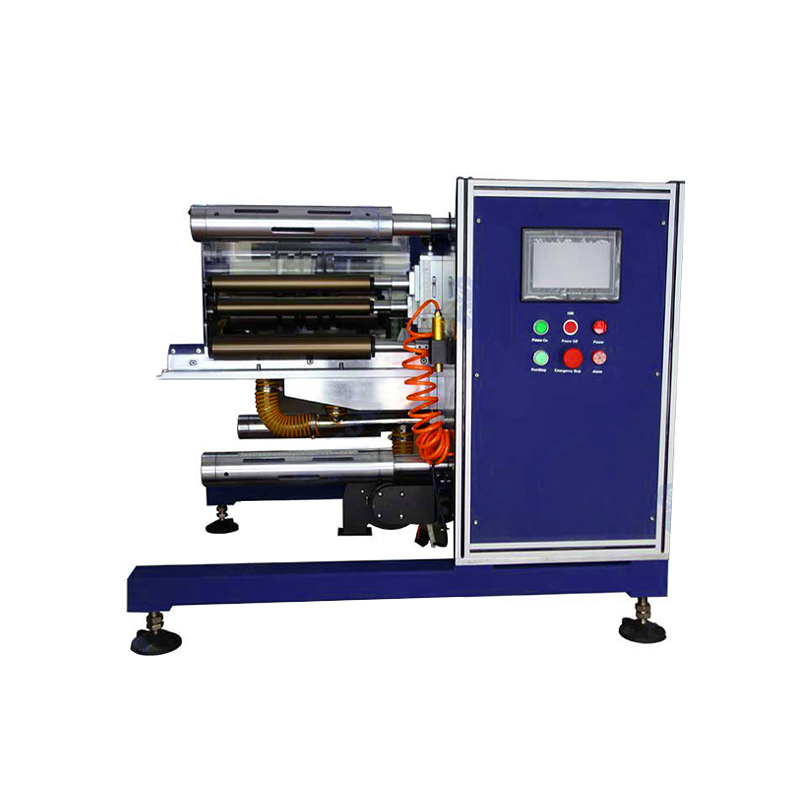

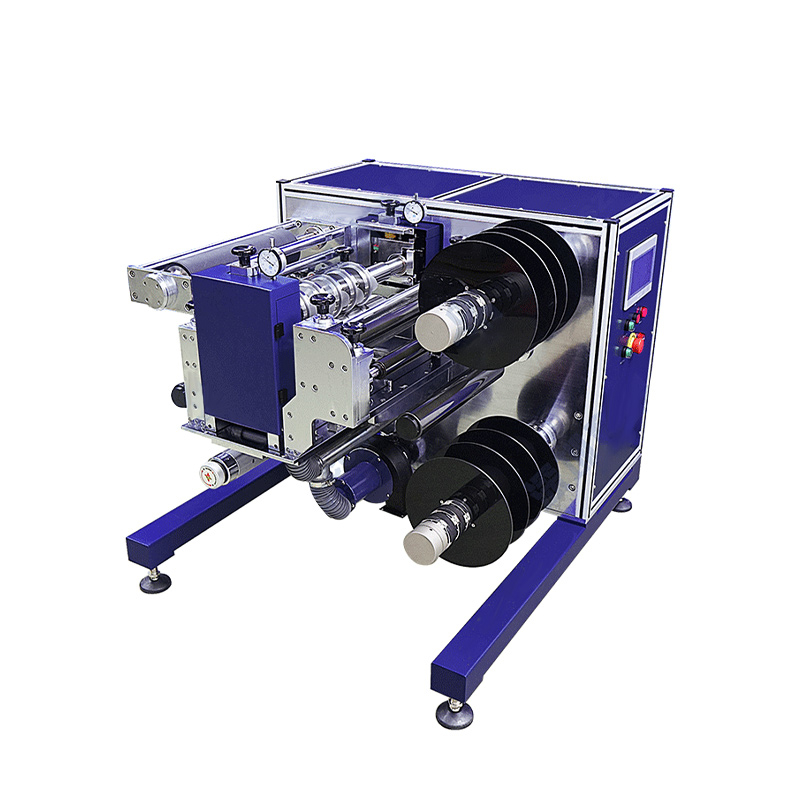

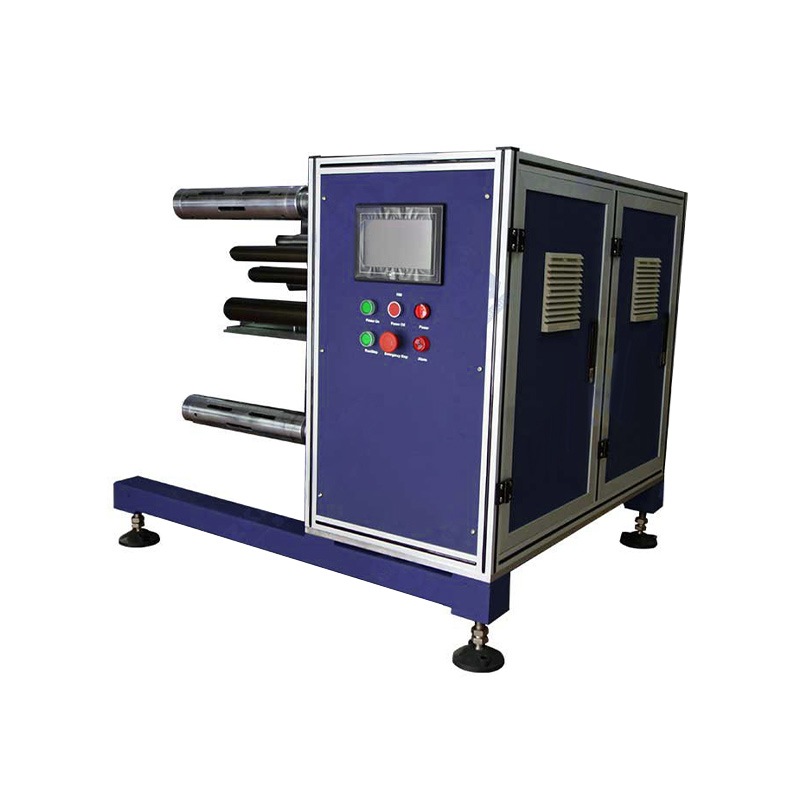

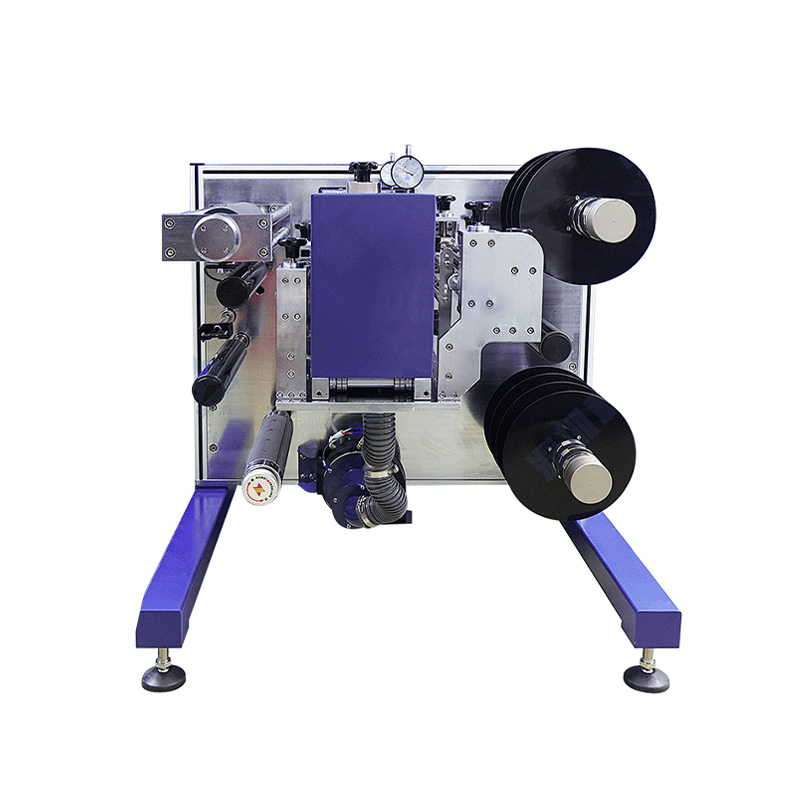

Lithium-ion battery continuous slitting machine

    The slitting machine can be used for single-strip trimming or two-strip continuous slitting processes of roll materials within a width of 300mm. The equipment is equipped with a precision knife seat

The slitting machine can be used for single-strip trimming or two-strip continuous slitting processes of roll materials within a width of 300mm. The equipment is equipped with a precision knife seat, which can achieve extremely high-precision foil slitting, and can be widely used in lithium-ion batteries, metal foils, optical films and other functional film industries.

Functional features:

Single vertical plate structure, independent knife seat, equipped with dust removal device;

Upper and lower circular knife structure, slitting width can be adjusted by replacing the spacer;

Ultra-fine tungsten steel blade, good slitting quality, and long service life;

High slitting width accuracy, the finished product has no burrs, waves, or indentations;

The amount of knife engagement is adjustable, and the ratio of knife speed to material linear speed is adjustable;

By adjusting the feeding and discharging angles, it can adapt to the slitting of materials of different materials and thickness values;

Automatic control of winding tension, upper and lower axes can be adjusted independently within 26N;

PLC control, HMI operation, convenient and easy to use;

For inquiries about our Lithium-ion battery continuous slitting machine, feel free to contact us for more information and quotes.

Phone: 185 3800 8121

Email: Lily@cysitech.com

Contact Person: Zhao Xiaoli

WeChat: 15617818691

Technical parameters:

Power supply

Single-phase AC220V±10% (customizable AC110V/60Hz), frequency 50Hz, power 1KW

Air supply

0.5~0.8Mpa   compressed air

Slitting method

Upper and lower circular knives cut, independent   knife holder

Roller width

350mm

Slitting width

30~300mm,   replaceable spacer adjustment

Number of slitting strips

Two strips

Slitting accuracy

±0.1mm

Cutting thickness

10~300μm

Burr condition

≤25μm

Slitting speed

0.1~5m/min

Tension control

26N can be set, automatic control

Unwinding axis

3 inches, top-to-top mechanical clamping

Rewinding axis

3 inches, pneumatic shaft

Rewinding and unwinding diameter

250mm

Unwinding deviation correction

Automatic unwinding and correction,   accuracy ±0.5mm

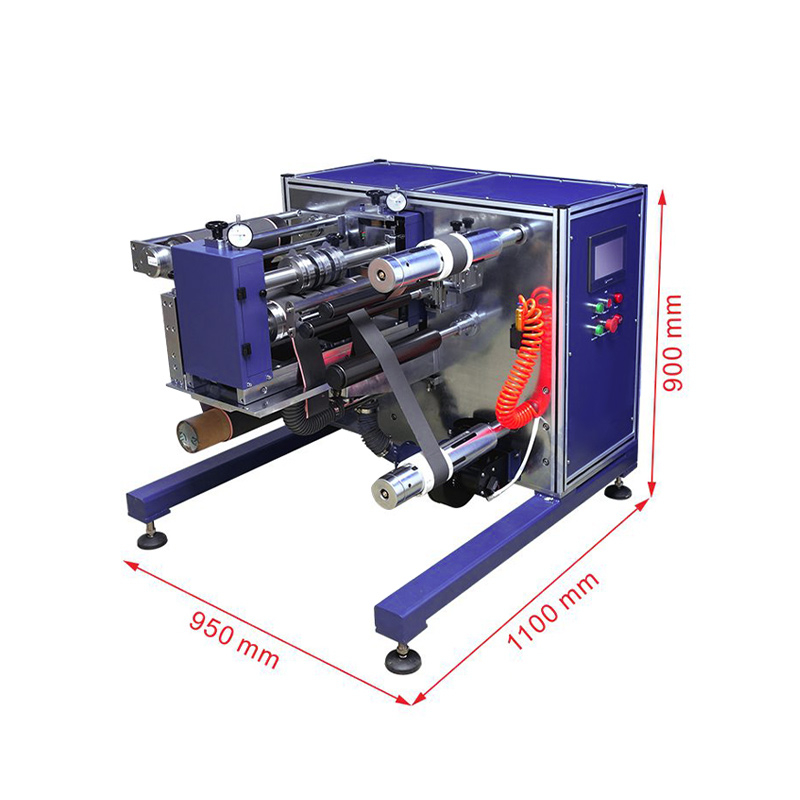

Equipment size

L1100mm*W1000mm*H900mm

Weight

About 200Kg
