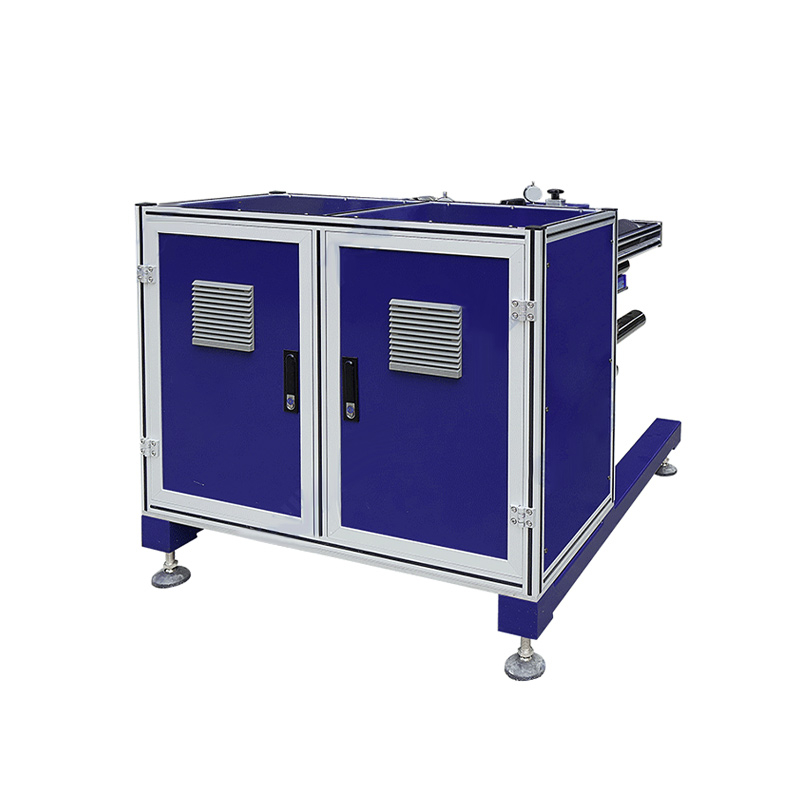

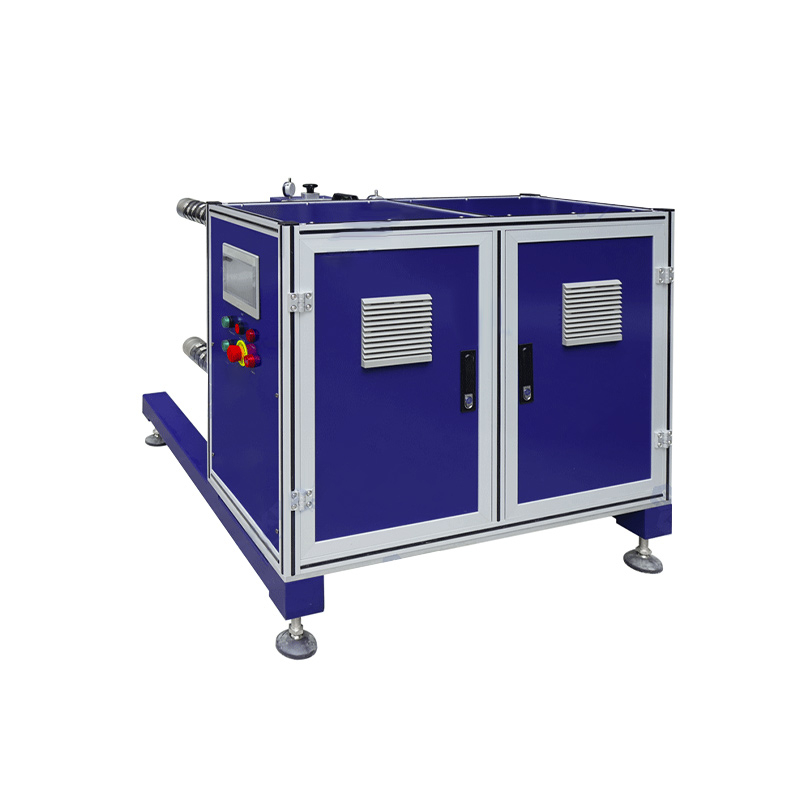

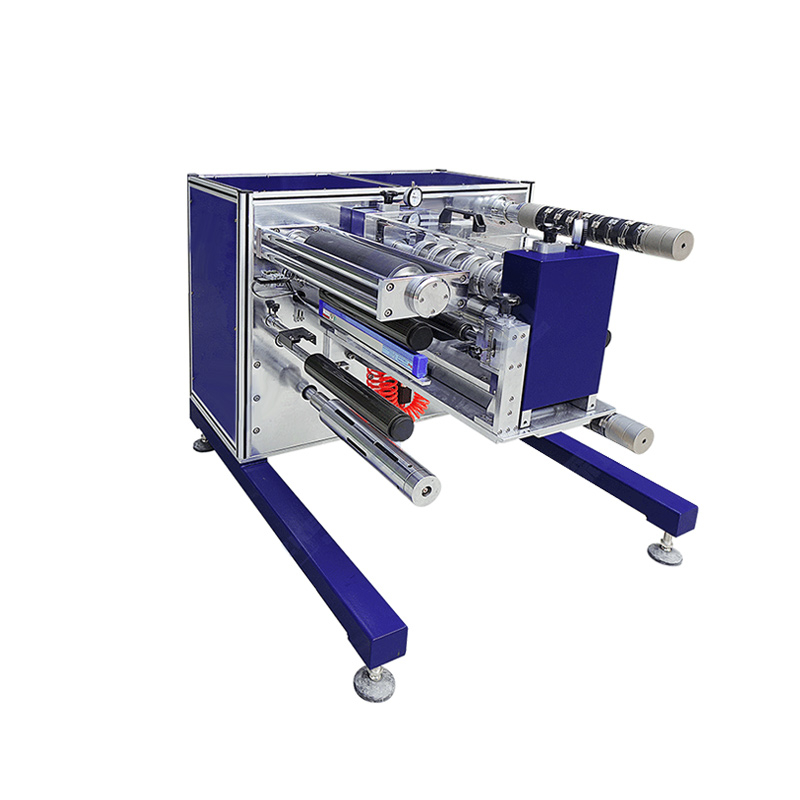

Optical film diaphragm slitting machine

    The diaphragm slitting machine is equipped with a precision knife seat. It can be used for slitting single or multiple lithium battery diaphragms

The diaphragm slitting machine is equipped with a precision knife seat. It can be used for slitting single or multiple lithium battery diaphragms, and can also be widely used in optical films and other functional film industries.

Functional features:

Single vertical plate structure, independent knife seat;

Upper and lower circular knife structure, slitting width can be adjusted by replacing the spacer;

Ultra-fine tungsten steel blade, good slitting quality, long service life;

High slitting width accuracy, no waves or indentations in the finished product;

Adjustable knife depth, adjustable knife speed and material linear speed ratio;

With anti-static function;

By adjusting the feeding and discharging angles, it can adapt to the slitting of materials of different materials and thickness values;

Slip differential shaft winding, upper and lower shaft winding tensions are independently adjustable;

PLC control, HMI operation, convenient and easy to use.



For inquiries about our Optical film diaphragm slitting machine, feel free to contact us for more information and quotes.

Phone: 185 3800 8121

Email: Lily@cysitech.com

Contact Person: Zhao Xiaoli

WeChat: 15617818691

Technical parameters:

Power supply

Voltage single-phase 220VAC±10% (customizable 110VAC 60Hz), frequency 50Hz, power 2KW

Slitting method

Upper and lower circular knives cut,   independent knife holder

Roller width

350mm

Slitting width

30~300mm,   replaceable spacer adjustment

Number of slitting strips

Can be cut into 5 strips, each strip   width 60mm, more than 5 strips need to be customized

Slitting accuracy

±0.1mm

Cutting thickness

10~100μm

Burr condition

≤10µm

Slitting speed

0~8m/min

Tension control

Unwinding closed-loop control, winding   differential axis control

Unwinding axis core

3 inches, pneumatic shaft

Rewinding axis core

3 inches, pneumatic differential axis

Rewinding and unwinding diameter

Max.250mm

Unwinding deviation correction

Automatic unwinding correction, accuracy ±0.5mm, correction stroke +/-20mm

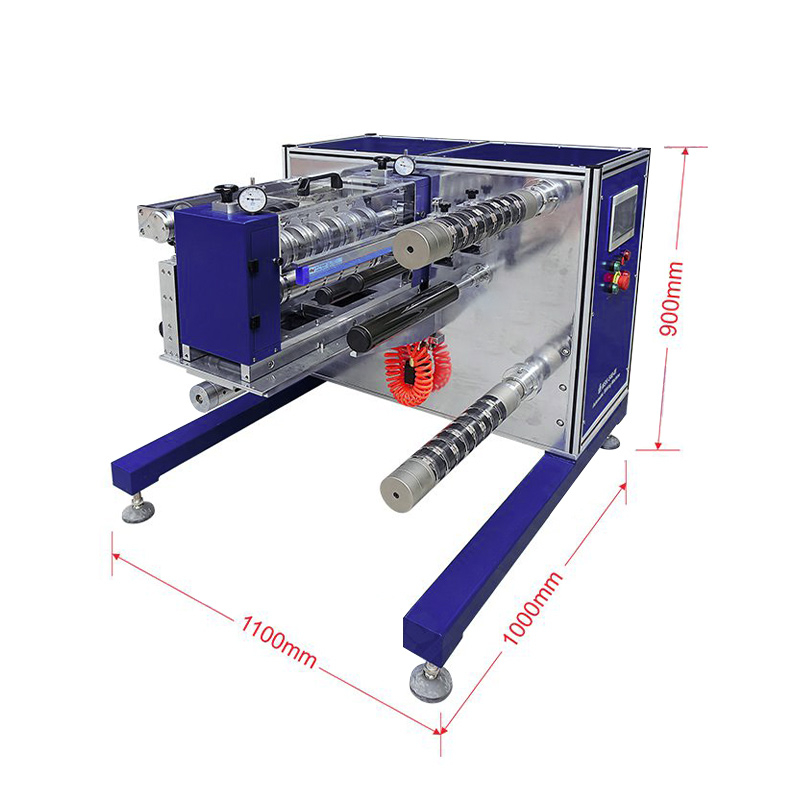

Equipment size

L1100*W950*H900mm

Weight

About 500Kg
