Solar backplane slitting machineSolar backplane slitting machineSolar backplane slitting machineSolar backplane slitting machineSolar backplane slitting machine

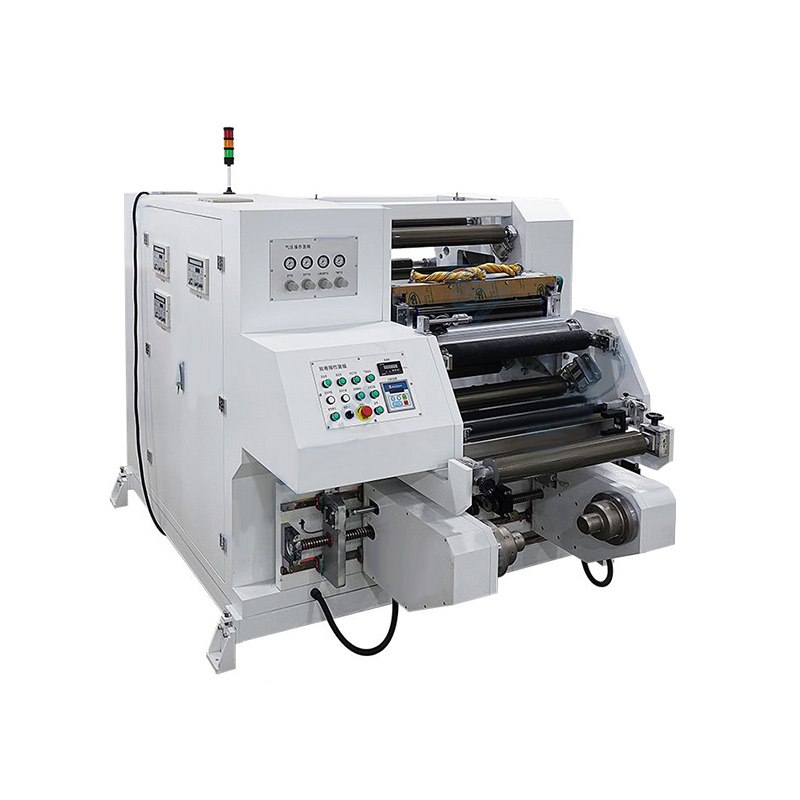

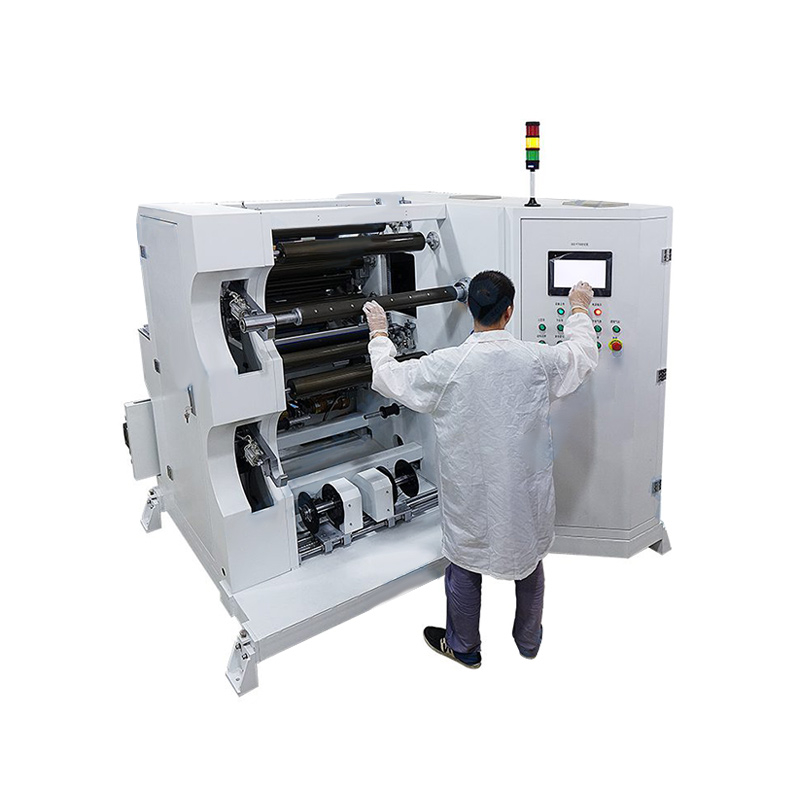

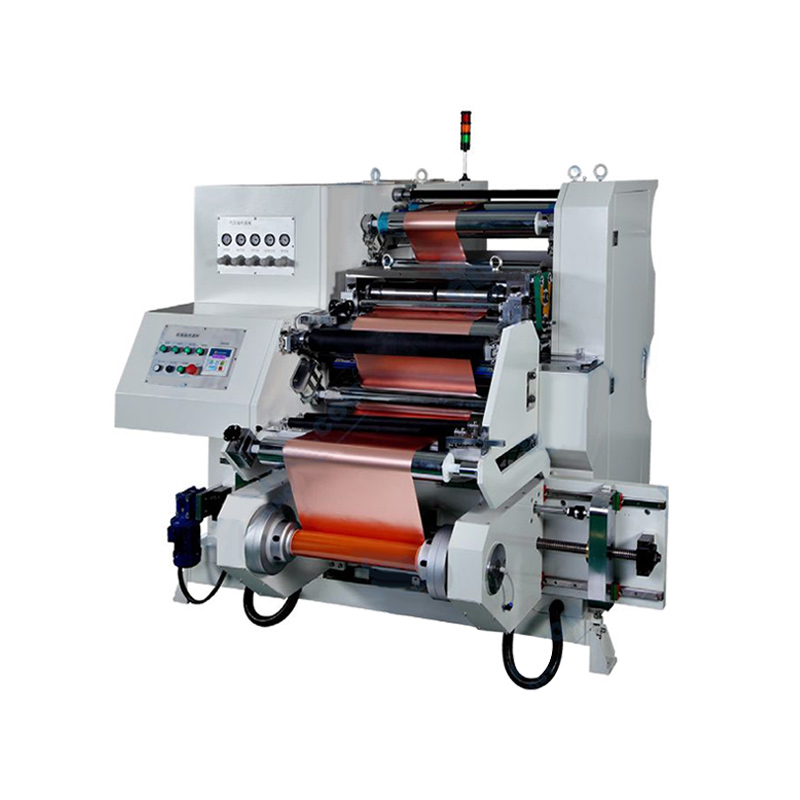

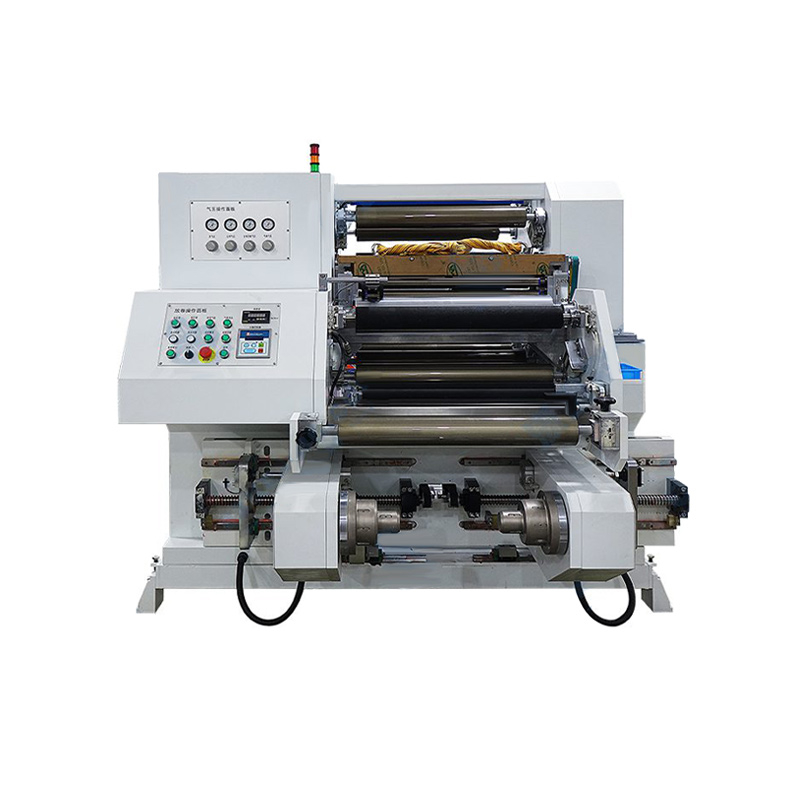

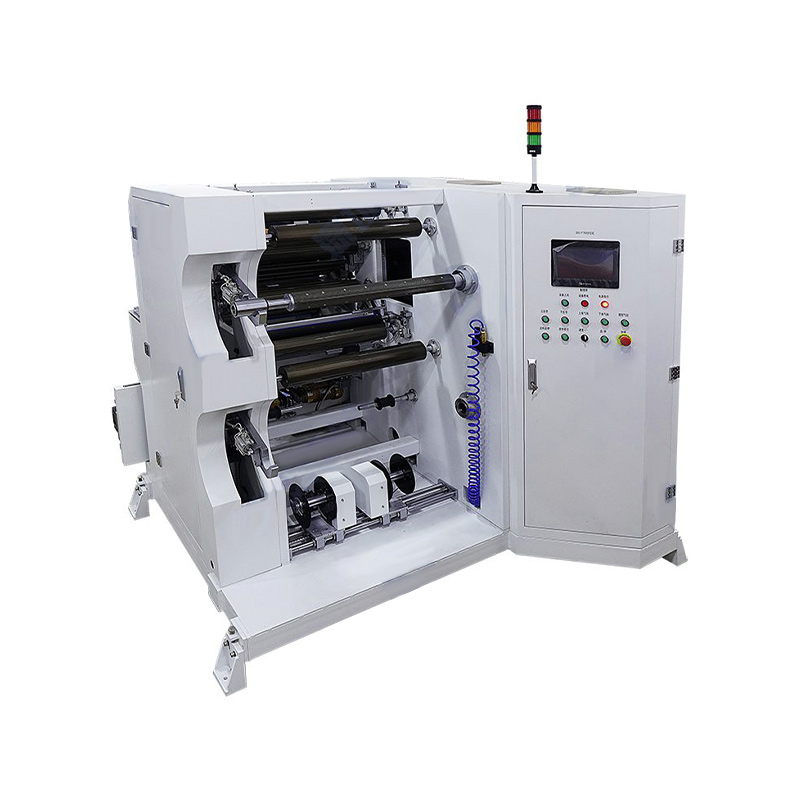

Solar backplane slitting machine

    This equipment is used for the slitting process of flexible copper-clad laminates, covering films, solar backplanes, optical films, copper foils, aluminum foils and other coils. The equipment has high slitting accuracy and adopts full closed-loop tension control. It can achieve one-knife cutting on all kinds of film materials without defects such as ruffles, burrs, and indentations on both sides.

    Functional features:

    The overall square bottom price + thickened vertical plate structure makes the equipment run stably;

    Independent knife holder, high slitting accuracy (for FCCL single-sided glue-free materials that are difficult to slit, lossless slitting can also be achieved)

    The knife seat can be disassembled separately, and the knife feeding amount can be adjusted intermittently;

    Ultra-fine hard tungsten steel circular blade, high slitting accuracy and long service life;

    Adopting full closed-loop tension control, the tension runs stably to ensure slitting accuracy and high speed;

    Reeling and unwinding can be switched between 3 inches and 6 inches, which is convenient and easy to use;

    PLC control, HMI operation, convenient and easy to use.



    For inquiries about our Solar backplane slitting machine, feel free to contact us for more information and quotes.

    • Phone: 185 3800 8121

    • Email: Lily@cysitech.com

    • Contact Person: Zhao Xiaoli

    • WeChat: 15617818691

    Technical parameters:

    Power supply

    Three-phase five-wire system AC380V±10%, frequency 50Hz, power 10KW

    Usage environment

    Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and   electromagnetic interference

    Air source

    0.5-0.8MPa compressed air

    Slitting method

    Continuous rolling cutting

    Cutter type

    Upper and lower circular knives cut

    Guide roller width

    750mm

    Cutter width

    Cutting width Max.600mm; standard 2*250mm   and 1*500mm width cutters

    Cutter diameter

    Ф100mm

    Cutter material

    Ultrafine alloy tungsten steel

    Width adjustment

    Replacement of spacers and blade   adjustment

    Cut thickness

    20-200um (2-3 layers of FCCL)

    Material width

    Max.620mm

    Cutting amount

    0.2-0.4mm adjustable

    Machine speed

    Max.50m/min

    Operation speed

    Max.40m/min

    Unwinding reel diameter

    Max.500mm

    Rewinding reel diameter

    Max.450mm

    Unwinding and rewinding reels

    3-inch, 6-inch universal air shaft head

    Tension control

    0-200N, accuracy ±2N

    Equipment size

    L2600mm×W2200mm×H2100mm

    Weight

    About 3.5t
