Applicable to determine the adaptability of components, equipment or other products under the combination of high and low temperature and temperature cycle changes
Applicable to determine the adaptability of components, equipment or other products under the combination of high and low temperature and temperature cycle changes, transportation and storage. And used to evaluate equipment used in high or low temperature environments. Widely used in military, aerospace, electronics, automobile, new energy, testing and other industries.
1. Precision controlled refrigeration system with -250℃ design and manufacturing capabilities.
2. Advanced air duct design
3. Excellent adjustment method
4. Main controller
5. Unique control advantages
If you are interested in our Battery high and low temperature test chamber, please contact us for more information and quotes.
Contact number: 156 3719 8390
Email: shirley@cysitech.com
Contact person: shirley
WeChat: 18736046549

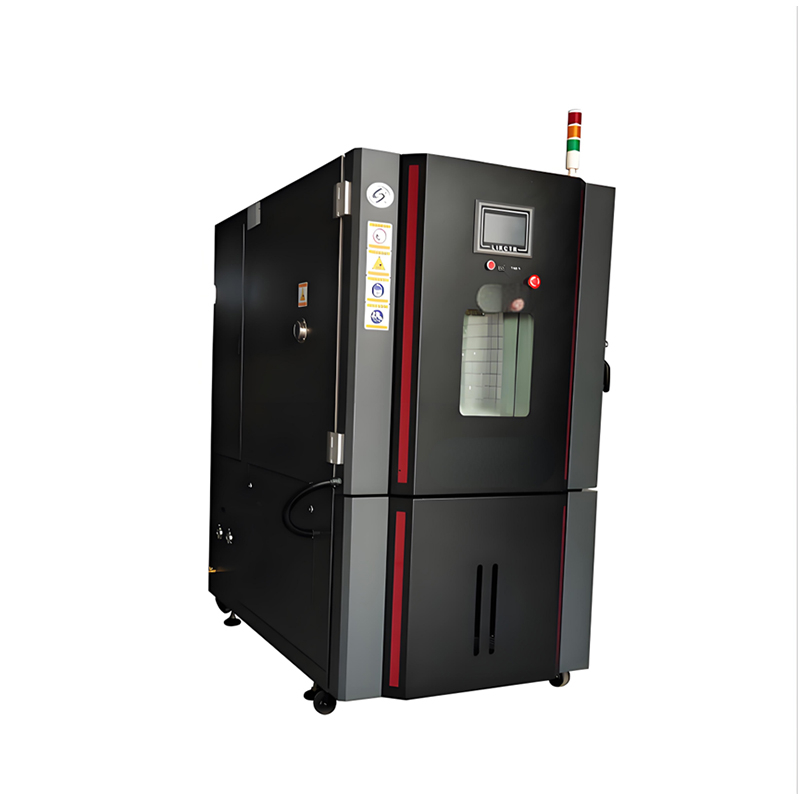

Name | Battery high and low temperature test chamber | |
Model | CY-100E | |
Standard | GB/T2423.1-2001 Test A: Low temperature test method GB/T2423.2-2001 Test A: High temperature test method GB/T11158-2008 Technical conditions for high temperature test chambers GB/T11158-2008 Technical conditions for low temperature test chambers GB/T2423.2-2001 Test B: High temperature test method GJB150.4-2009 Low temperature test GJB150.3-2009 High temperature test GB/T5170.2-2008 Temperature test equipment | |
Product use conditions and restrictions | ||
Environmental requirements
| Temperature | 5~40℃ (5~35℃ ensures the best performance) |
Humidity | ≤ 90%RH | |
Air pressure | 86~106kpa | |
Installed power | 4KW | |
Grounding requirements | AC380V three-phase four-wire + protective ground wire Protective ground wire grounding resistance is less than 4Ω | |
Stability | Allowable voltage fluctuation range: (1±10%) 380V Allowable frequency fluctuation range: (1±1%) 50Hz | |
Users need to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be independent and dedicated to this equipment. | ||
Internal volume | 100L | |
Internal dimensions | WDH: 500x400x500(mm) | |
External dimensions | WDH: 750*1450*1600(mm) | |
Technical parameter | ||
Test environment conditions | Ambient temperature 5~35℃, relative humidity ≤85%RH No load in the test chamber (unless otherwise specified) | |
Test method | GB/T5170.2-2008, Temperature test equipment | |
Temperature range | -40℃~+150℃ | |
Temperature uniformity | ≤±2℃ | |
Temperature fluctuation | ≤±0.3℃ | |
Temperature deviation | ≤±2℃ | |
Heating speed | ≥5℃/min, average throughout the process | |
Cooling speed | ≥5℃/min, average throughout the process | |
Product system configuration | ||
System overview | The main system consists of structure, refrigeration, heating and control. | |
Structure and materials | ||
Box structure | Integral type, consisting of environmental chamber and refrigeration unit, control panel on the door. | |
Material composition | Outer wall material: high-quality steel plate, surface spraying treatment Inner wall material: SUS304 stainless steel plate Insulation material: 100mm thick composite insulation material (glass wool + polyurethane foam board) | |
Box structure | Outer wall material: high-quality steel plate, surface spray treatment; Appearance color: the box is warm gray 1C; Inner wall material: SUS304 stainless steel plate; Shelf: 2 layers of laminate as standard. Insulation material: The thickness of the insulation layer of the entire inner box is 100MM, composite insulation material (glass wool + polyurethane foam board); Observation window: transparent electric heating film hollow tempered glass (located on the door), size: 280*350mm (with electronic defog and anti-condensation function) Test hole: 2 φ100mm test holes are configured on the left side of the box, and the corresponding insulation accessories and special sealing soft plugs are attached. Lighting: Installed inside the observation window, LED energy-saving lighting, controlled by the switch on the control panel; | |
Adjustment channel | Fan, heater, evaporator, temperature sensor. | |
Internal airflow adjustment | Through the high-power centrifugal fan, forced air circulation can achieve good temperature uniformity. | |
Circulation fan | Adopt high-temperature resistant, long-axis motor, the motor is installed in the outdoor space, the shaft extends into the room, and the stirring impeller is installed at the tail end of the shaft; special insulation measures and heat dissipation system improve the safety of the motor. | |
Control operation interface | Controller touch screen, USB interface, main power switch, over-temperature protection setting device, network interface, communication interface. | |
Wheel | The equipment is equipped with 4 universal Fumar wheels for easy movement. | |
Explosion-proof and pressure relief | The temperature chamber is equipped with an explosion-proof pressure relief door, which has explosion-proof pressure relief function. When strong airflow impacts, when the pressure is greater than 0.02MPa, the pressure relief door automatically opens, which is conducive to the timely release of impact pressure, and can effectively reduce the impact of the explosion, avoiding damage to the equipment body, internal circuits and control systems; the pressure relief door size is 300*300mm, and stainless steel explosion-proof chain is installed, which can be reused | |
Air pressure balance device | A pressure balance device is installed on the top of the studio to balance the pressure inside and outside the box | |
Cooling system | ||
Refrigeration method | Mechanical compression single-stage refrigeration | |
Cooling method | Air | |
Refrigeration compressor | Adopts French Taikang fully enclosed compressor, | |
Control method | Adopts cold end PID adjustment technology, which can achieve temperature control effect through precise output of compressor refrigeration capacity. The process of cooling and maintaining temperature below normal temperature does not require the participation of heater, which is completely different from the cold and hot balance temperature control method, that is, heating without cooling, cooling without heating, and energy saving of more than 40%. | |
Refrigerant | R404a | |
Condenser | Air-cooled condenser | |
Evaporator | Fin heat exchanger | |
Throttling device | Capillary tube | |
Refrigeration system accessories | Refrigeration compressor: French Taikang Pressure controller: Danfoss DANFOSS Solenoid valve: Parker, USA Filter: Danfoss DANFOSS Refrigerant: DUPONT, USA | |
Heating system | ||
Heating method | Electric heater. Controlled by contactless solid-state relay. The heater is evenly distributed in the air duct behind the evaporator. | |
Heating control method | BTHC balanced temperature control method and PID; contactless equal-cycle pulse width modulation, SSR (solid-state relay); |
