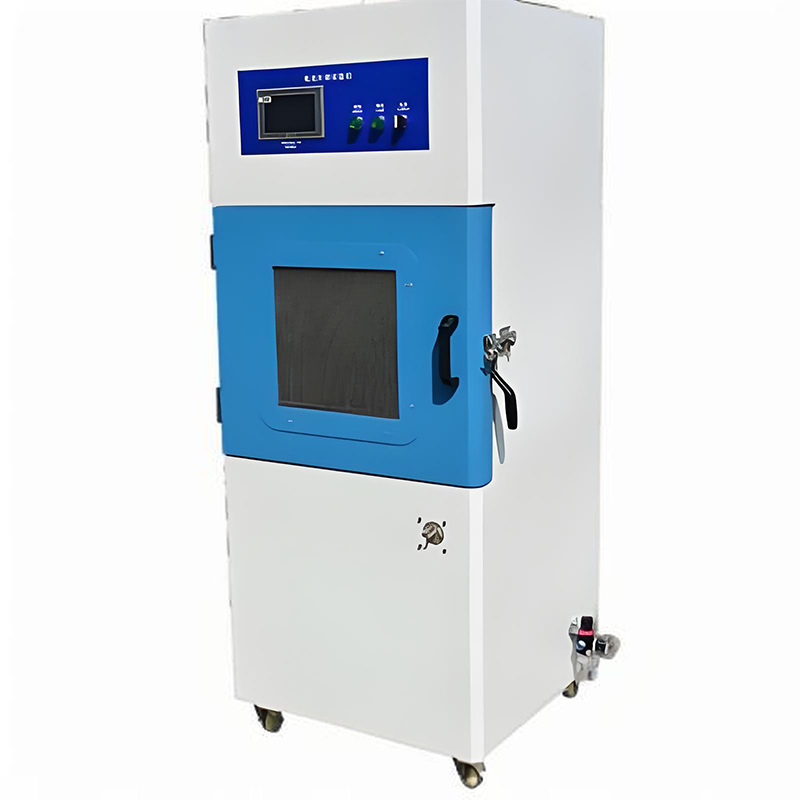

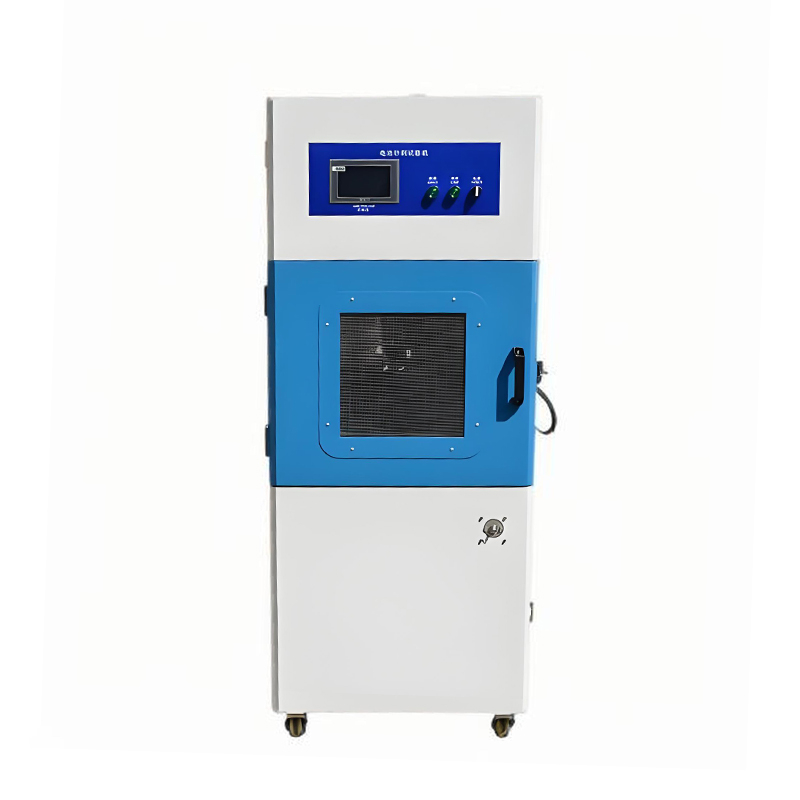

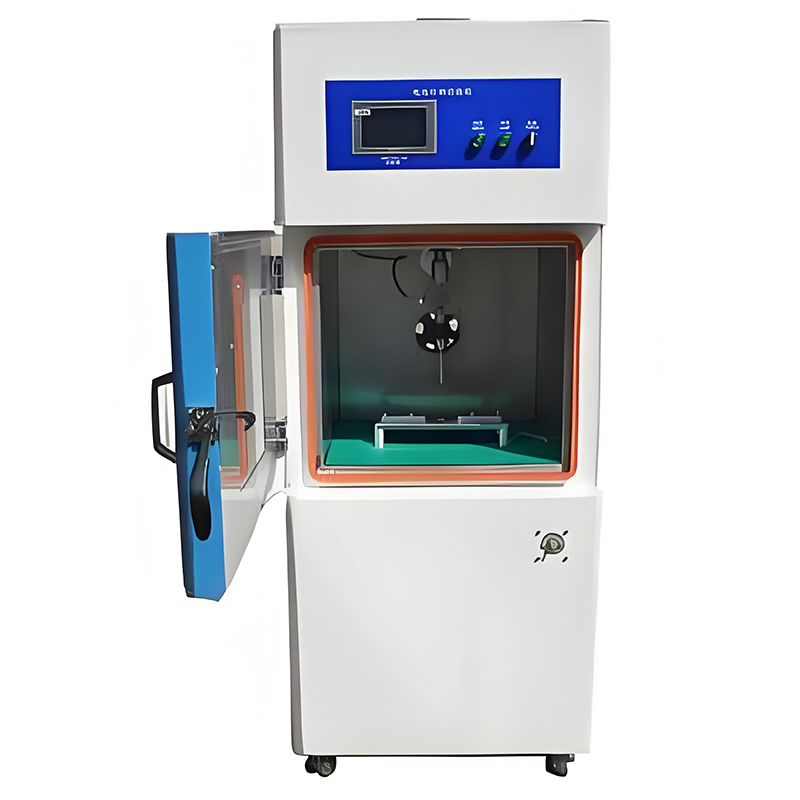

Battery Puncture Test Machine

    Battery puncture is suitable for simulating the situation that all kinds of batteries are punctured when they are used, transported, stored or treated with household waste

Battery puncture is suitable for simulating the situation that all kinds of batteries are punctured when they are used, transported, stored or treated with household waste. The puncture test should be carried out in an environment of 20±5. The battery is placed flat on the fixture, and a non-corrosive steel needle with a diameter of φ3-φ8mm is inserted into the center of the battery surface at a speed of 10mm/s-40mm/s. Keep it for any time and observe the test results. The battery is qualified if it does not explode or catch fire. The battery extrusion tester complies with GB31241-2014 and other standards.

Product Features:

1. High-precision test control

Test depth control: The battery puncture tester can accurately control the insertion depth of the puncture needle to ensure that the penetration force and depth applied to the battery during the test meet the standard requirements.

2. Safety protection design

Automatic stop function: When the battery overheats, expands or short-circuits, the tester can automatically stop the test to avoid further danger.

3. Adjustable test parameters

Needle speed control: The needle penetration speed can be adjusted as needed to simulate different types of needle penetration accidents (such as slow or fast penetration).

4. Data acquisition and recording

Real-time data acquisition: The test machine is equipped with a data acquisition system that can record and display test data such as temperature, pressure, time, etc., providing a basis for subsequent analysis.

5. High reliability and accuracy

Precise penetration control: The battery needle penetration test machine has a high-precision control system that can ensure that the depth and strength of the needle penetration can meet the standard requirements during each test, ensuring the accuracy of the test.

Stable mechanical structure: The test machine adopts a high-strength steel structure with high stability, can withstand high-frequency testing, and extend the service life of the equipment.

6. High adaptability

Diverse battery adaptability: It can test different types of batteries, such as lithium batteries, lead-acid batteries, nickel-hydrogen batteries, etc., to meet the needle penetration test needs of different batteries.

Purchase information:

If you are interested in our Battery Puncture Test Machine, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter:

Name

Battery Puncture Test Machine

Model

CY-ZC20

Drive mode

Hydraulic motor drive

Force range

1-20kN

Force measurement accuracy

0.1N

Acupuncture technical specifications

Steel needle: φ5mmφ8mm high temperature resistant steel needle, length is 100mm (can   be specified).

Acupuncture stroke

200mm or 300mm

Battery clamping distance

200mm

Unit conversion

Kg, N, LB

Acupuncture speed

1080mm/s (can be   specified)

Acupuncture force value

1-200Kg (optional)

Force display

PLC touch screen display

Force measurement accuracy

±1%

Box material

Inner box stainless steel, outer box cold   rolled steel plate sprayed

Features

The rear side of the box is designed with   exhaust vents and pressure relief devices, and the box is equipped with   lighting
