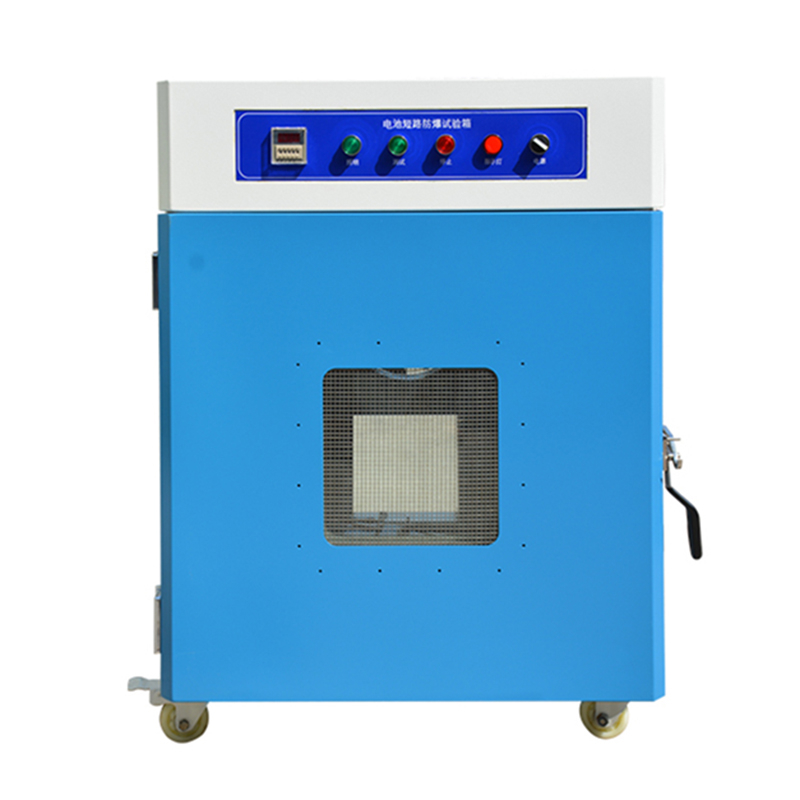

Battery Short Circuit Explosion-Proof Test Chamber is used for personal safety protection during battery safety performance testing. It is designed to protect both the operator and the equipment during tests such as overcharge
Name | Battery Short Circuit Explosion Test Machine |
Model | CY-EB-125 |
Dimensions per Layer | 500 x 500 x 500 mm (W x D x H) |
Structure | Material: Outer box: A3 steel plate with baking varnish, thickness 1.5mm;, Inner box: SUS#201 stainless steel; Single door, double door, inner box door is made of stainless steel, with silicone tight strip, and observation window on the front; There is a heat insulation design between each layer to avoid mutual influence on the test. There is a separate test panel to control the lighting and exhaust in each test room; |
A smoke identification system can be installed according to customer requirements. | |
Bakelite or Teflon tape is placed inside the test box, which is effectively insulated and flame-retardant, and easy to clean; Two circular wire ports are opened at the rear of each layer of the box to facilitate the passage of the test connection wire; | |
The door is connected to the box by a strong hinge, and the explosion-proof cold handle door lock; Side convection window: 200×300mm openings are opened on the front and back sides of each box | |
An external powerful exhaust fan. (You can also open only the front and back, and the sides can be left open) to facilitate convection heat dissipation, and add a stainless steel mesh to effectively prevent the splash of explosives; |
