Battery Short Circuit Tester

Battery Short Circuit Tester

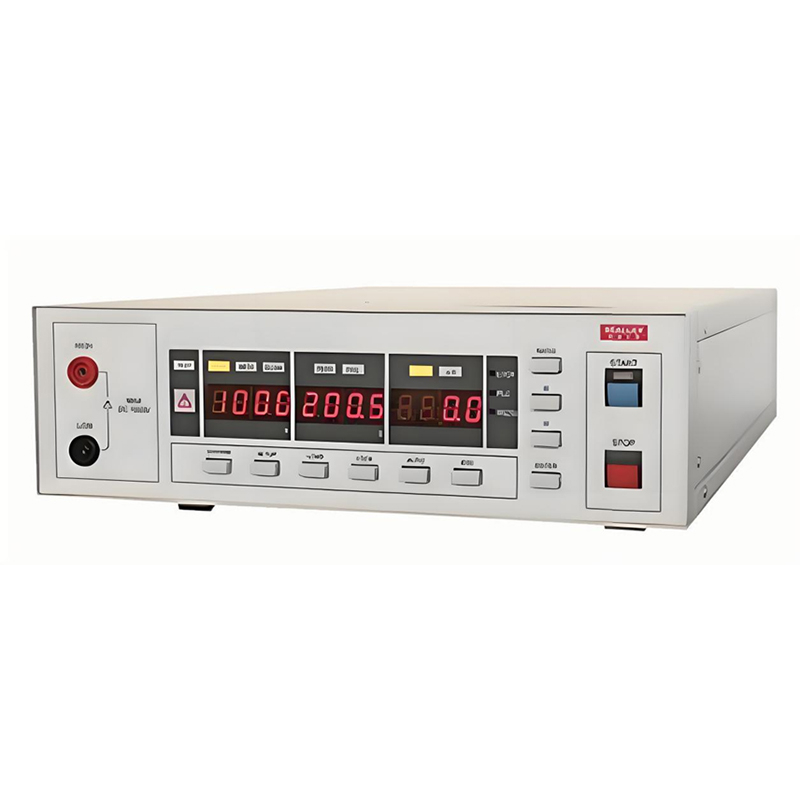

    The CY-6901A is a short circuit tester specifically designed for battery cell capacitive loads. It offers an adjustable output voltage range from 25V to 1000V with a 1V step. The test results are determined based on either the insulation resistance value or leakage current value.

The CY-6901A is a short circuit tester specifically designed for battery cell capacitive loads. It offers an adjustable output voltage range from 25V to 1000V with a 1V step. The test results are determined based on either the insulation resistance value or leakage current value. The device features a built-in comparator and timer, making it suitable for meeting various standard requirements. The configured parameters can be stored in the instrument, with a capacity to store up to 100 sets of data.

The CY-6901A is equipped with standard PLC and RS232 interfaces, allowing for easy integration with PLC or computer control to achieve automated operation.

Product Features:

1.Built-in Discharge Module: The instrument has an internal discharge module with a 20kΩ discharge resistor. After testing, it can release the charge, ensuring safer testing.

2.Fast Charging: Suitable for measuring battery cells.

3.100 Memory Sets: Allows the configuration parameters to be saved within the instrument, making it easy to recall.

4.Upper and Lower Limit Comparators: Includes audible and visual alarms for out-of-limit conditions.

5.Delay Judgment Function: For capacitive test objects, judgment is not made during the delay period, but only during the actual test time.

6.Test Terminals on Both Front and Rear Panels: Convenient for on-site applications.

7.Standard RS232 Communication and PLC Remote Control Port: Easy integration for PLC control.

8.Continuous Testing Support: Supports manual line testing and continuous operation.

Purchase information:

If you are interested in our Battery Short Circuit Tester, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter:

Name

Battery Short Circuit Tester

Model

CY-6901A

Output voltage/resolution/accuracy

25V1000V/1V/±(2%×setting   value+2V)

Test voltage/resolution/accuracy

25V1000V/1V/±(2%×display   value+2V)

Maximum current

1mA

Output mode

Floating

Isolation voltage

±1000V

Ripple

5Vp-p (1000V no-load); 10Vp-p (1000V   full-load)

Load regulation rate

1% (full loadno-load)

Rise time

15ms (no-load Umax)

Auto discharge

20kΩ (1uF capacitor discharge 200ms/time   constant RC at 1000V)

Delay time

0.1s999.9s accuracy: ±(0.1%×setting   value+0.1s)

Test time

0.5s999.9s accuracy:   ±(0.1%×setting value+0.1s)

Insulation impedance

Resistance: 2.000MΩ200.0MΩ±(2%×measurement value+5 characters)

200MΩ4000MΩ±5%×measurement value+5 characters

Capacitance: 2.000MΩ200.0MΩ±5%×measurement   value+5 characters

200MΩ4000MΩ±10%×measurement value+5 characters(tested at 100nF)

Display parameters

Insulation resistance/leakage current

Comparator

Upper limit/lower limit

Auto detection

Continuous test, high voltage continuous   output

Sampling speed

Fast/medium/slow speed

Storage parameters

100 groups

External interface

RS232/PLC

Usage environment

040/20%RH70%RH

Power supply

AC220V50Hz

Weight

7.2kg

Appearance size

300mm×88mm×380mm(W×H×D)
