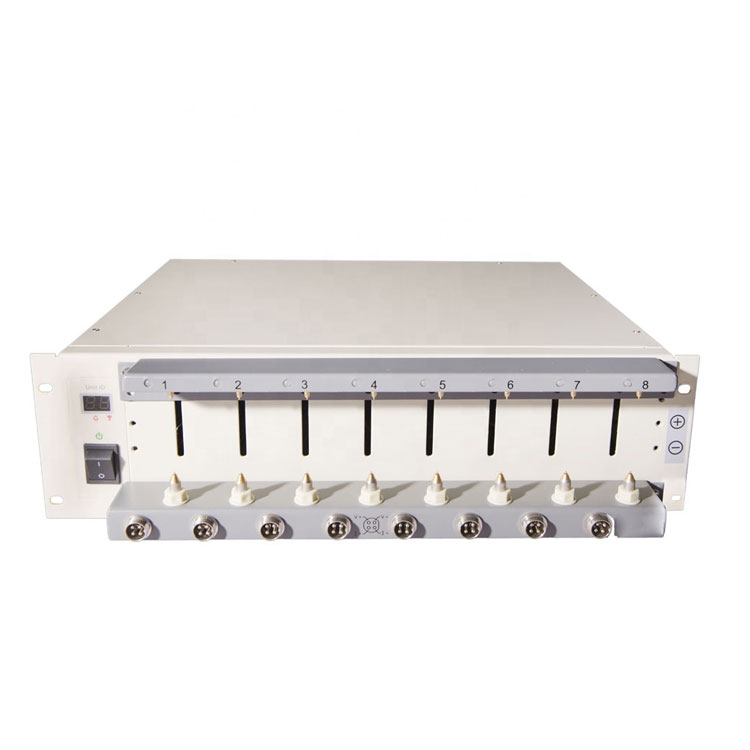

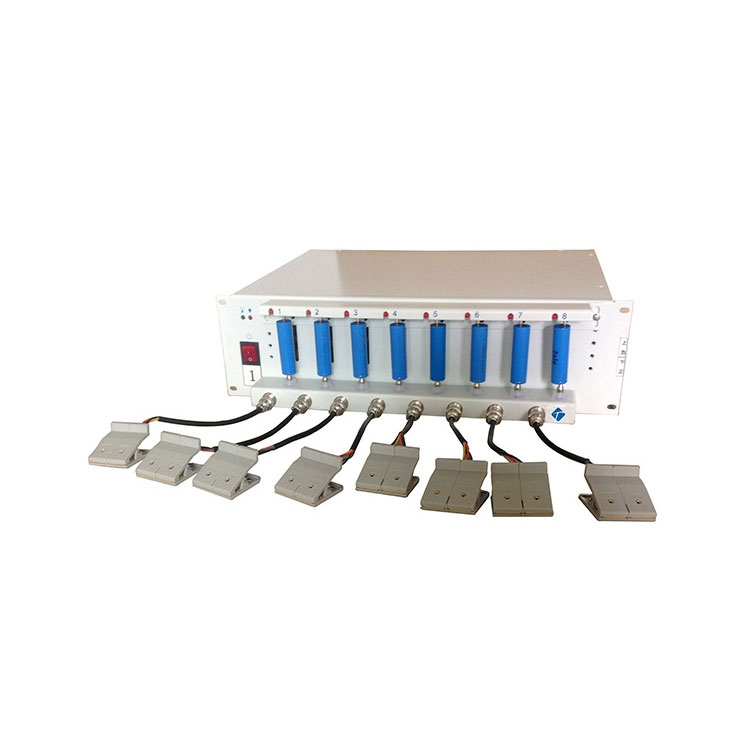

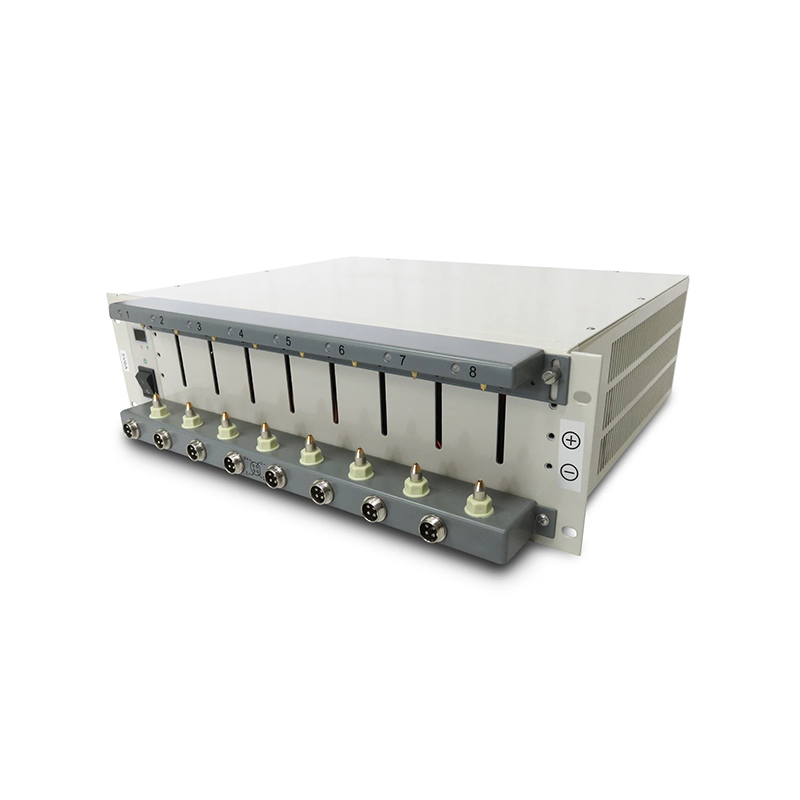

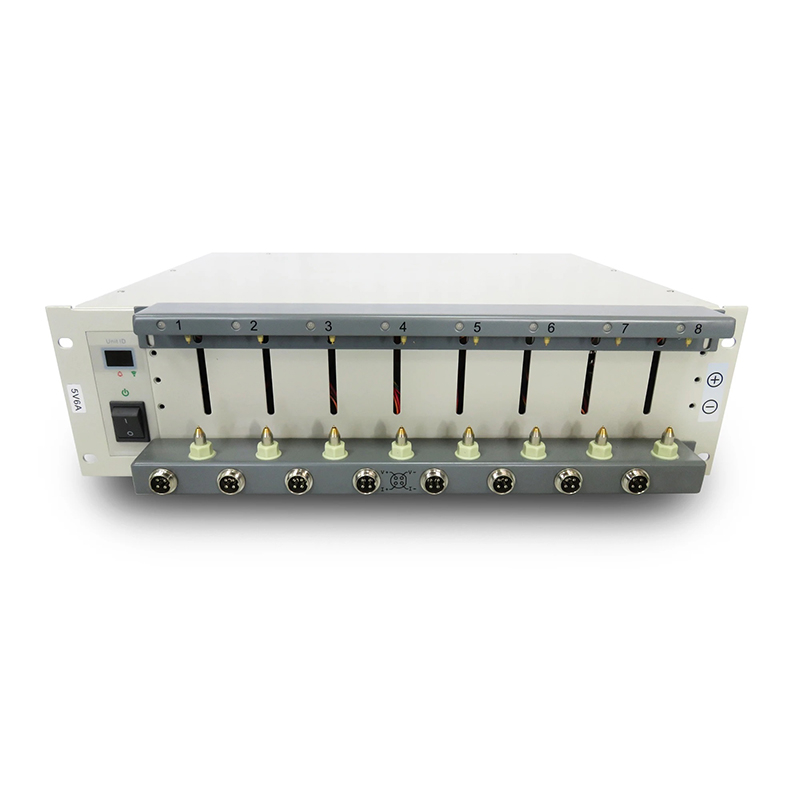

Battery Testing System for Cylindrical and Pouch Cells

    Battery tester is a specialized device used to perform various performance tests on different types of batteries, such as lithium-ion, lead-acid, and nickel-metal hydride batteries

Battery tester is a specialized device used to perform various performance tests on different types of batteries, such as lithium-ion, lead-acid, and nickel-metal hydride batteries. These tests include charge and discharge cycling, capacity testing, internal resistance measurement, efficiency testing, and more. The device typically features high-precision voltage, current, and power measurement capabilities, enabling it to simulate the real-world operating conditions of batteries. It is widely used in battery production lines, laboratories, maintenance, and for battery testing and evaluation in electronic products.

Product Features

1.High Precision Measurement

Battery testers feature high-precision measurement capabilities for voltage, current, capacity, and internal resistance, ensuring the accuracy of test results. For example, the capacity testing precision can reach ±1%, and internal resistance measurement precision is typically in the milliohm range, which is crucial for battery quality control.

2.Multiple Test Modes

Charge/Discharge Testing: Allows users to set different charging currents, discharging currents, and charging voltages for constant current or constant voltage charge/discharge testing.

Capacity Testing: Tests the battery's charging and discharging capacity, assessing its actual energy storage capability.

Cycle Testing: Through charge/discharge cycles, this simulates real-world battery use, monitoring performance degradation across multiple cycles.

Internal Resistance Testing: Measures the battery's internal resistance to assess health and aging.

Efficiency Testing: Calculates the battery's charge/discharge efficiency, helping to analyze energy conversion capability.

3.Real-Time Data Monitoring and Display

Battery testers are typically equipped with LCD or touchscreens that display real-time parameters such as voltage, current, capacity, power, and temperature. This allows users to intuitively monitor battery status and adjust test conditions or address anomalies promptly.

4.Temperature Monitoring and Protection

Some battery testers are equipped with temperature sensors to monitor the battery’s temperature in real-time, preventing safety issues due to overheating during testing. Additionally, these devices often have over-temperature protection to ensure safety during testing.

5.Support for Multiple Battery Types

Battery testers support testing for various battery types, including lithium, nickel-metal hydride, lead-acid, polymer, and more, accommodating the testing needs of different industries and applications.

6.Safety Protection Features

Overcharge Protection: The tester automatically stops charging when the battery reaches the preset maximum voltage, preventing overcharging damage.

Over-discharge Protection: Stops discharging automatically when the battery voltage drops to the preset minimum value, preventing over-discharge.

Overcurrent Protection: If the current exceeds the preset limit during testing, the system will automatically cut off the current output to avoid overcurrent damage.

Short-Circuit Protection: If a short circuit is detected, the tester immediately disconnects the power to ensure safety for both the device and personnel.

Data Storage and Analysis

Battery testers can record test data, generate test reports, and provide data analysis functions. Some high-end models also support PC or cloud-based data analysis and report generation, allowing for long-term battery performance tracking and management of test history.

7.Smart Features

Automatic Testing Mode: The device can automatically perform charge/discharge tests based on preset parameters, reducing manual intervention and improving efficiency.

Remote Control and Monitoring: Some high-end battery testers support remote control, allowing users to control and monitor the tester via computer or mobile devices. This is particularly useful in batch testing environments or automated production lines.

8.High Flexibility and Configurability

The current, voltage, time, and other parameters of the battery tester are usually adjustable, allowing users to set appropriate testing conditions based on the characteristics of different batteries. This high adaptability makes the tester suitable for various applications, fulfilling personalized requirements.

9.Compact Design and Ease of Use

Battery testers are typically designed to be compact and modular, making them easy to operate and install in labs or production lines. Most devices feature intuitive user interfaces that simplify the testing process and lower the barrier to use.

10.Long Lifespan and High Reliability

Battery testers are often built with high-quality components and designs, ensuring long service life and high reliability. They can perform stably even under high-frequency usage conditions.

Purchase information

If you are interested in our battery analyzer, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter

Name

Battery analyzer

Model

CY-5V6A-08CH

Specification

5V/6A

Channel

8

Channel control method

Independent control for each channel,   current and voltage four-wire system collection

Channel feature

Constant current source and constant   voltage source adopt double closed loop structure

input resistance

≥1MΩ

Voltage

Voltage range

Charge

10mV-5V (device port)

Discharge

0.75V-5V (device port), the minimum   discharge voltage is related to the line length

Accuracy

±0.05% of FS, ambient temperature 15-35

Current

Current range

Charge

0.02A-6A

Discharge

0.02A-6A

Accuracy


±0.05% of FS, ambient temperature 15-35



Power

Single channel output power

30W

Stability

0.2% of FS

Time

Current response time

≤10ms



Data record

Record frequency

1Hz



Data recording conditions

Minimum time interval: 1S

Minimum voltage interval: 1mV

Minimum current interval: 1mA

Charge

Charge mode

Constant current charging, constant   voltage charging, constant current and constant voltage charging, constant   power charging

Cut-off condition

Voltage, current, relative time,   capacity, -V

Discharge

Discharge mode

Constant current discharge, constant   power discharge, constant resistance discharge

Cut-off condition

Voltage, current, relative time,   capacity, -V



Pulse model(optional)

Charge

Constant current mode, constant power   mode

Discharge

Constant current mode, constant power   mode

Minimum pulse width

Recommend 5S or more

Cut-off condition

Voltage, relative time

DCIR

DCIR(optional)

Support custom pick points for DCIR   calculation

Cycle

Cycle test

399 commands can be set, 65535 cycles can   be set

Loop nesting

supports 5 levels of loop nesting

Protection

Software protection

1.Support power-down data protection

2.Support continuous start (should have   UPS power supply)

3.Overvoltage protection, undervoltage   protection, capacity protection, overcurrent protection, undercurrent   protection

4.Anti-reverse protection

Data export method

ExcelPDF

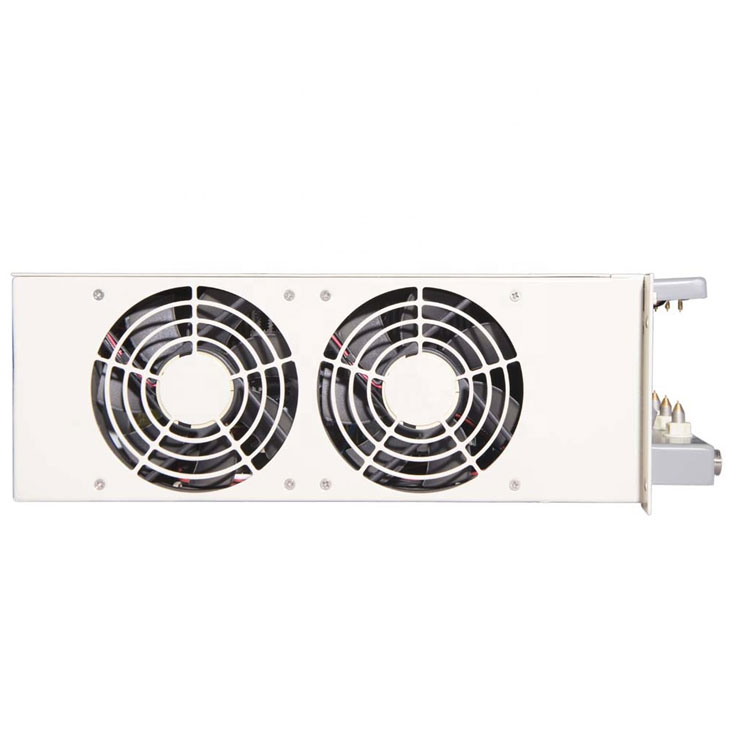

Cooling

Air

Noise

≤50dB

Communication method with host computer

Network
