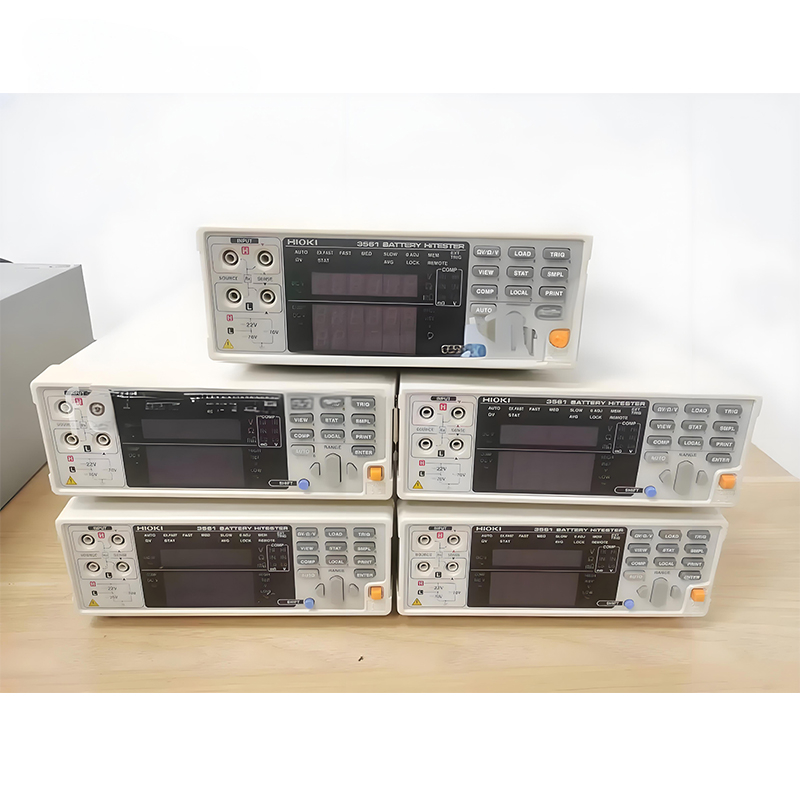

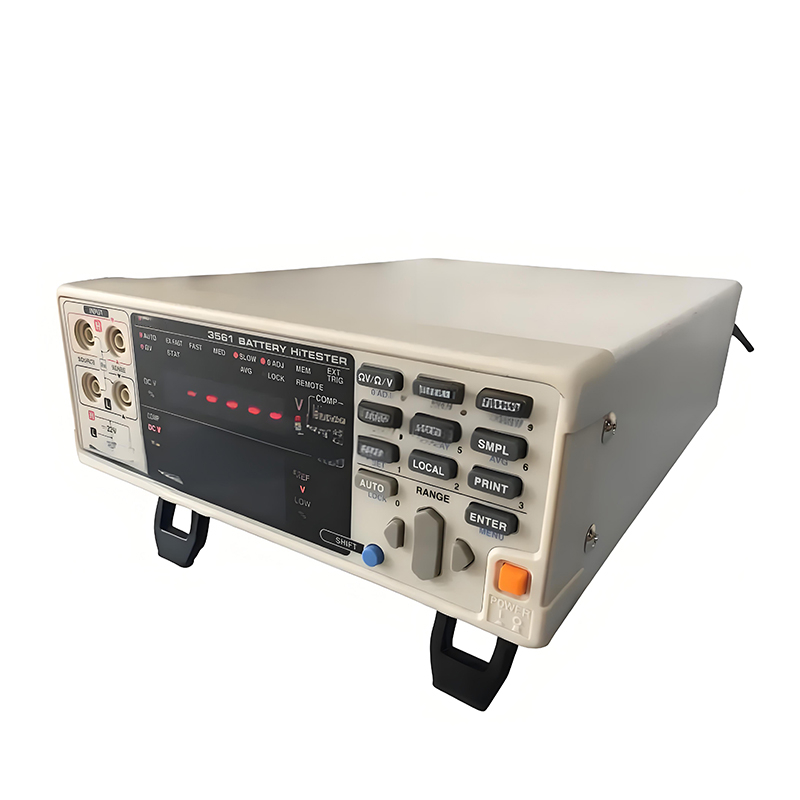

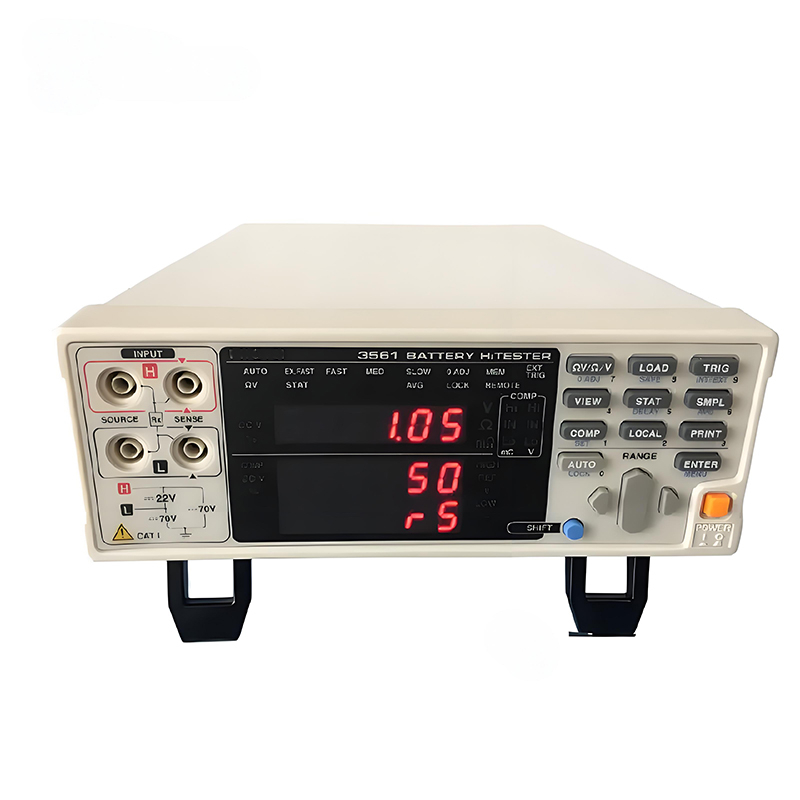

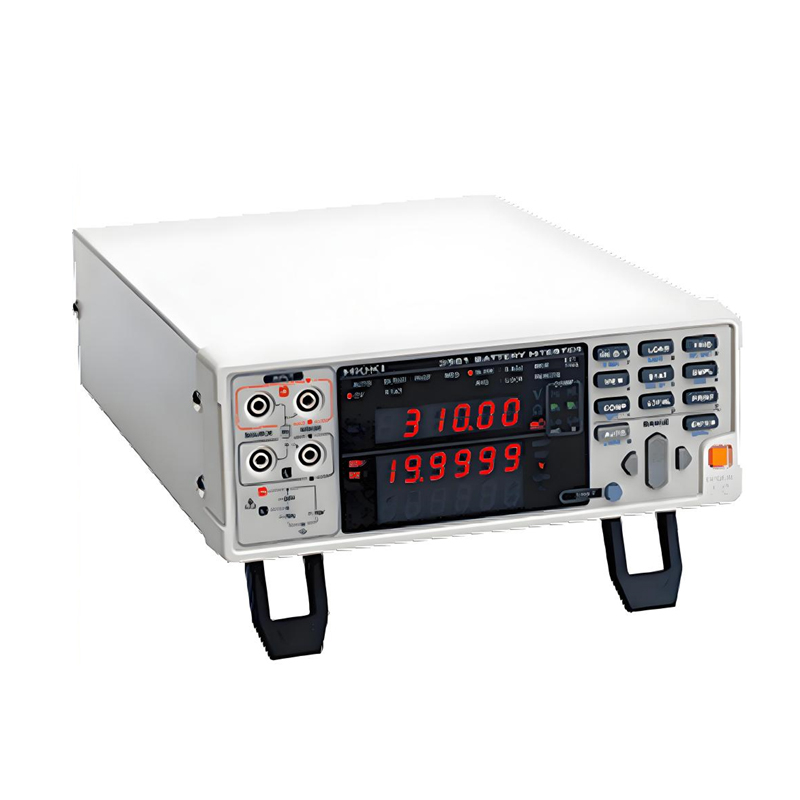

Internal resistance tester

    The internal resistance tester is a high-precision measuring instrument specially designed for batteries (including lead-acid, nickel-cadmium

The internal resistance tester is a high-precision measuring instrument specially designed for batteries (including lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion, and lithium polymer batteries). It can test the open circuit voltage and AC internal resistance of the battery, and has the characteristics of simple operation, reliable use, and high performance-price ratio.

Product Features:

1. High precision: resistance ±0.5% rdg. ±5dgt., voltage ±0.01% rdg. ±3dgt.

2. High resolution: resistance 0.01mΩ (300mΩ range); voltage 0.1mV (20V range)

3. High speed within 10ms to measure internal resistance and voltage simultaneously

4. Up to 30,000 data can be counted, which is beneficial to engineering management and quality management

Purchase information:

If you are interested in our Internal resistance tester, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter:

Name

Internal resistance   tester

Model

CY-3561

Resistance   measurement range

Resistance:   310.00m2/3.10002, Voltage: 19999V

Accuracy

Resistance: +0.5%   rdg, +5dgt.

Voltage: +0.01% rdg,   +3dgt.

Measurement current frequency

1kHz +0.2Hz

Measurement current

10mA (300m2 range),   1mA (32 range)

Open circuit   terminal voltage

7V beep

Maximum applied   measurement voltage

DC +22V

Maximum voltage to   ground

DC +70V

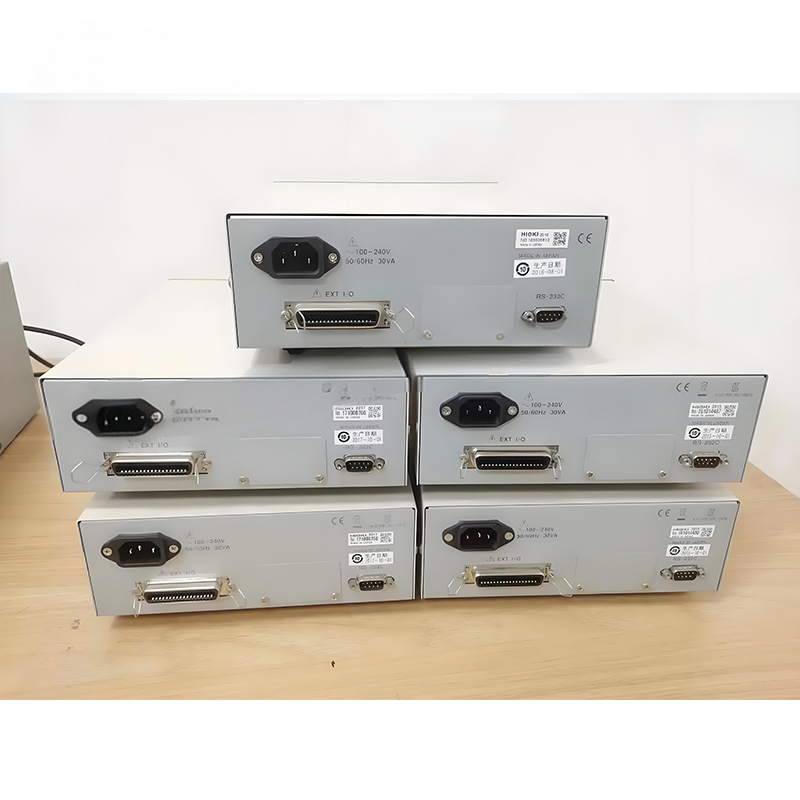

Interface

EXT 1/O, RS-232C,   Printer (via RS-232C), GP-IB (3561-01)

Power supply

AC 100~240V +10%,   50/60Hz, 30VA max.

Size and weight

215W X 80H X 295Dmm,   2.4kg
