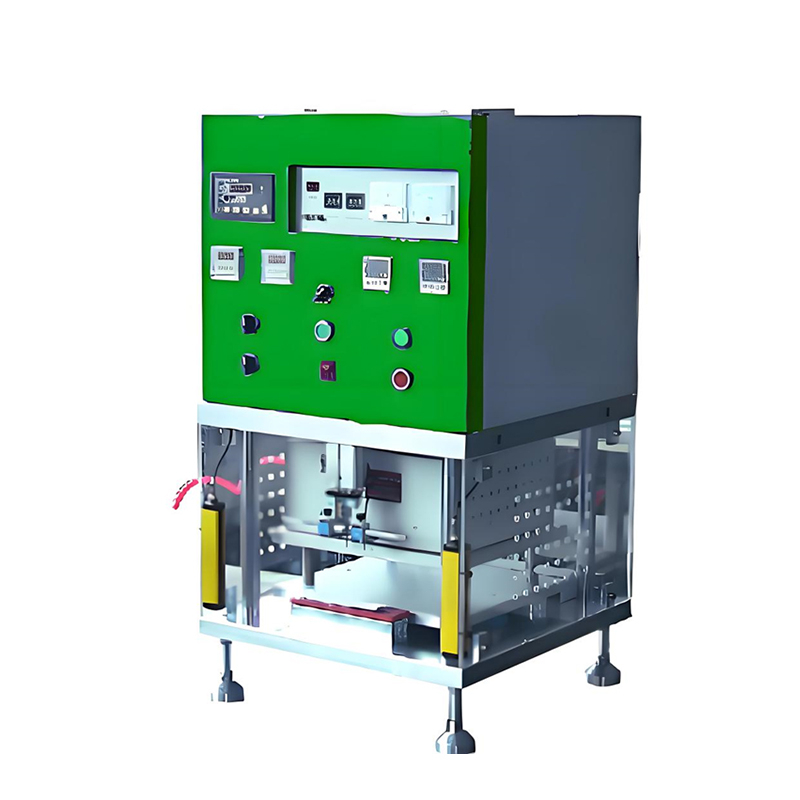

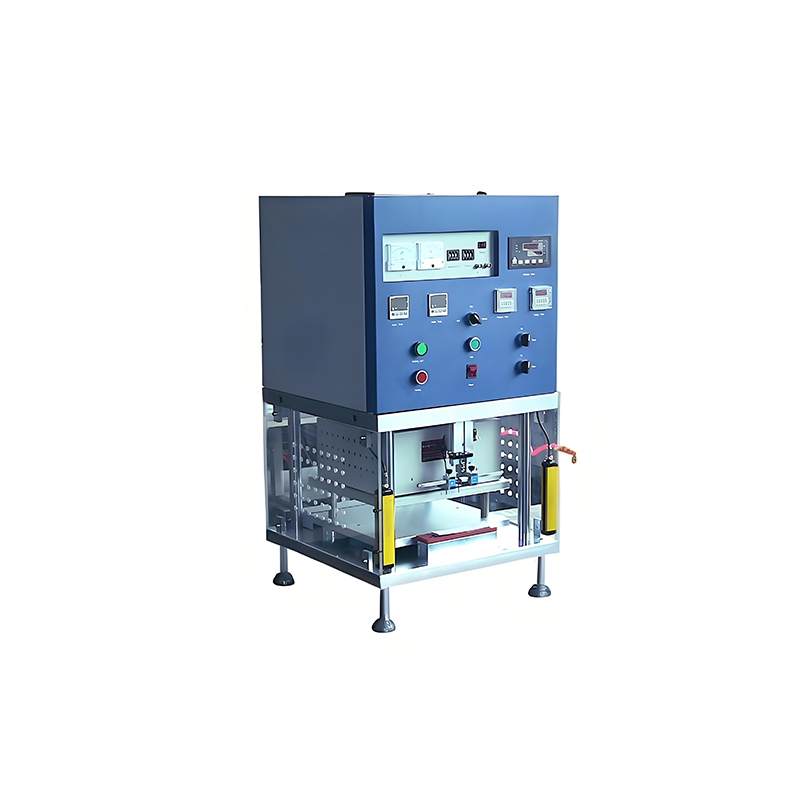

Short Circuit Test System for Pouch Cell Under Variable Pressure

Mainly used for hot flattening and shaping of battery cells. The battery cells are shaped by pressurization and heating to achieve uniform thickness of the battery cells, reduce the elasticity of the battery cells, reduce the short-circuit rate of the installed cores and ensure the consistency of the thickness of the finished battery cells. Soft-pack battery testing equipment that integrates temperature adjustment, voltage adjustment and short-circuit testing functions. This machine tests the insulation resistance and accurately identifies the microcircuit state of the battery to test the safety of the battery.

Product features:

1. The temperature of the work surface can be adjusted through the thermostat panel button. The current value and the set value of the set temperature can be displayed on the LCD display, which is intuitive, high temperature control accuracy, and easy to operate;

2. The pressure of the upper and lower work surfaces can be adjusted through the pressure regulating valve to achieve different process parameter requirements,

3. This machine adopts a single station structure, the upper and lower work table panels are highly parallel, and the structure is stable and reliable;

4. The work surface is made of high-quality materials, with good heat transfer effect, saving power consumption and improving work efficiency;

5. The light curtain protection device is used for safe use;

6. The battery cell micro short circuit test hot press has two functions: manual and automatic testing

7. The microcircuit state of the battery cell can be identified through precise testing of the insulation resistance, and then the safety performance of the battery cell can be judged.

8. The appearance is exquisite, and the sheet metal adopts a three-dimensional geometric design, which is simple and beautiful;

9. Electrical control can be used for automatic operation during operation, and manual function can be used during debugging;

Purchase information:

If you are interested in our Hot Pressing and Shaping Short Circuit Tester, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter:
