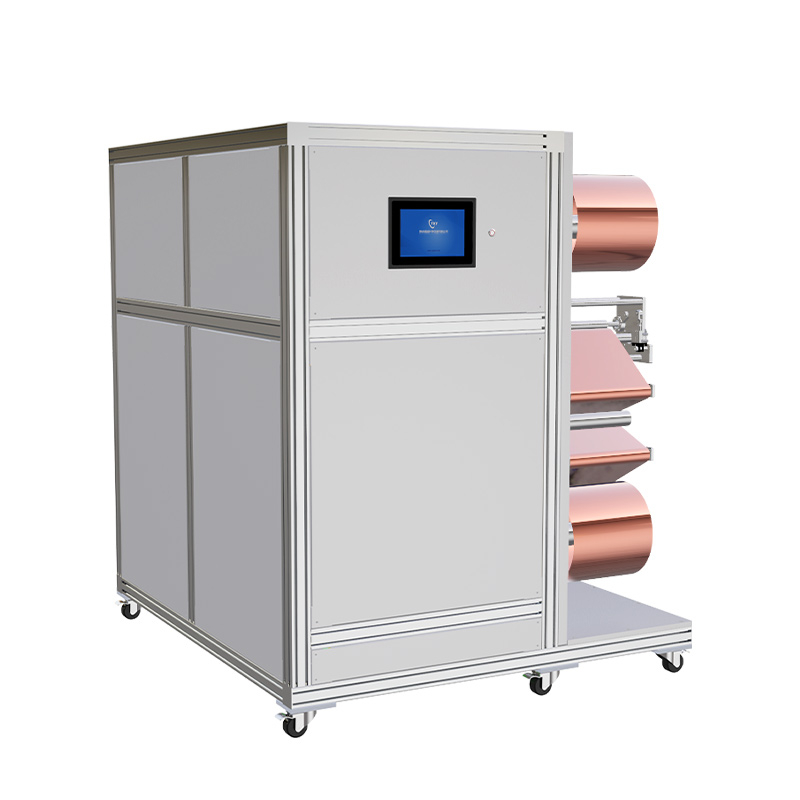

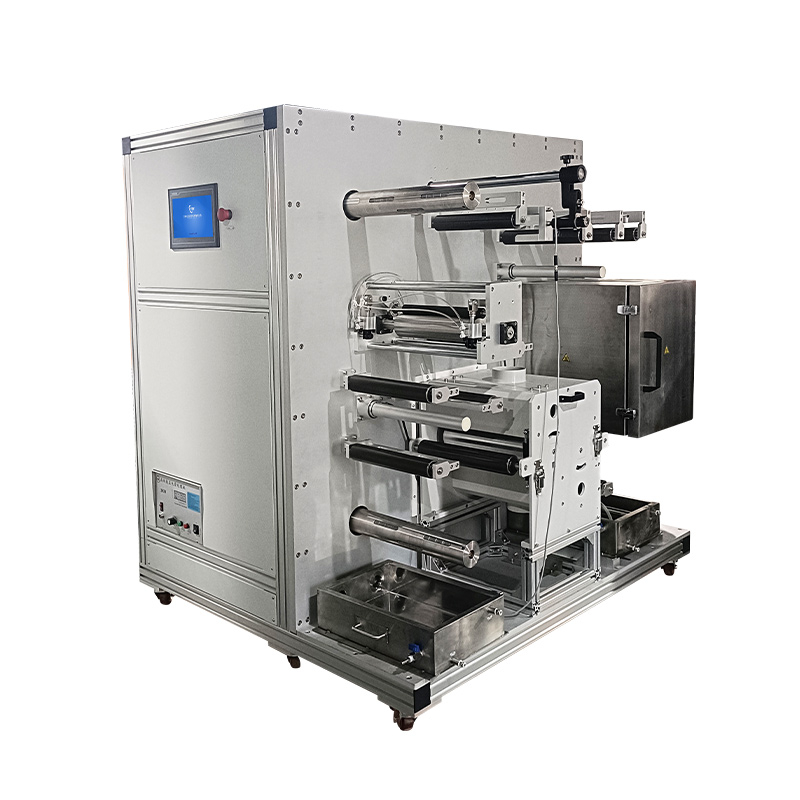

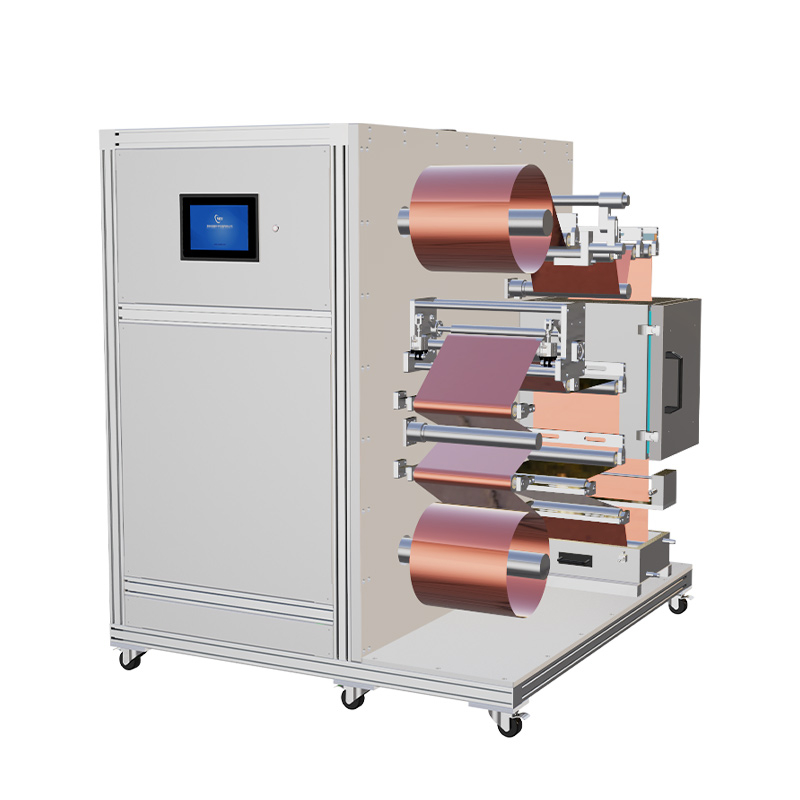

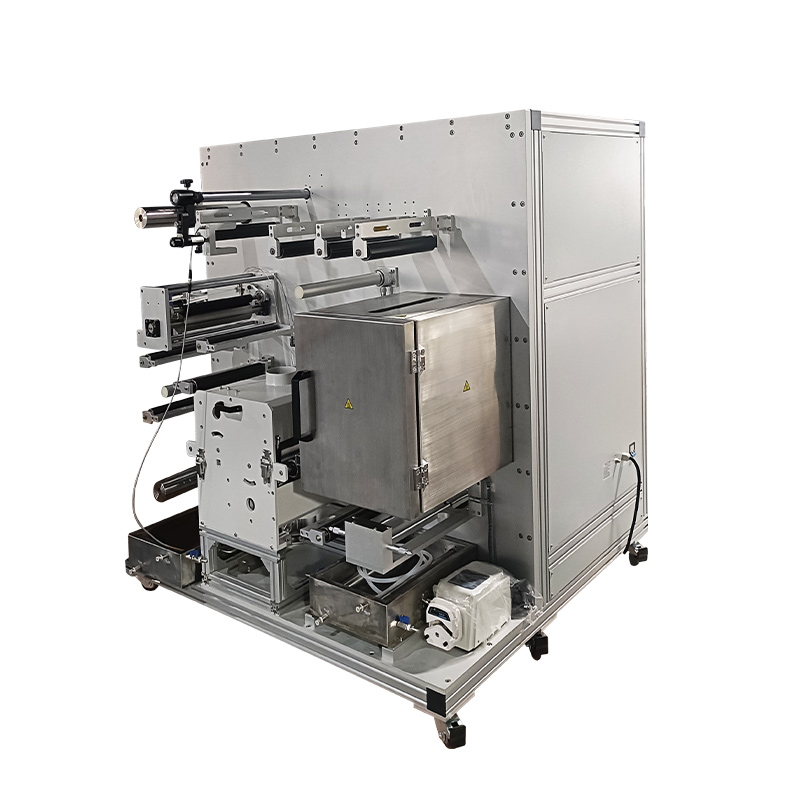

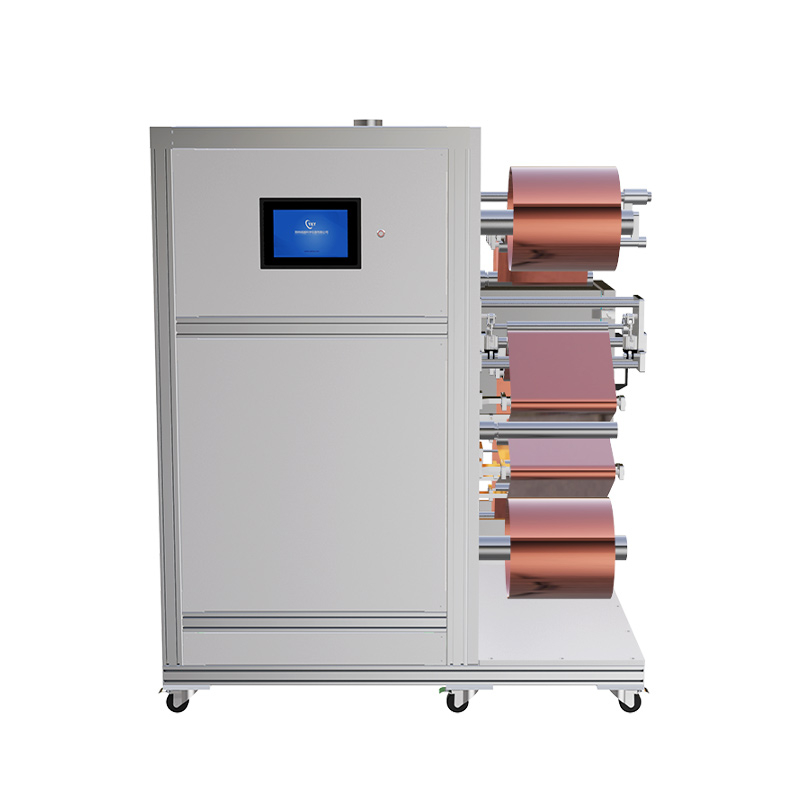

double sided dip coating experimental coater with lithium battery

    Double-sided dip coating experimental coater is a coating machine using dip coating process

Double-sided dip coating experimental coater is a coating machine using dip coating process, which can use wire rod to measure the coating. Can be low tension rewinding coil, equipped with infrared heating drying box and process correction device, optional static eliminator and dipping box type. The equipment has the advantages of simple structure, convenient operation, high production efficiency and wide application range. It can be used in lithium-ion battery, graphene film, ceramic film, high-end tape and various functional film industries.



Functional features:

Continuous dip coating on both sides.

Line rod metering to control coating thickness and evenness.

Infrared drying oven with adjustable  temperature  and air volume.

Stripper stability,  low tension  stripper  can be achieved.

Active flattening roller  guide with adjustable  speed.

Peristaltic  pump feeds automatically.

Configuration  deviation  correction function, high precision walking.

Dip boxes available  in a variety of options.

PLC control, HMI operation,  easy to use;

  Technical  parameters:

Electrical  Source

Single-phase  AC220V±10%,   frequency  50Hz,  power    3KW

Air  Supply

0.5-0.8MPa compressed  air

Coating  method

Dip  coating

Coating  type

Continuous  coating

Retract  and  deflate    the coil  diameter

Max:  300mm

Guide  roll  width

300mm

Mechanical  speed

Max:  1m/min

Coating  accuracy

±3μm  (negative   slurry,    viscosity  1000CP,  solid    content  35.5%,  line    rod  specification   80μm).

Coating  thickness

Wet  film  thickness    6 -200μm  (reference  value,    wire   rod  coating),    related  to  slurry    parameters   and  wire    rod  model.

The  thickness  of the    covering  foil  can    be  adjusted   between    0.1m- 1mm

Rod  specification

Diameter  10mm,    effective  length   300mm;    6μm,  8μm,  10μm,    12μm,15μm,  20μm,  25μm,    30μm,  40μm,  50μm,    60μm,70μm, 80μm,  100μm,  120μm,    150μm,  200μm

The  above    are  wet  film    thickness   parameters,   related    to paint  parameters,   for    reference  only







Infrared  drying oven

Way

Carbon  fiber  infrared    lamp  heating

Air  volume

Max: 402m3/h, air    valve  regulation

Temperature

Max:  150  ° C

Power

2KW

Length

500mm

Size  of  tension

6-60N

Accuracy  of  deviation

correction

+ /  - 0.5    mm







Dipping  box

Standard

Minimum  coating  capacity    Min:  0.3L

Optional  1

Minimum  capacity  Min:    0.7L  when  coating,     reserve  cooling water  interface

Optional  two

Minimum  capacity  Min:    2.7L  when  coating,     reserve  cooling water  interface

Equipment  size

L980mm*W750mm*H1420mm

Heavy  weight

About  540kg
