Small scale heating wire rod doctor blade film coaterSmall scale heating wire rod doctor blade film coaterSmall scale heating wire rod doctor blade film coaterSmall scale heating wire rod doctor blade film coaterSmall scale heating wire rod doctor blade film coater

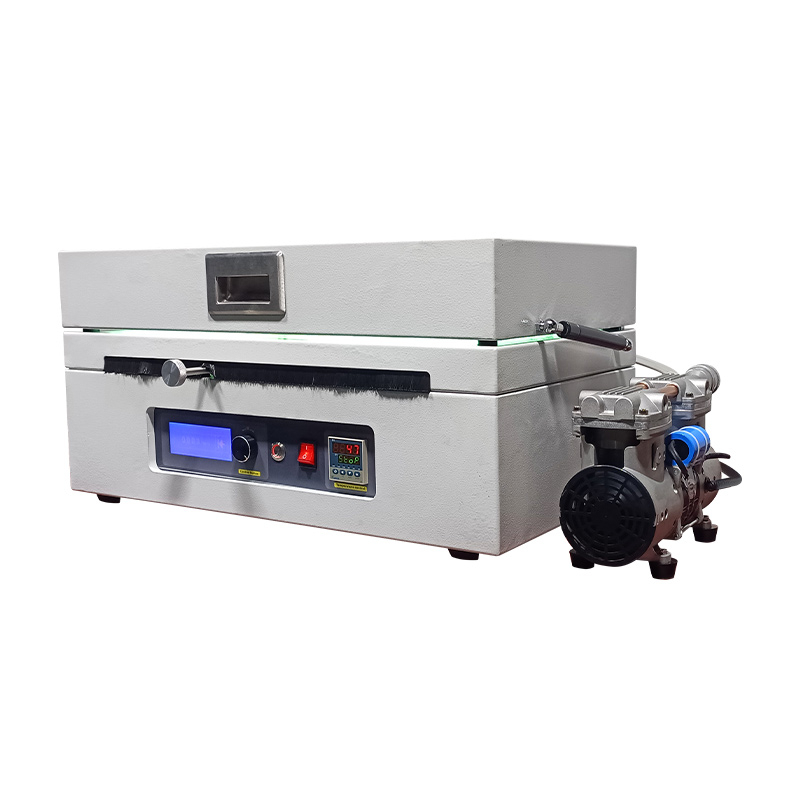

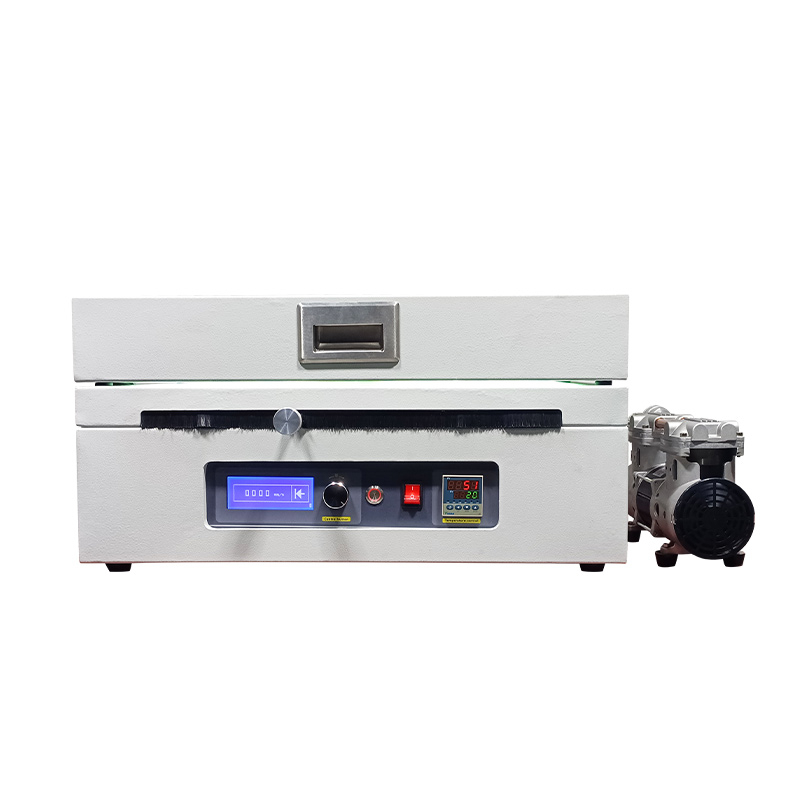

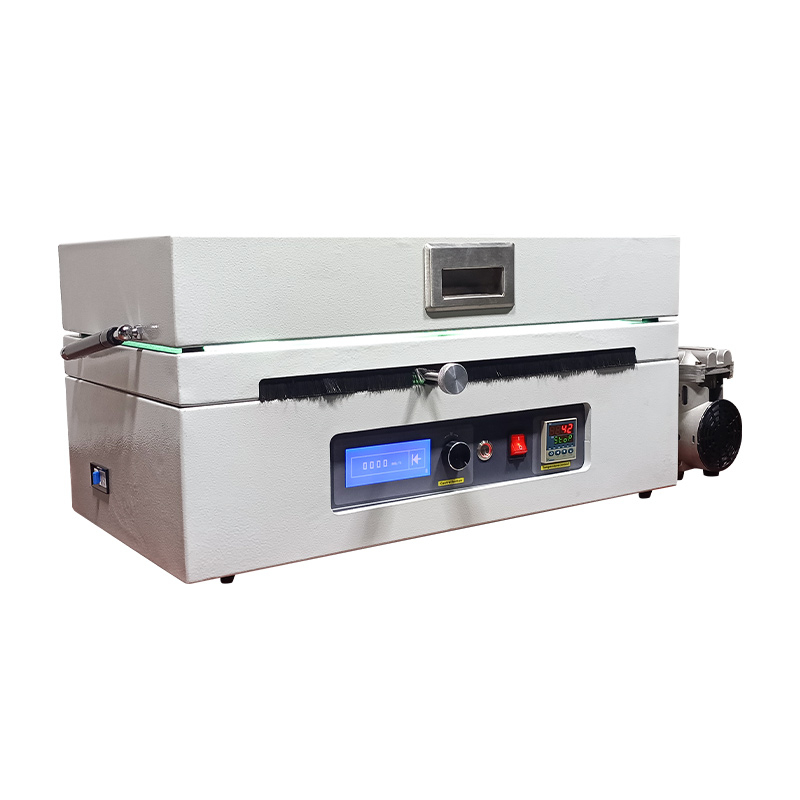

Small scale heating wire rod doctor blade film coater

    Small-scale heating wire rod coating machine is widely used in various high-temperature coating research, such as ceramic thin films

Small-scale heating wire rod coating machine is widely used in various high-temperature coating research, such as ceramic thin films, crystal thin films, battery material thin films, special nano thin films; it can adapt to the development of scientific and technological films under future high-temperature conditions. This product has passed CE.

Product Features:

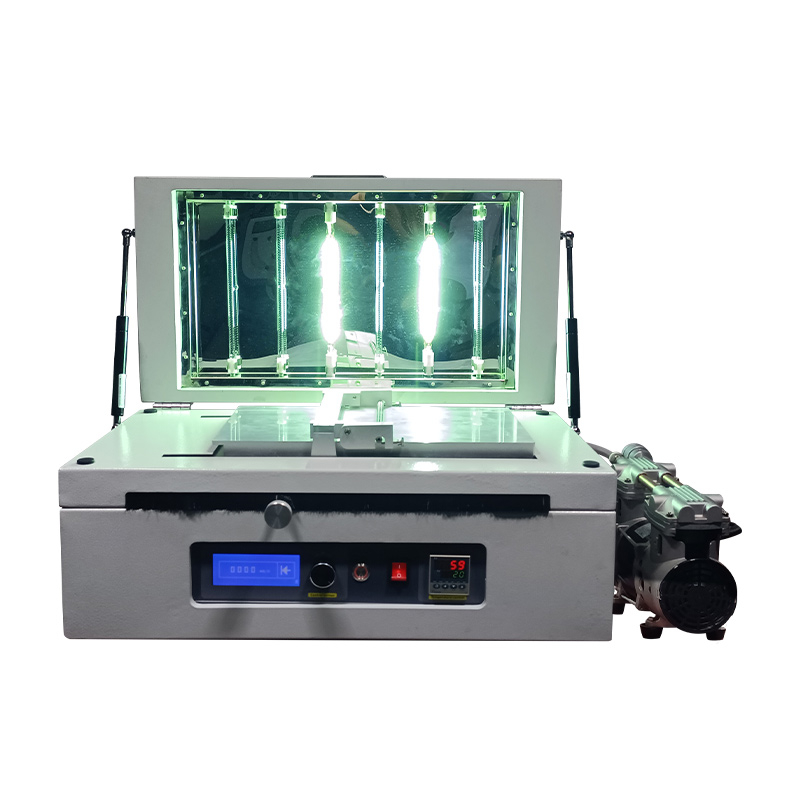

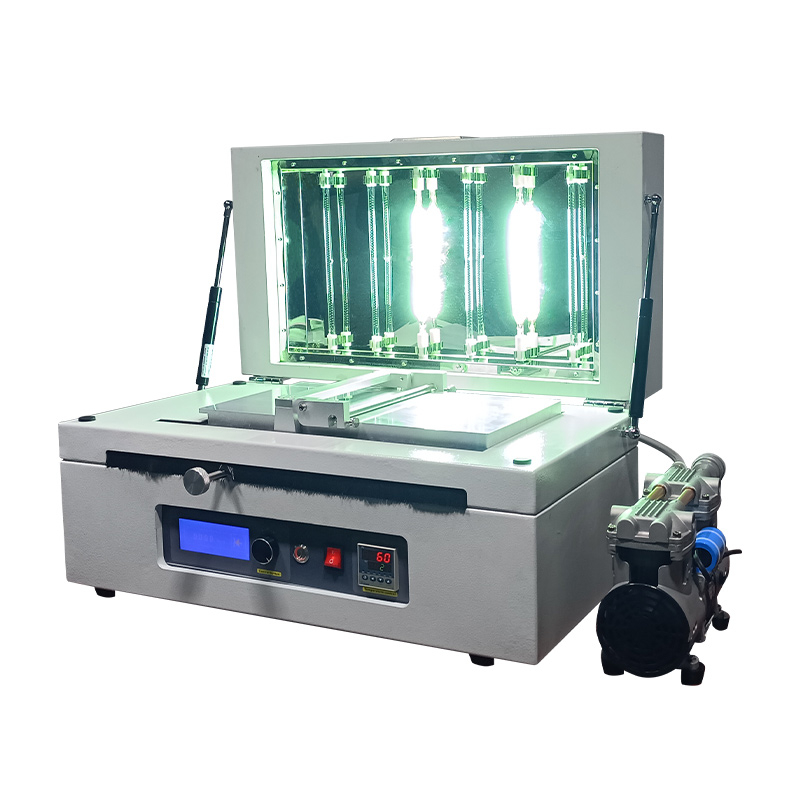

1. Top heating tube heating and top UV lamp mercury lamp curing, maximum working temperature <120°C;

2. Coating speed adjustable in the range of 0-100mm/second, with digital display;

3. Vacuum aluminum plate, can quickly place or remove substrates;

4. Stroke can be adjusted through stroke switch between 10-300mm;

High-precision coating wire rod with coating thickness of 20 microns and width of 0-150mm.

Purchase information:

If you are interested in our wire rod doctor blade film coater, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter:

Name

Small scale heating wire rod doctor blade   film coater

Model

CY- CMF-400×220B-S-UV

heating

Heating of the top heating tube and   curing of the top ultraviolet   mercury lamp, with a maximum operating   temperature of<120 ° C

Coating speed

0-100mm/s adjustable

Accuracy: 10mm/s

Coating stroke

10-300mm adjustable

Vacuum aluminum

400mm×220mm(Length×Width)

Vacuum pump

Oil-free vacuum pump

Filmmaker

Not adjustable, adjusted by changing the   wire rod

Voltage

220V 50HZ

Main parts:

Name

Description

Main machine

Small scale heating wire rod doctor blade   film coater

Wire Rod

1.Coating Solution Volume Control

The rod controls the amount of coating   solution per unit area by contacting the substrate surface. The surface of   the rod typically has fine grooves or stripes, which help adjust the coating   thickness through contact with the coating solution. By adjusting the contact   pressure and speed between the rod and the substrate, the volume of the   coating solution can be precisely controlled.

2.Coating Thickness Control

The height or geometry of the rod   determines the thickness of the coating layer. Depending on the requirements,   the coating thickness can be controlled by selecting different rods or   adjusting the rod settings. The thickness of the coating layer after   application can range from a few microns to several hundred microns, catering   to different application needs.

Vacuum pump

1.Substrate Fixation: In some coating   machines (such as roll coaters, spray coaters, spin coaters, etc.), vacuum   adsorption helps fix the substrate (e.g., film or paper) onto the worktable,   preventing the substrate from moving or deforming during the coating process.   Vacuum adsorption ensures that the substrate remains securely in place within   the coating machine’s work area, ensuring the precision and consistency of   the coating process.

2.Preventing Substrate Warping or   Floating: For flexible materials, vacuum adsorption can prevent the material   from warping or floating due to air currents or other forces during the   coating process. This is especially important for materials like films and   papers, helping to ensure that the coating is applied evenly and smoothly.

3.Improving Coating Precision: By   ensuring that the substrate remains fixed in place during the coating   process, vacuum adsorption improves the coating precision, reducing substrate   displacement or tilting. This helps ensure the uniformity and quality of the   coating.

4.Stability During the Coating Process:   Vacuum adsorption helps maintain stable contact between the substrate and the   coating head or nozzle throughout the entire coating process, reducing issues   caused by substrate movement, such as uneven coatings or incomplete coating   application.

Random accessory

Related auxiliary tools, such as the   receiving box, scraper film maker, etc.

User manual

One piece

 Applications:

1.Battery Manufacturing

Lithium Battery Electrode Coating: Rod coating machines are used to coat the positive and negative electrode materials of lithium batteries, ensuring uniform coatings with precise thickness.

Supercapacitors: Used for coating electrode materials to ensure consistency and high performance.

Solid-State Batteries: Used for the uniform coating of solid electrolyte membranes.

2.Solar Photovoltaics

Photovoltaic Thin Films: In thin-film solar cell manufacturing, rod coating machines are used to coat conductive layers, anti-reflection layers, photovoltaic materials, etc., ensuring uniform coatings without defects.

Organic Photovoltaics: Used for coating organic photoelectric material layers to ensure optical performance and efficiency.

3.Displays and Electronics

OLED Displays: In OLED display production, rod coating machines are used to coat conductive films, light-emitting layers, protective films, etc., with uniform and stable coatings.

Touchscreens: Coating transparent conductive films to provide high-performance electrical properties.

Electronic Component Protective Coatings: In the manufacturing of electronic components, coatings such as corrosion-resistant or anti-oxidation films are applied.

4.Packaging Materials

Film Packaging: Used for coating functional layers on packaging materials, such as UV-resistant, anti-static, and moisture-proof coatings.

Food Packaging: Coating protective films to improve the durability of packaging materials and preserve food quality.

Pharmaceutical Packaging: Coating functional layers such as drug release films or protective coatings for pharmaceutical packaging.

5.Optical Films

Reflective and Anti-reflective Films: Used for coating optical lenses, displays, and optical fibers to enhance optical performance.

Laser Films: Coating optical layers for laser devices to ensure uniformity and high performance.

Optical Transparent Films: Used for coating eyeglass lenses, automotive glass, and display surfaces to improve durability and functionality.

6.Medical and Healthcare

Medical Films: Used in the production of medical devices such as catheters, sensors, and electrodes, requiring coatings with biocompatibility and antibacterial properties.

Drug Release Films: In pharmaceutical formulations, rod coating machines are used to coat drug release layers or protective films to control drug release.

7.Flexible Electronics and Sensors

Flexible Electronics Devices: Such as flexible batteries, sensors, and smart labels, for coating conductive or functional films to improve the stability and performance of electronic components.

Sensor Coatings: Used for coating gas sensors, biosensors, etc., to ensure sensor sensitivity and accuracy.

8.Optoelectronic Materials

Electrochromic Films: Used in smart windows, adjustable lenses, etc., for coating electrochromic materials.

Transparent Conductive Films (TCF): Coating transparent conductive layers in touchscreens, solar cells, displays, etc., to ensure electrical performance and transparency.

9.Magnetic Materials

Magnetic Tapes and Films: Used for coating magnetic materials to produce magnetic tapes, films, or storage devices.

Magnetic Coatings: Coating magnetic thin films during the manufacturing of magnetic materials, such as hard drives.

10.Automotive and Aerospace

Automotive Window Film Coating: In automotive manufacturing, rod coating machines are used to coat window films, heat-insulating films, or reflective films.

Aircraft Coatings: Coating functional films on aircraft surfaces, such as UV-resistant coatings or anti-corrosion films.

11.Thermoelectric Materials

Thermoelectric Film Coating: Used in the manufacture of thermoelectric materials, coating thermoelectric films to achieve energy conversion functionality.

12.Industrial Coatings and Protective Films

Corrosion-Resistant Coatings: Coating corrosion-resistant protective films on metals, alloys, etc., to increase durability.

Waterproof and Anti-Oxidation Films: Applied in various industrial fields, such as electronics, sensors, and mechanical devices.

13.High-Performance Coatings and Films

Functional Coatings: Coating high-performance films, such as conductive coatings, antimicrobial coatings, and high-temperature resistant coatings, on various materials to enhance their functionality and durability.

Application Case (Preparation of pressure sensitive adhesive)

The bar coater is a device commonly used in coating technology, especially for applications with precise control of coating thickness. For the coating of pressure-sensitive adhesive (PSA), the bar coater can achieve uniform coating and ensure the consistency and stability of the adhesive layer. The following are the basic steps for preparing pressure-sensitive adhesive by bar coater:

1. Prepare the pressure-sensitive adhesive solution

Material selection: Select a suitable pressure-sensitive adhesive formula according to needs. Pressure-sensitive adhesives are usually composed of polymers (such as acrylic acid, rubber, acrylate, silicone, etc.), tackifiers, solvents (such as water or organic solvents), thickeners, etc.

Dissolution and preparation: Mix the selected pressure-sensitive adhesive raw materials and solvents in proportion, stir and dissolve until a uniform coating solution is formed.

Viscosity adjustment: Adjust the viscosity of the coating solution as needed to ensure that it is suitable for coating by the bar coater.

2. Preparation and heating of coating solution

Solvent removal: If the pressure-sensitive adhesive formula contains solvent, the coating solution usually needs to be heated or vacuumed to remove excess solvent to ensure the stability of the coating solution.

Heating system: The temperature of the coating liquid is adjusted through the coating machine's heating system to ensure that it is coated within the appropriate viscosity range.

3. Adjust the distance between the wire rod and the substrate

Select the wire rod model: According to the viscosity of the pressure-sensitive adhesive and the coating thickness requirements, select the appropriate wire rod type and size. The groove depth and surface morphology of the wire rod will affect the coating thickness.

Set the distance between the wire rod and the substrate: Adjust the gap between the wire rod and the substrate to ensure that the coating liquid can be evenly coated on the substrate surface. Too large a gap will result in too thick a coating, while too small a gap may result in uneven coating.

4. Coating process

Substrate preparation: The substrate (such as paper, film, plastic, metal foil, etc.) usually requires surface treatment, such as cleaning or pretreatment, to enhance the adhesion of the pressure-sensitive adhesive.

Coating operation: Start the wire rod coater and evenly coat the prepared pressure-sensitive adhesive liquid on the substrate surface. The wire rod controls the thickness of the coating liquid by contacting the substrate surface.

Coating speed: Adjust the coating speed to ensure uniform coating and avoid bubbles, brush marks or drawing.

5. Drying and curing

Drying (solvent evaporation): After coating, the substrate needs to be dried in an oven or hot air drying system to remove excess solvent, usually at a lower temperature.

Curing: Some pressure-sensitive adhesives require further curing, using ultraviolet (UV) curing, thermal curing and other methods to improve their bonding strength and performance. At this time, the coating layer needs to be cured by appropriate oven or UV lamp irradiation.

Temperature control: Temperature control is very important during drying and curing. Too high temperature may affect the performance of the pressure-sensitive adhesive, and too low temperature may result in incomplete curing.

6. Cooling and cutting

Cooling: The coated substrate usually needs to be cooled naturally or cooled by a cooling system to maintain the stability of the coating.

Cutting and winding: If the coated material needs to be stored or transported in roll form, the coated substrate can be handled by a cutting and winding system. The pressure-sensitive adhesive film can be slit or cut to the required width or length.

7. Inspection and quality control

Thickness detection: Use a coating thickness instrument to measure the thickness of the coating layer to ensure that it meets the requirements.

Adhesion test: Perform adhesion test on the pressure-sensitive adhesive to ensure that its bonding performance on different substrates meets the standards.

Appearance inspection: Check whether the coating surface is smooth and uniform, and whether there are defects such as bubbles and scratches.

8. Storage and packaging

Packaging: Qualified pressure-sensitive adhesive coated substrates can be packaged to prevent them from being contaminated or damaged. The packaging method is usually coil or sheet packaging, which is suitable for subsequent applications.

Storage: The storage environment should be kept dry, clean and at a stable temperature to avoid the influence of high temperature or humidity on the performance of the pressure-sensitive adhesive.
