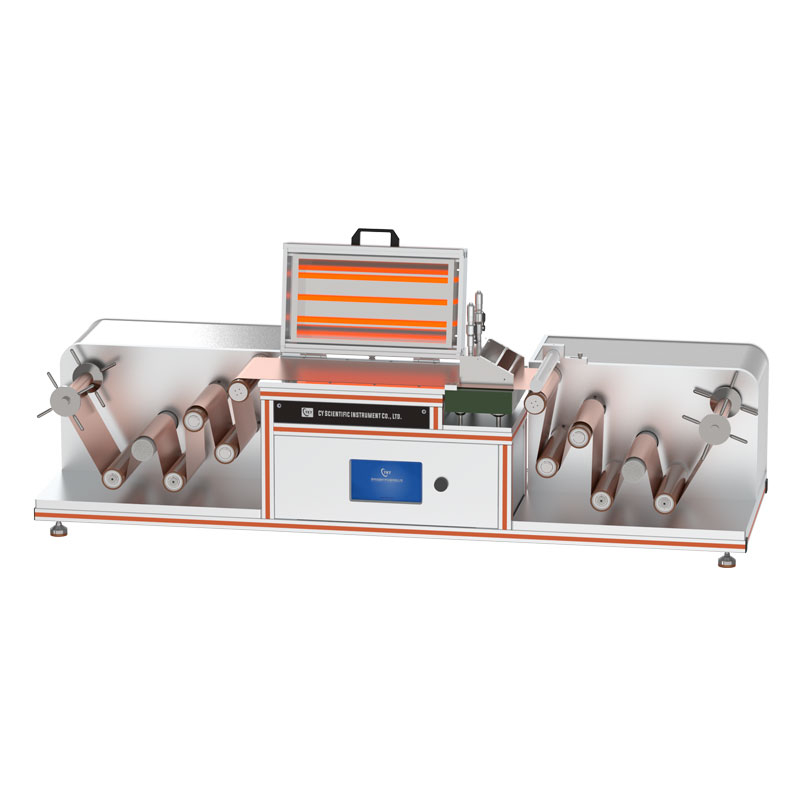

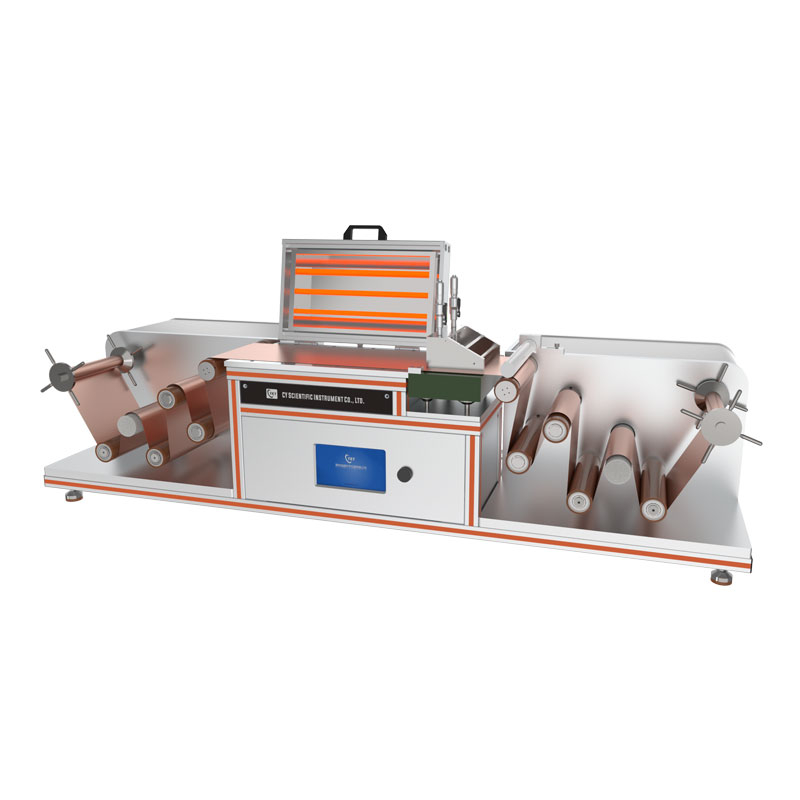

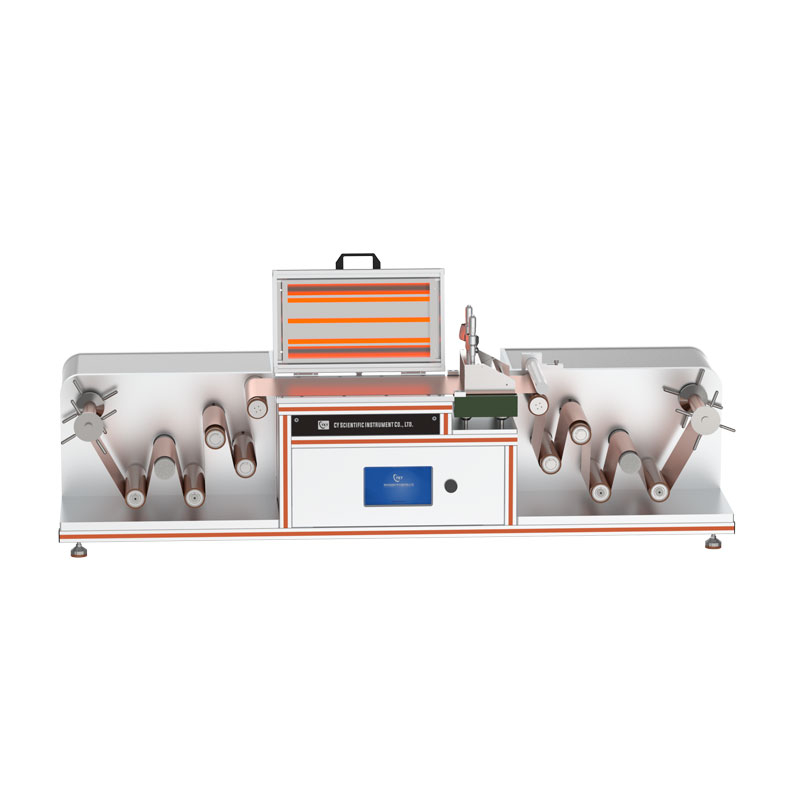

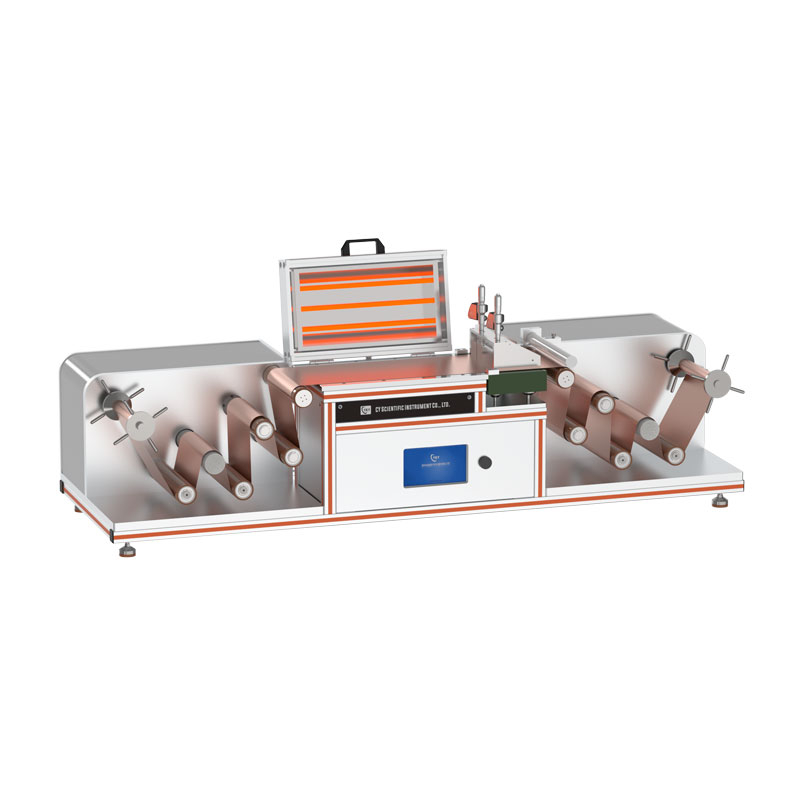

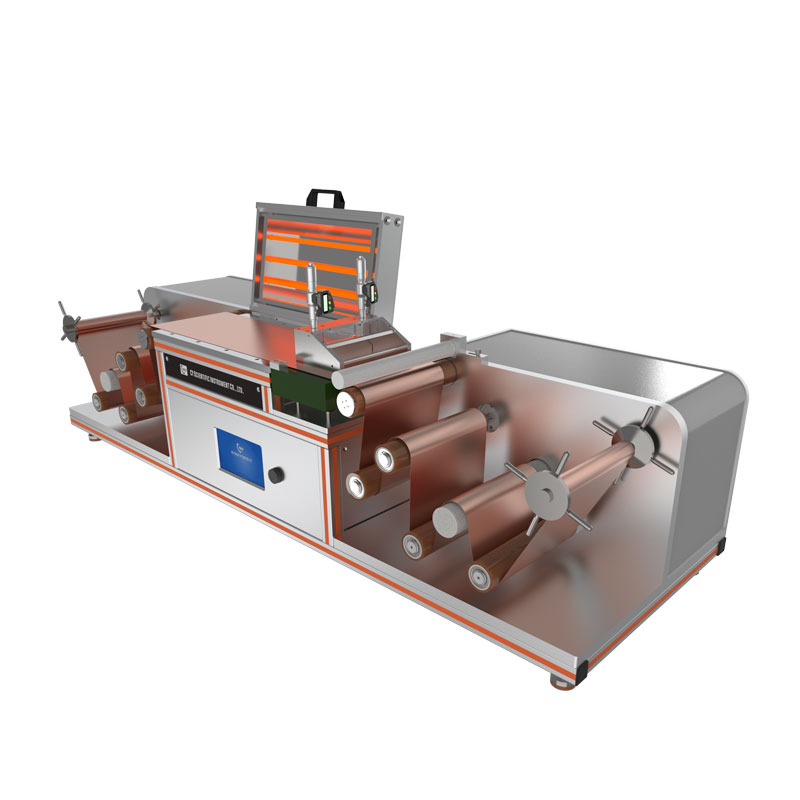

Special roll to roll heating coating Machine for lithium battery automatic deviation correction

    This fully automatic roll to roll heating coating Machine is mainly used for coating liquid or colloidal films in the laboratory

This fully automatic roll to roll heating coating Machine is mainly used for coating liquid or colloidal films in the laboratory. The equipment uses a continuously variable motor to precisely control the coating film speed, so as to achieve the goal of making the sample advance at a uniform speed and even coating the film. The scraper is made of all stainless steel and has a constant weight, which can improve the consistency and uniformity of the coating film. The device adopts a sample stage with vacuum adsorption function, which can absorb samples smoothly. At the same time, the coating machine has a bottom heating function, the heating temperature can reach 120 ℃, and the baking function is realized during the film coating process, so that the film can be dried quickly and convenient for the winding operation.

Product Features

1. This equipment uses a continuously variable motor to accurately control the coating speed.

2. Use adjustable scraper.

3. The intelligent vacuum heating suction plate at the bottom and the drying system with digital display temperature control can adapt to the development of science and technology of film formation under high temperature conditions.

4. With automatic correction, tension control, automatic heating, and automatic exhaust.

Purchase information

If you are interested in our roll-to-roll coating machine, please contact us for more information and quotes.

Contact number: 156 3719 8390

Email: shirley@cysitech.com

Contact person: shirley

WeChat: 18736046549

Technical parameter

Name

Automatic roll to roll heating coating Machine

Model

CY-CMR-300T-S

Power supply

AC220V, 50Hz

Total power

3500W

Heating

Hot air heating at the bottom

Maximum temperature: 120℃

Temperature control accuracy:   ±1℃

Drying area: length 1m, width   600mm

Film thickness accuracy

0.01mm

Vacuum substrate

Material: aluminum alloy   substrate

Size400mmW*400mmL

Vacuum pump

Mini vacuum pump

Film coater

Scraper film maker

Coating width: 500mm

Scraper adjustment: manual   adjustment, dial indicator display   accuracy 1um

Substrate amplitude

520mm

Coated amplitude

500mm

Winding mechanism

The speed of the rewinding and   unwinding device is adjustable from   100-400mm/min. The machine has feedback     adjustment and can automatically correct the speed.

Width of guide roller: 600mm

Tension control: max. 50N



Rewinding ad unwinding diameter: max. φ200mm

Rewinding and unwinding precision: ±0.5mm

Overall dimensions

2000mm x 900mm x600mm

Weight

About    200Kg

Main parts

Name

Description

Main machine

Automatic roll to roll heating coating Machine

Vacuum pump

1.Substrate Fixation: In some coating machines   (such as roll coaters, spray coaters, spin coaters, etc.), vacuum adsorption   helps fix the substrate (e.g., film or paper) onto the worktable, preventing   the substrate from moving or deforming during the coating process. Vacuum   adsorption ensures that the substrate remains securely in place within the   coating machine’s work area, ensuring the precision and consistency of the   coating process.

2.Preventing Substrate Warping or Floating: For   flexible materials, vacuum adsorption can prevent the material from warping   or floating due to air currents or other forces during the coating process.   This is especially important for materials like films and papers, helping to   ensure that the coating is applied evenly and smoothly.

3.Improving Coating Precision: By ensuring that   the substrate remains fixed in place during the coating process, vacuum   adsorption improves the coating precision, reducing substrate displacement or   tilting. This helps ensure the uniformity and quality of the coating.

4.Stability During the Coating Process: Vacuum   adsorption helps maintain stable contact between the substrate and the   coating head or nozzle throughout the entire coating process, reducing issues   caused by substrate movement, such as uneven coatings or incomplete coating   application.

Tension control

1. Maintain uniformity of the film layer

During the coating process, the tension of the   substrate needs to remain stable. If the tension is uneven, the coated film   layer may have uneven thickness, ripples or stretching problems, affecting   the quality of the final product.

The tension control system ensures the   uniformity and accuracy of the film layer by adjusting the tension in real   time to ensure that the substrate runs smoothly during the coating process.

2. Prevent material deformation or damage

Excessive tension may cause the substrate or   coating layer to overstretch, causing the material to crack, wrinkle or   break; too little tension may cause the material to relax, fail to coat   effectively, or wrinkle.

Precise tension control helps to maintain   appropriate tension at different stages of the process (such as coating,   drying, cooling, winding, etc.), thereby avoiding these problems.

3. Control the feeding and winding process of   the coil

The roll-to-roll coater adjusts the tension of   the substrate during the feeding and winding process through the tension   control system to ensure that the substrate can pass through each process   evenly and be accurately wound into a roll at the end.

4. Improve coating quality

During the coating process, the tension on the   surface of the material affects the coating effect of the slurry. Stable   tension helps ensure uniform contact between coating equipment (such as   scrapers, rollers, etc.) and the substrate, thereby improving the quality of   coating.

Random accessory

Related auxiliary tools, such as scraper film   maker, etc.

User manual

One piece

Application:

1. Battery manufacturing

Lithium battery: used for coating electrode materials, solid electrolyte membranes, etc. Roll-to-roll coating machines can effectively improve coating efficiency and film uniformity, meeting the production needs of high-quality lithium batteries.

Supercapacitors: used for coating electrodes and electrolyte membranes, improving production speed and consistency.

2. Electronic products

Flexible electronic products: such as flexible display screens, sensors, solar cells, etc., roll-to-roll coating machines can achieve efficient thin film coating.

Touch screens and OLED displays: used to coat conductive films or photoelectric films during the manufacturing process of displays.

3. Thin-film solar cells

Photovoltaic thin films: such as copper indium gallium selenide (CIGS) solar cells and organic solar cells, roll-to-roll coating machines are used to coat photoelectric materials and conductive layers.

Organic photovoltaics: used to coat conductive films and photoelectric material layers.

4. Packaging materials

Coating packaging films: In the fields of food packaging, pharmaceutical packaging, etc., roll-to-roll coating machines are used to coat protective coatings, inks or other functional materials.

Thin film encapsulation: used to make thin film encapsulation materials, waterproof, anti-corrosion, anti-oxidation and other functional films.

5. Optical film

Reflective film, anti-reflective film: used in optical products such as optical lenses, displays, glasses, etc. to improve optical performance.

Laser film: coating high-performance laser film for optical fiber, laser equipment, etc.

6. Medical and health

Medical film: for example, used for coating and manufacturing of wound dressings, drug sustained-release membranes, etc.

Sensor: used for biosensors, electrode coating, etc.

7. Automobile and aerospace

Functional coating: for example, coating functional films on the surface of automobile glass and aircraft, such as UV protection and anti-scratch coating.

Insulation film: coating insulation materials and films, applied to vehicle windows, building exterior walls, etc.

8. Metal coating

Functional metal coating: such as zinc coating, silver coating, etc., applied to the coating of metal surfaces such as electronic components and conductive films.

Optoelectronic materials: such as optical metal films, etc.

9. Green energy

Hydrogen energy membrane: used for membrane coating of hydrogen fuel cells, such as proton exchange membrane (PEM).

Thermoelectric film: used for coating thermoelectric materials.

10. Display and lighting

LED packaging film: used for coating packaging film or heat dissipation film of LED light source.

OLED coating: used for manufacturing OLED panels, coating luminescent materials and conductive materials.

Application Case (Preparation of PET film):

In the roll-to-roll (R2R) coating process, PET film (polyethylene terephthalate film) is commonly used in multiple fields, such as packaging, electronics, optical films, etc. The roll-to-roll coating machine can efficiently and accurately coat the functional film layer to improve the performance of the PET film, such as conductivity, UV resistance, light transmittance, etc. The following are the basic steps for preparing PET film using a roll-to-roll coating machine:

1. Substrate preparation

PET film selection: Select the raw material PET film with appropriate thickness and specifications. The thickness of the PET film usually ranges from 12 to 250μm.

Substrate tension adjustment: During the coating process, it is necessary to ensure that the tension of the PET film on the coating machine is uniform. Improper tension may cause the film material to stretch or break, affecting the coating quality.

2. Coating material preparation

Coating slurry preparation: Prepare appropriate coating slurry according to the functional layer to be coated (such as conductive layer, optical film, protective layer, etc.). Common coating materials include:

Solution-type materials: such as conductive polymers, optoelectronic materials, and UV-resistant materials.

Solvent selection: The solvent in the coating slurry needs to be selected according to the properties of the coating. Commonly used solvents include water, alcohols, organic solvents, etc.

Coating viscosity adjustment: The viscosity of the coating slurry needs to be adjusted according to the coating method (such as knife coating, roll coating, roller coating, etc.) to ensure coating uniformity.

3. Coating process

Coating method selection: Select a suitable coating method according to the requirements of the coating layer. Commonly used coating methods are:

Doctor Blade: High coating accuracy, suitable for uniform coating of thin film coatings.

Roller coating: Suitable for large-area coating, with good coating uniformity.

Spraying or dipping: Suitable for fast and mass production.

Coating machine configuration:

Coating head: The coating slurry is evenly coated on the surface of the PET film through the coating head.

Drying system: The PET film after coating needs to be processed by a drying system (such as hot air drying, infrared heating, etc.) to remove the solvent to ensure that the coating layer is dry and stable.

4. Drying and curing

Drying/curing: The PET film after coating needs to be processed by a drying system or curing furnace to remove the solvent or moisture in the coating slurry. Common drying methods include:

Hot air drying: Use hot air heating equipment to quickly dry the coating layer.

Infrared drying: Use infrared heating to quickly evaporate the solvent.

UV curing: If the coating is UV curing paint, you can use a UV lamp to cure it to cure the coating into a film.

5. Quality inspection and control

Coating uniformity detection: Use online measuring instruments (such as coating thickness measuring instruments, surface roughness testers, etc.) to monitor the thickness and uniformity of the coating layer in real time.

Film layer performance test: After coating, it is necessary to test the performance of the film layer, such as optical properties (light transmittance, reflectivity), mechanical properties (tensile strength, elongation at break), chemical stability, etc.

Defect inspection: Check whether there are defects such as bubbles, wrinkles, scratches, etc. in the film layer to ensure that the coating quality meets the requirements.

6. Winding and rewinding

Rewinding: The coated and dried PET film needs to be rewound in the rewinding part of the roll-to-roll coater. At this time, the rewinding tension needs to be precisely controlled to ensure smooth winding and avoid slack or overtightening.

Rewinding tension control: The tension control system is used to ensure that the tension of the film material remains stable during the rewinding process to prevent deformation or damage of the film material.

7. Final processing and packaging

Film cutting and rewinding: On the rewound PET film, cutting and rewinding may be required for subsequent use. When rewinding, it is necessary to ensure that the width, length, roll diameter, etc. of the film material meet the requirements.

Packaging: The finished PET film needs to be properly packaged to prevent moisture, contamination or mechanical damage. Common packaging methods include roll packaging, box packaging, etc.
