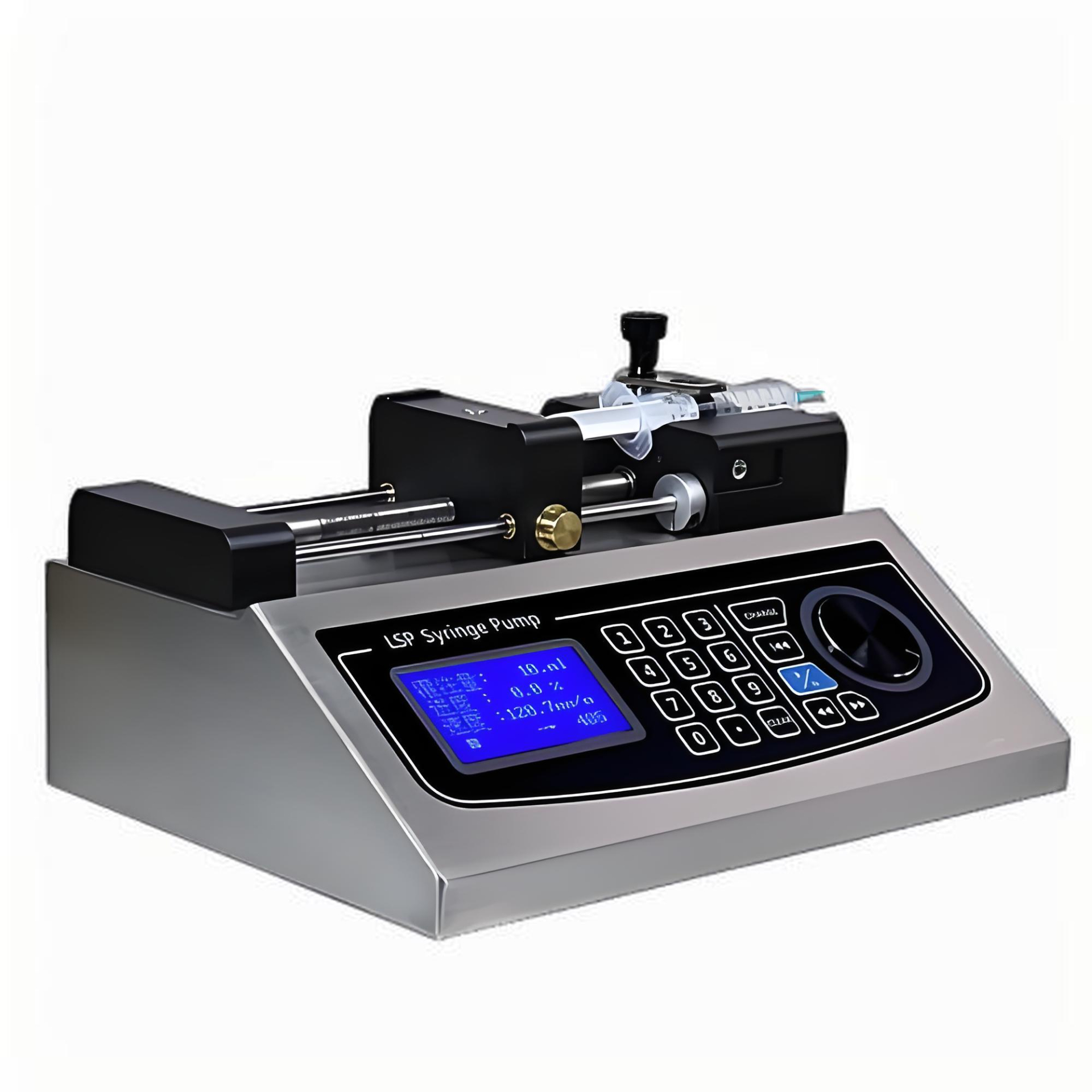

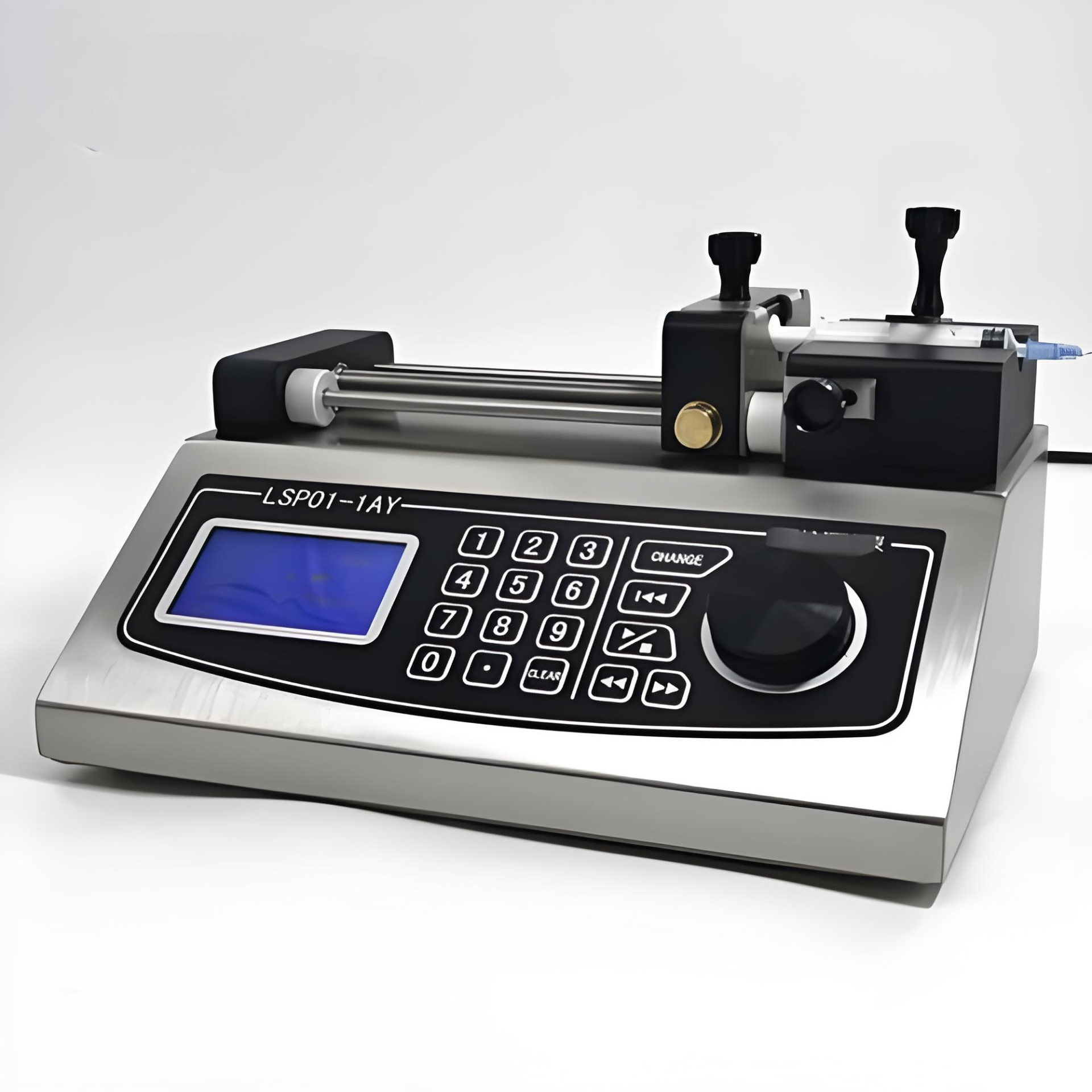

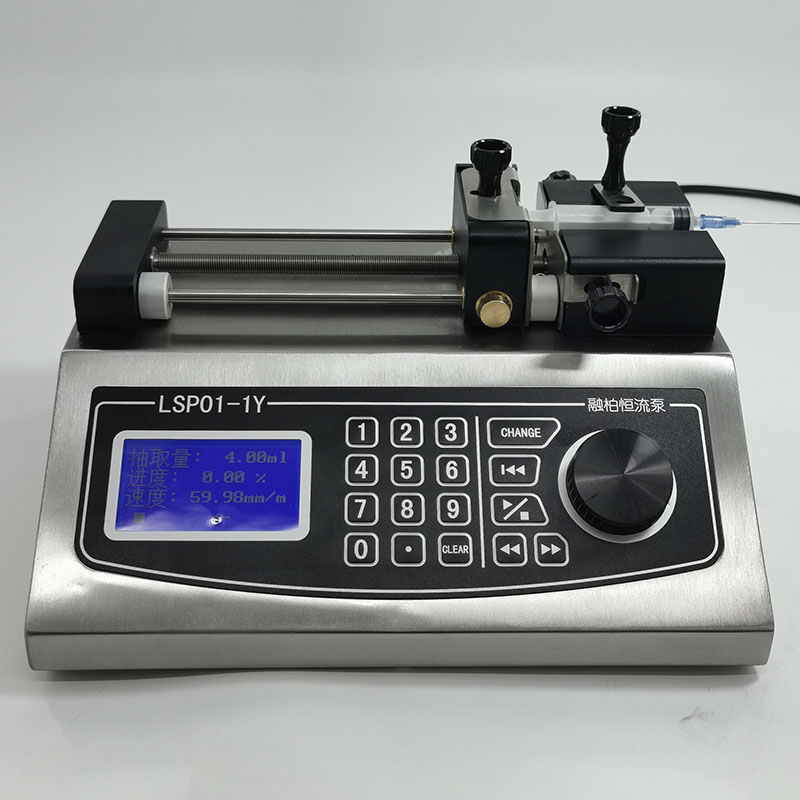

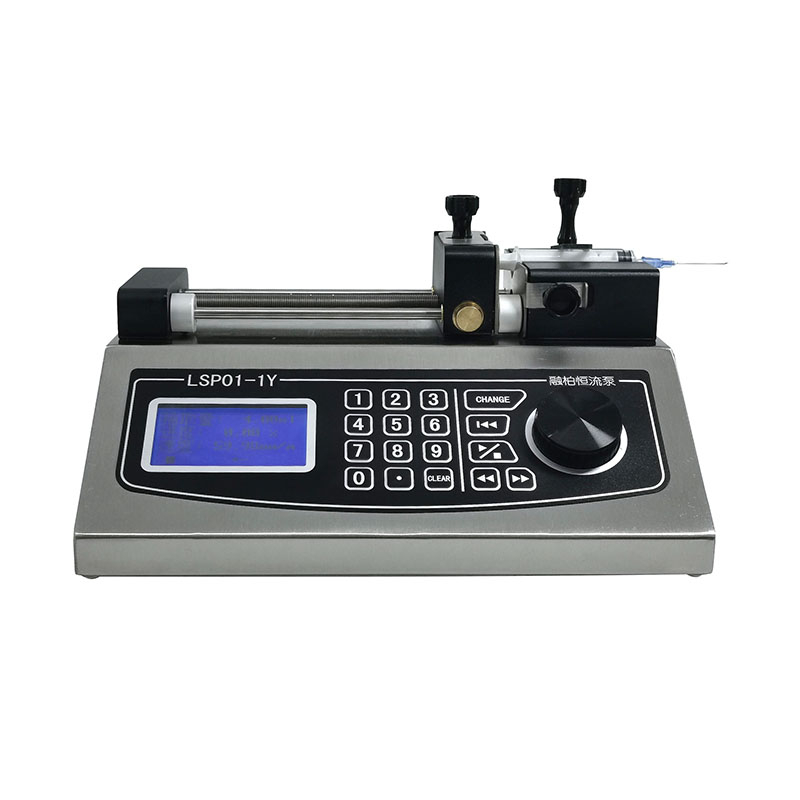

LSP01-1Y Single Channel Syringe Pump

    Lab single channel syringe pump is a single-channel perfusion/extraction syringe pump, which is mainly used in biological laboratories, with integrated structure. It can hold different sizes of syringes (sample injectors), and the micro syringe pump is suitable for high precision, low flow liquid transport

This product cannot be used in human clinical trials, please be informed!
single channel
304 stainless steel appearance;
128×64 LCD display parameters and various working states;
Fully digital membrane buttons and rotary coding switch control;
Insurance 5x20mm,250V~,Fast,1A;
stepper motor;
Linear thrust ≤280N;
Operation mode: perfusion, extraction, perfusion first and then extraction, extraction first and then perfusion, continuous
The RS485 communication bus can be used to connect to the host computer;

Technical Specifications:

Number of Channels

1

Working Mode

Infusion / Withdraw ( Infusion,   withdrawal, infusion / withdrawal, withdrawal / infusion, continuous )

Syringe Size

10 uL to 60 mL

Syringe Selection

The syringe can be selected in the   manufacturer table which includes manufacturer, material and size or input   the inner diameter of the syringe barrel directly

Display

128x64 graphic LCD

Display Setting

Volume, flow rate, linear speed

Setting Mode

Rotary coded switch and membrane keypad

Fast forward / backward

Infuse or withdraw liquid at full speed

Advance per Micro-step

0.156 micron

Infusion Volumn per Microstep

0.0919µl (60 mL BD Syringe)

Max. Step Rate

867 steps/sec

Min. Step Rate

1 step/30 secs

Max. Linear Rate

130 mm/min

Min. Linear Rate

5 µm/min

Linear Force

≤280N

Accuracy

≤ 0.5% error in the condition of ≥ 30% of   max. infusion distance

Power Supply

AC 90-265V  50Hz/60Hz

Power consumption

< 50W

Operating temperature

5°C - 40°C (41°F - 104°F)

Relative humidity

20% - 80% RH

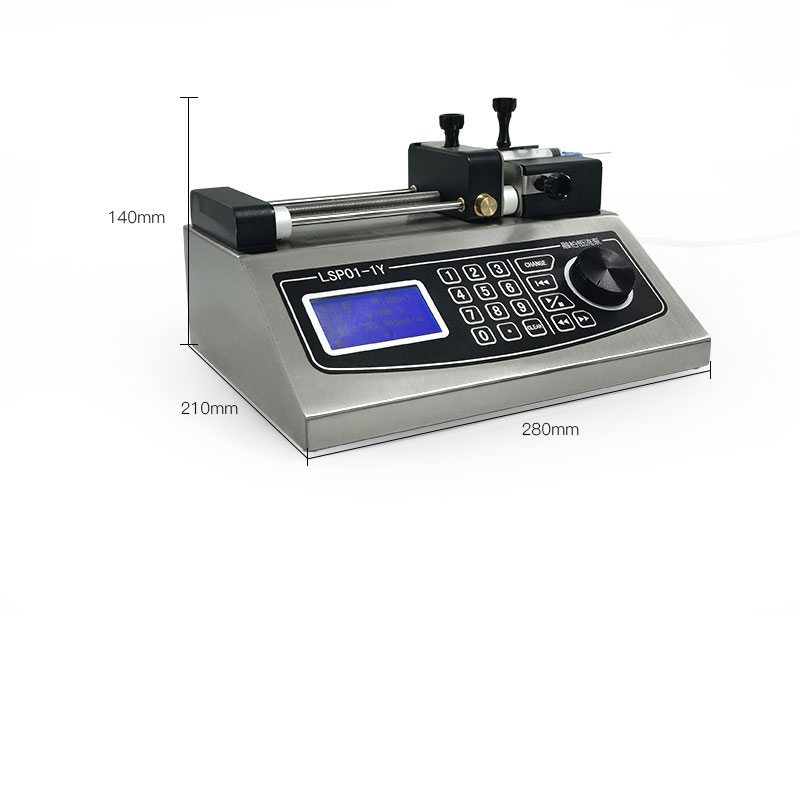

Dimensions

280mm*218mm*138.5mm

Weights

4.5 Kg

Communication Function

RS485

External Control Function

Input / output control

Power-off Memory

Storing the running parameters   automatically

Calibration Function

Acquire accurate volume through   calibration

Protection Function

The pump will stall and give an alarm   when the drive structure of the pump is blocked

Syringe Protection

Adjust syringe rest to prevent syringe   from damaging
