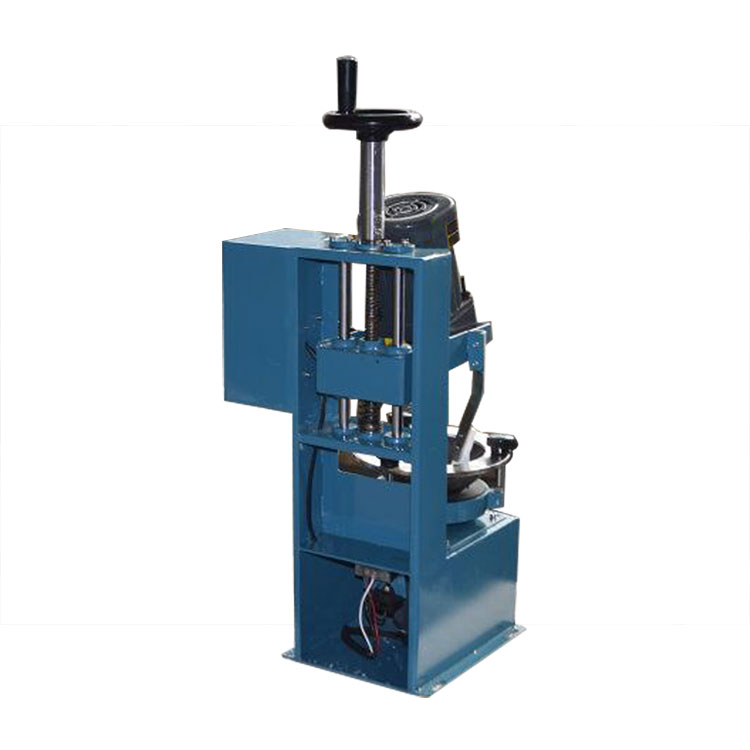

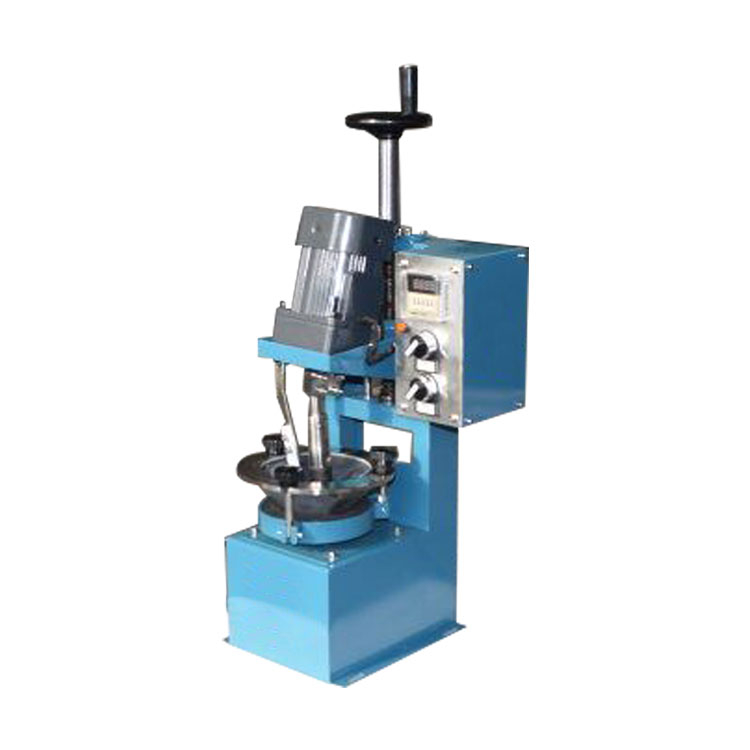

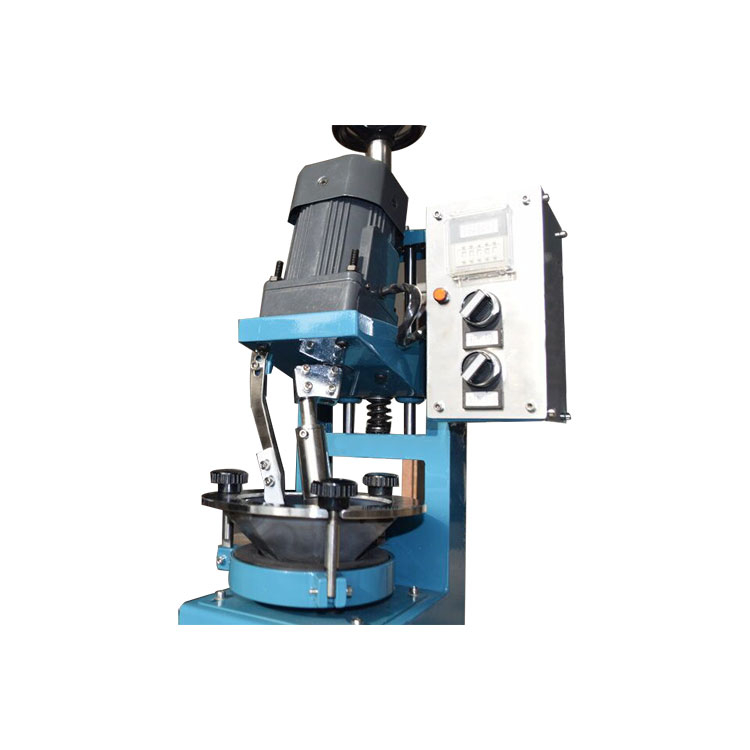

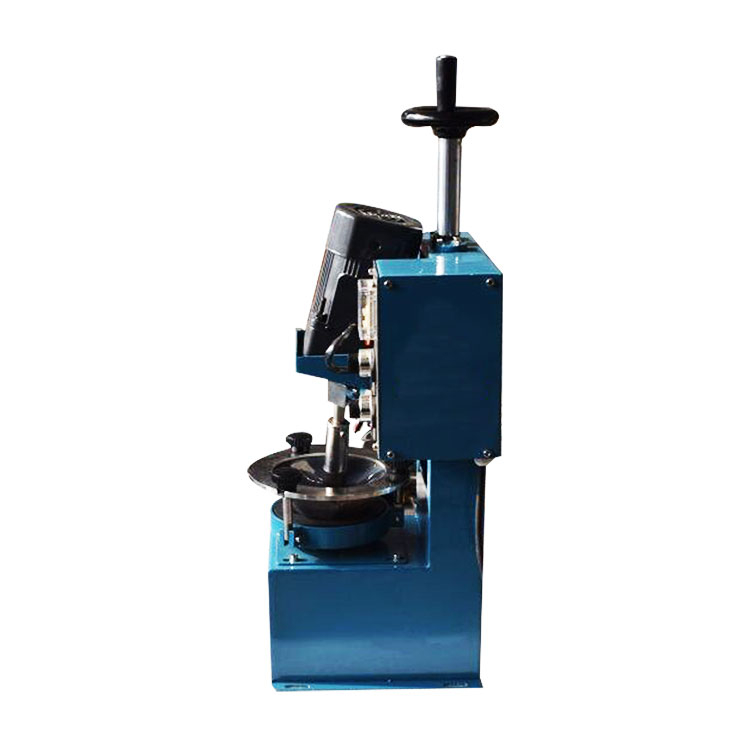

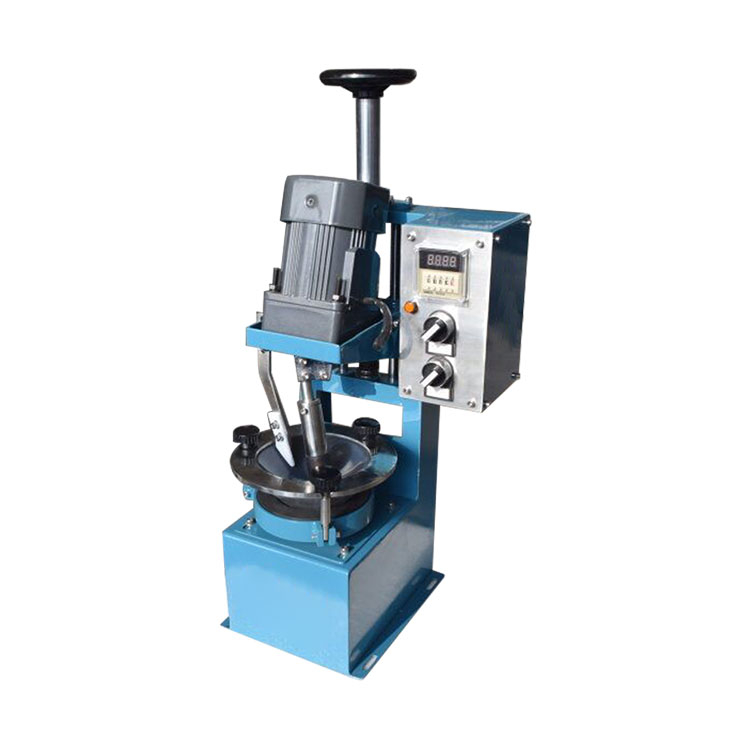

Automatic Grinder with Agate Mortar

Because of the grinding motion formed by the agate mortar and pestle, the solid particles are evenly ground, and the particle size is very uniform. The grinding time is set according to the needs and realizes automatic control. After grinding for a reasonable period of time, the coarse particles are ground into very fine powder particles, and the particle size can reach the micron level, and some can reach the nano level.

The agate rod head of the agate grinder is also a hemispherical surface in a strict sense. The center line of the pestle intersects with the center line of the mortar to form a more appropriate oblique angle. The mortar stick extends into the mortar, and a compression spring is set in the mortar stick, and the rod head is closely attached to the bottom of the mortar under the action of the spring. The grinding rod is driven by a fast-speed reduction motor, which rotates similar to the cone trajectory of a cone.

Application area of automatic grinder:

1. Fine powder of superhard materials, such as fine powder of diamond grinding wheel.

2. Electronic fine powder, for example: semiconductor fine powder, polysilicon fine powder.

3. Fine resin powder.

4. Food powder, for example: coffee powder.

5. Pharmaceutical powder.

6. Chemical fine powder, for example: iodine fine powder.

Component of automatic grinder:

Machine, mortar drive, agate mortar, agate pestle, pestle drive, up and down assembly, control box

Technical parameters of automatic grinder:
