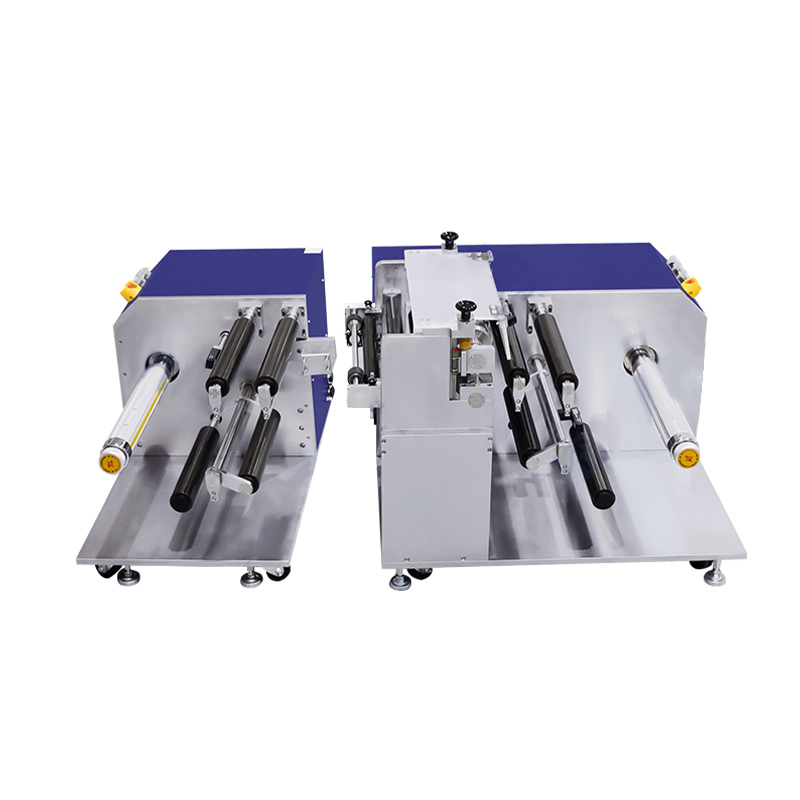

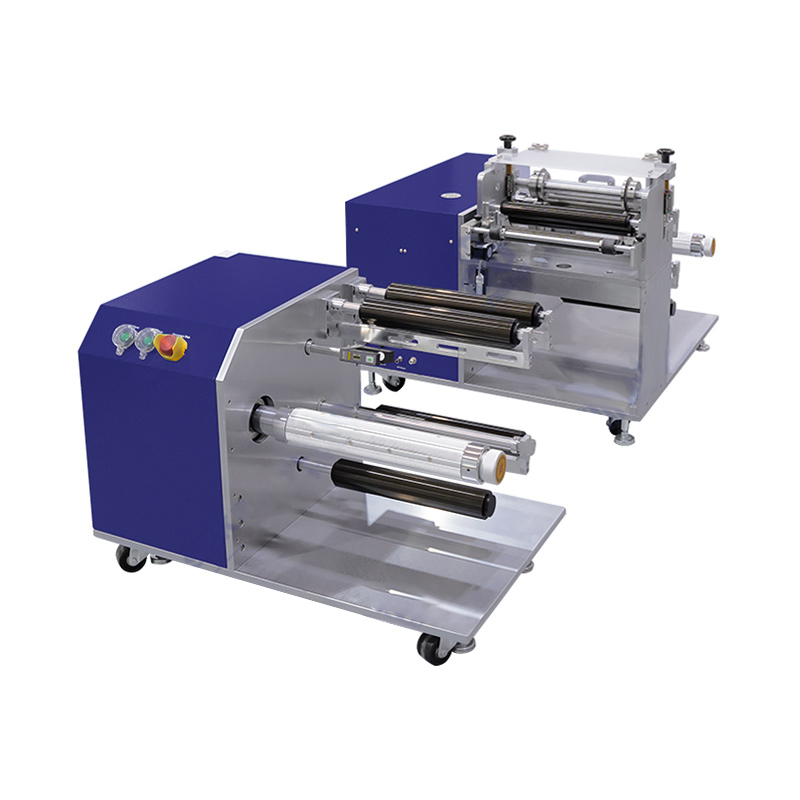

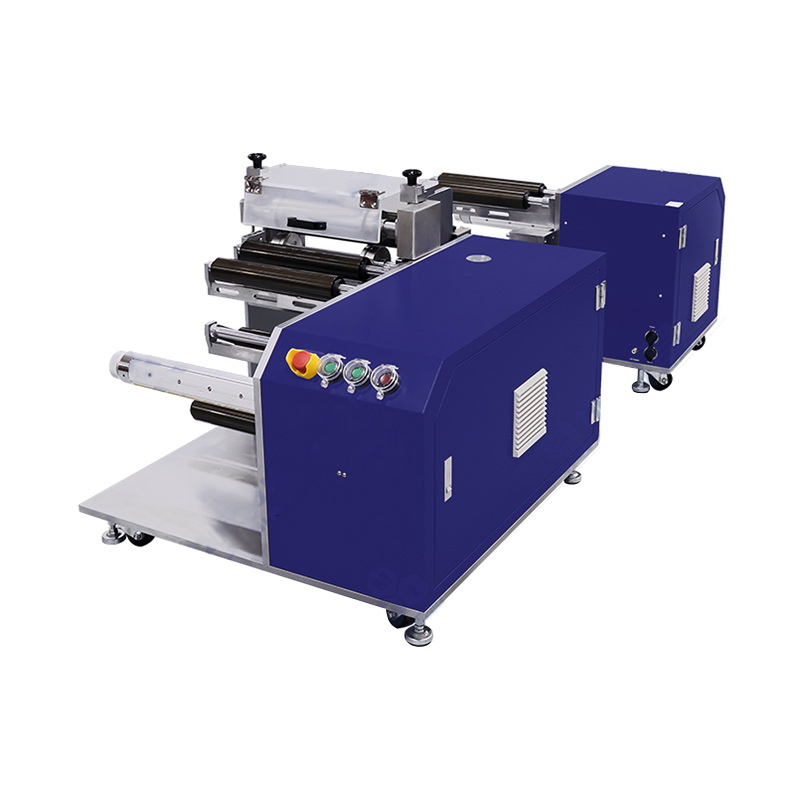

battery Roller Unwinding and Rewinding Device for Coiled Materials

    Roller Unwinding and Rewinding Device is a supporting equipment for our roller machine to realize the roll-to-roll continuous rolling process. It can realize edge trimming, dust removal, automatic unwinding and rewinding functions

Roller Unwinding and Rewinding Device is a supporting equipment for our roller machine to realize the roll-to-roll continuous rolling process. It can realize edge trimming, dust removal, automatic unwinding and rewinding functions.

Functional features:

Matching the roller machine series can realize continuous rolling;

Modular structure can be selected later;

Tension is stable and adjustable;

Equipped with winding correction function, good winding uniformity;

Equipped with pole piece trimming function, the incision is smooth, which is convenient for solving the abnormality of pole piece rolling edge;

Equipped with pole piece dust removal function to reduce rolling surface abnormality.

Technical Specifications:

Power supply

Single-phase AC220V±10%, frequency 50Hz,   power 750W

Working mode

Matched with roller machine

Guide roller width

350mm

Mechanical speed

Max: 4m/min

Tension control

6-50N, adjustable

Reel diameter

Max:320mm

Reel core

3-inch expansion shaft

Reel accuracy

±0.5mm

Edge trimming range

50-340mm (pole width)

Dust removal

2 brush rollers, negative pressure   exhaust: centrifugal fan, air volume 570m³/h, power 250W

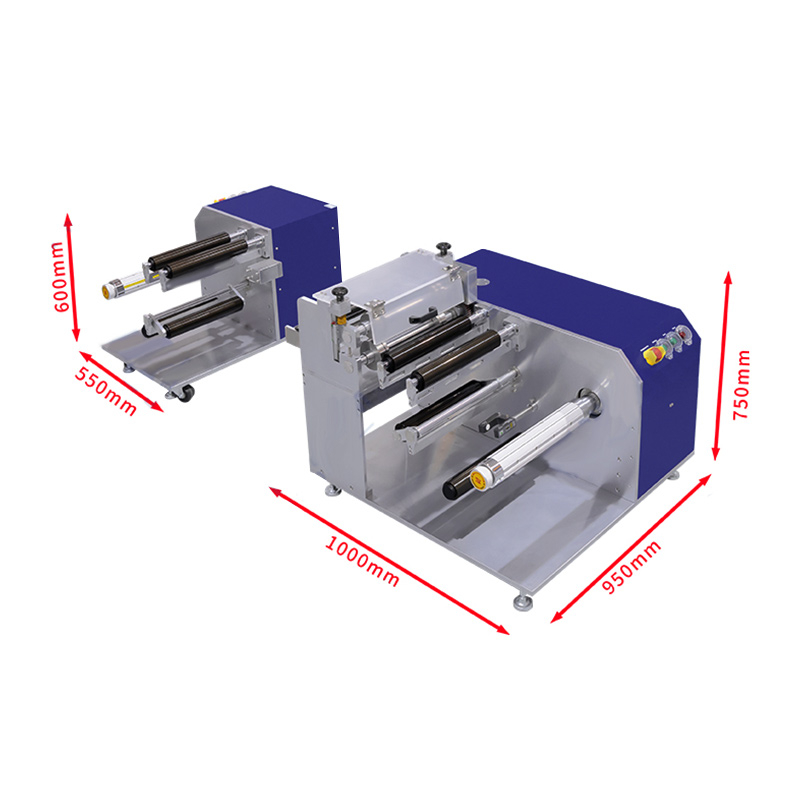

Equipment dimensions

Unwinding L1000*W950*H750mm, rewinding L950*W550*H600mm

Weight

Unwinding about 400Kg, rewinding about   230Kg
