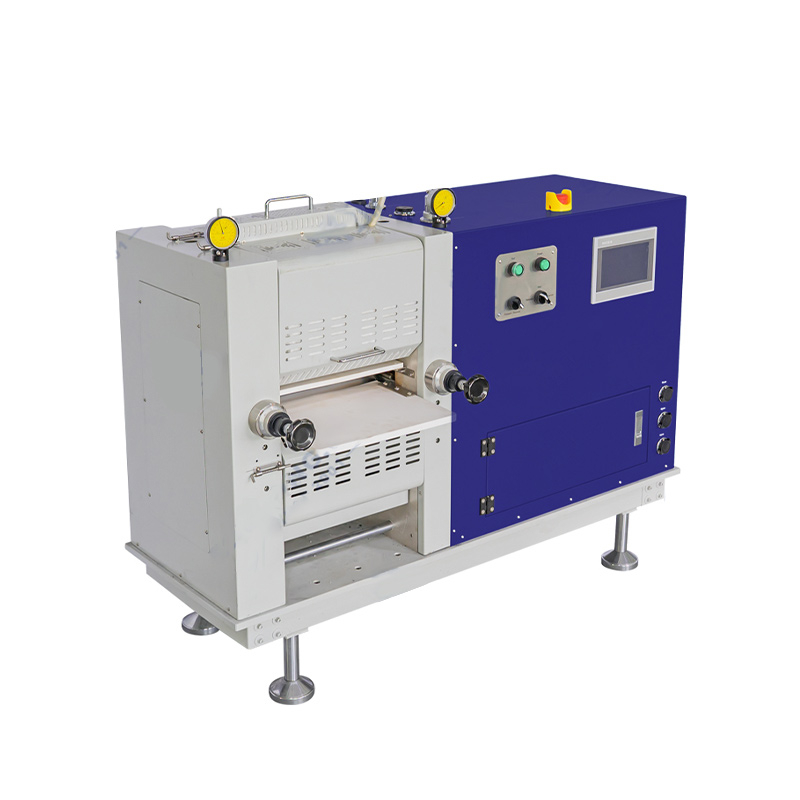

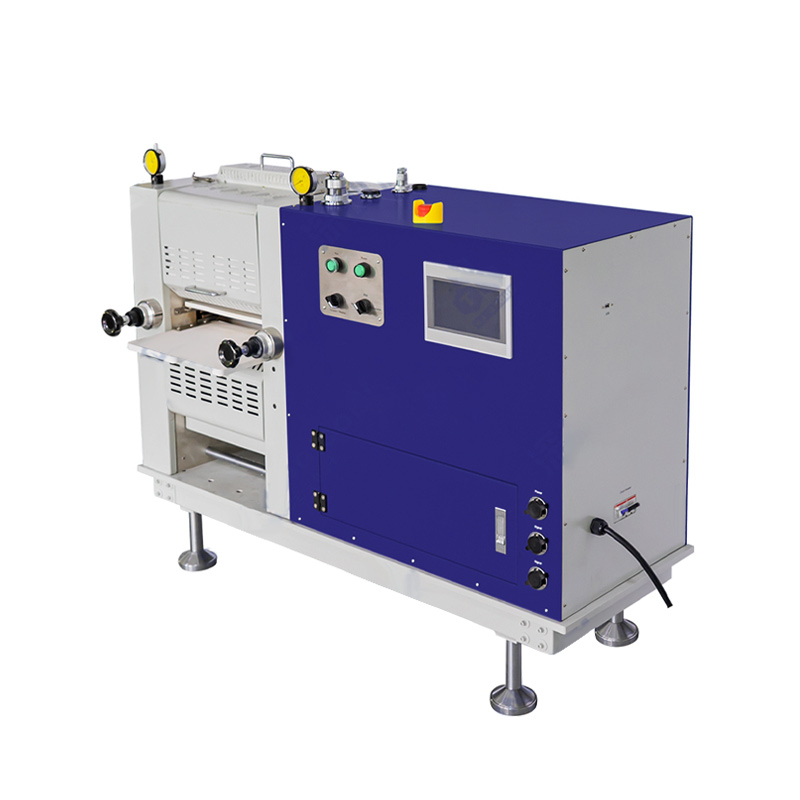

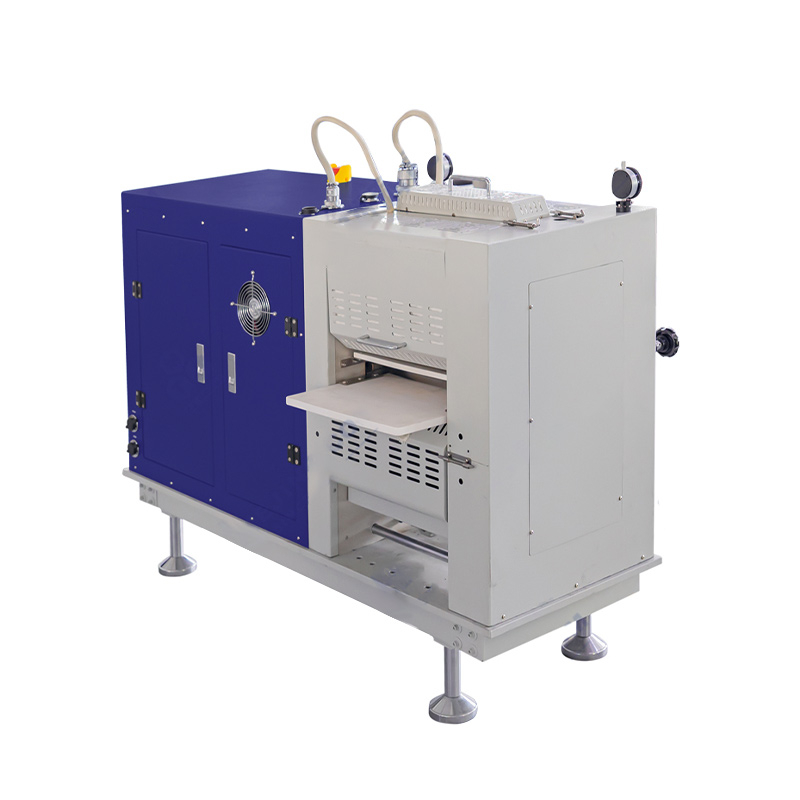

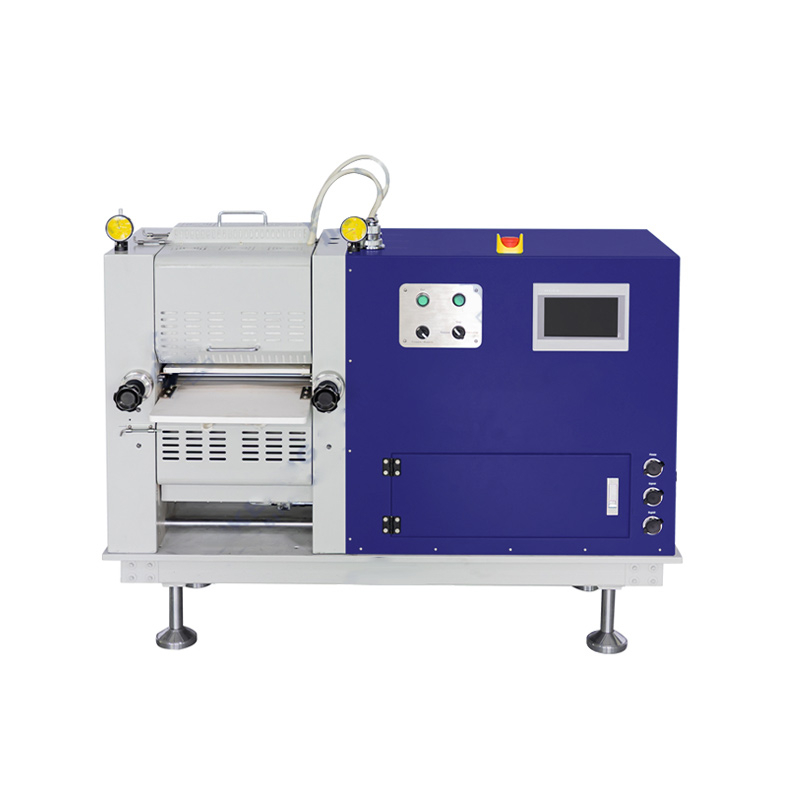

Electric heating roller machine for Lithium-ion positive and negative electrode sheet rolling

    Electric heating roller machine is a high-precision rolling equipment. The equipment uses hydraulic system to provide pressure for roller rolling

Electric heating roller machine is a high-precision rolling equipment. The equipment uses hydraulic system to provide pressure for roller rolling, Max: 30T, roller infrared heating tube heating Max: 120℃ The maximum rolling width is 250mm, the rolling thickness uniformity is ±3μm, the adjustable roller gap is 0-3mm, and the requirements of high compaction density and high rolling accuracy can be achieved. Suitable for the rolling of positive and negative electrode sheets in the lithium-ion battery industry, our CY-MSK-2300-RD-T rewinding and unwinding device can be selected to realize continuous rolling process.

Functional features:

Integrated gantry frame, CNC precision processing, to ensure high stability;

The roller is made of cold-rolled die steel and surface ground after heat treatment, with high precision, high hardness and good wear resistance;

The surface of the roller is hard chrome-plated, which is good for rust prevention and easy maintenance;

The patented hydraulic balance rolling mechanism has stable pressure maintenance and good transverse and longitudinal rolling uniformity;

Manual inclined block type roll gap adjustment device;

The roller infrared heating tube is heated to Max: 120℃, which is convenient for replacement;

The rolling force collection and storage function is designed to monitor the rolling force curve;

PLC control, HMI operation, convenient and easy to use;

The MSK-2300-RD-T rewinding and unwinding device can be selected to realize continuous rolling process.

Technical Specifications:

Power supply

Single-phase AC220V±10%, frequency 50Hz,   power 8KW

Usage environment

Recommended ambient temperature 25±3℃, no   vibration and electromagnetic interference

Roller specifications

Diameter Φ196 x 300mm

Roller hardness

Surface hardness HRC65~70, hardness layer thickness ≥10mm

Substrate width

Max:250mm

Roller material

9Cr3Mo, surface hard chrome plating layer   thickness ≥0.08mm

Roller temperature

Maximum heating temperature of roller   Max:120℃

Rolling pressure

Max.30T

Rolling amount

The maximum recommended single pressing   amount of lithium electrode sheet is 25%~30%. If   there is a larger rolling amount requirement, multiple rolling (5μm/time) is   required

Roller drive

1.5KW reduction AC motor

Rolling speed

0.5-3m /min

Rolling gap

0-3mm manual adjustment

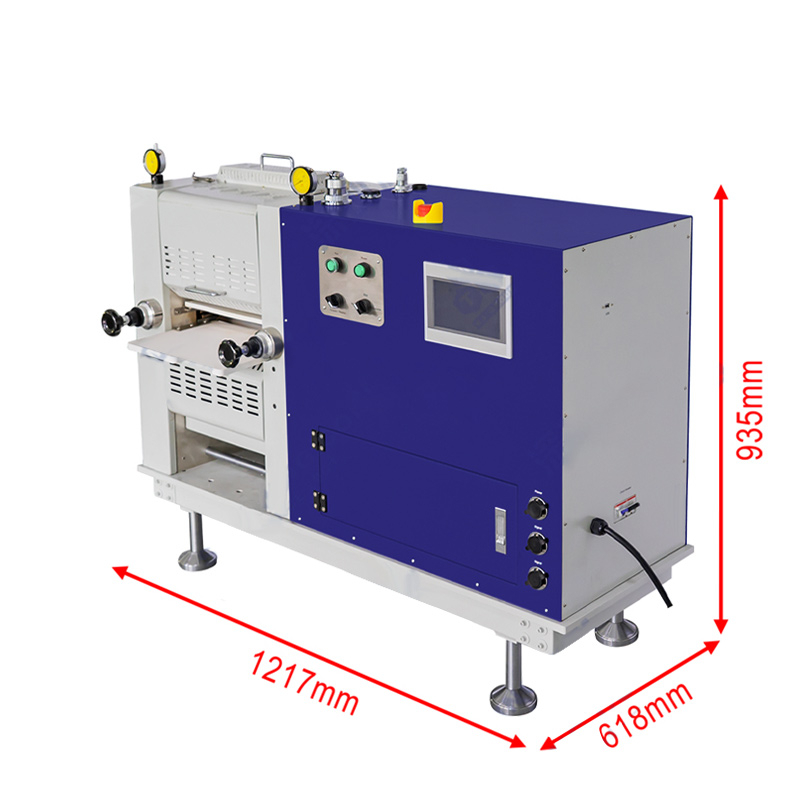

Equipment size

L1241mm*W600mm*H981mm

Weight

About 800KG
