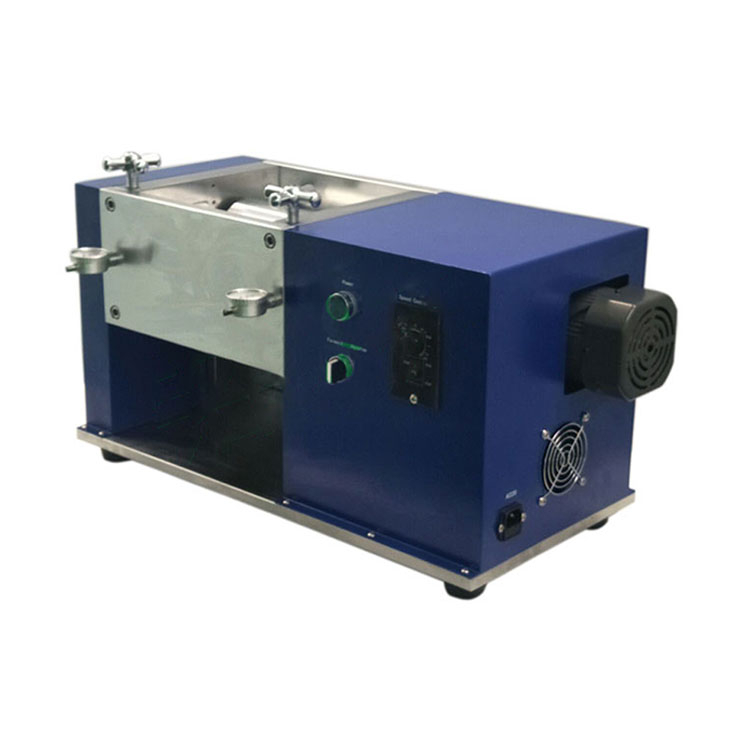

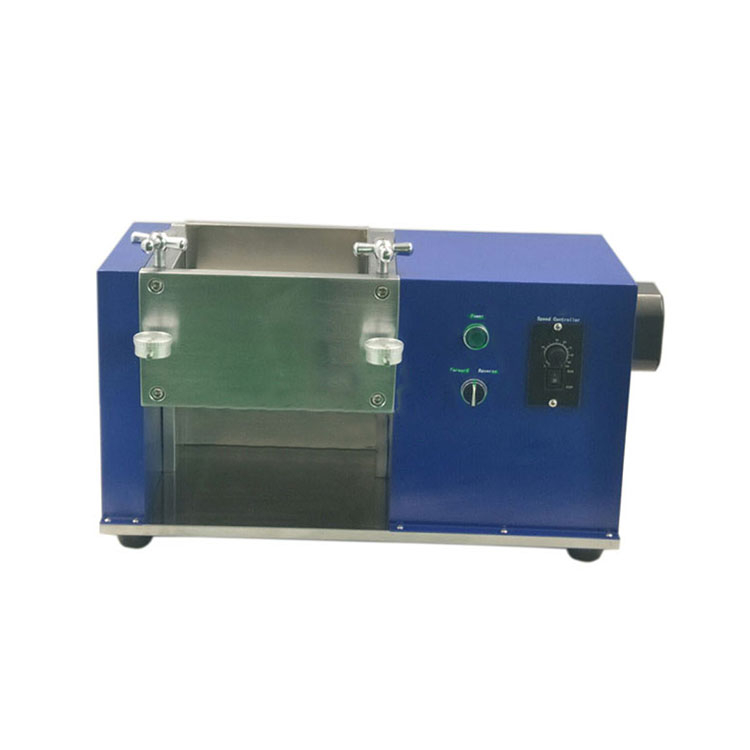

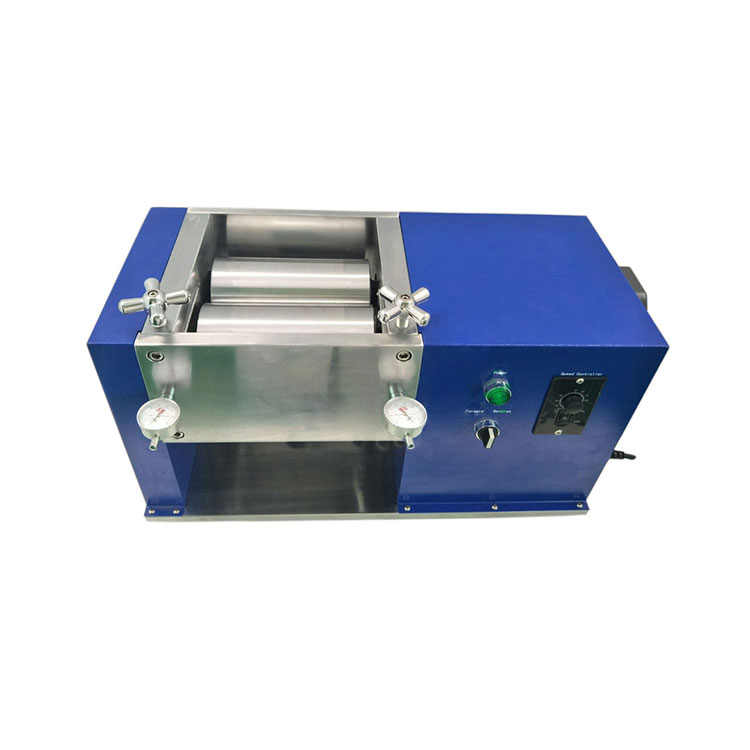

Electric Hot Rolling Press for Battery Electrode Research

Product introduction

The CY-JS100 Heating Rolling Press is mainly suitable for electric rolling of battery materials in the laboratory, a small amount of precious metals such as gold and silver, and non-ferrous materials such as copper and aluminum at a certain heating temperature. The rolling thickness can be adjusted and the operation is simple. It is especially suitable for thinning and increasing the density of lithium battery plates of clean energy materials.

Main features

* Pressing thickness and speed can be adjusted, easy to use;

* The motor can rotate forward and backward, and it is convenient to return the material when the problem is found during operation;

* Using gear rotation to achieve roller pressing;

* Protected by outer cover and heat shield;

* The product complies with the requirements of the OHSMS18000   standard occupational safety and health management system, and will not cause damage to the health of people who come into contact with the product;

Technical parameters

* Roller diameter: 2 ~ Φ96mm

* Roller surface hardness: above HRC60

* Roller finish: 0.8 or more

* Rolling thickness: 0 ~ 2mm

* Tablet width: 0 ~ 100mm

* Roll placement: vertical placement

* Rolling temperature: 130 ℃

* Feeding speed: 0 ~ 10mm / s

* Power supply: AC220V / 50HZ

* Power: 720W

Specifications

Overall dimensions: L390 * W250 * H356mm

Equipment weight: 55KG

Standard accessories

One internal hexagonal wrench M4, two dial gauges, one feeler
