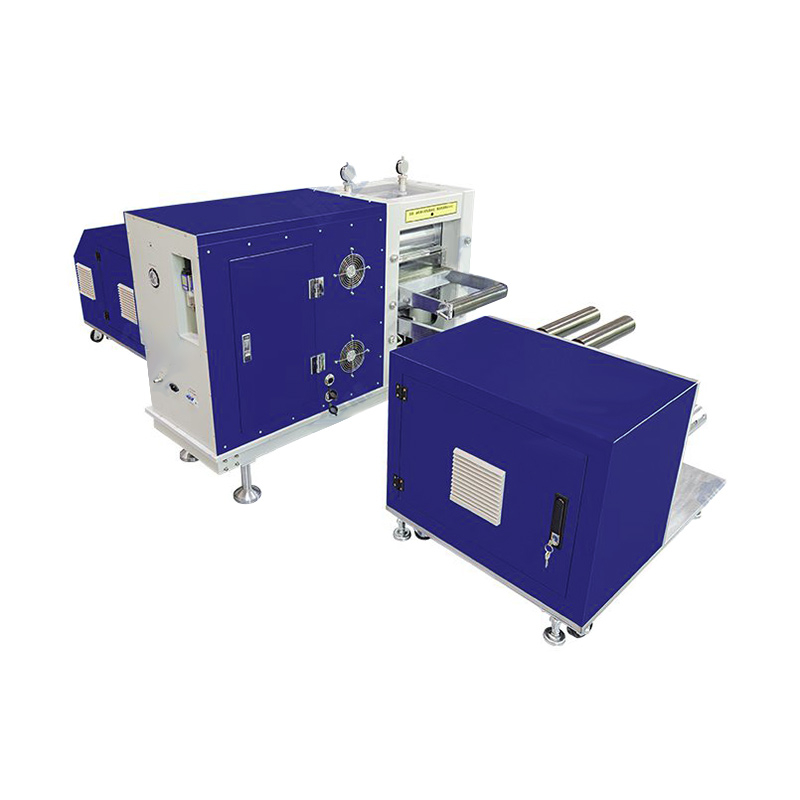

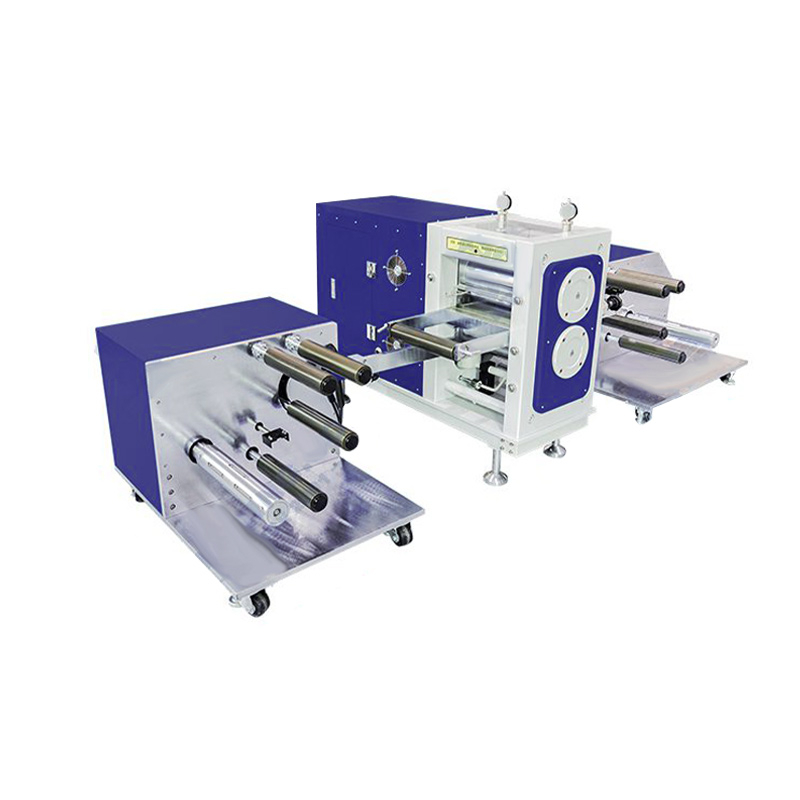

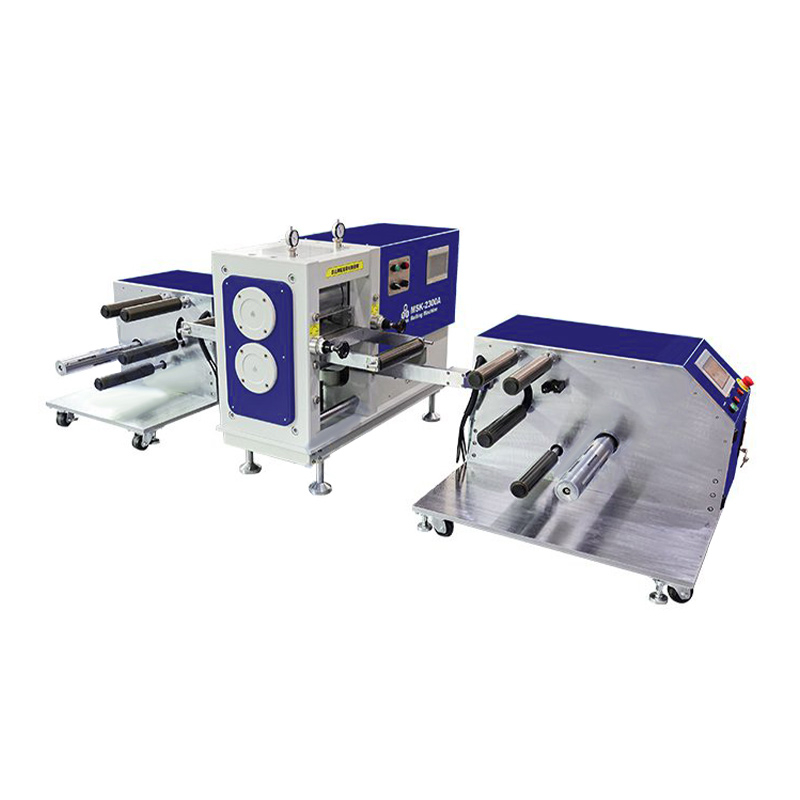

    The hydraulic balanced electric double roller machine is a high-precision coil continuous rolling equipment. The equipment uses the hydraulic system to provide pressure for roller rolling

The hydraulic balanced electric double roller machine is a high-precision coil continuous rolling equipment. The equipment uses the hydraulic system to provide pressure for roller rolling. It is suitable for occasions with high requirements for rolling force and rolling gap consistency. For the rolling of positive and negative electrode sheets in the lithium-ion battery industry, this equipment has good lateral and longitudinal rolling uniformity, and the product appearance after rolling is high-quality. It is the first choice for R&D personnel to make samples and small batches.

Functional features:

Hydraulic system imported from the United States, automatic control of rolling pressure;

Integral gantry frame, CNC precision processing, to ensure high stability;

The roller is made of cold-rolled die steel after heat treatment and surface grinding, with high precision, high hardness and good wear resistance;

The surface of the roller is hard chrome-plated, which is good for rust prevention and easy maintenance;

The patented hydraulic balance rolling mechanism has stable pressure maintenance and good lateral and longitudinal rolling uniformity;

The inclined block roll gap adjustment device has display adjustment;

The rolling force collection and storage function is designed to monitor the rolling force curve;

PLC control, HMI operation, convenient and easy to use;

Passive unwinding, adjustable tension;

Active winding, automatic tension control;

The winding design has a correction function, and the winding is neat;

Technical Specifications:

Main Device

Operating environment

Recommended ambient temperature 25±3℃,   humidity 30~90RH, no vibration and electromagnetic interference

Power supply

Voltage single-phase 220VAC±10%,   frequency 50Hz

Air source

0.5-0.8MPa compressed air

Operating environment

Recommended ambient temperature 25±3℃, no   vibration and electromagnetic interference

Roller specifications

Diameter Φ196 x 300mm

Roller hardness

Surface hardness HRC65~70, hardness layer   thickness ≥10mm

Substrate width

≤280mm

Roller material

9Cr3Mo, surface hard chrome plating layer   thickness ≥0.08mm

Roller accuracy

Circular runout better than ±2μm

Rolling pressure

Max:25T, lithium electrode sheet is   recommended to use 15~20T, if special needs contact the manufacturer software   decryption maximum adjustable to 50T

Down rolling amount

The maximum recommended single-time   reduction of lithium electrode sheets is 20%~25%. If it is thinner, multiple   rolling is required (5μm/time)

Rolling accuracy

±2.5μm

Roller drive

1.5KW deceleration AC motor

Rolling speed

0.5-3m/min

Rolling gap

0-3mm adjustable

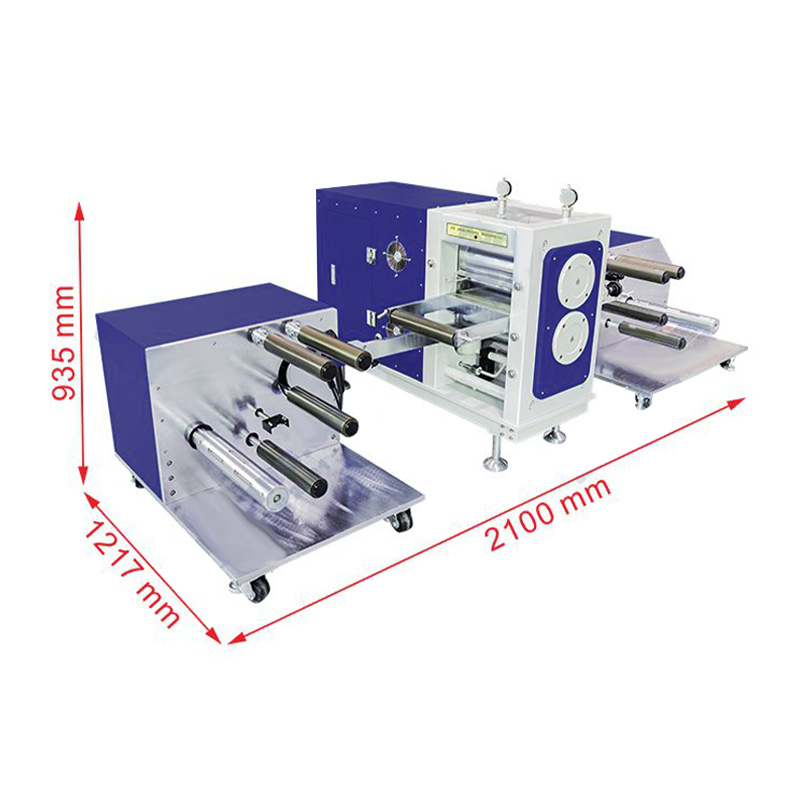

Equipment size

Without rewinding and unwinding   L1217mm*W618mm*H935mm With rewinding and unwinding: L1217mm*W2100mm*H935mm

Weight

Main machine about: 750KG Rewinding:   150KG Unwinding: 120KG

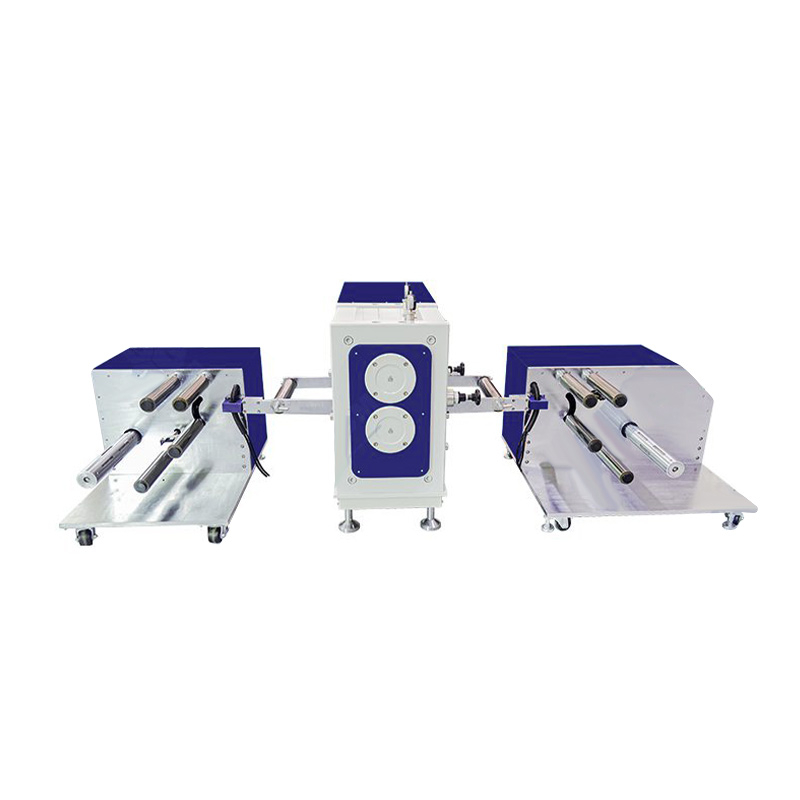

Rewinding and unwinding

Power supply

Voltage single phase 220VAC ± 10%,   frequency 50Hz, power 500W

Tape feeding mode

Continuous operation

Guide roller width

300mm

Substrate width

≤280mm

Machine speed

Max.3m/min

Tension control

Max.50N

Reel diameter

250mm
