Laboratory Manual Hydraulic Press Machine For Powder Sample Preparation

The manual  Powder Hydraulic Press consists of a motor, press head, mold, control system, and heating/cooling system. It is user-friendly, allowing operators to set parameters such as pressure, time, and temperature through a touchscreen or control panel, ensuring a precise and controllable pressing process. Compared to traditional manual or hydraulic presses, the manual tablet press offers greater accuracy and stability, making it ideal for applications requiring stringent control over material thickness and density.

Product Overview:

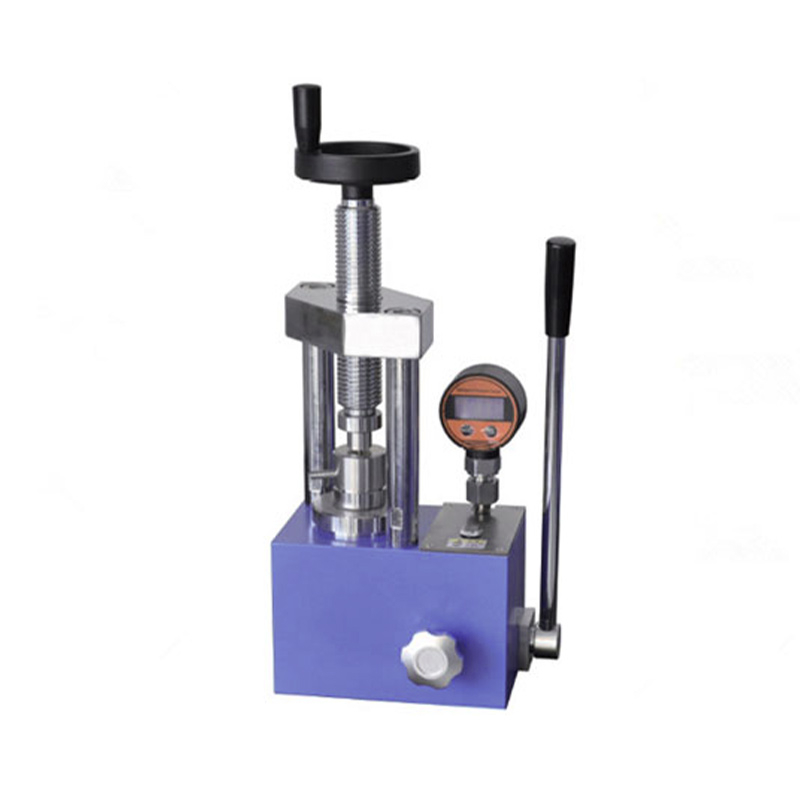

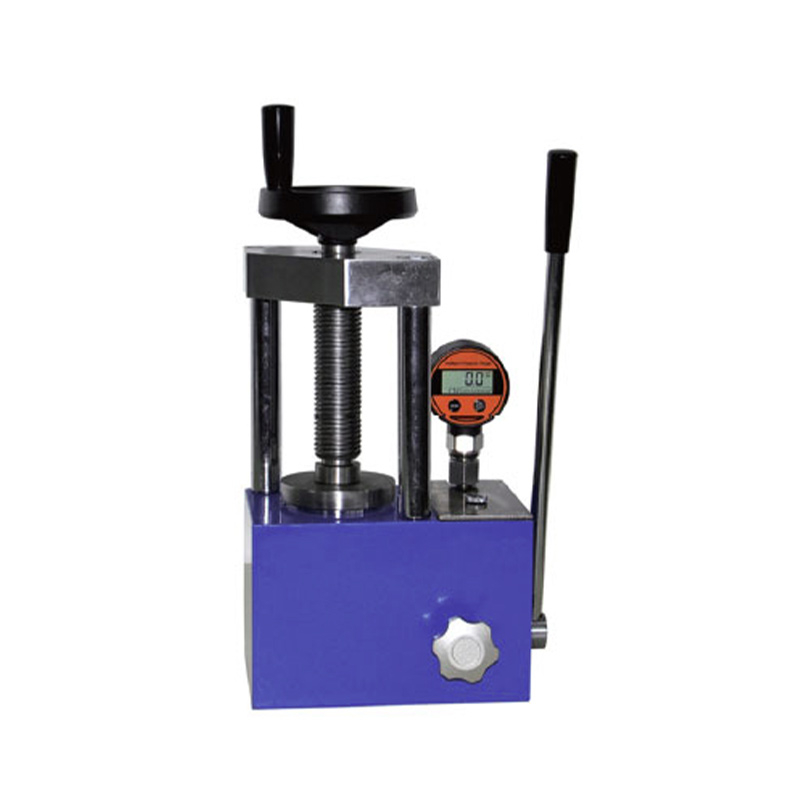

The CYD-30FS Manual Tablet Press is widely used in material and chemical research laboratories for sample preparation. It is equipped with a hydraulic jack, automatic return functionality, and a transparent protective cover. With specific molds, it can press a variety of shapes, including thin sheets, cylinders, irregular shapes, and composites, catering to diverse scientific research needs. The equipment is versatile, simple, convenient, and reliable.

Features:

High-Precision Pressure Control:
Real-time pressure monitoring and adjustment meet the needs of various materials and processes.

User-Friendly Operation:
Parameters such as pressure, temperature, and time can be set through a touchscreen or control panel, enabling one-touch operation.

Versatile Mold Options:
Compatible with various sizes and shapes of molds, ensuring easy replacement for different material specifications.

Heating and Cooling Systems:
Precise mold temperature control during pressing supports the processing of heat-sensitive or temperature-controlled materials.

Stable and Durable Structure:
Designed for long-lasting performance.

High Safety Standards:
Features safety mechanisms such as emergency stop and overload protection to ensure operator safety.

Uniform Pressing:
Prevents issues like uneven pressing or edge cracking.

Low Maintenance Costs:
Simple and reliable design minimizes maintenance requirements.

Purchasing Information:

If you are interested in our manual tablet press, feel free to contact us for more information or a quote.

Phone: +86 18516380382

Email: Jimmy@cysitech.com

Contact: Jimmy Hao

WeChat: +86 18516380382

WhatsApp: +86 13939946898

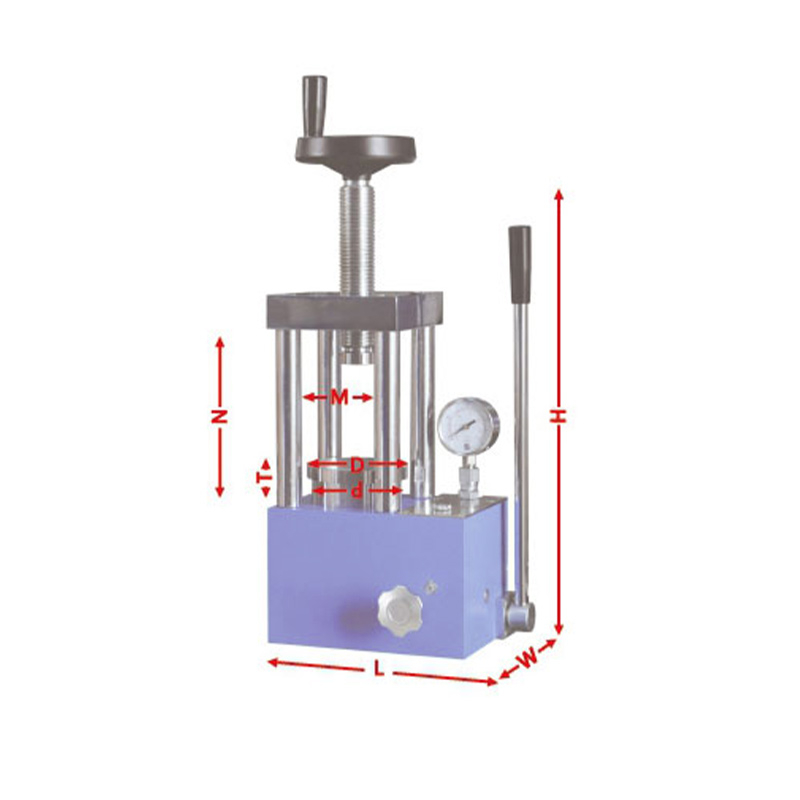

 Technical Specifications:

 Main Components:

Applications:

Lithium Battery Manufacturing

Manual tablet presses are extensively used for shaping cathode and anode materials into uniform sheets, enhancing the energy density and cycle performance of batteries.

Materials Research

In material science, these presses are used to prepare thin films, nanomaterials, and composites, enabling precise control over material thickness and density for studying their properties.

Semiconductor and Electronics Industry

Used for pressing electronic components, ceramic powders, and conductive materials into specific shapes and thicknesses, ensuring performance stability.

Powder Metallurgy

Ideal for pressing metal or alloy powders into sheets or blocks for subsequent sintering, producing metal parts with specific strengths and structures.

Chemical and Pharmaceutical Fields

Suitable for preparing powdered material samples or compressing pharmaceutical powders into tablets, with adjustable pressure and time settings for a variety of chemicals and drugs.

Coating Processes

Facilitates the uniform pressing of thin-film materials onto substrates, improving the flatness and adhesion of coatings, commonly used in optical films, electronic films, and protective coatings.

Application Example:《Pressing Battery Electrode Sheets》

Process Steps:

1. Material Preparation

Mix active materials (e.g., lithium nickel cobalt manganese oxide, graphite), conductive agents, and binders into a uniform slurry.

2. Coating

Apply the slurry onto metal current collectors (e.g., copper or aluminum foils) using a coating machine.

Dry the coated electrode layer to remove solvents.

3. Drying

Place the electrode sheets in an oven to eliminate residual solvents.

4. Cutting

Cut the dried sheets into sizes compatible with the tablet press.

5. Pressing

Place the sheets in the press, set the pressure, time, and speed, and apply pressure to improve density and surface flatness.

6. Thickness Testing and Correction

Measure the sheet thickness, adjust settings if needed, and ensure uniformity.

7. Post-Treatment

Clean and trim the sheets, ensuring consistency and cleanliness for subsequent steps.

8. Winding or Stacking

Assemble the sheets with separators into battery cells.

9. Quality Inspection

Use tools like X-rays or microscopes to check density, thickness uniformity, and internal structure.

10. Packaging and Storage

Package and store the sheets for battery production.
