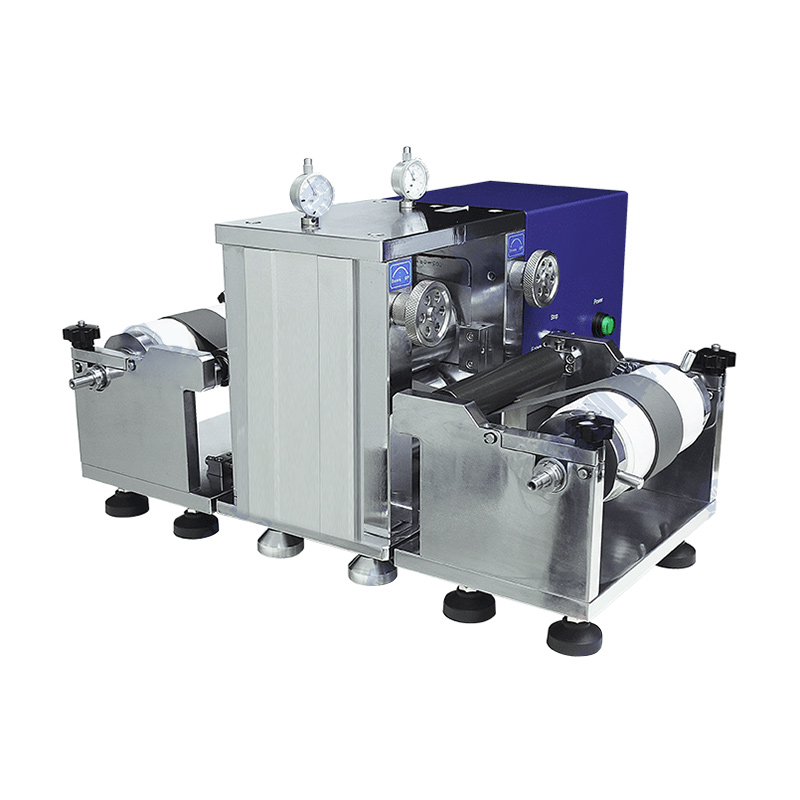

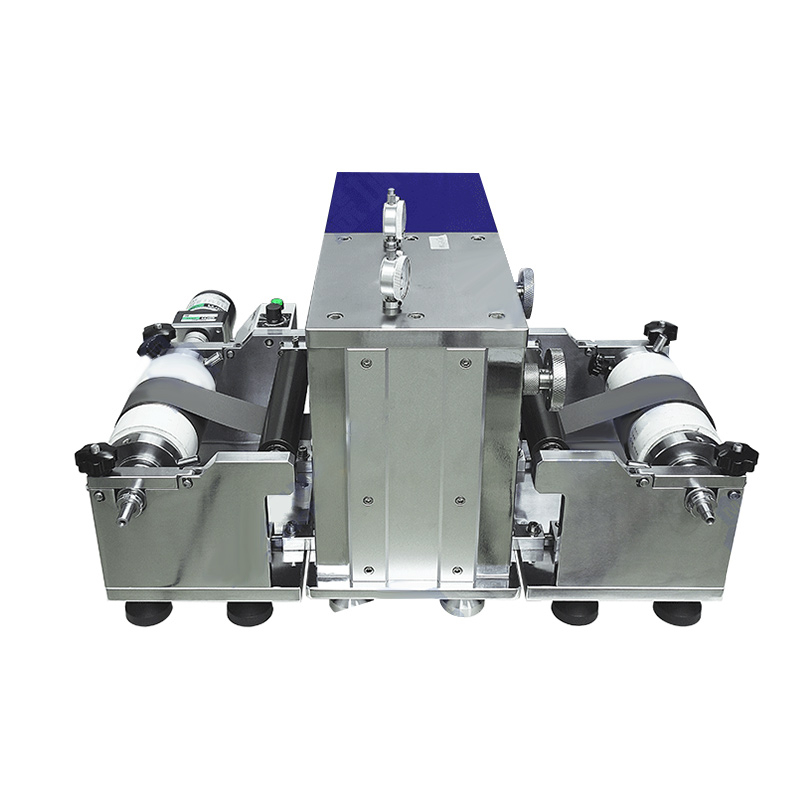

Roller unwinding and rewinding device is a supporting equipment for our CY-MSK-HRP series and CY-MSK-2150 series roller mills to realize continuous rolling process, realizing automatic unwinding and rewinding functions,

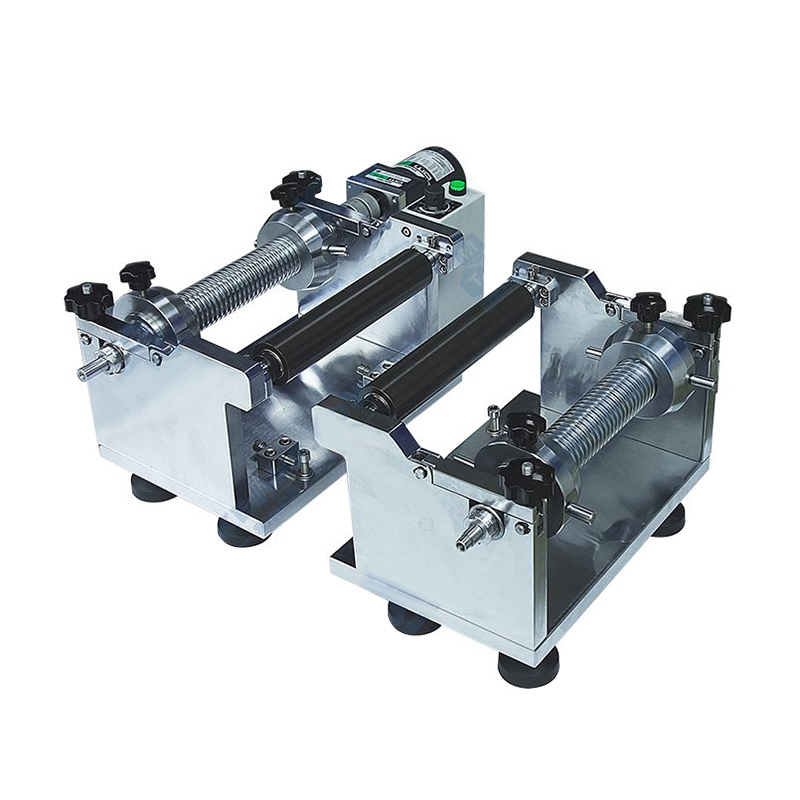

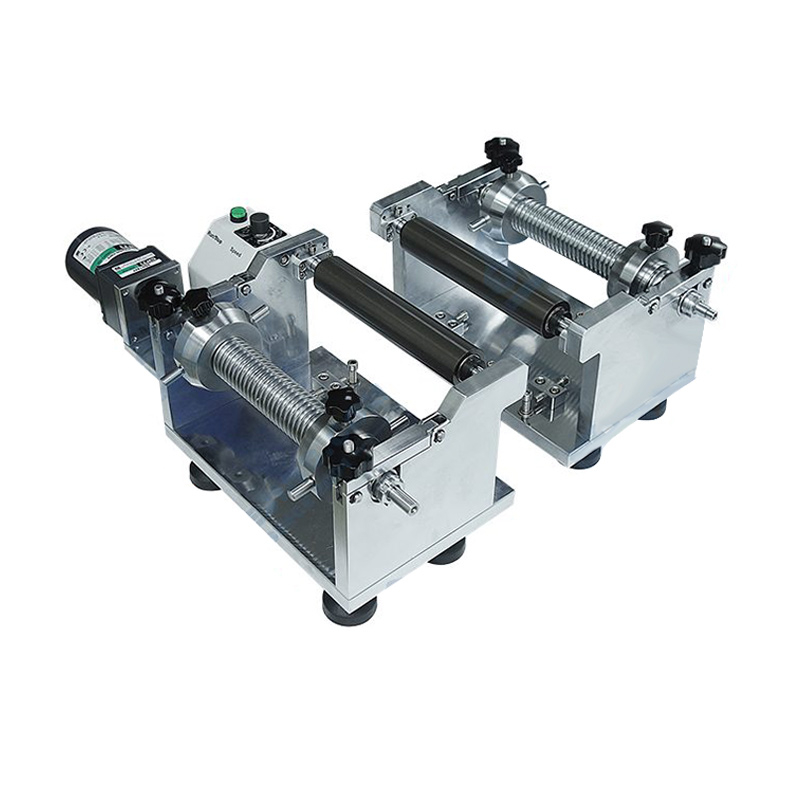

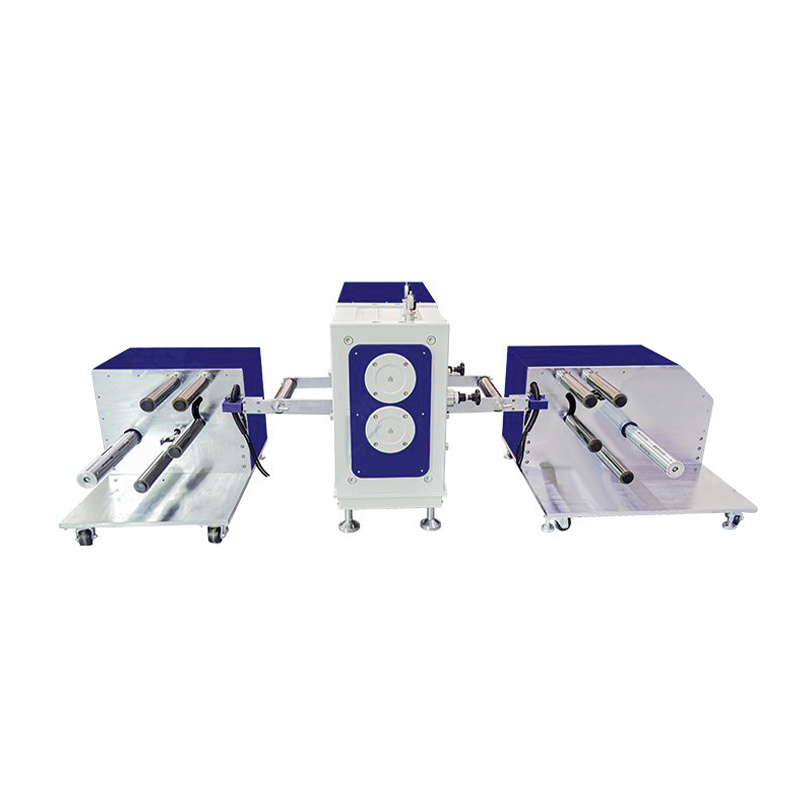

Roller unwinding and rewinding device is a supporting equipment for our CY-MSK-HRP series and CY-MSK-2150 series roller mills to realize continuous rolling process, realizing automatic unwinding and rewinding functions, mainly used for continuous rolling of positive and negative electrodes of lithium-ion batteries and other thin films.
Functional features:

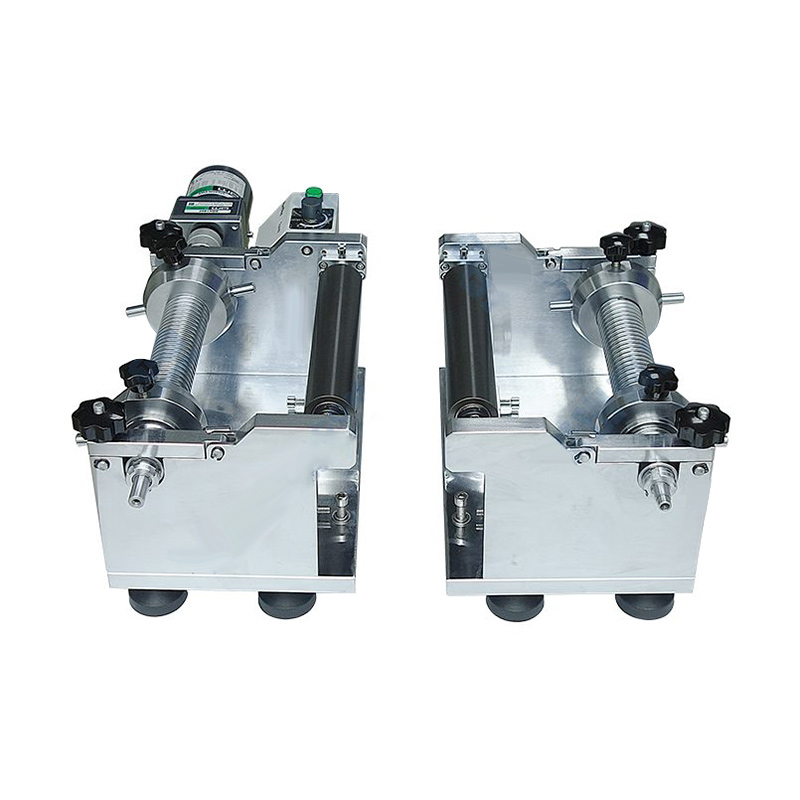

The unwinding and rewinding parts are separated structures, and need to be matched with the host to be used;
Passive unwinding, manual tension adjustment;
Active rewinding, open-loop constant torque tension control;
Can match the operation of MSK-HRP series and MSK-2150 series rolling mills, and the control can be integrated according to customer requirements;
Technical Specifications:
Power supply | Voltage single-phase 220VAC±10% (customizable 110VAC), frequency 50Hz/60Hz, power 100W |
Tape feeding method | Continuous operation |
Guide roller width | 150mm |
Mechanical speed | Max.1.5m/min |
Tension control | Max.20N |
Reel core | 3-inch core |
Reel diameter | Max. 200mm |
Installation dimensions | Unwinding W300mm*D200mm*H270mm, Rewinding W300mm*D300mm*H270mm |
Weight | Unwinding about 20Kg, Rewinding about 22Kg |
