Small Hydraulic Roller for Lithium-ion positive and negative electrode sheet rolling

     small hydraulic roller machine is a high-precision sheet and coil rolling equipment. It is small in size and can be placed in a glove box for use

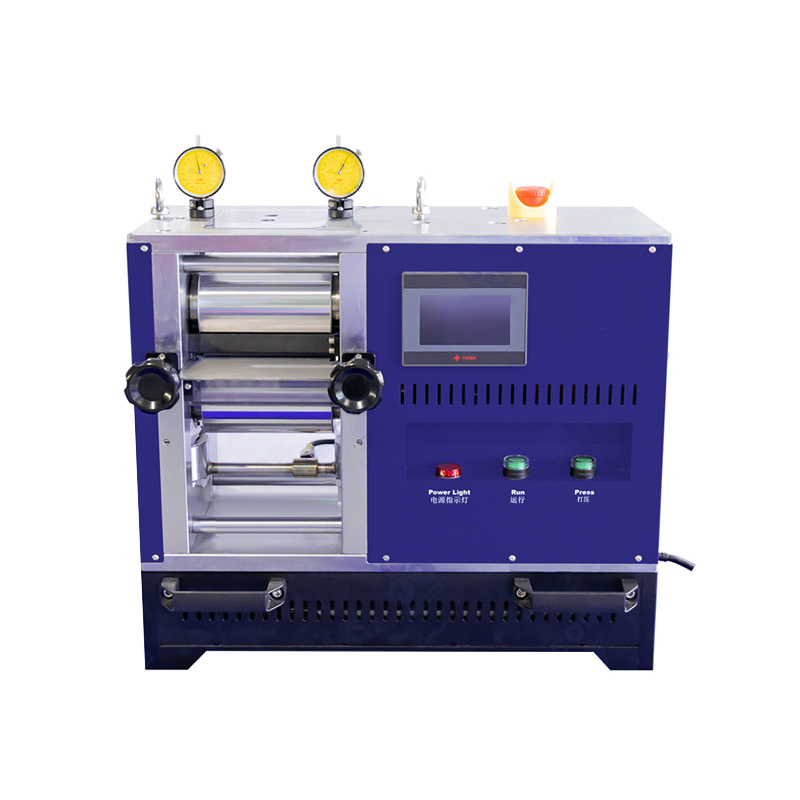

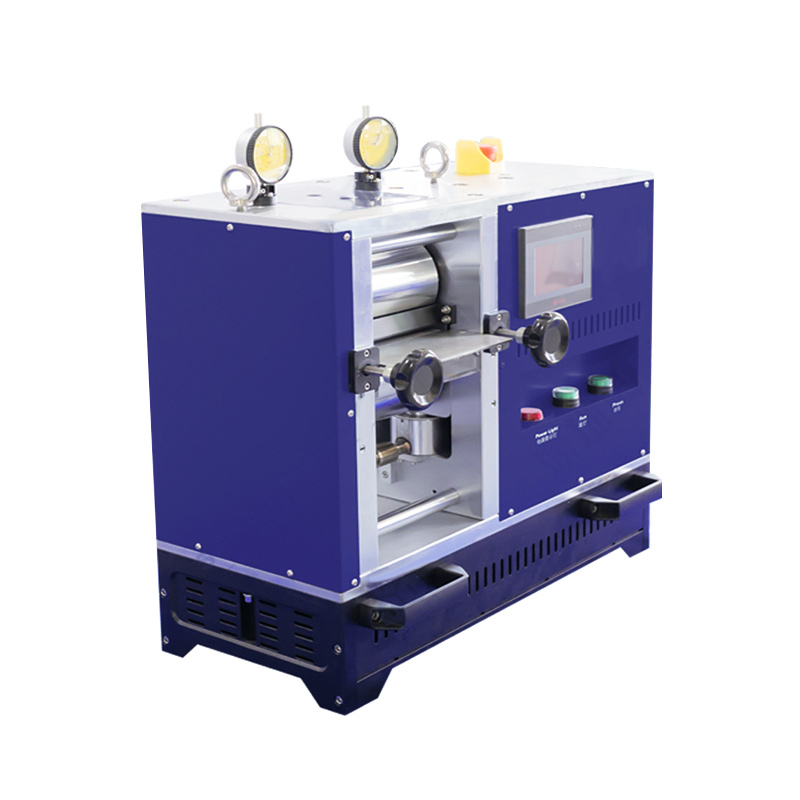

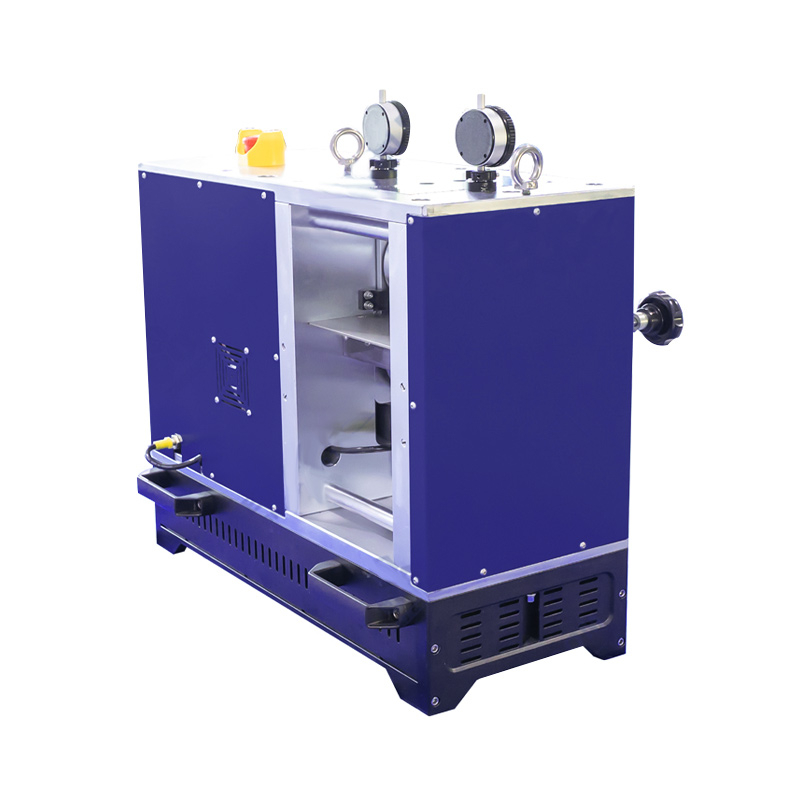

CYKY-2150-H5 small hydraulic roller machine is a high-precision sheet and coil rolling equipment. It is small in size and can be placed in a glove box for use. The maximum pressure is 5T, which is suitable for occasions with high requirements for rolling force and rolling gap consistency. For the rolling of positive and negative electrode sheets in the lithium-ion battery industry, the equipment has a rolling uniformity of better than ±1.5μm in the transverse and longitudinal directions, and the product has a high-quality appearance after rolling; it can be equipped with our CYKY-2150-RD type winding and unwinding device to realize continuous rolling process

Functional features:

It is small in size and can be placed on the desktop and in the glove box, and the special motor can be used in an argon environment;

The roller is made of cold-rolled die steel, and the surface is ground after heat treatment, with high precision, strong hardness and good wear resistance;

The surface of the roller is hard chrome-plated, which is good at rust prevention and easy to maintain;

The independent patented hydraulic pump is modularized for easy replacement and maintenance;

Standard mechanical micrometer;

The inclined block roll gap adjustment device can manually adjust the roll gap;

PLC control, HMI operation, convenient and easy to use;

The MSK-2150-RD roll machine winding and unwinding device can be optionally equipped to realize the continuous rolling process of coils.

  Technical Specifications:

Power supply

Single-phase AC110-220V±10%, frequency   50Hz/60Hz, power 1000W

Usage environment

Recommended ambient temperature 25±3℃, no   vibration and electromagnetic interference

Roller specifications

Diameter Φ100x 150mm

Roller hardness

Surface hardness HRC58~60, hardness layer thickness ≥10mm

Substrate width

Max:140mm

Roller material

Cr12Mo1V1, hard chrome plating on the   surface, plating thickness ≥0.08mm

Rolling pressure

Max.5T

Down rolling amount

The maximum recommended single pressing   amount of lithium electrode sheet is 20%-25%. If there is a larger rolling   demand, multiple rolling (5μm/time) is required

Roller drive

0.75KW special deceleration motor

Rolling speed

0.1-2.5m /min

Rolling gap

0-2.5mm adjustable

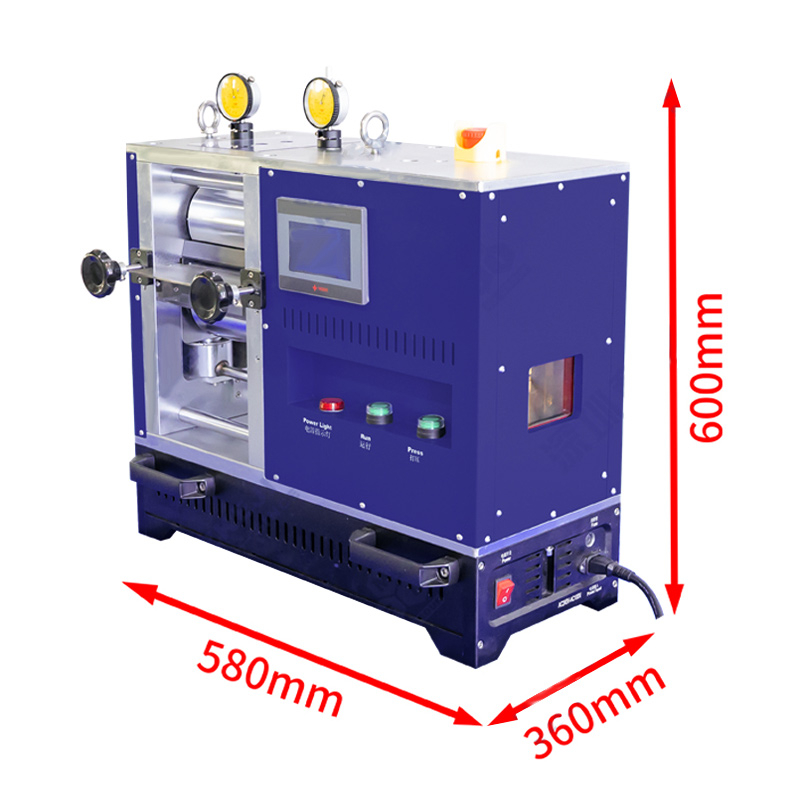

Equipment size

L580*W360*H600mm

Weight

About 150KG
