CNC heating four channel magnetic stirrer

CNC heating four channel magnetic stirrer

     heating four channel magnetic stirrer is suitable for low viscosity liquid or solid liquid mixing, heating plate surface independent temperature control speed without interference

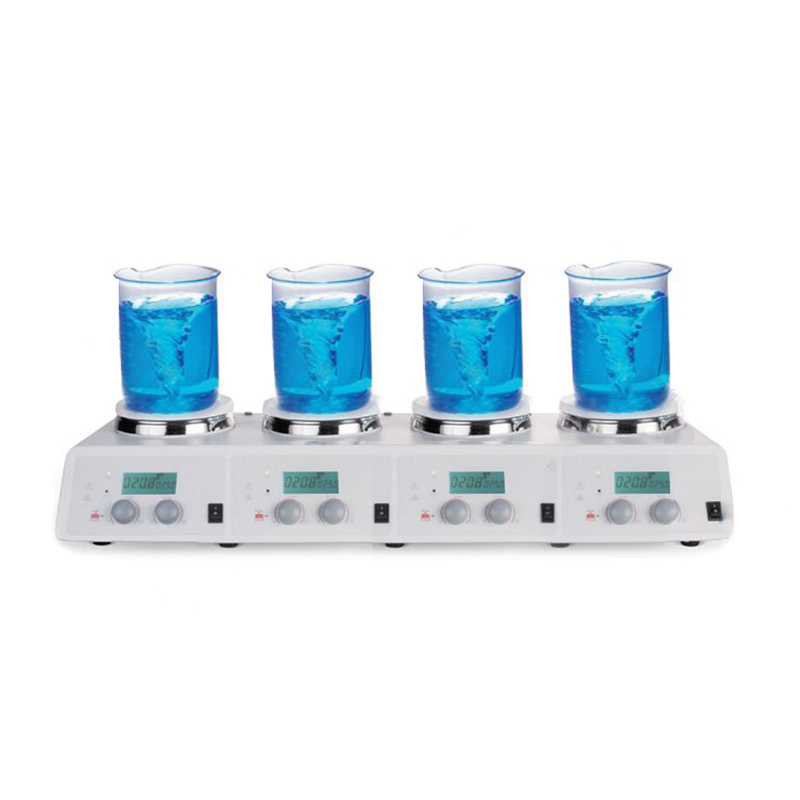

CYKY-H340-S4 CNC heating four channel magnetic stirrer is suitable for low viscosity liquid or solid liquid mixing, heating plate surface independent temperature control speed without interference. Explosion-proof brushless DC motor, no spark, maintenance-free. PID temperature control technology real-time accurate temperature control. Can be connected to external temperature sensor, precise control of sample temperature. Small size, light weight, convenient placement, mainly used in chemical synthesis, physical and chemical analysis, biopharmaceutical, material research and other directions.

Product characteristics:

PID temperature control technology real-time and accurate control of the heating process, the highest temperature up to 340;

Four heating plates independently control temperature and speed, independent display, non-interference;

Stainless steel ceramic coated work disk is extremely resistant to chemical corrosion and has good temperature uniformity;

Over temperature protection, independent safety circuit design, to ensure the safety of the use site;

Hd LCD screen displays the actual temperature and speed at the same time;

Explosion-proof brushless DC motor, maintenance-free, no spark;

Purchase information:

If you are interested in our CNC heating four channel magnetic stirrer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Power supply

AC100V-120V 60Hz / AC200V-240V,50 Hz

Input power

515W*4

Heating power

500W*4

Disk size

φ135mm

Disk material

Stainless steel ceramic coating

Stirring station

4

Motor type

Dc brushless

Single maximum agitation (H2O)

10L

Speed range

200-1500rpm

Maximum mixer

40mm

Speed control accuracy

±20rpm

Stirring speed display

Hd LCD

Overtemperature protection temperature

420

Temperature display accuracy

±0.1

Temperature control range

25-340

Stirring temperature display

Hd LCD

External temperature sensor

Standard PT1000 (with fixed bracket)

Temperature sensor accuracy

±0.2

Ambient relative temperature

5-40

Ambient relative humidity

80%RH

IP protection level

IP21

Equipment size

L698mm*W270mm*H128mm

Weight

About 9.5Kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

CNC heating four channel magnetic stirrer is mainly used in the following fields:

1. Chemical synthesis : Suitable for heating and stirring of low viscosity liquid or solid-liquid mixture, it can be used for testing multiple reaction conditions in chemical synthesis, optimizing the reaction route, improving the yield and purity.

2. Physical and chemical analysis : In physical and chemical analysis, magnetic stirrer can be used for mixed media, media cell culture, protein expression, etc., to improve research efficiency.

3. Biopharmaceutical : In the field of biopharmaceutical, magnetic stirrers can be used for drug precursor synthesis, drug crystallization, multi-step reaction optimization, or screening and evaluation of drug compounds to accelerate the drug development process.

4. Material research  : In the field of material research, magnetic stirrers can be used to mix and stir liquids with low viscosity or solid-liquid mixtures to meet experimental needs.

5.  Food processing and quality control  : In the food industry, magnetic stirrers can be used to emulsify, mix and homogenize food raw materials, such as dairy products, beverages, salad dressings, etc., to improve production efficiency and quality control.

6. Environmental analysis : In environmental monitoring, the magnetic stirrer can simultaneously process multiple pretreatment steps of water samples or soil samples, such as extraction, concentration, dissolution, etc., to improve analysis efficiency and reduce processing time.

These application areas demonstrate the versatility of CNC heated four-channel magnetic stirrers and their wide applicability in the laboratory and industry.
