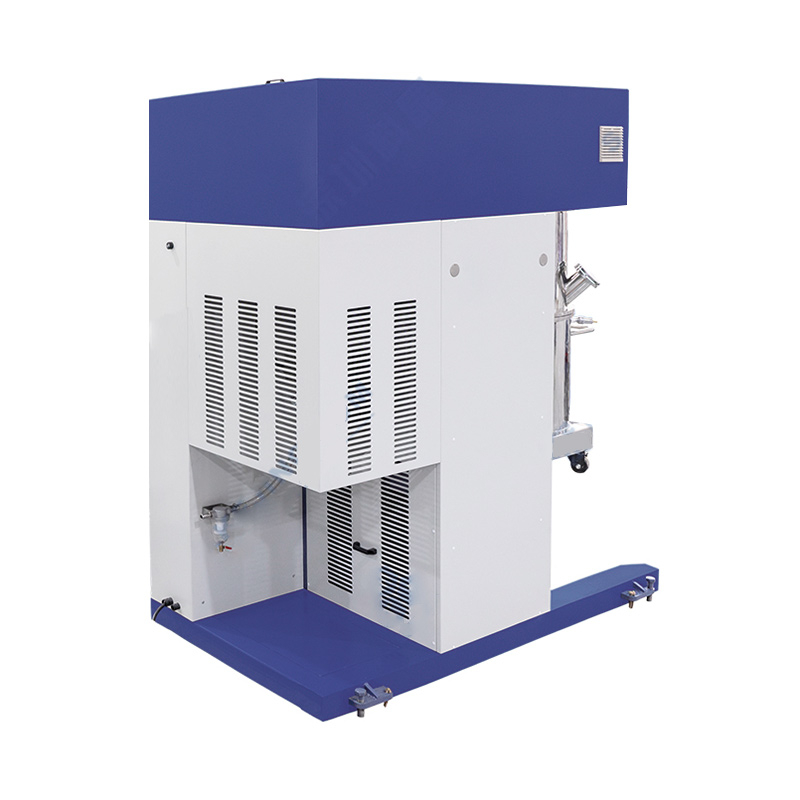

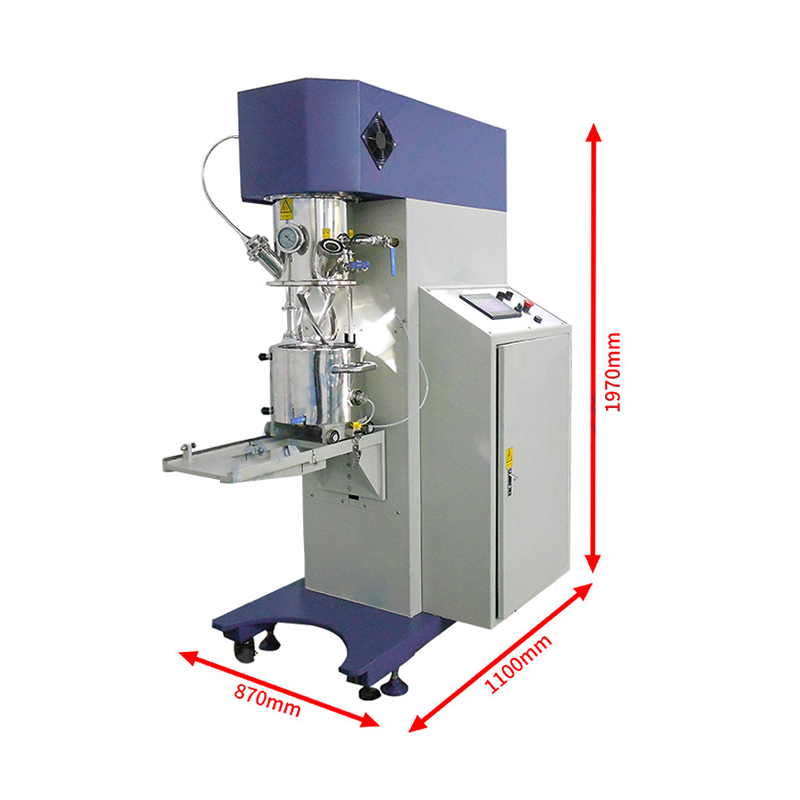

Double dispersion vacuum axis planetary mixer

Double dispersion vacuum axis planetary mixer

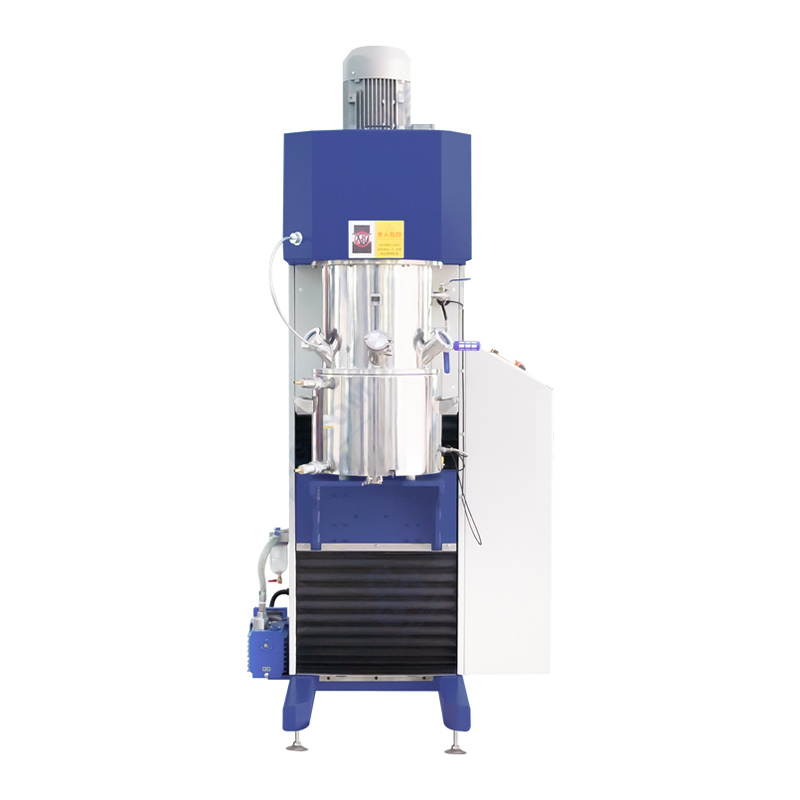

double dispersion axis vacuum planetary mixer is an efficient mixing equipment that integrates vacuum low speed mixing and high speed dispersing, combining with revolution and rotation motion to achieve full mixing of materials.

Inquire Now Next Product

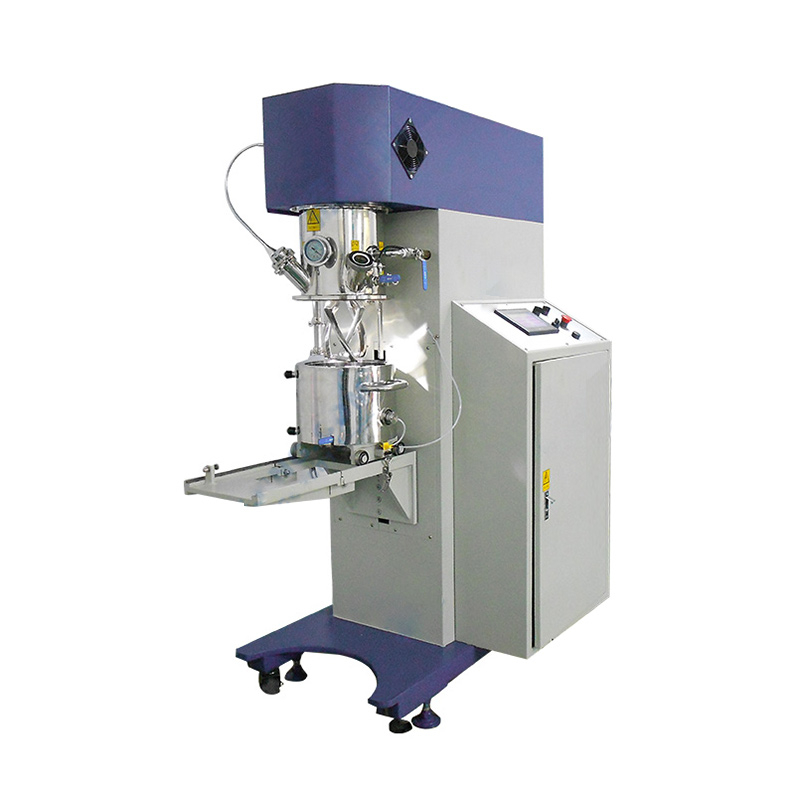

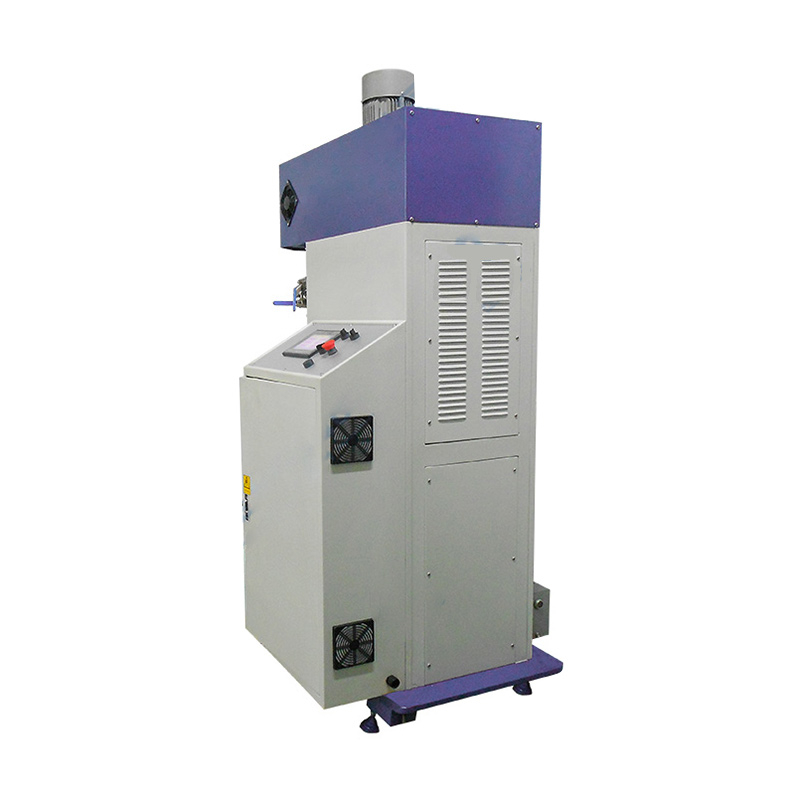

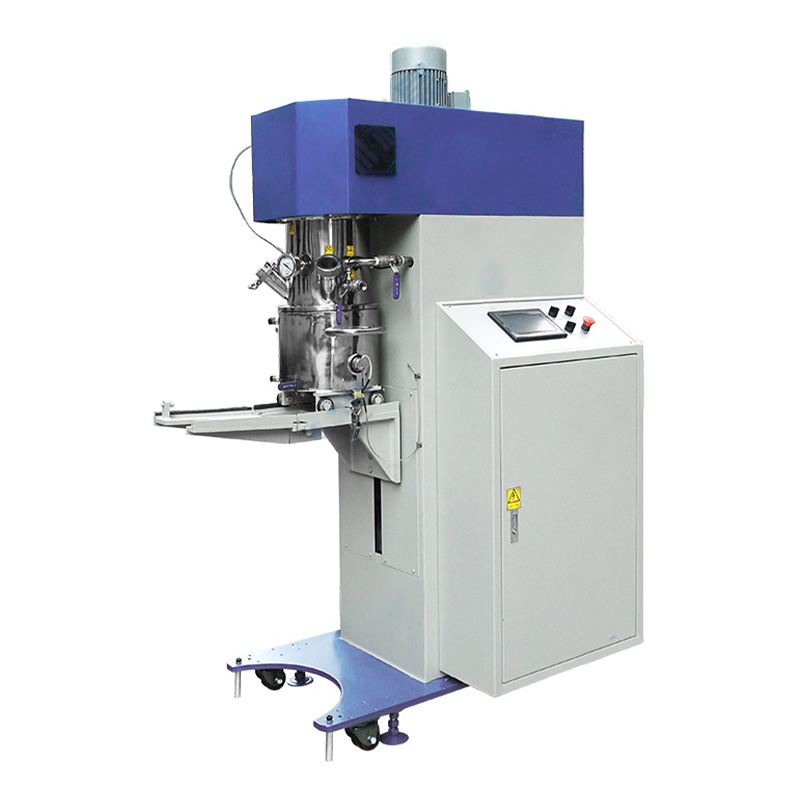

CYKY-SFM-9-5L-2 double dispersion axis vacuum planetary mixer is an efficient mixing equipment that integrates vacuum low speed mixing and high speed dispersing, combining with revolution and rotation motion to achieve full mixing of materials. It can be used in the mixing process of various solvents and powders, such as the batching process of raw materials such as lithium-ion batteries, tape, solar energy and chemical industry. The equipment has integrated design, good mixing uniformity and easy to use.

Product characteristics:

Four-paddle two-axis planetary mixing, twist frame mixing paddle with high-speed dispersion plate and wall scraping, no mixing dead Angle;

The low speed mixing achieves macro mixing through mass and rotation, and the high speed dispersing disc achieves micro mixing through shear force.

Vacuum environment, effectively eliminate the bubbles generated during the stirring process, vacuum maintenance effect is good;

The effective volume of the mixing tank is 5L, refined by high quality SUS304 stainless steel, resistant to acid and alkali corrosion;

Multi-speed operation can be performed, and the mixing speed and time of each section can be set;

Slurry bucket manual lifting design, equipped with spotlights, easy to operate, to ensure the safety of vacuum mixing process;

PLC control, HMI operation, motor overload protection and other electrical safety design;

Jacketed mixing tank design, can pass cooling water, suitable for a variety of process requirements.

Purchase information:

If you are interested in our Double dispersion axis vacuum planetary mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Electric Source	Single-phase AC220V±10%, frequency 50Hz, power about 5.5KW
Mixing method	Revolution + rotation, double stirring shaft + double dispersion shaft (total 4 dispersion plates) +1 wall scraper (Teflon)
Control mode	Variable frequency speed regulation, temperature control, spotlight, lifting, running/emergency stop and other function display and operation are operated on the control panel of the electrical cabinet. The equipment can automatically change the speed of the time segment.
Vacuum system	With vacuum buffer tank and switch; Standard with vacuum pump 2XZ-2
Vacuum	-0.098Mpa(when there is no added material in the mixing bucket in the no-load state)
Lifting system	Manual lifting
Positioning system	With positioning adjustment device. Barrel body barrel cover through the positioning of the precise match, accurate position, to ensure vacuum sealing
Thermal insulation	Cooling water, no insulation required
Applicable slurry	Kinematic viscosity 1000-100000 cp all kinds of slurry production and other materials
Equipment size	Approx. L1150W960H2050mm (based on actual size)
Heavyweight	Approx. 550Kg(physical)

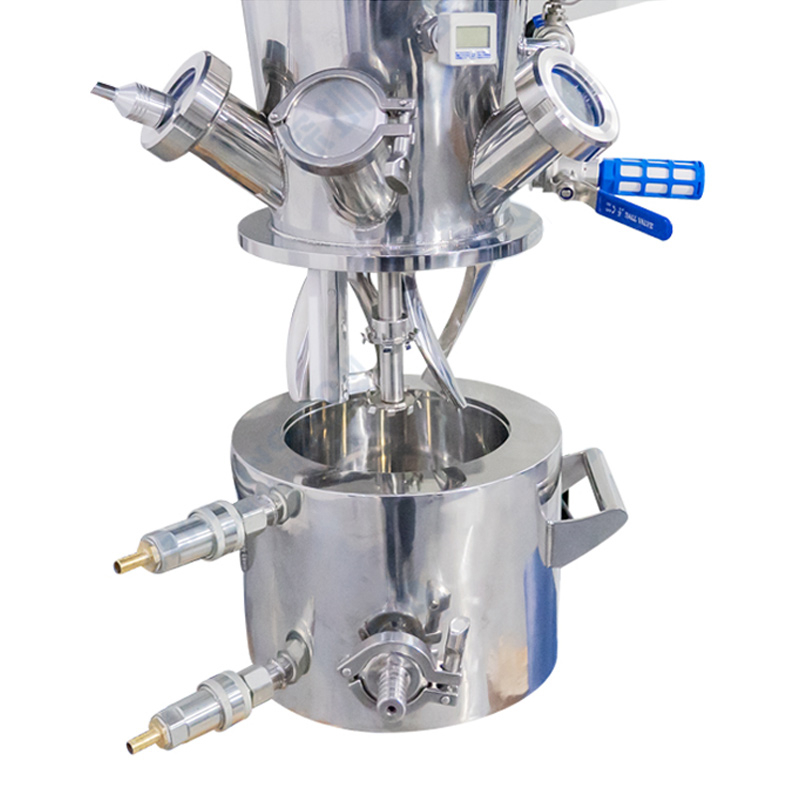

Upper barrel parts
Keg material	SUS304
Powder charging port	Quick open port DN50
Viewwindow	DN50
Spotlight port	DN50
Vacuum port	One G 1/2 "ball valve
Exhaust port	One G1/2" ball valve
Lower barrel parts
Design total volume	About 8L
Effective volume	About 5L
Inside diameter of container	240mm
Depth inside container	180mm
Container material	Part in contact with material 304
Tempering jacket form	Barrel wall single-layer jacket for cooling or heating; And single-layer jacket for bottom of barrel for cooling or heating
Thermostat jacketed interface	G1/2", with quick-opening live connector, jacket pressure ≤0.4MPa, water inlet/outlet, one each
Discharge form	A 3/4" discharge ball valve at the bottom of the barrel
Design ambient temperature	0 to +55 。C
Mixing parts
Mixing paddle	Two groups of twist frame type mixing paddle, SUS304 material, precision machining
Transmission mode	Two drive, one chain drive; Two-stage gear drive
Paddle material	304
Number of mixing paddles	2
Paddle to paddle distance	3 to 8 mm
Distance from paddle to barrel wall	2 to 5 mm
Distance of paddle from bottom of barrel	2 to 4 mm
Disperse parts
Dispersion shaft	2 sets of dispersion shafts, each shaft is equipped with 2 dispersion disks, SUS304 material
Dispersing disc style	Zigzag
Scatter plate material	304
Number of dispersion plates	four
Number of scatter shafts	2 shafts
Wall scraping pieces
Wall scraping bracket material	304
Wall scraper material	Teflon
Wall scraping RPM	Consistent with planet box RPM
Detachable or not	Detachable design (wall scraping must be removed during high viscosity process)
Anti-stay protection
Anti-stay protection	1. Equipment with emergency stop switch, press the device immediately stop; 2. After the upper and lower barrel body is closed in place, the mixing head can start to work; 3. The upper and lower barrels cannot be opened during the mixing work; 4. The tank cannot be opened without vacuum discharge; 5. There is a protection switch in the lifting process, which can choose the slow "return material" function; 6. Automatic stop protection when the motor current is overloaded; 7. When the temperature exceeds the set value, self-stop protection; 8. Stirring host, electric control box must be grounded.

Main components:

Requirements	Specific specifications
Host	1 set

Application field:

The application field of planetary mixer is very wide, mainly including the following aspects:

1. Chemical industry : Suitable for the chemical industry liquid-liquid, solid-liquid, paste - paste, powder - paste and other materials mixing, reaction, dispersion, dissolution, homogenization, emulsification and other processes.

2. New energy field : Especially suitable for the mixing and dispersion of lithium battery slurry, positive and negative electrode materials, conductive slurry and other new energy materials.

3. Electronic and Electrical industry : Used for electronic adhesive, epoxy potting adhesive, structural adhesive and other electronic and electrical industry material preparation.

4. Coating and ink industry : widely used in coating, ink, dye, ink, color paste and other products stirring dispersion and dissolution.

5. Pharmaceutical industry : Suitable for the preparation of pharmaceutical products such as pharmaceutical intermediates, gels, fever-reducing stickers, and cloth agents.

6. Cosmetics industry : Used for the mixing of cosmetic raw materials, such as paste cosmetics, emulsions, etc.

7. Food industry : Suitable for paste food and additives mixing.

8. Pesticide industry : Used for the preparation of pesticides, suspension agents, emulsions and other products.

9. Building materials : Suitable for the production of silicone resin materials, sealants and other building materials.

10. Adhesive industry : Suitable for the mixing of high viscosity sealant, construction glue, viscose and other adhesives.

11. Resin industry : Suitable for mixing a variety of resin materials.

12. Silicone industry : Suitable for the mixing of silicone resin materials.

These application areas demonstrate the importance and versatility of high speed dispersion planetary mixers in different industries.
