Double planetary four paddle vacuum mixer

    double planetary four-paddle vacuum mixer is a highly efficient mixing equipment that integrates vacuum mixing and dispersion, which can be applied to the mixing process of various solvents and powders, such as the batching process of lithium ion batteries

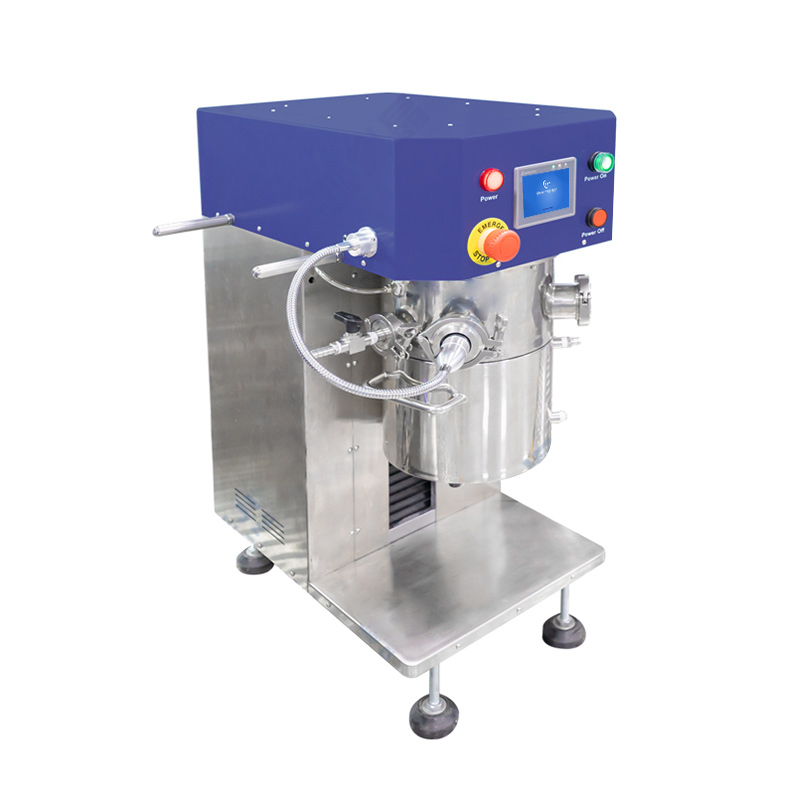

CYKY-SFM-18 double planetary four-paddle vacuum mixer is a highly efficient mixing equipment that integrates vacuum mixing and dispersion, which can be applied to the mixing process of various solvents and powders, such as the batching process of lithium ion batteries, tape, solar energy, chemical and other raw materials. The device has beautiful appearance, small size, good mixing uniformity and easy to use.

Product characteristics:

Double axis planetary mixing, twist frame mixing paddle with high-speed dispersion plate and scraping edge, no mixing dead Angle;

Vacuum environment, effectively eliminate the bubbles generated during the stirring process, vacuum maintenance effect is good;

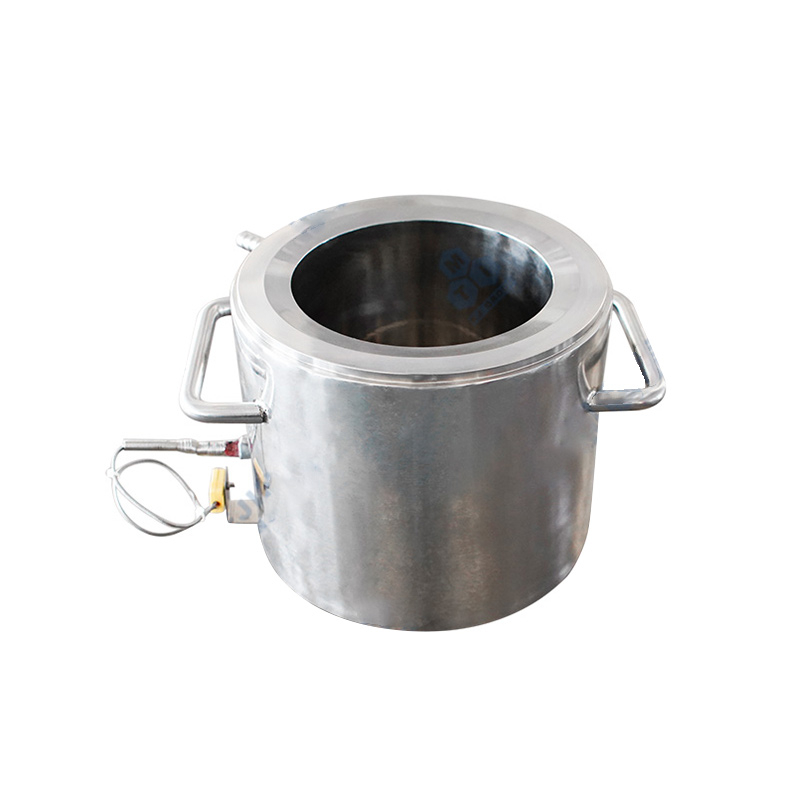

The effective volume of the mixing tank is 2L, made of high quality SUS304 stainless steel, resistant to acid and alkali corrosion;

Multi-speed operation can be performed, and the mixing speed and time of each section can be set;

Stirring tank automatic lifting function, can be clicked operation, stable running;

The vacuum inside the mixing tank is interlocked with the stirring operation electrical functions to ensure the safe operation;

Mixing tank water jacket design, optional chiller and hot water bath mode, suitable for a variety of mixing process;

Mixing paddle cleaning can be connected to tap water flushing, simplifying the cleaning operation;

With the slurry temperature detection function, real-time detection of slurry temperature;

PLC control, touch screen operation, easy to use;

Purchase information:

If you are interested in our Double planetary four paddle vacuum mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Electric source

Single-phase AC220V±10%(AC110V can be customized), frequency 50Hz/60Hz, power 1600W   (including vacuum pump power 2350W)

Vacuum

The vacuum degree is Max-0.095Mpa(the   pressure drop is less than 5KPa within 8 hours). Customers can provide a   centralized vacuum source or optional vacuum pump

Use environment

The recommended ambient temperature is 25±3 ° C, humidity is 30 to 90RH, and no vibration or electromagnetic interference   is required

Agitator paddle

Two twist frame mixing paddles, a   dispersion plate, and a scraper

Spindle speed

MAX.500rpm

Revolution speed

MAX.47rpm

Stirring speed

MAX.295rpm

Dispersion speed

MAX.4000rpm

Stirring time

0 to 9999min can be set

Tank volume

Total volume 2.9L, maximum effective   volume 2L(minimum mixing volume 350ml)

Tank size

Inside diameter Φ150mm*H165mm(with water jacket, optional chiller and hot bath)

Equipment size

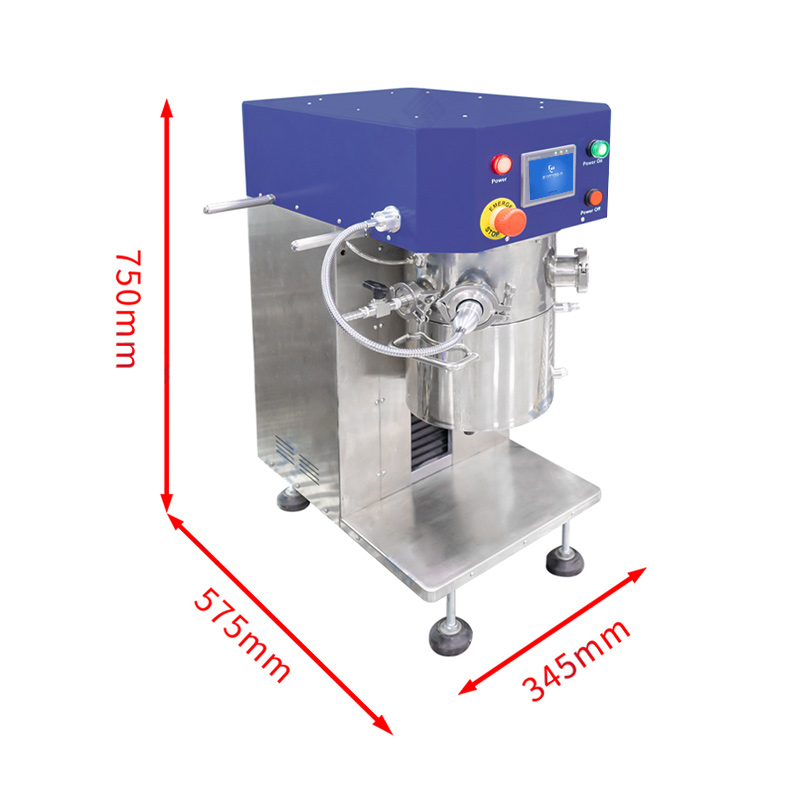

L575mm*W345mm*H750mm (including handle   L575mm*W545mm*H750mm)

Weight

About 150kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

Planetary vacuum mixer is a kind of high efficiency stirring equipment, which has been widely used in many fields. Here are some of the main application areas:

1.  Chemical industry  : Used for the preparation of polymer materials, such as polyolefin, polyurethane, nanomaterials, etc., and the preparation of amorphous materials.

2.  Pharmaceutical industry  : It is widely used in the mixed reaction of medical polymer materials and natural drugs to make special medical materials, and in the production of preparations and preparation of drugs.

3.  Food industry  : Used in the fermentation process of lactic acid bacteria, yeast, fungi and other microorganisms mixing, reaction, growth, etc., also used in dairy products, egg products, meat products, fat food production.

4.  Electronic industry  : It is widely used in electronic materials, electronic components, batteries, photoelectric materials and other industries, especially in the preparation of electronic materials, for the mixing of electronic powders.

5.  Metallurgical industry  : It is widely used in the powder metallurgy process of tungsten and molybdenum alloy, cobalt alloy, aluminum and magnesium alloy, etc., in the preparation of metal materials through the trajectory of relative motion and collision with each other, so that the powder is mixed evenly.

6.  New energy field  : Materials for the preparation of solar panels, lithium-ion batteries and other products, the performance of these products largely depends on the uniformity and stability of the material.

7.  Cosmetics industry  : Used for emulsion preparation, etc.

8.  Electronic components  : Used for light-emitting diode (LED), liquid crystal screen (LCD), electronic components and other products in the material mixing and defoaming process.

9.  Medical devices  : Used for the preparation of medical devices and biological materials, which need to have a high degree of purity and stability to ensure the safety and effectiveness of medical products.

10.  Battery paste  : Suitable for all kinds of battery paste, paste (such as lithium battery, nickel-chromium battery, nickel-metal hydride battery, fuel cell, power battery, button battery, etc.) mixing.

To sum up, the planetary vacuum mixer plays an important role in many industries such as chemical industry, medicine industry, food industry, electronics industry and new energy industry because of its efficient and uniform mixing effect and the ability to operate in a vacuum environment.
