drying granulation and coating machine is an experimental instrument with atomization, granulation and coating functions. The small size of the device allows the unique technology to be used for mixing

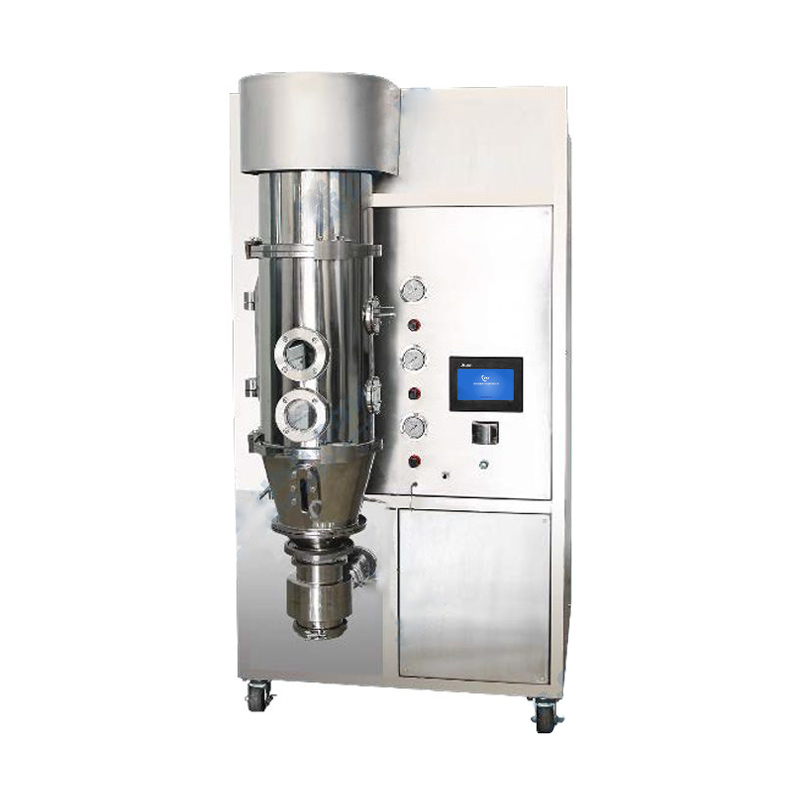

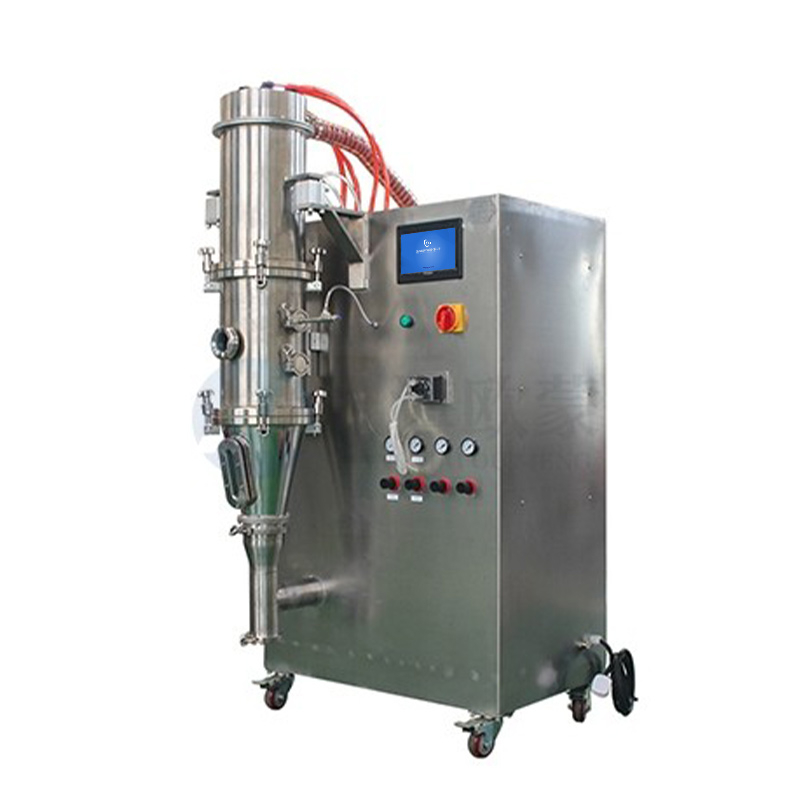

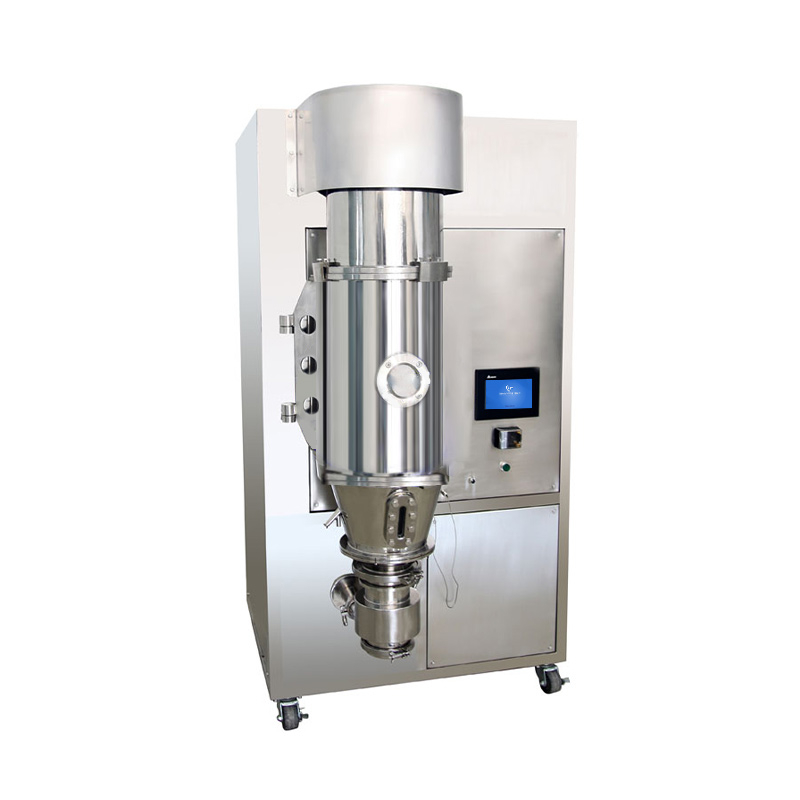

CYKY-BY-3000 drying granulation and coating machine is an experimental instrument with atomization, granulation and coating functions. The small size of the device allows the unique technology to be used for mixing, drying and coating of various particles and pellets. To meet the needs of universities, research institutes and enterprise research units for the preparation of small samples and pilot tests.
Easy operation: the control system adopts PLC automatic control, one-button boot, color touch screen operation, experimental parameters such as inlet air temperature, outlet air temperature, material temperature, fan speed, spray pressure, etc. can be changed immediately according to the needs of the experiment, convenient for users to use;
Touch screen with USB interface, data can be exported to U disk or online printing;
Stable operation: The core components of the equipment such as touch screen, fan, heater and control system are imported equipment to ensure the stability and reliability of the equipment operation;
The air inlet is equipped with primary, medium and efficient three-stage filtration to meet the D-level clean requirements of the clean area;
Material temperature and air inlet temperature feedback function, through the material temperature feedback, automatic control of air inlet temperature and whether to spray liquid, so as to ensure the stability of the experiment process, in order to achieve the best process requirements.
If you are interested in our Drying granulation coating machine, please contact us for more information and a quote.
Contact number: +8615617875939
E-mail: gordon@zztainuo.com
Contact: Gordon Zhang
Wechat: 15617875939
WhatsApp: +8613592553141
Input power | Voltage single-phase 100-240VAC±10%, frequency 50Hz/60Hz, power 60W, less than 4Ω grounded |
Air source | 0.2-0.4MPa compressed air |
Feature | Spray granulation, coating, mixing, fluidized bed drying machine |
Applicable material | Material particles above 20 microns (more than 10 microns with larger gravity can be used) |
Fog granulation capacity | Maximum 3000g/ batch, minimum 150g/ batch |
Granulation temperature | 40-150 ℃ |
Temperature control accuracy | ±2℃ |
Coating | Maximum 3000g/ batch |
Mixed | Maximum 3000g/ batch |
Spray head type | Two-fluid |
Nozzle | 0.7mm as standard |
Equipment size | L700mm*W600mm*H1150mm |
Weight | About 135Kg |
Requirements | Specific specifications |
Host | 1 set |
Application field:
Drying granulation coating machine is a kind of equipment widely used in many industries, its application fields include but are not limited to the following aspects:
1. Pharmaceutical production field
Granulation: Used to make tablet granule, granule, capsule granule and other raw materials and auxiliary materials.
Coating: To provide protective layer, color preparation, slow release, film, enteric coating treatment for particles and pills, in order to improve the stability and efficacy of drugs.
2. Health products manufacturing industry
Processing solid products: can be used to process solid drinks, nutritional supplements and other fields of products, through granulation and coating process to improve its stability and beauty.
3. Daily chemical products industry
Improve product stability and beauty: such as toothpaste, shampoo and other packaging materials, after coating process treatment, can improve its stability and beauty, to meet the needs of consumers.
4. Pesticide and chemical industry
Pesticide preparation: used for granulation and coating treatment of pesticides to improve the stability and use effect of pesticides.
Other chemicals: Granulation and coating of pigments, pigments, dyes and other chemicals to meet their specific application needs.
5. Food industry
Food handling: In the processing of granulated sugar, coffee, cocoa powder, cream, powdered juice, amino acids, seasonings, puffed food and other foods, the drying granulation and coating machine can be used for granulation and coating processing to improve the taste and stability of food.
6. Other industrial uses
Plastic powder coating: In the plastic processing industry, can be used for plastic powder coating treatment.
Other material treatment: dry treatment of powder, particles, bulk materials, and granulation and coating of catalysts.
In summary, the drying granulation and coating machine has a wide range of applications in many industries, and its unique granulation and coating functions provide convenience and protection for the processing of various products.
