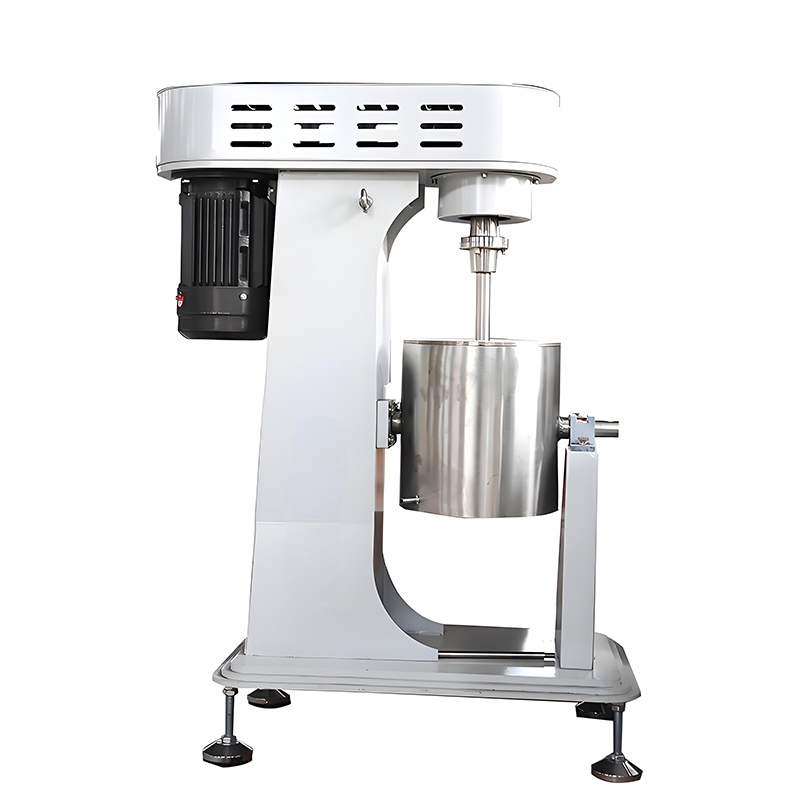

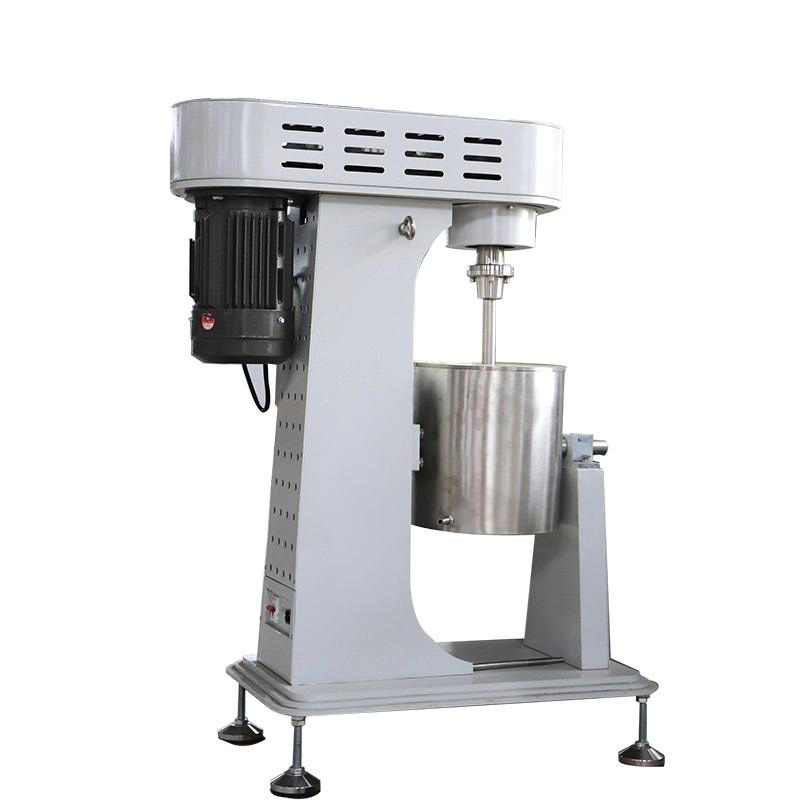

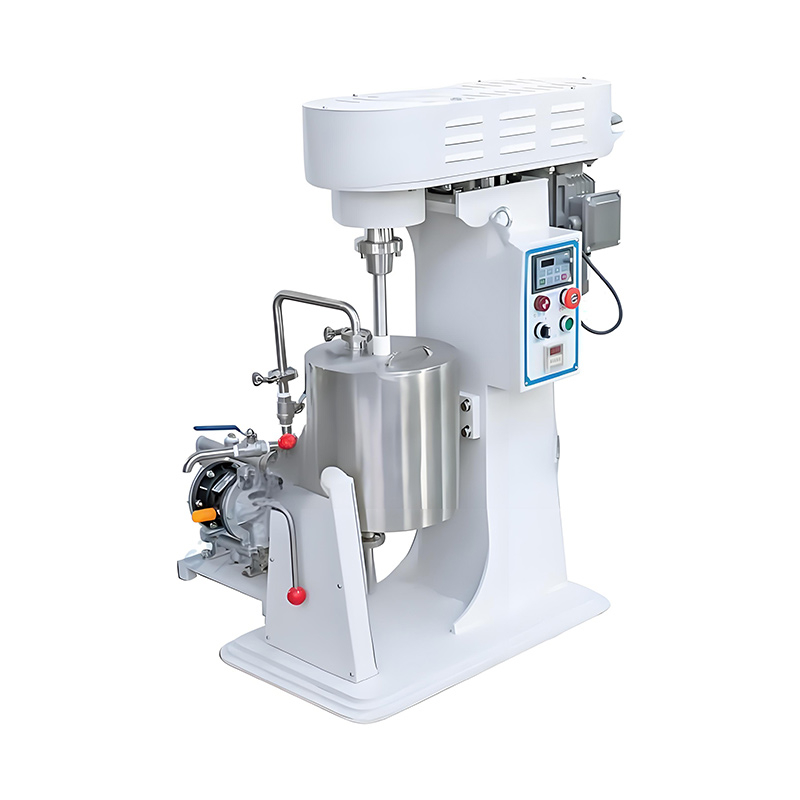

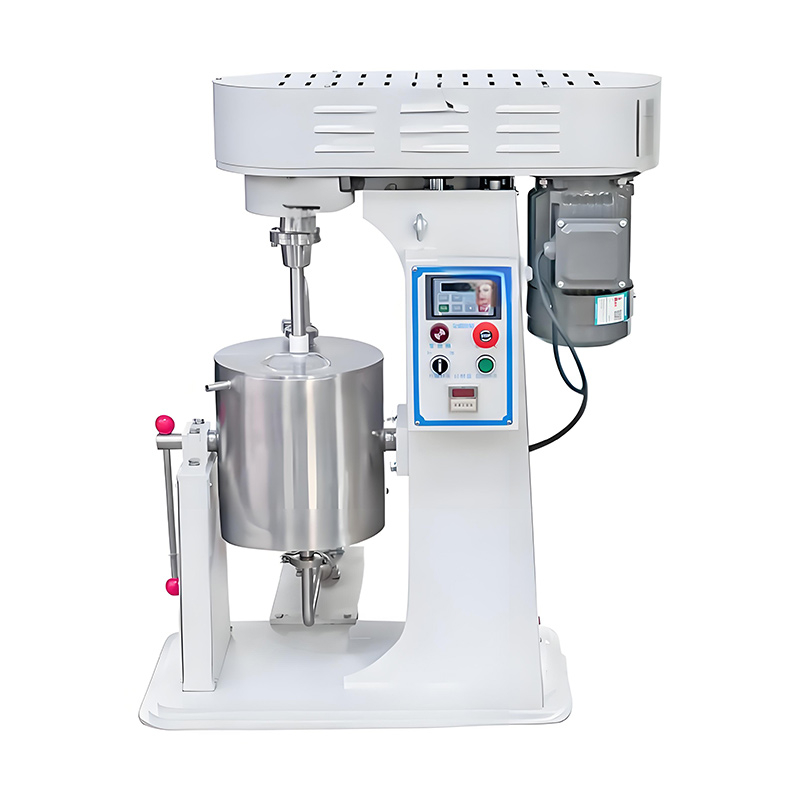

Electric lifting stirring ball mill

Inquire Now Next Product

The electric lifting stirring ball mill is mainly composed of a stationary cylinder filled with a small diameter grinder, a stirring device and other auxiliary devices (such as: Circulation device, cooling device, timing, speed control, etc.) composition, high grinding efficiency, small grinding particle size, can well achieve various process parameter requirements, simulation of production indicators, at the same time because of its small batch, low power consumption, low price advantages, is the school, research units, companies are the best equipment for grinding process, new materials, coatings research. Widely used in zirconium silicate, zirconium oxide, alumina, ceramics, chemical, electronic materials, magnetic materials, paper, coatings, non-metallic minerals, new materials, paint, graphite, calcium carbonate, pharmaceutical and other ultra-fine powder production fields.

Product characteristics:

1. High energy utilization, can obtain a very high power density, so energy saving.

2. The product particle size is easy to adjust, and the final fineness can be ensured by adjusting the retention time of the material in the cylinder.

3. Low vibration, low noise.

4. Beautiful shape, high-end atmosphere, excellent performance, simple maintenance, easy operation and labor saving, durable.

5. The mixing rod can be lifted automatically, and the mill can be turned freely.

6. It can achieve various process requirements well, and can carry out continuous or intermittent production according to needs.

7. Because the ball mill cylinder has a jacket, the grinding temperature can be well controlled.

8. Can be made according to the need with a variety of special functions of the equipment, such as: timing, speed regulation, circulation, temperature control, etc.

You can choose different materials (stainless steel, corundum ceramic, polyurethane, zirconia, etc.) grinding cylinder and stirring device.

Purchase information:

If you are interested in our Electric lifting stirring ball mill, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Model	Speed rpm	Volume (L)	Loading capacity (L)	Motor power (kw)	Mill material	Feed size (mm)	Discharge size (head)	Speed regulation	Mode remarks
JM-1L	50~1400	1	0.35	0.37	Stainless steel, Nylon, Corundum, Polyurethane, Zirconia, Agate, Teflon, etc Carbon steel, Stainless steel, Can be lined with nylon, Polyurethane, Teflon, corundum	≤5	≤1	Variable frequency speed regulation	Experimental agitation
JM-2L	50~1400	2	0.7	0.37
JM-3L	50~1400	3	1.05	0.37
JM-5L	60~560	5	1.75	0.75				Variable frequency speed regulation or Fixed speed	Small stirring
JM-10L	60~560	10	3.5	1.5		≤10
JM-15L	60~380	15	5.25	2.2
JM-20L	60~380	20	7.0	2.2					Light stirring
JM-30L	60~310	30	10.5	3
JM-50L	60~140	50	17.5	4
JM-100L	60~140	100	35	7.5		≤15			Production agitation
JM-200L	60~110	200	70	11
JM-300L	60~110	300	100	15
JM-500L	60~90	500	170	18.5
JM-600L	60~90	600	200	22

Main components:

Requirements	Specific specifications
Host	1 set

Application field:

The application field of electric lift mixer is very wide, mainly including the following industries:

1. Coating industry : Used for mixing, dissolving and dispersing coatings.

2. Dye industry : suitable for mixing, dissolving and dispersing dyes.

3. Ink industry : used for ink mixing and dispersion.

4. Pigment industry : Used for mixing and dispersing pigments.

5. Cosmetics industry : Used for mixing and mixing of cosmetics raw materials.

6. Resin industry : Used for mixing resin materials.

7. Adhesive industry : Used for preparation and mixing of adhesives.

8. Emulsion industry : Used for emulsion preparation and mixing.

9. Pharmaceutical industry : Used for stirring and mixing of pharmaceutical products.

10. Petroleum industry : Used for mixing and stirring of petroleum products.

11. Pesticide industry : For the preparation of pesticide products.

12. Daily chemical industry : Used for mixing and mixing of daily chemical products.

13. Food industry : Used for mixing and mixing in food processing.

14. Biotechnology : In the field of biotechnology, used for stirring, mixing, dissolution, etc.

15. Biofuels : Mixing solutions in bioethanol and biodiesel plants.

16. Chemical industry : Used for mixing, mixing and reaction of chemical products.

17. Mining : Used in mining for the mixing and mixing of related products.

18. Paper industry : Used for mixing and mixing in the paper making process.

19. Water treatment : Used for stirring and mixing in the water treatment process.

20. Fine Chemical : Used for mixing and mixing of fine chemical products.

Because of its high efficiency, energy saving, easy operation and other characteristics, the electric lifting mixer plays an important role in the above industry, improving production efficiency and product quality.
