Lab Desktop Planetary centrifugal mixer

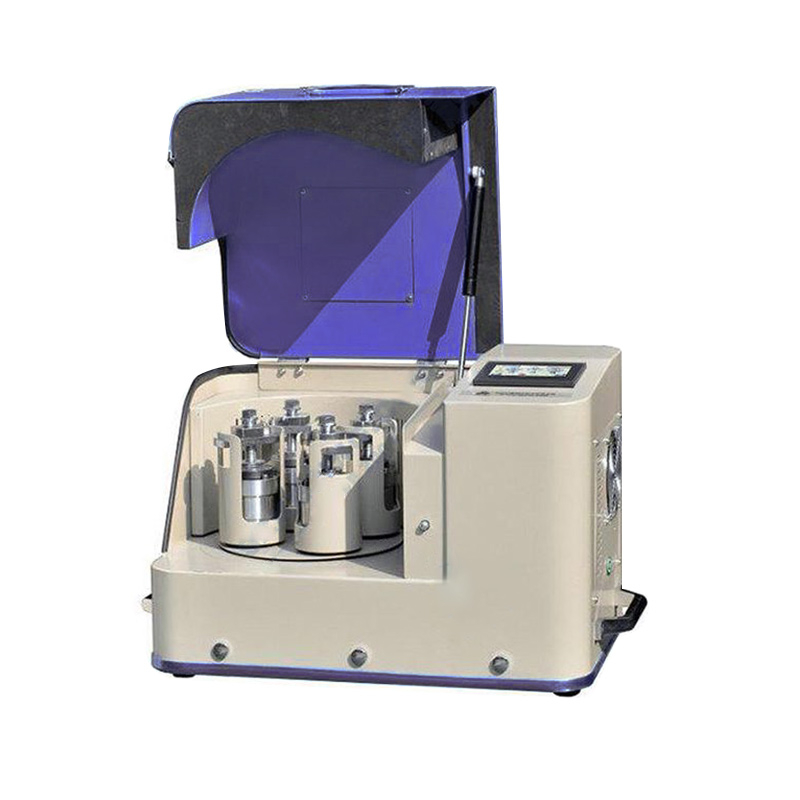

    planetary ball mill with four mixing tanks mounted on the turntable. The center axis of the mixing tank makes a planetary motion, and the ball in the tank grinds and mixes samples in high speed motion. The product can be crushed and mixed by dry and wet methods with different particle size and different materials

The CYKY-SFM-1S is a planetary ball mill with four mixing tanks mounted on the turntable. The center axis of the mixing tank makes a planetary motion, and the ball in the tank grinds and mixes samples in high speed motion. The product can be crushed and mixed by dry and wet methods with different particle size and different materials, and is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.

Product characteristics:

Compact tabletop design with 4 grinding mixing tanks

Touch screen controller can be simple programming, can set the multi-stage speed regulation of grinding, rotation direction, grinding time and cycle grinding and other parameters

The material in the experiment is subjected to high centrifugal force, which can achieve efficient grinding of the sample

Suitable for mechanical alloying, mixing, homogenization and crushing

Purchase information:

If you are interested in our Planetary centrifugal mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Basic parameter

Rated voltage: 220V AC

Revolution speed: 50-400rpm adjustable

Rotation speed: 100-800rpm adjustable

Speed ratio: Revolution: rotation =1:2

Touch screen control system

Grinding speed and time digital display

Up to 5 speed controls

Store up to 10 programs

Rotation direction is optional, clockwise/counterclockwise   rotation

Feed size: brittle material < 10mm (other materials < 3mm)

Discharge size: wet grinding: average   particle size < 1μm

Dry grinding: average particle size <   20μm

Note: The discharge size depends on the   physical properties of the material and the grinding process such as feed   size, grinding medium and grinding time. According to customer feedback, the   minimum discharge size of the device is 0.1μm

Sample discharge size

4 fixed brackets can be directly installed 100ml ball mill tank   (see the left figure)

The company provides various materials grinding tank and grinding   ball to meet different experimental requirements, such as nylon, alumina,   zirconia, agate and other materials, you can contact our sales for more   details

Grinding tank

4 fixed brackets can be directly installed 100ml ball mill tank   (see the left figure)

The company provides various materials grinding tank and grinding   ball to meet different experimental requirements, such as nylon, alumina,   zirconia, agate and other materials, you can contact our sales for more   details

Noise

55 decibels

Fixed installation

4 V-shaped fixed brackets

Easy to fix the tank, the maximum height of the tank can be   placed is 75mm

Product size

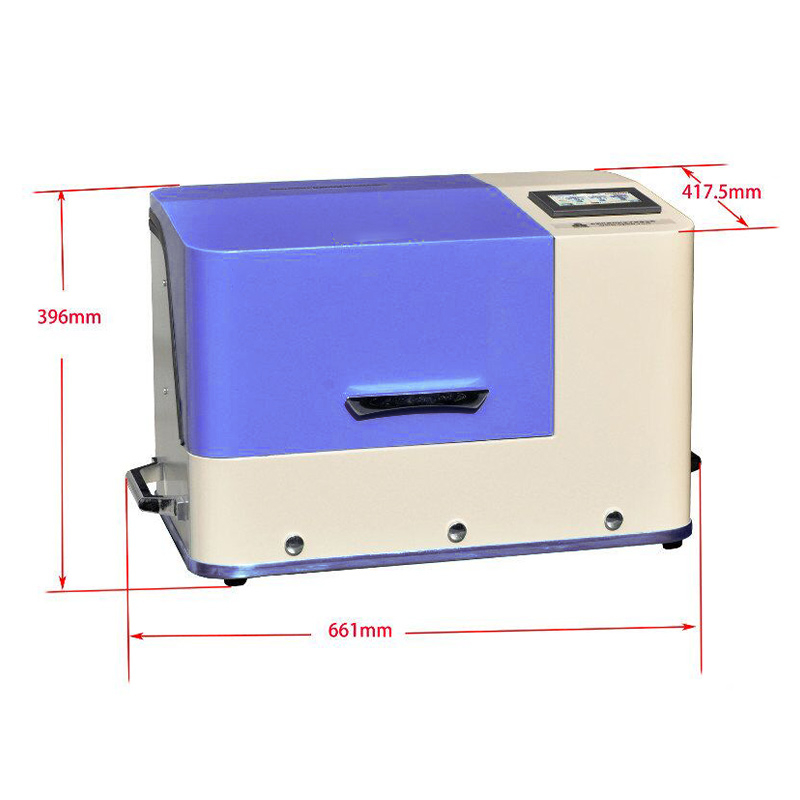

Product size: Without cover: 661mm(L) x 417.5mm(W) x 396mm(H)

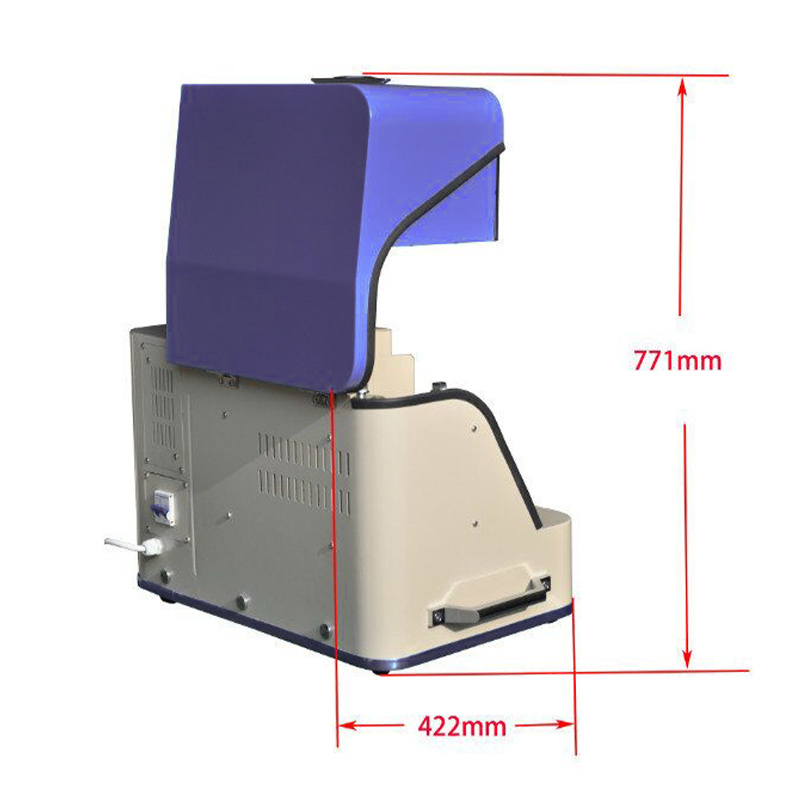

Open cover: 661mm(L) x 422mm(W) x 771mm(H)

Net weight

70Kg

Application precautions

SS304 mixing tank can be used for grinding various metal   materials

When grinding oxide materials, please choose alumina/nylon tank   and zirconia grinding medium, do not use aluminum grinding tank and stainless   steel grinding ball

When using the planetary ball mill, 4 or 2 grinding tanks of the   same weight should be used symmetrically. If only one ball mill tank is used,   a tank of the same weight should be matched in a symmetrical position.   Otherwise, the eccentric force will cause damage to the machine

We can choose our SYU-3 ultrasonic filtration system for product   filtration

Quality certification

CE certification

Warranty period

One year warranty, lifetime technical   support.

Click to view the after-sales service   commitment.

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

The application areas of planetary centrifugal mixers are very wide, according to the search results, the following are some of the main application areas:

1.  New energy industry  : In the field of new energy, planetary centrifugal mixer is used to mix a variety of battery powder or slurry, such as lithium batteries, solar cells and so on.

2.  Electronic and electrical industry  : In the electronic and electrical industry, the equipment is used for mixing electronic paste, conductive ceramics and other materials.

3.  Chemical raw material industry  : The planetary centrifugal mixer is used in the chemical raw material industry to mix a variety of liquid or powder materials, including nano powder, oxide powder and metal powder.

4.  Biopharmaceutical industry  : In the field of biopharmaceutical, the device can be used to mix pharmaceutical raw materials to prepare uniform drug mixtures.

5.  Cosmetics industry  : In cosmetics manufacturing, planetary centrifugal mixer is used to mix cosmetic raw materials to ensure product quality and consistency.

6.  Food industry  : In the food industry, the equipment can be used to mix food raw materials, such as seasonings, additives, etc.

7.  Refractory field  : In the production of refractory materials, planetary centrifugal mixer can fully mix a variety of refractory materials to ensure the high temperature stability and durability of the product.

8.  Artificial stone production  : In the production of artificial stone, the equipment also plays a key role, able to mix a variety of raw materials evenly.

9.  Solid waste treatment industry  : In the solid waste treatment industry, the planetary centrifugal mixer can efficiently mix and treat solid waste materials, so that solid waste materials can be fully utilized, but also made a positive contribution to the cause of environmental protection.

10.  Scientific Research and education  : In the field of scientific research and education, planetary centrifugal mixer is an indispensable experimental tool in the laboratory, used in various chemical reactions, biological experiments and material preparation and other research processes.

These application areas demonstrate the versatility of the planetary centrifugal mixer and its wide applicability in industrial production and scientific research.
