Home > Products > Laboratory mixer
Lab High speed dispersion planetary mixerLab High speed dispersion planetary mixerLab High speed dispersion planetary mixerLab High speed dispersion planetary mixerLab High speed dispersion planetary mixer

Lab High speed dispersion planetary mixer

    igh speed dispersion planetary mixer with a 2L vacuum mixing tank and PLC touch control panel. The unique mixing unit design (dispersion speed up to 8100RMP) ensures the optimal mixing and extreme dispersion of the material in a vacuum environment

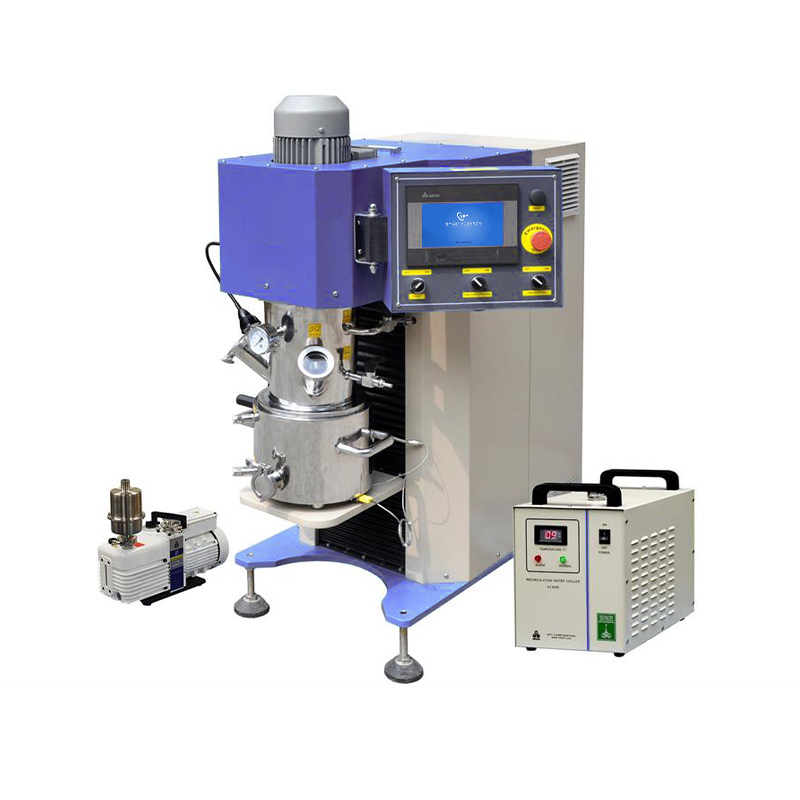

CYKY-SFM-2L-A is a CE certified High speed dispersion planetary mixer with a 2L vacuum mixing tank and PLC touch control panel. The unique mixing unit design (dispersion speed up to 8100RMP) ensures the optimal mixing and extreme dispersion of the material in a vacuum environment. And the mixing mechanism is equipped with an observation window, the operator can observe the mixing process in real time. This device is an ideal experimental tool for preparing LiCoO3, LiFePO4, polymer and ceramic pastes.

Product characteristics:

Very high dispersion speed, up to 8100RMP, excellent dispersion effect on materials

The mixing tank adopts electric lifting to make sampling and testing more convenient

Small size: 760×460×980mm ((L × W × H), saving space for the laboratory

All parameters are displayed and set on a touch screen

Purchase information:

If you are interested in our High speed dispersion planetary mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Propeller speed & Power

Main pulp rotation: 0 ~ 140 RPM, 200W

Dispersion pulp: 2100 ~ 8100 RPM, (dispersion diameter Φ40mm) 200W

Main pulp revolution: 0-42RPM

Maximum power

1KW

Operating voltage

208-240V AC, 50/60HZ, single phase

Vacuum mixing tank

Dimensions Φ180 x 118 mm H

Volume 3.0L

Effective volume: 2.0L

Mixing tank lift stroke

340mm

Electric lift

Propeller structure

2 main mixing paddles (twist paddles)

1 dispersion slurry

1 wall scraping paste

Digital display viscometer

It is equipped with a digital viscometer   to detect the viscosity of the stirred slurry

Vacuum pump/circulating water cooler   (optional)

Optional vacuum pump (VRD-8) and   circulating water cooler (KJ-3000)

PLC control panel

Display and set parameters on one touch   frequency

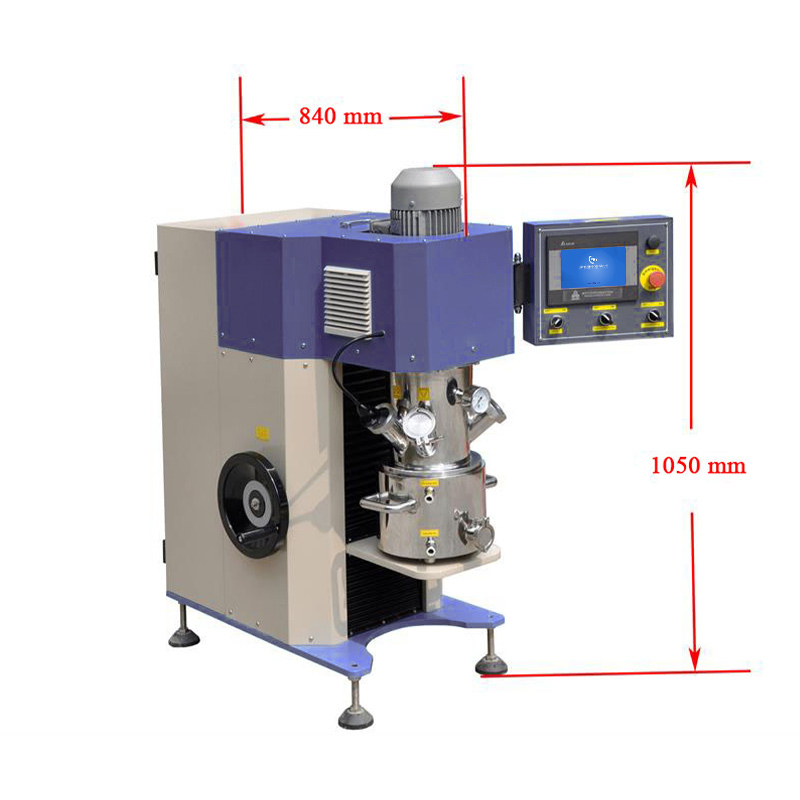

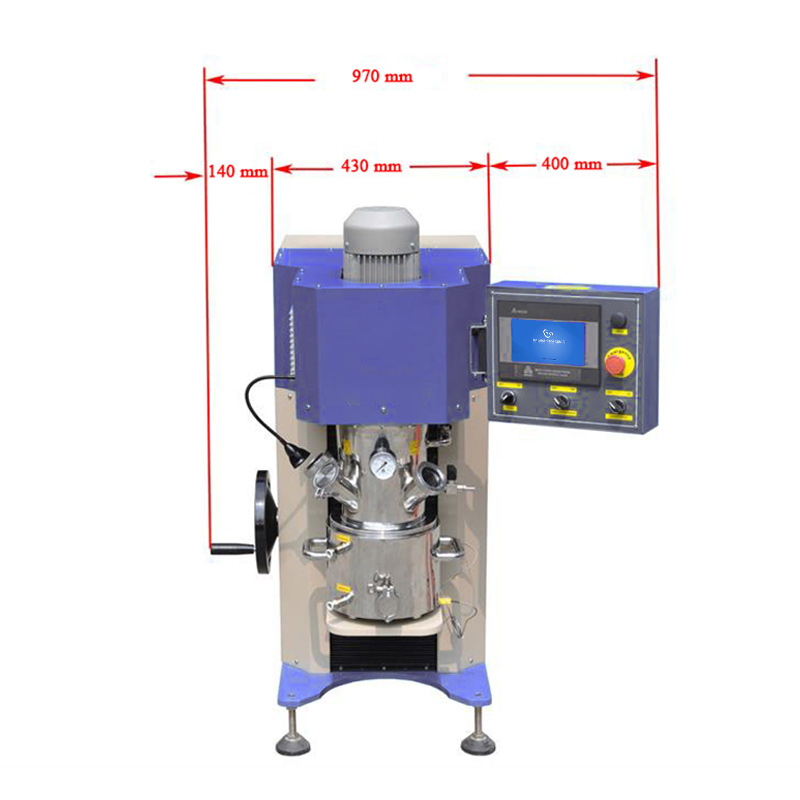

Instrument size

460 × 760 × 980 mm

Mixing tank size: Φ180mm × 135mm H

Net weight

228kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

The application field of high-speed dispersion planetary mixer is very wide, mainly including the following aspects:

1.  Chemical industry  : Suitable for the chemical industry liquid-liquid, solid-liquid, paste - paste, powder - paste and other materials mixing, reaction, dispersion, dissolution, homogenization, emulsification and other processes.

2.  New energy field  : Especially suitable for the mixing and dispersion of lithium battery slurry, positive and negative electrode materials, conductive slurry and other new energy materials.

3.  Electronic and Electrical industry  : Used for electronic adhesive, epoxy potting adhesive, structural adhesive and other electronic and electrical industry material preparation.

4.  Coating and ink industry  : widely used in coating, ink, dye, ink, color paste and other products stirring dispersion and dissolution.

5.  Pharmaceutical industry  : Suitable for the preparation of pharmaceutical products such as pharmaceutical intermediates, gels, fever-reducing stickers, and cloth agents.

6.  Cosmetics industry  : Used for the mixing of cosmetic raw materials, such as paste cosmetics, emulsions, etc.

7.  Food industry  : Suitable for paste food and additives mixing.

8.  Pesticide industry  : Used for the preparation of pesticides, suspension agents, emulsions and other products.

9.  Building materials  : Suitable for the production of silicone resin materials, sealants and other building materials.

10.  Adhesive industry  : Suitable for the mixing of high viscosity sealant, construction glue, viscose and other adhesives.

11.  Resin industry  : Suitable for mixing a variety of resin materials.

12.  Silicone industry  : Suitable for the mixing of silicone resin materials.

These application areas demonstrate the importance and versatility of high speed dispersion planetary mixers in different industries.
