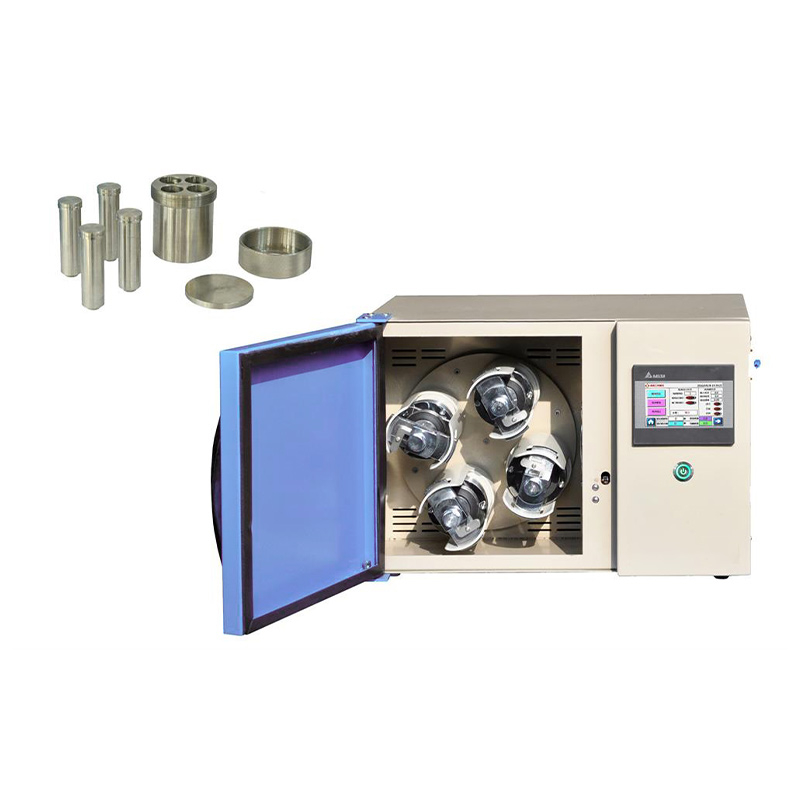

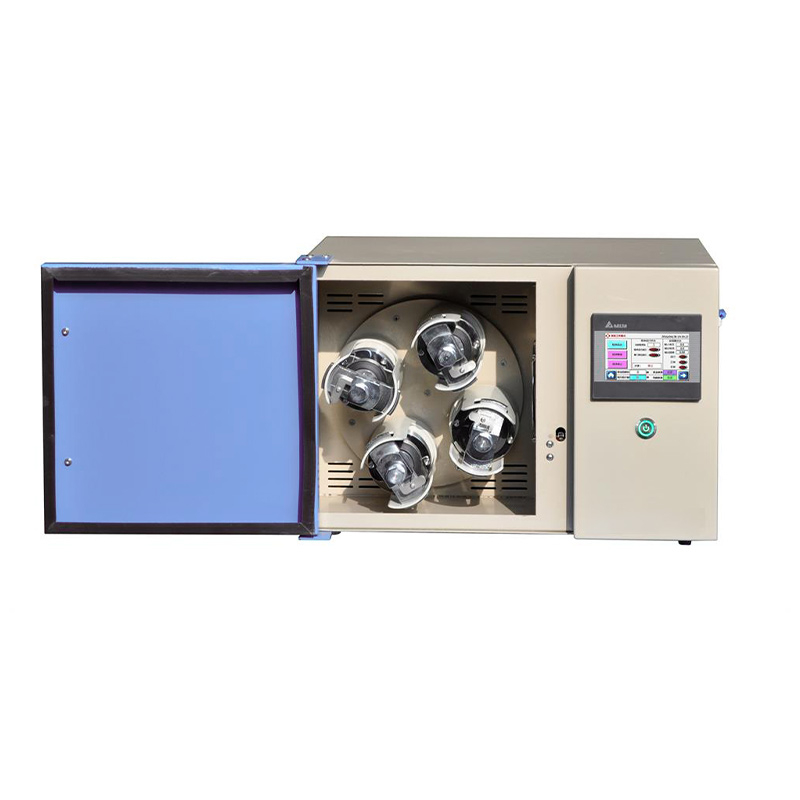

Lab Horizontal planetary mixer

    planetary ball mill, there are four mixing tanks on the rotary plate, the central axis of the mixing tank does planetary movement, and the grinding process is affected by the weight at the same time, making the crushing and grinding more efficient

CYKY-SFM-13 is a planetary ball mill, there are four mixing tanks on the rotary plate, the central axis of the mixing tank does planetary movement, and the grinding process is affected by the weight at the same time, making the crushing and grinding more efficient, and can effectively solve the deposition stratification phenomenon that may occur in the horizontal ball mill. The product can be crushed and mixed by dry and wet methods with different particle size and different materials, and is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.

Product characteristics:

Compact tabletop design with 4 grinding mixing tanks

Touch screen controller can be simple programming, can set the multi-stage speed regulation of grinding, rotation direction, grinding time and cycle grinding and other parameters

The material in the experiment is subjected to high centrifugal force, which can achieve efficient grinding of the sample

Suitable for mechanical alloying, mixing, homogenization and crushing

Purchase information:

If you are interested in our Horizontal planetary mixer, please contact us for more information and a quote.

Contact number: +8615617875939

E-mail: gordon@zztainuo.com

Contact: Gordon Zhang

Wechat: 15617875939

WhatsApp: +8613592553141

Technical parameters:

Basic parameter

Rated voltage: 220V AC

Maximum power: 750W

Revolution speed: 50-324rpm adjustable

Rotation speed: adjustable from 10-648rpm

Speed ratio: Revolution: rotation =1:2

Touch screen control system

Grinding speed and time digital display

Up to 5 speed controls

Store up to 10 programs

Rotation direction is optional, clockwise/counterclockwise   rotation

Sample discharge size

Feed size: brittle material < 10mm (other materials < 3mm)

Discharge size: wet grinding: average particle size < 1μm

Dry grinding: average particle size < 20μm

Note: The discharge size depends on the physical properties of the   material and the grinding process such as feed size, grinding medium and   grinding time. According to customer feedback, the minimum discharge size of   the device is 0.1μm

Grinding tank

4 fixed brackets can be directly installed 500ml ball mill tank,   or 250ml ball mill tank with nylon pad at the bottom

The company provides various materials grinding tank and grinding   ball to meet different experimental requirements, such as nylon, alumina,   zirconia, agate and other materials, you can contact our sales for more   details

Noise

55-70 decibels

Fixed installation

4 V-shaped fixed brackets

Easy to fix the tank body, can be directly installed 500ml ball   mill tank, or the bottom of the nylon pad can hold 250ml ball mill tank

Product size

755mm(L) x 495mm(W) x 535mm(H)

Net weight

96Kg

Main components:

Requirements

Specific specifications

Host

1 set

Application field:

Horizontal planetary mixers are widely used in many fields, including:

1.  Geology, minerals, metallurgy  : Used for material mixing and grinding in geological exploration, mineral development and metallurgical industry.

2.  Electronic  : In the electronics industry, horizontal planetary mixer can be used for the production of solder paste, ceramic paste, magnetic materials, silicone inks, electronic adhesives, etc.

3.  Building materials  : In the field of building materials, the mixer can be used to produce various sealants, adhesives and other products.

4.  Ceramic  : Used for raw material mixing and grinding in the ceramic industry.

5.  Chemical industry  : Suitable for mixing, dissolving, dispersing, homogenizing and other processes of various mixed liquids and powders in the chemical industry.

6.  Light industry  : In the light industry, the mixer can be used to produce a variety of ointment, polymer gel and other products.

7.  Medicine  : In the pharmaceutical industry, the horizontal planetary mixer can be used for the preparation of various ointment, polymer gel, etc.

8.  Environmental protection  : In the field of environmental protection, the mixer can be used to deal with a variety of environmentally friendly materials and processes.

9.  Energy  : Horizontal planetary mixer can be used for the production of various battery slurries and pastes, such as lithium batteries, nickel-chromium batteries, nickel-metal hydride batteries, etc.

10.  Cosmetics, daily chemicals  : In the cosmetics and daily chemicals industry, mixing machines can be used to produce moisturizer, lipstick, lotion, gel, facial mask and other products.

These application areas demonstrate the versatility and importance of horizontal planetary mixers in different industries.
